Antenna and electrical specifications

connection 1

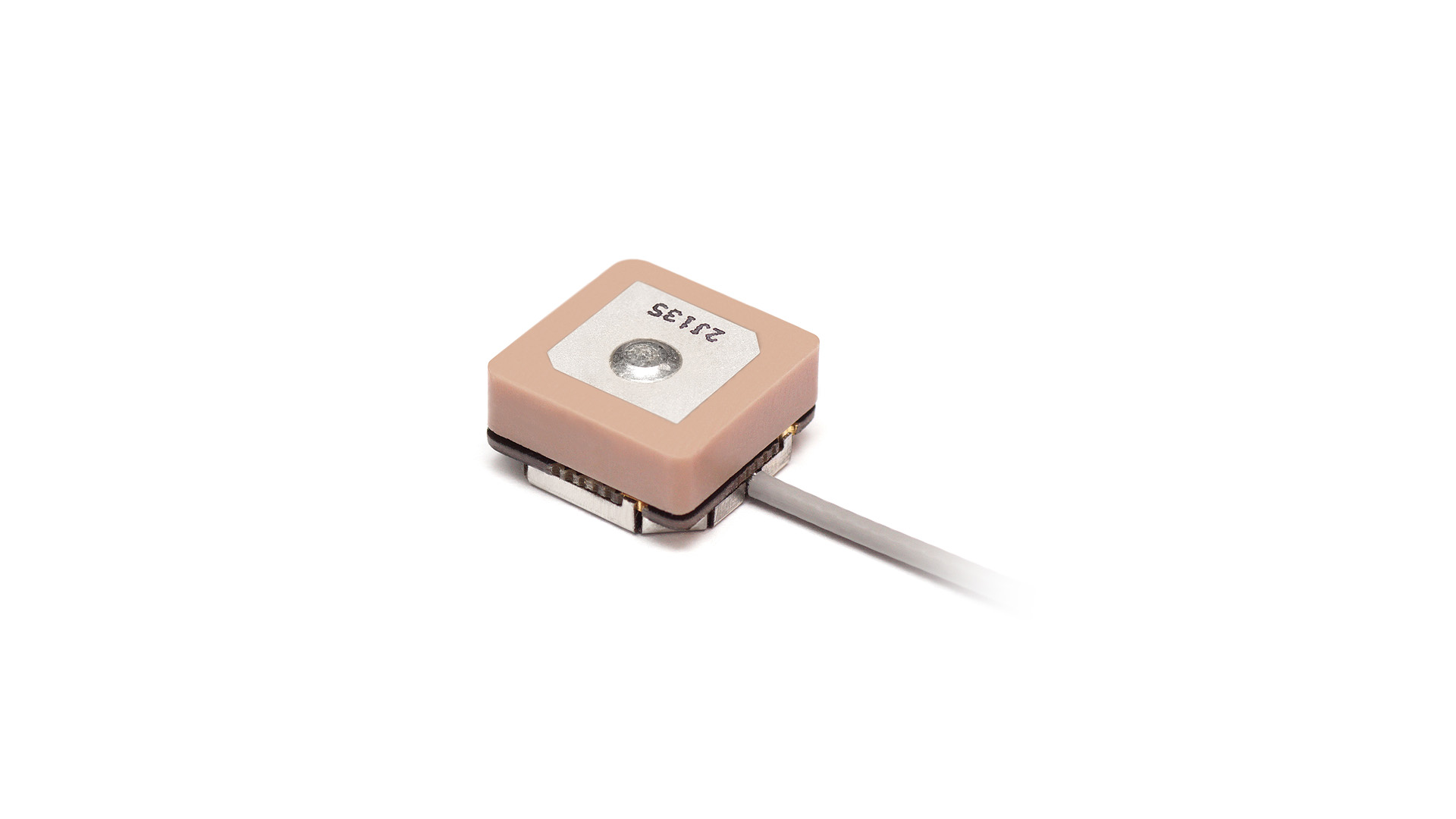

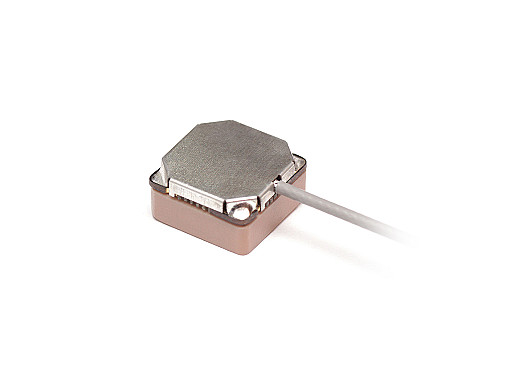

GPS/GLONASS - Ceramic Active Antenna

Standards GPS/GLONASS/QZSS/Galileo
Frequency 1575.42, 1598-1606
Passive Gain (dBi) ~2.0
Impedance (Ohm) 50
Voltage Range (V) 1.5 - 3.6
Active Gain (dB) 28 @ 2.7 V
Noise Figure (dB) 1.0 @ 2.7 V
Current Consumption (mA) 9 @ 2.7 V
Saw Filter Type Mid-Filter
Out of Band Rejection (dB) 43
ESD Protection (kV) 2
Power Consumption (mW) 24.3 @ 2.7 V

Key Features

Active GNSS Antenna
Internal Antenna
Ground Plane Independent
28 dB GNSS Active Gain
Mid-Filter GNSS
Voltage Range 1.5 - 3.6 V
Low Noise Figure
Low Power Consumption
Small Form Factor
