Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards GSM, CDMA, DCS, PCS, GPRS, WCDMA, UMTS, HSPA, EVDO and LTE
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~2.4:1, ~1.6:1, ~2.2:1
Efficiency (%) ~62, ~75, ~50
Peak Gain (dBi) ~0.4, ~2.6, ~1.3
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

High Performance
Connector Mount
Ultra Wide band Antenna
Hinged Connector

Applications

Antenna description

2JW0124z-C868B



Made for worldwide cellular applications

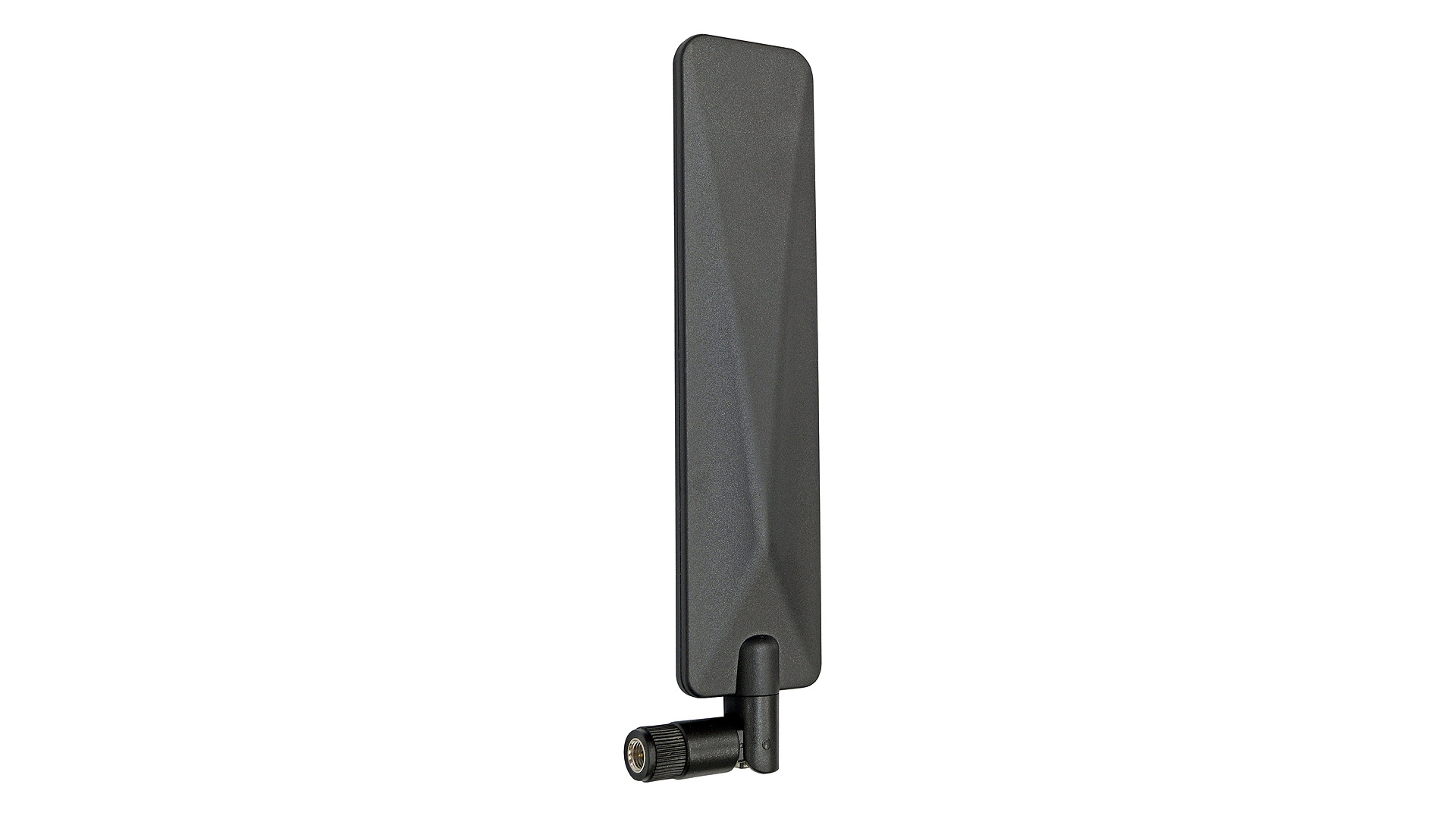

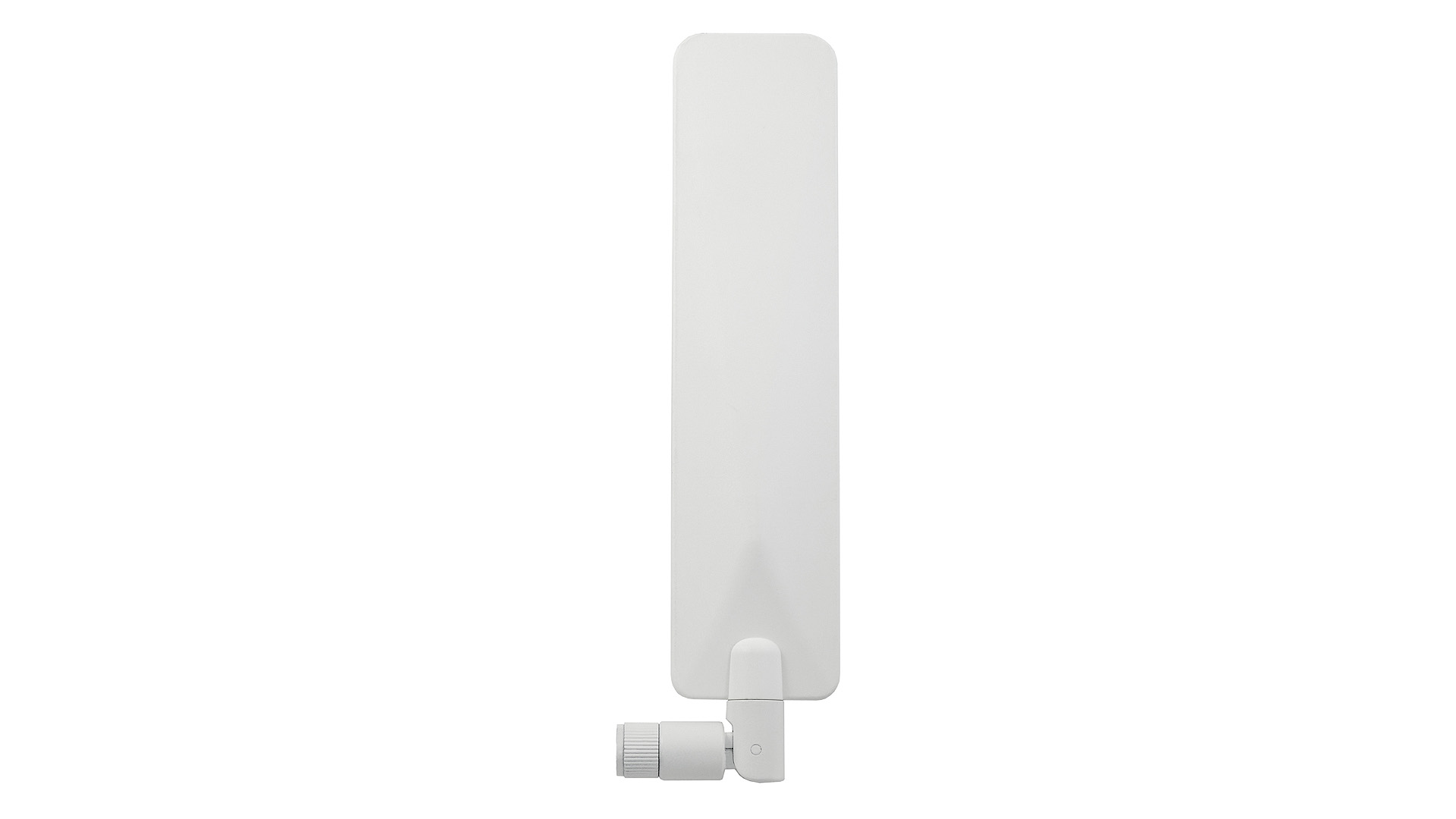

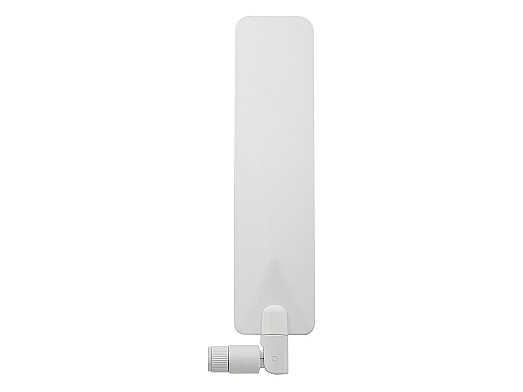

The 2JW0124z antenna is an ultra wideband performance connector mount antenna solution for worldwide cellular applications operating within the 4G, 3G and 2G standards. This series is compatible with GSM, CDMA, DCS, PCS, GPRS, WCDMA, UMTS, HSPA, EVDO and LTE technologies, covering all cellular bands ranging from 698-960, 1710-2170 and 2500-2700 MHz. With a 75% high-efficiency, 3.0dB average gain, and omnidirectional properties, this antenna provides consistent and stable connectivity with high throughput data to access points, routers, small base station, femtocells, repeaters, boosters, fleet management devices and other telematics devices with cellular needs.

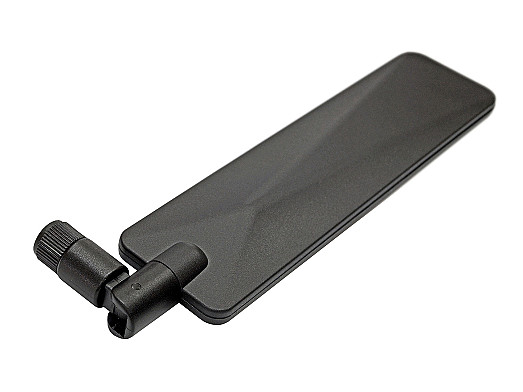

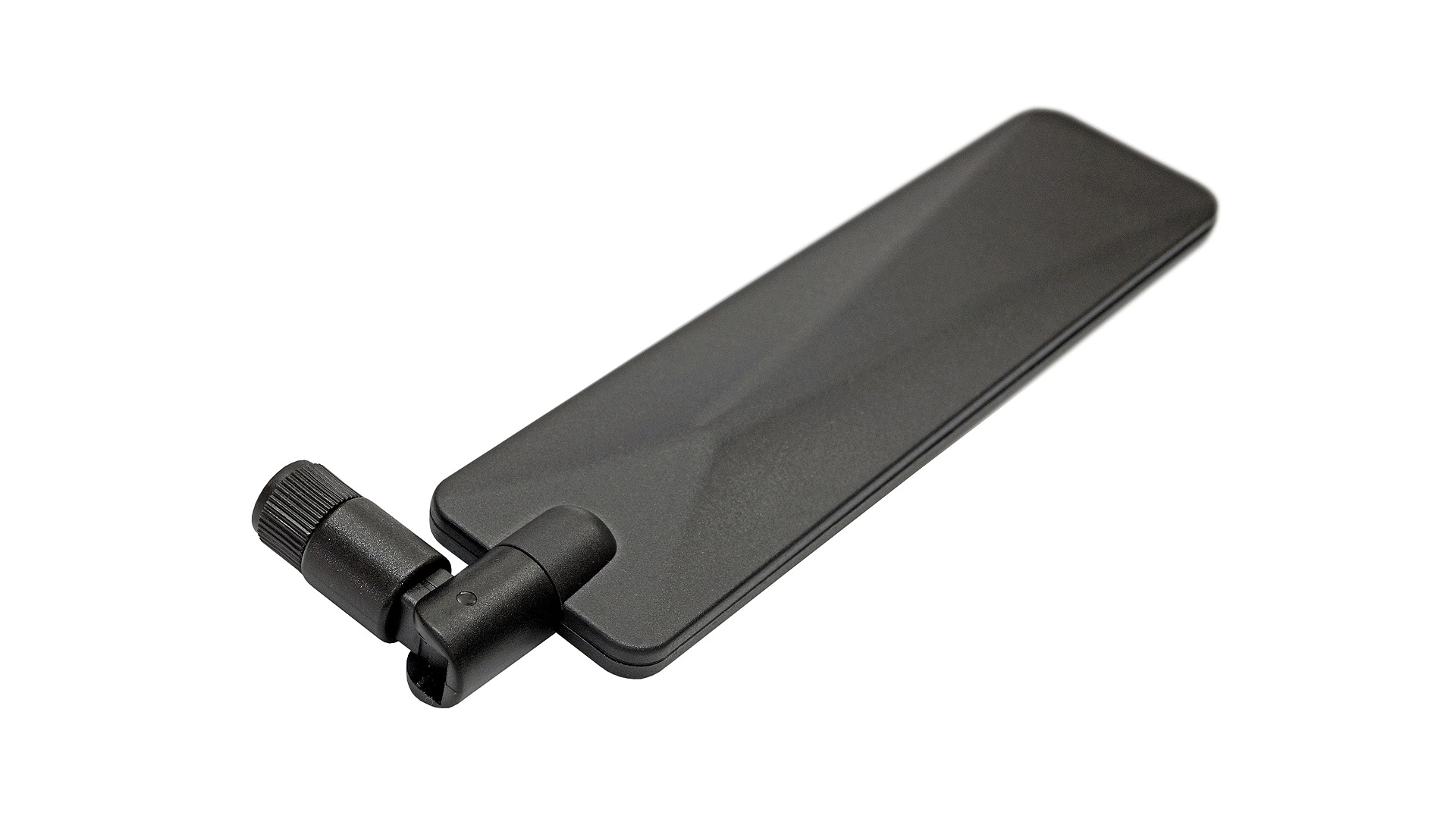

This antenna is ideal for major carrier approvals and certification process around the globe. The antenna can freely swivel 360 degrees and features a hinged connector up to 90 degrees, providing flexibility in orientation with respect to the device for easier installation or multiple antenna mounting options.

Installation

There are two variations of mounting swivels allowing for multiple antennas on devices with MIMO systems. Connector types can be selected between SMA-Male, RP SMA-Male or N-Male. See the different swivel orientation on 2JW0124 antenna.

Durability

The 2JW0124 series is intended for indoor and internal use only. As a protective measure, the housing is built out of UV Stable PC/ABS with a range for an operating temperature of -40C to +85C. All antennas are manufactured using RoHS, REACH compliance.



Typical applications

- Infotainment systems
- HD video transmission
- Dash cameras
- Connected cars
- Self-driving cars
- Fleet management
- Gateways
- Routers
- Public transportation
- Logistics
- And others

Compatibility Standards

LTE Connection
- CAT 1 2 3 4 5 6 8 9 10 11 12
- NB-IoT, LTE-NB1, CAT-M1, CAT-M2
- WCDMA, UMTS, HSPA, EDGE GRPS, GSM, CDMA











Key Features

- Variations with different swivel orientation, SMA-Male, RP SMA-Male or N-Male connectors
- Sustained High Efficiency and Performance
- NB-IoT and Portable Devices friendly
- Ground Plane Independent
- Ultra Wide band Antenna
- Easy Integration
- Hinged Connector
- Size smart and elegant
- Different colors available upon request
