|Technologies||5G, 4G, 3G and 2G|
|Frequency||617-960, 1427-2690, 3300-5000, 5150-5925|
|Return Loss (dB)||~-9.0, ~-11.4, ~-5.8, ~-4.0|
|VSWR||~2.8:1, ~1.9:1, ~3.3:1, ~4.6:1|
|Efficiency (%)||~55.3, ~70.8, ~55.5, ~35.2|
|Peak Gain (dBi)||~0.5, ~3.3, ~4.0, ~2.6|
|Max. Input Power (W)||25|
|Band (MHz)||600, 700, 850, 900||1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
|3300, 3500, 3600, 3700, 4500||5200, 5500, 5800|
|5GNR Bands||n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
|n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
|n77, n78, n79|
|4GLTE Bands||B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
|B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
|B22, B42, B43, B48,
|B46, B47, B252, B255|
|3GCELL Bands||B5, B6, B8, B12, B13, B14,
B19, B20, B26
|B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
|2GCELL Bands||710, 750, 810T, 850, 900P,
|CDMACELL Bands||BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
|BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
Ultra-Thin Wideband Antenna That Brings Superior Performance to 5GNR Applications

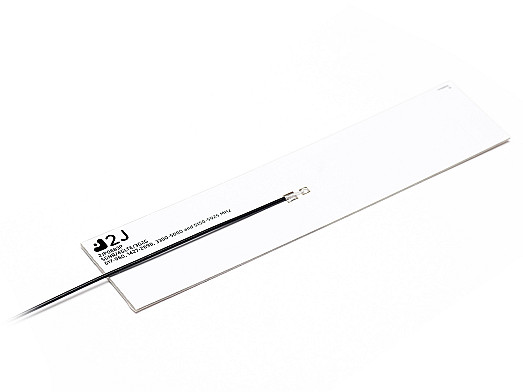

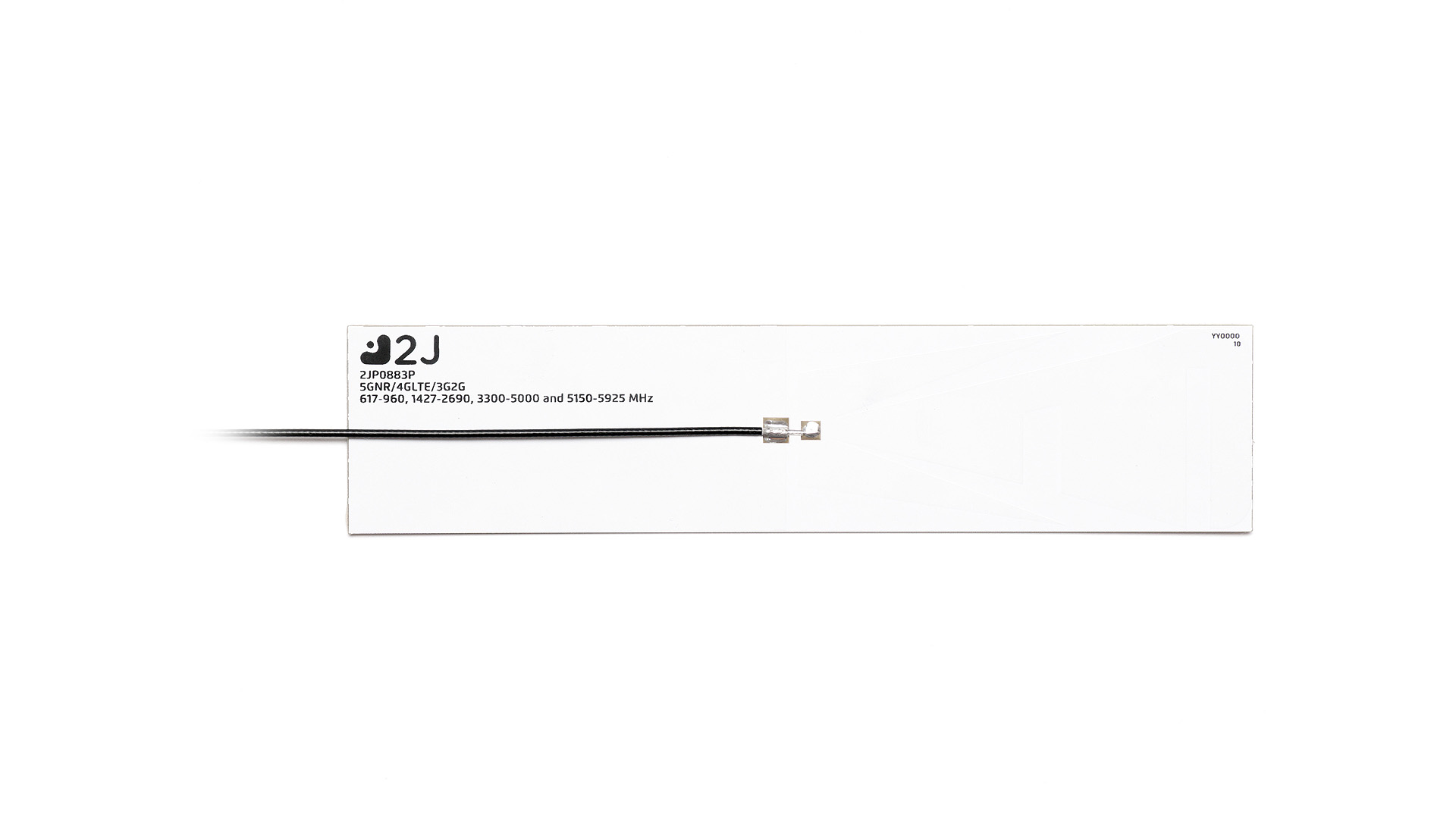

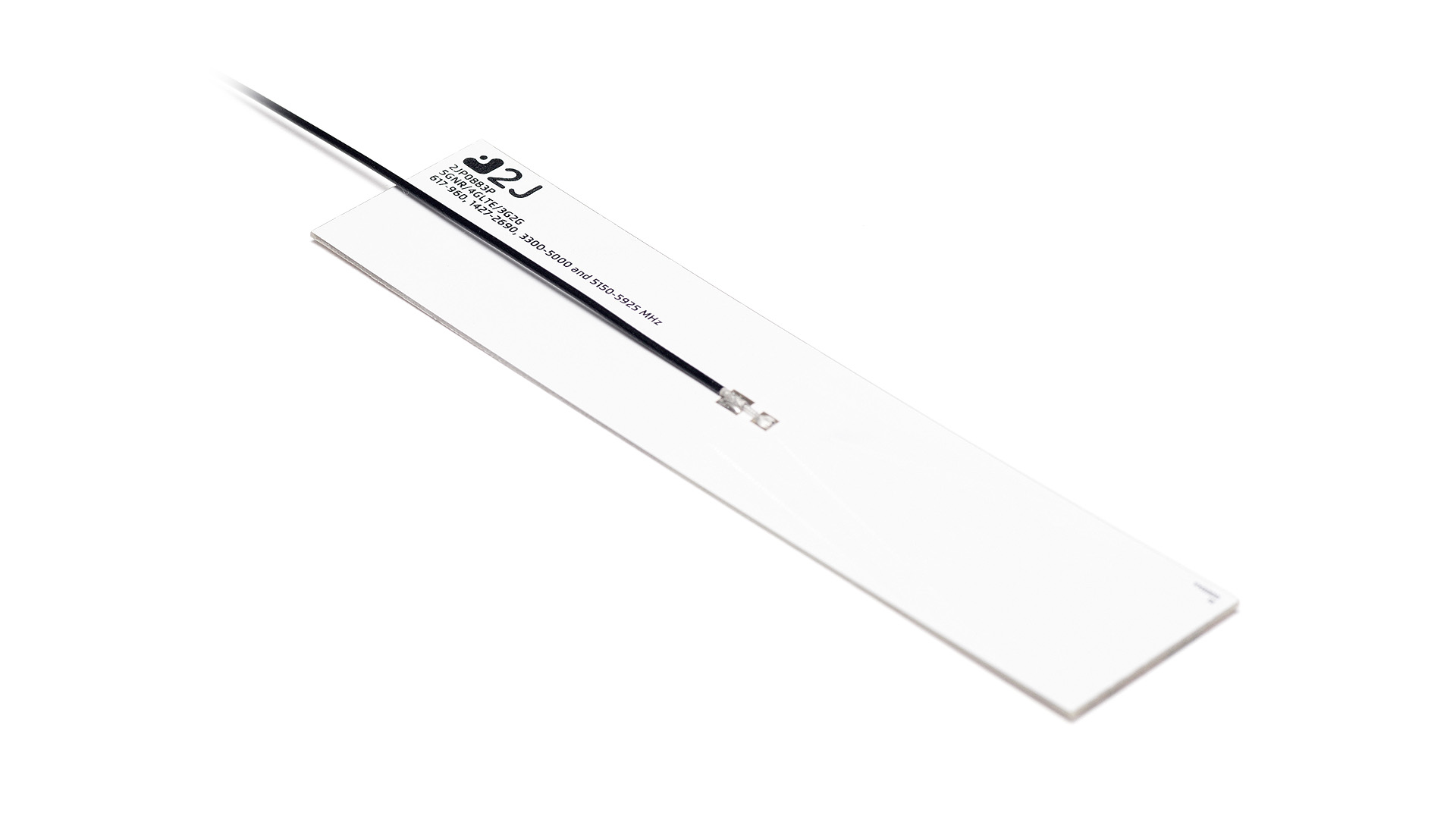

The next-generation 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G rigid fiberglass antenna (2JP0883P) operates within 617MHz - 5925MHz frequencies for Sub6GHz spectrum via an omni-directional radiation pattern. Fully compatible with existing LTE networks and integrated with Cat-X, this antenna is also compatible with the new 5GNR technology enhancing mobile broadband and ultra-reliable low-latency communications. This antenna also includes FirstNet technology offering interoperability for public safety communications required in public safety devices.
Suggested applications include:
- Industrial / Commercial and Residential IoT
- Consumer Electronics / Wearables
- Public Safety Broadband Devices
- Business / Home Automation Devices
- Transportation / Automotive
- Robotics / Automation
- Drones and UAV’s
This high-performance antenna is offered in a peel-and-stick configuration while maintaining a low cost, high efficiency, superior reliability, and low device power consumption making it the first choice for high volume device manufacturers.
Installation and Durability
Designed with rigid fiberglass RF materials and also available in high-grade flexible polymer, this antenna gives resistance to chemicals in corrosive applications making it ideal for outdoor or indoor devices that operate within moist environments and temperatures ranging from -40C to +85C.
With ultra-compact dimensions of 152 x 35 x 1mm, high-grade adhesive mounting and ground plane independence allow for a wide range of installation configurations within restricted spaces. Also available in alternative sizes to target various verticals and devices found in the quickly changing IoT industries.
For optimal performance, we recommend maximizing the position, orientation, cable routing and the tuning of matching components during the antenna integration process, please contact our Sales Department. The 2JP0883P comes with a standard U.FL connector and 1.37mm Mini-Coax cable measuring 180mm in length.
Our team of experts is available to assist in customization options by offering a wide range of alternative connectors and cables for absolute customer satisfaction. We also offer antenna integration services including full antenna parameter reports for impedance and OTA (over the air) measurements.
2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.
