Antenna and electrical specifications

connection 1


Technologies 5G, 4G, 3G and 2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-6.9, ~-15.9, ~-15.0, ~-6.7
VSWR ~2.7:1, ~1.5:1, ~1.6:1, ~2.8:1
Efficiency (%) ~40.2, ~47.3, ~35.3, ~22.1
Peak Gain (dBi) ~2.5, ~5.0, ~4.8, ~3.3
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25
connection 2


Technologies 5G, 4G, 3G and 2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-7.1, ~-15.4, ~-18.1, ~-9.2
VSWR ~2.7:1, ~1.5:1, ~1.4:1, ~2.1:1
Efficiency (%) ~40.7, ~46.9, ~39.8, ~33.8
Peak Gain (dBi) ~2.5, ~5.0, ~5.4, ~4.4
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25
connection 3

2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency 2410-2490, 4920-5925, 5925-7125
VSWR ~1.5:1, ~1.3:1, ~1.8:1
Efficiency (%) ~49.2, ~48.2, ~32.1
Peak Gain (dBi) ~4.2, ~6.4, ~5.3
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 4


Standards GPS/GLONASS/QZSS/Galileo
Frequency 1575.42, 1598-1610
VSWR <=1.4:1
Impedance (Ohm) 50
Polarisation RHCP
Radiation Pattern Hemispherical
Voltage Range (V) 1.5 - 3.6
Active Gain (dB) 28 @ 2.7 V
Noise Figure (dB) 1.5 @ 2.7 V
Current Consumption (mA) 9 @ 2.7 V
Saw Filter Type Pre-Filter
ESD Protection (kV) 2

Key Features

4-in-1 Combination Antenna
Ultra Wide band Antenna
617-5925 MHz Sub 6GHz Bands
WIFI 6E / WIFI 7 Antenna
Ground Plane Independent
Full 4GLTE backward compatibility
5.4 dBi 5G NR Peak Gain
6.4 dBi WIFI Peak Gain
High Performance
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
Customizable Cable and Connector

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21


Antenna Description

Number 1 Antenna for Law Enforcement Communications

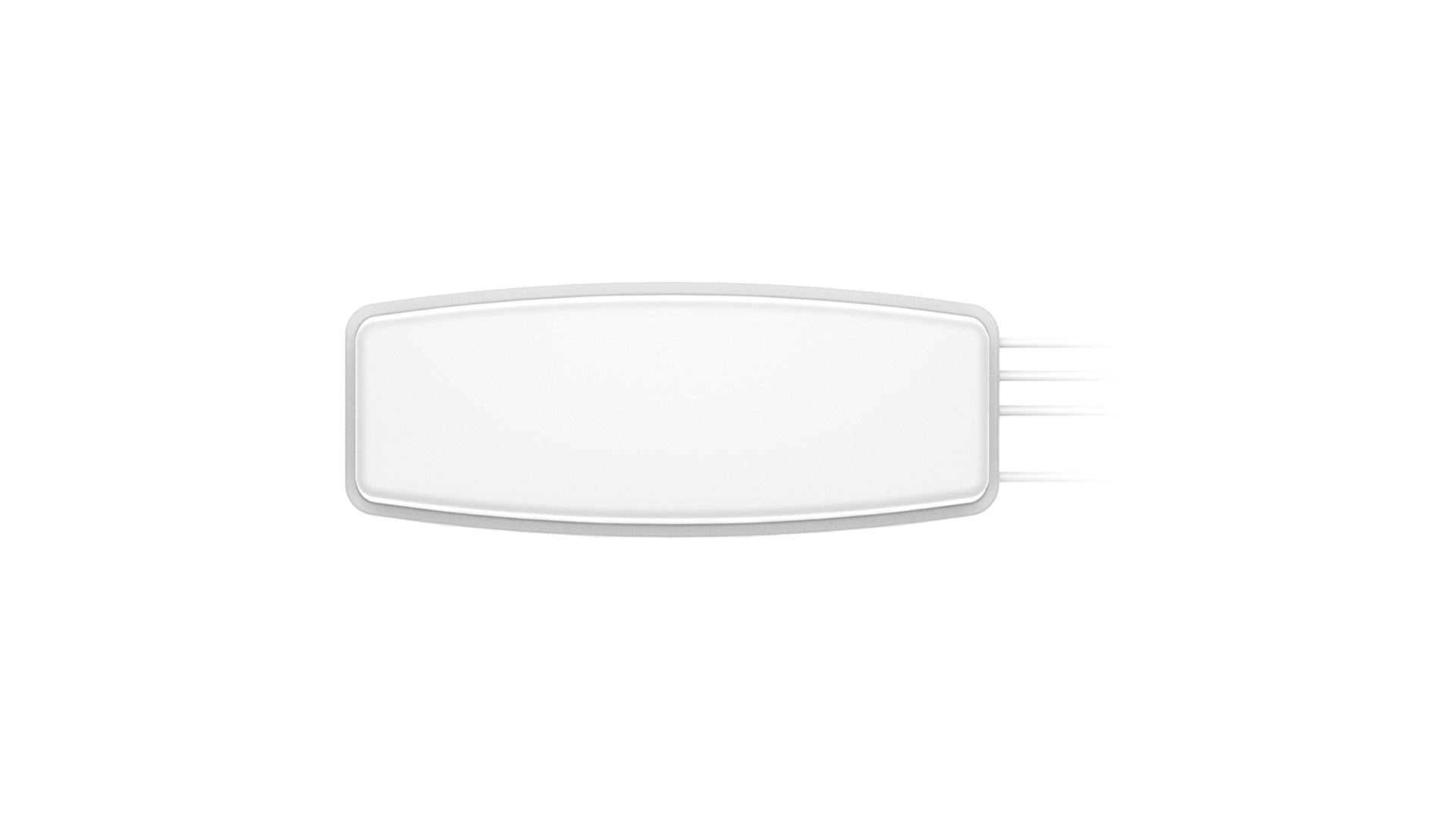

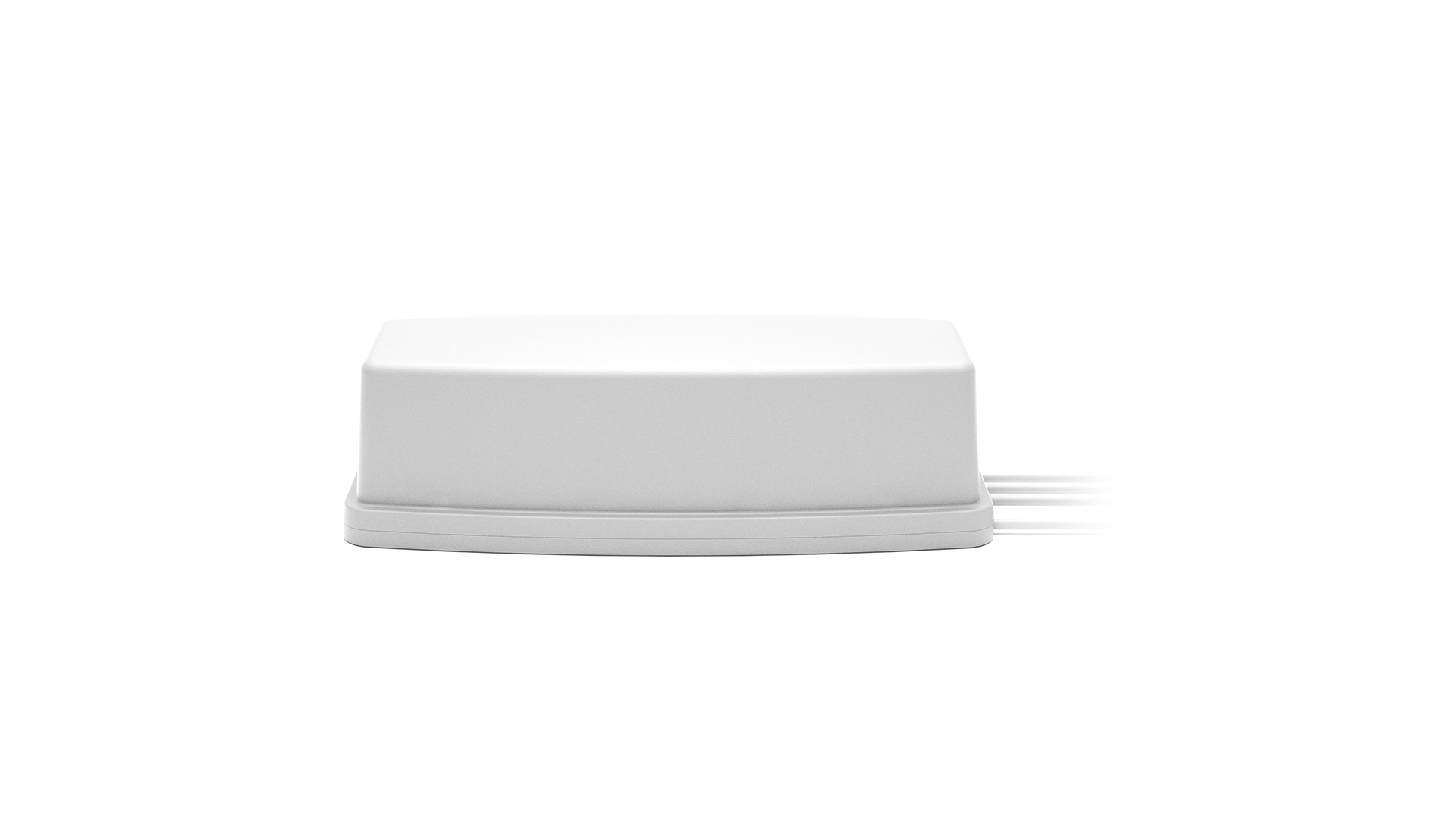

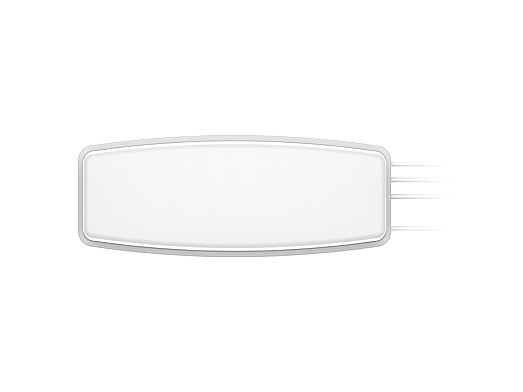

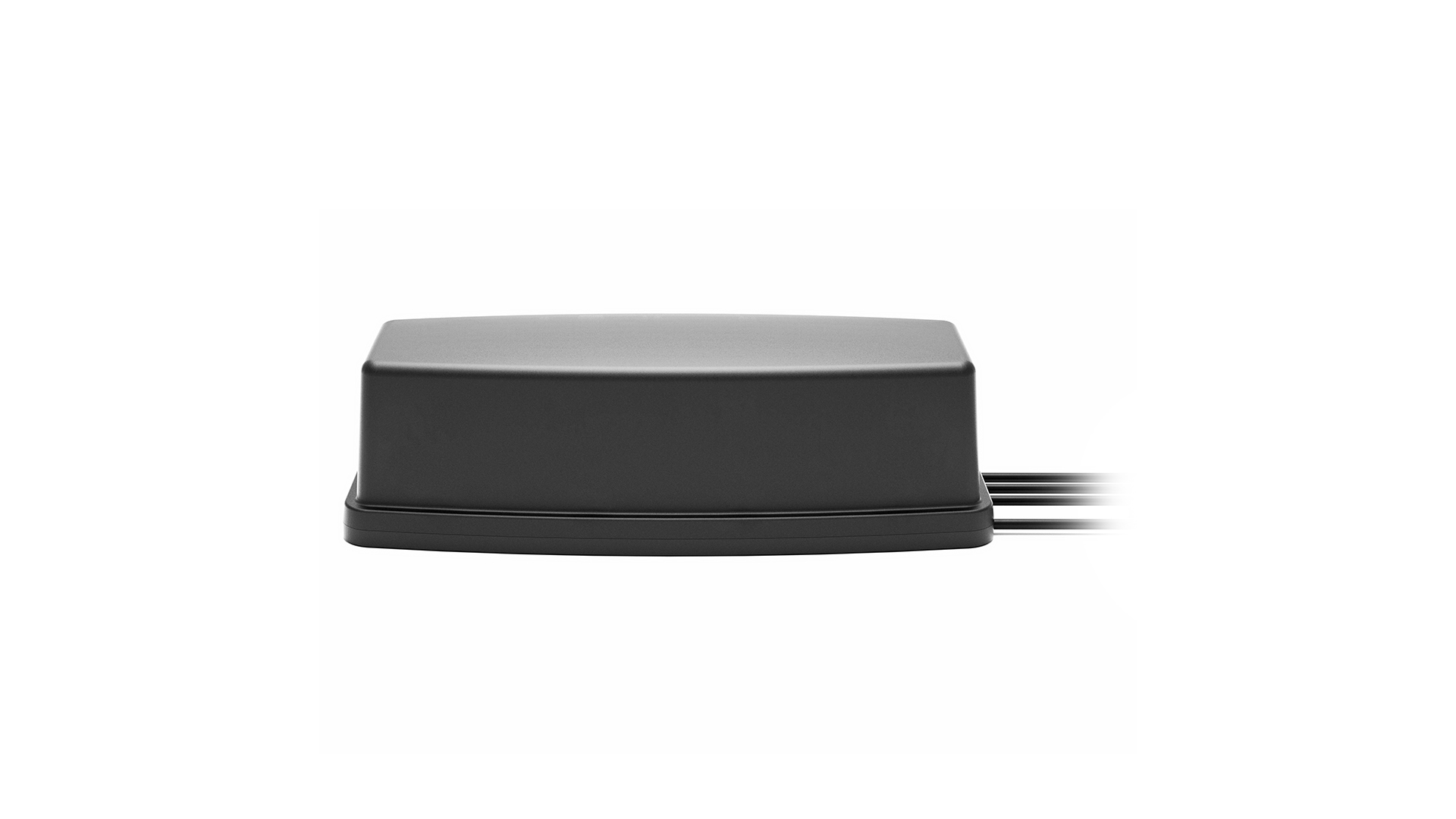

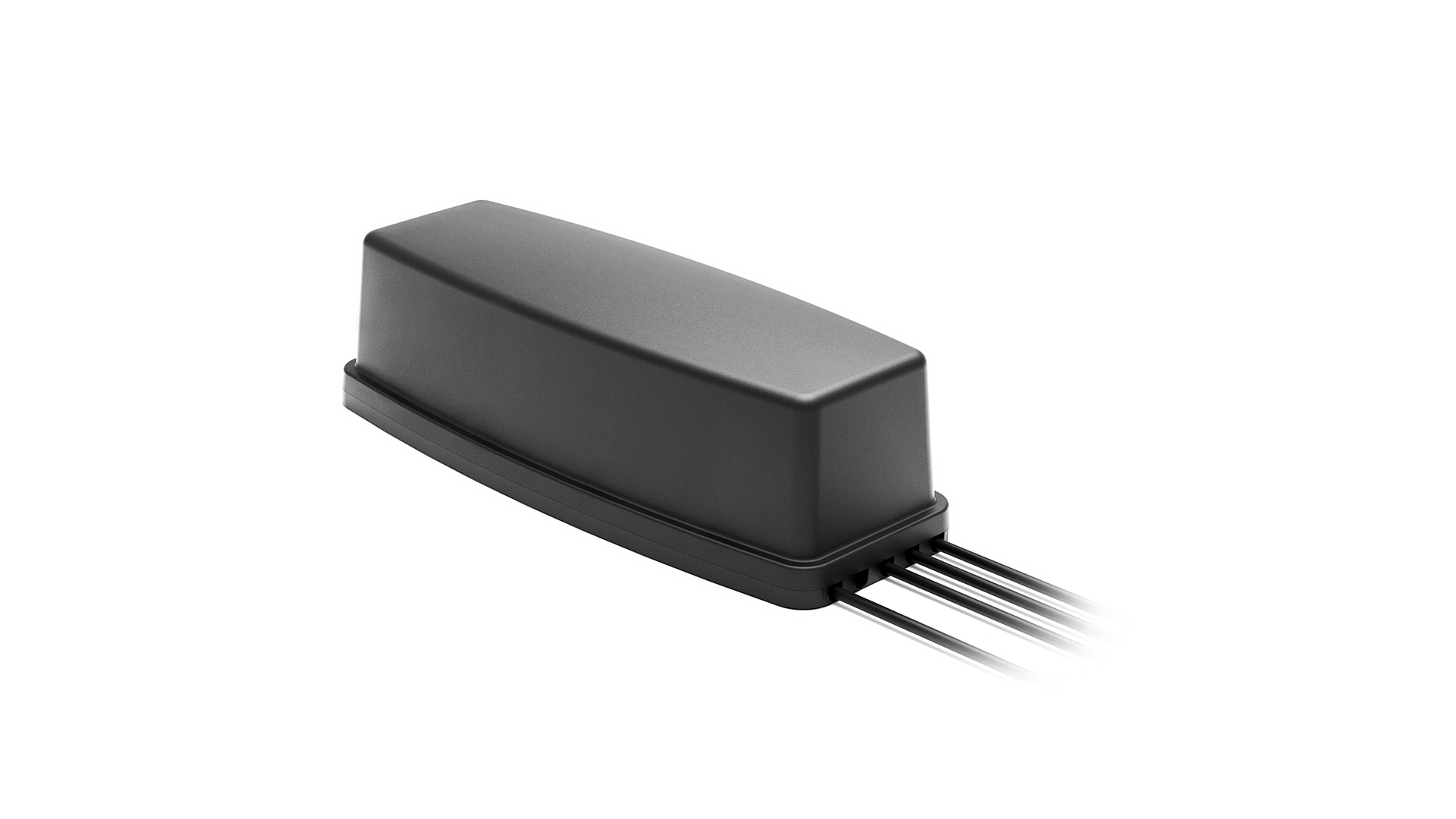

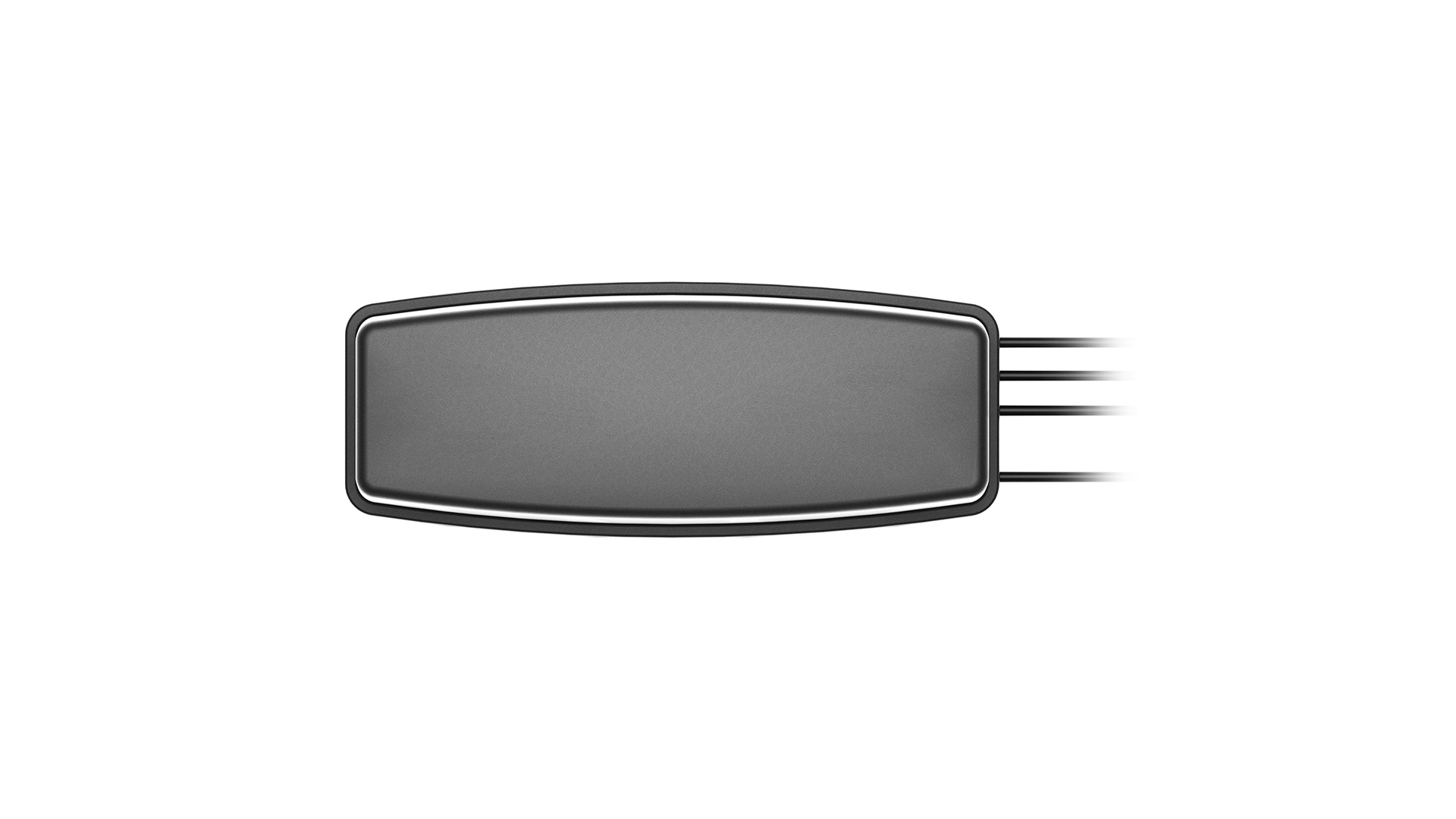

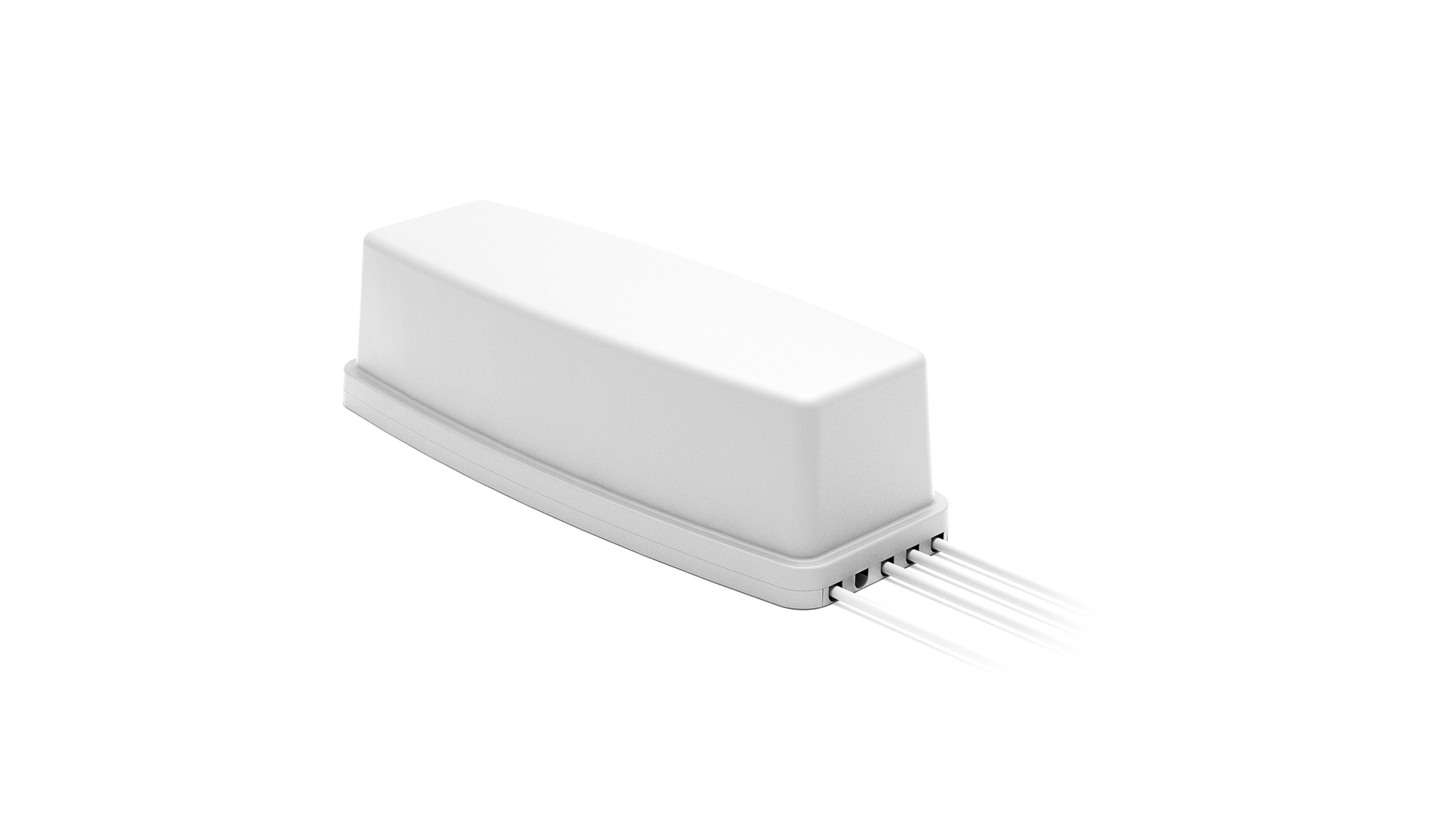

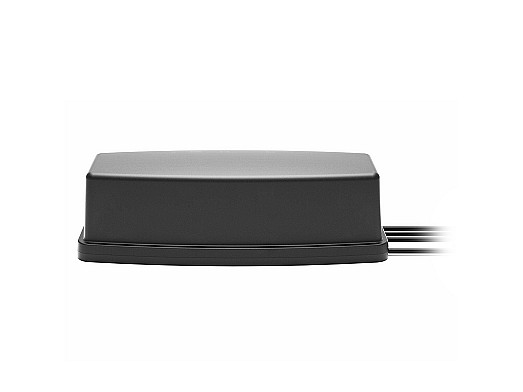

2J Antennas is adding the newly designed patent pending 4-in-1 5GNR MIMO, WIFI 6E / WIFI 7 2.4/5.0/6.0 GHz ISM and GNSS I-Bar Magnetic Mount Antenna (2J6C86MGFc) to its Bullion Series. This ultra wide-band, high performance, lightweight and compact solution is only 56.1 mm in height and is 4G LTE backwards compatible. This low-profile antenna is uniquely designed to fit perfectly between SUV roof ridge which makes it an excellent option for law enforcement, transportation and fleet applications. The Bullion Series also offers single and up to 5-in-1 antenna configurations with magnetic or screw mounting options. This antenna series is a popular no-drill choice for automotive OEM manufacturers and aftermarket distributors.


Suggested applications include:

  • Wireless broadband communications
  • Private Networking
  • Cellular and Mobile Data and Voice
  • Data Terminals, Base Stations and Routers
  • Critical Communications and Public Safety
    • Law Enforcement
    • Medical Transportation
    • Fire Departments
  • Precision Navigation
  • Tracking/ Mapping
  • Industrial Machinery
  • Automotive and Transportation
  • Telematics
  • Utilities


2 x Cellular 5GNR/4G LTE/3G/2G MIMO

Cables 1 and 2 are designed for cellular and mobile devices that operate within 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-MX, CAT-NBX, NB-IoT, 3G and 2G standards. This antenna is tuned with high gain (max ~5.4 dBi) and high efficiency (max ~47.3%). These cables are ideal for devices that operate within 617 – 5925 MHz frequency bands while maintaining full range 360-degree signal strength and quality.


1 X WIFI 6E / WIFI 7 2.4/5.0/6.0 GHz ISM MIMO

Cable 3 is designed for LPWA devices that operate within Wifi, BT, ZigBee, ISM, SigFox and LoRa standards. The 2.4/5.0/6.0 GHz bands and WIFI 6E / WIFI 7 technology combine long-range, short-range, and very large capacity without competing with traffic from other devices or networks. This results in high bandwidth channels, improved security, less interference, and reduced network congestion making it ideal for applications that demand faster WiFi and consistent network availability.



Cable 4 is designed for precision navigational applications that operate within GPS, GLONASS, Galileo and QZSS standards. The signal radiates on all planes and maximizes connectivity by avoiding conflict with propagating signals common with penetrating obstructions and dead spots in urban areas. This connection can maintain an active gain of 28 dB @ 2.7 V. Designed with electrostatic discharge (ESD) protection for up to 2KV and a SAW pre-filter blocking inadequate frequencies (within 1575-1602 MHz) from passing from the antenna to the receiver.


Installation / Environmental

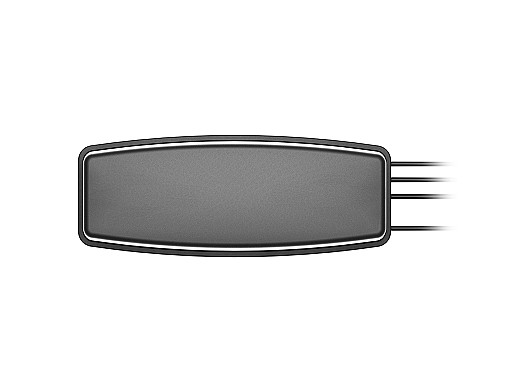

The superior stacked neodymium magnetic mount offers heavy duty magnetic strength and allows for quick on-and-off installations on any metal surfaces such as vehicles, metal buildings and steel towers. (See product 2J6C868BCFa for screw mount option). The fully IP67/IP69 rated lightweight  is manufactured with ASA UV stable material that provides protection against water and moisture while maintaining optimal operation in outdoor applications. This ground plane independent antenna measures only 193 x 76.3 x 56.1 mm and is ideal for temporary SUV roof installations with a perfect fit in the vehicle roof indentations.

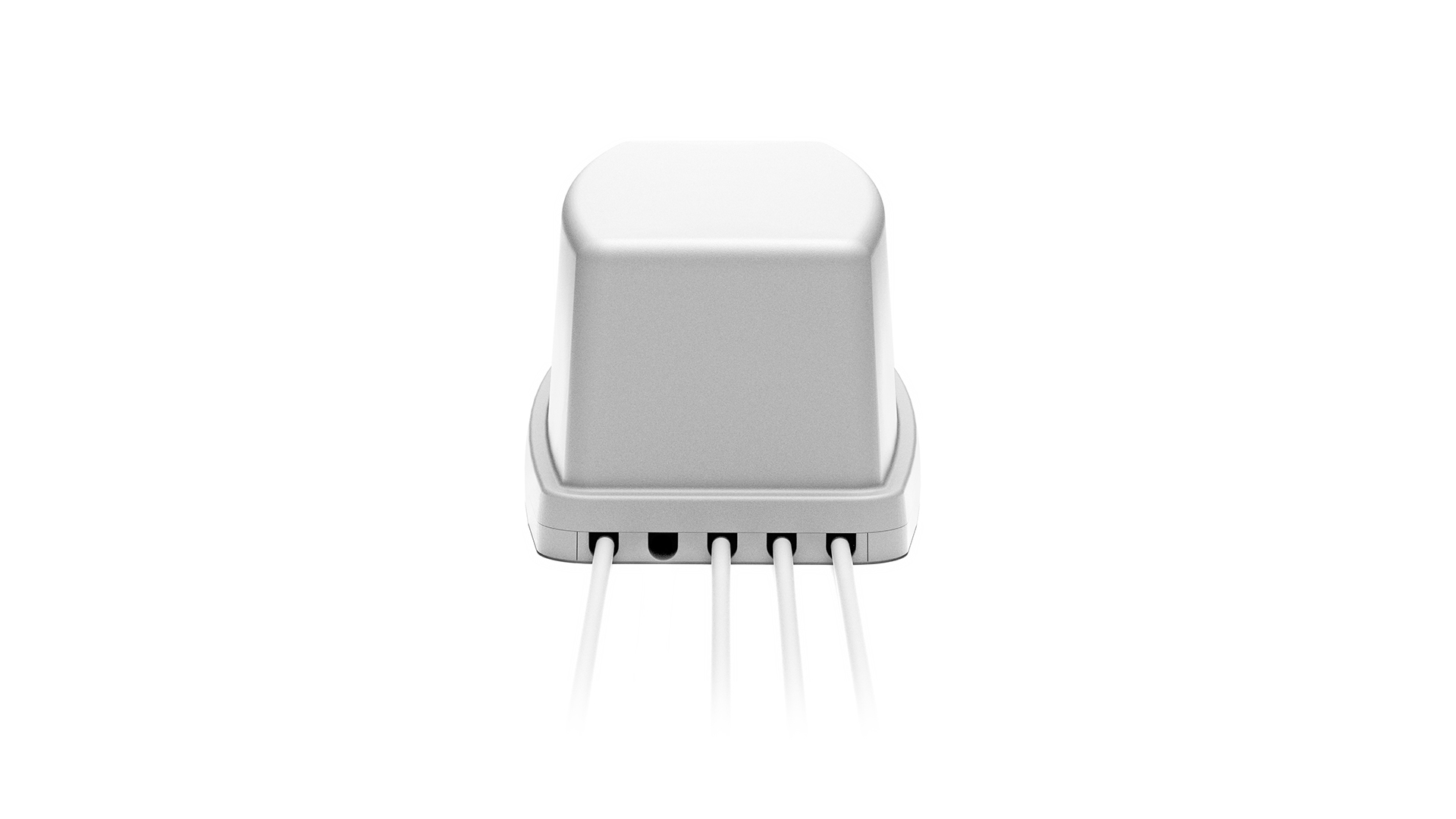

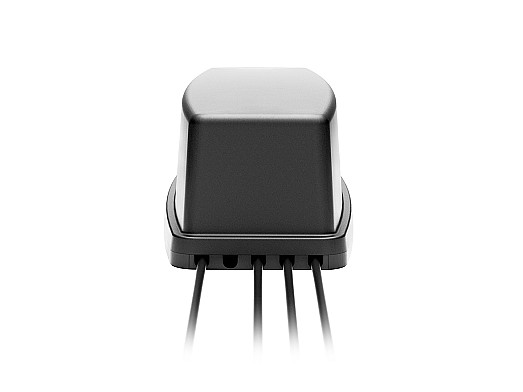

Cables 1-3 are low loss D302 cables and cable 4 is LL100 that measure 300 cm in length and feed through the shortest side of the antenna housing ending with SMA-Male connectors for a secure connection. The standard cables are tuned for optimal performance, but we also offer a wide range of alternative connectors and cables for any customization needs.

All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.
