Antenna and electrical specifications

connection 1

IRIDIUM

Standards IRIDIUM
Frequency 1616-1627
Peak Gain (dBic) ~4.5
Efficiency (%) ~76.6
Radiation Pattern Hemispherical
Polarization RHCP

Key Features

Iridium Certified Antenna
Ground Plane Independent
Screw Mount
High Gain
Anti-Rotation Mechanism
certificates: IP67, IP69
Customizable Cable and Connector

Antenna Description

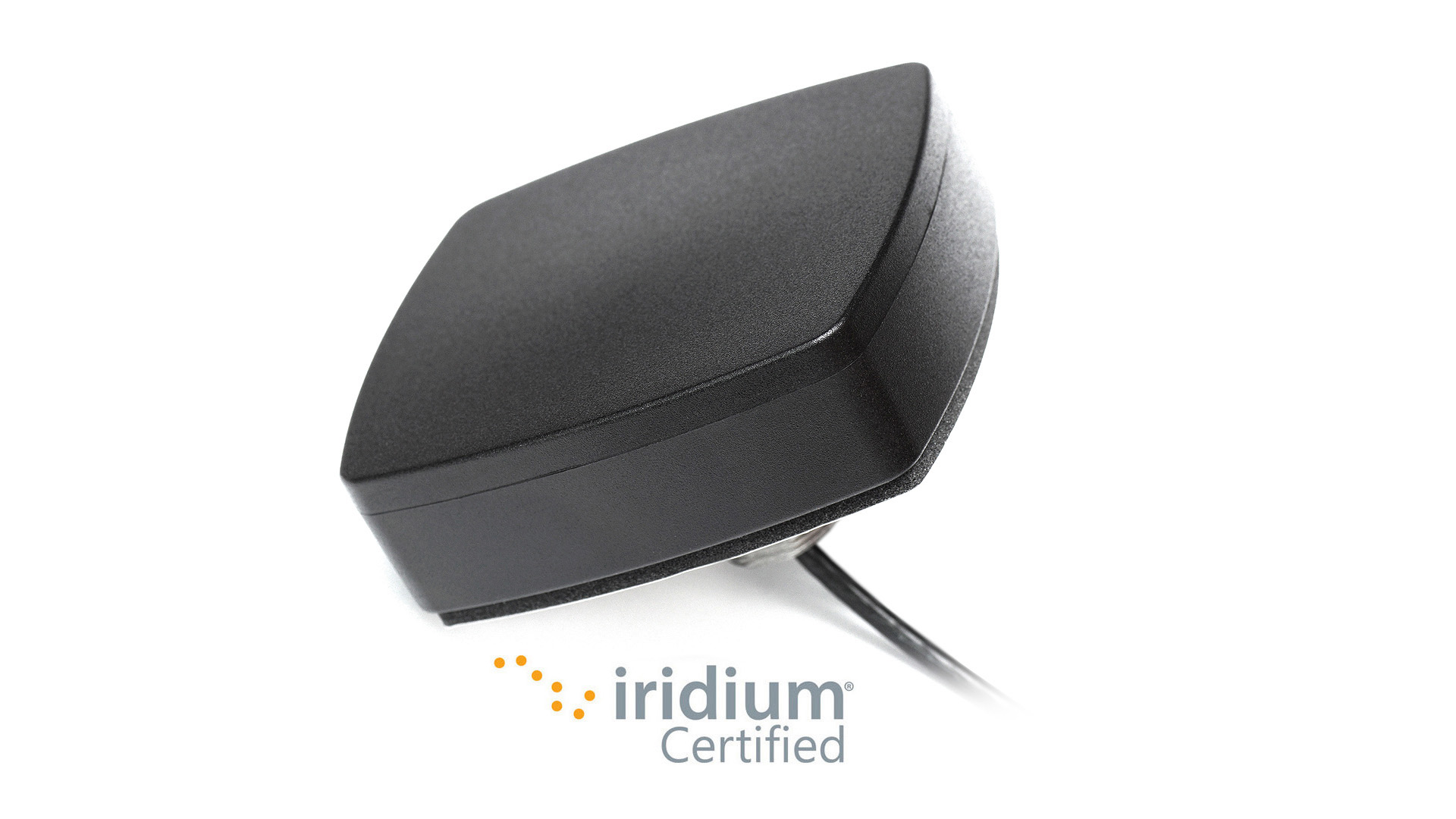

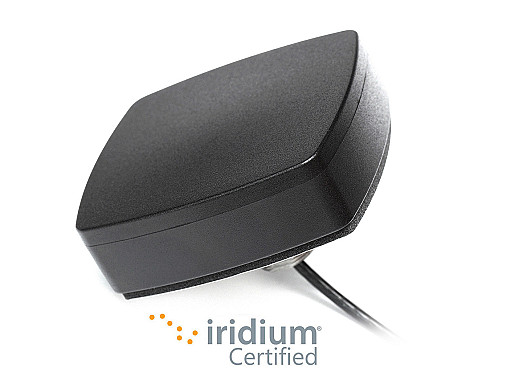

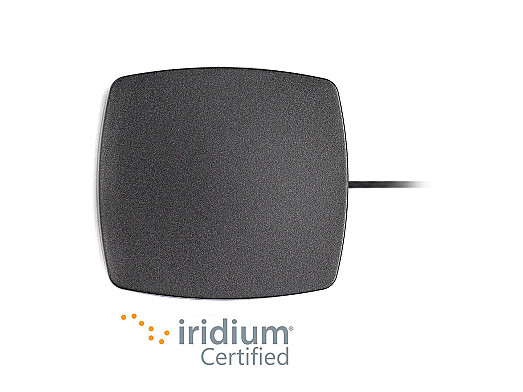

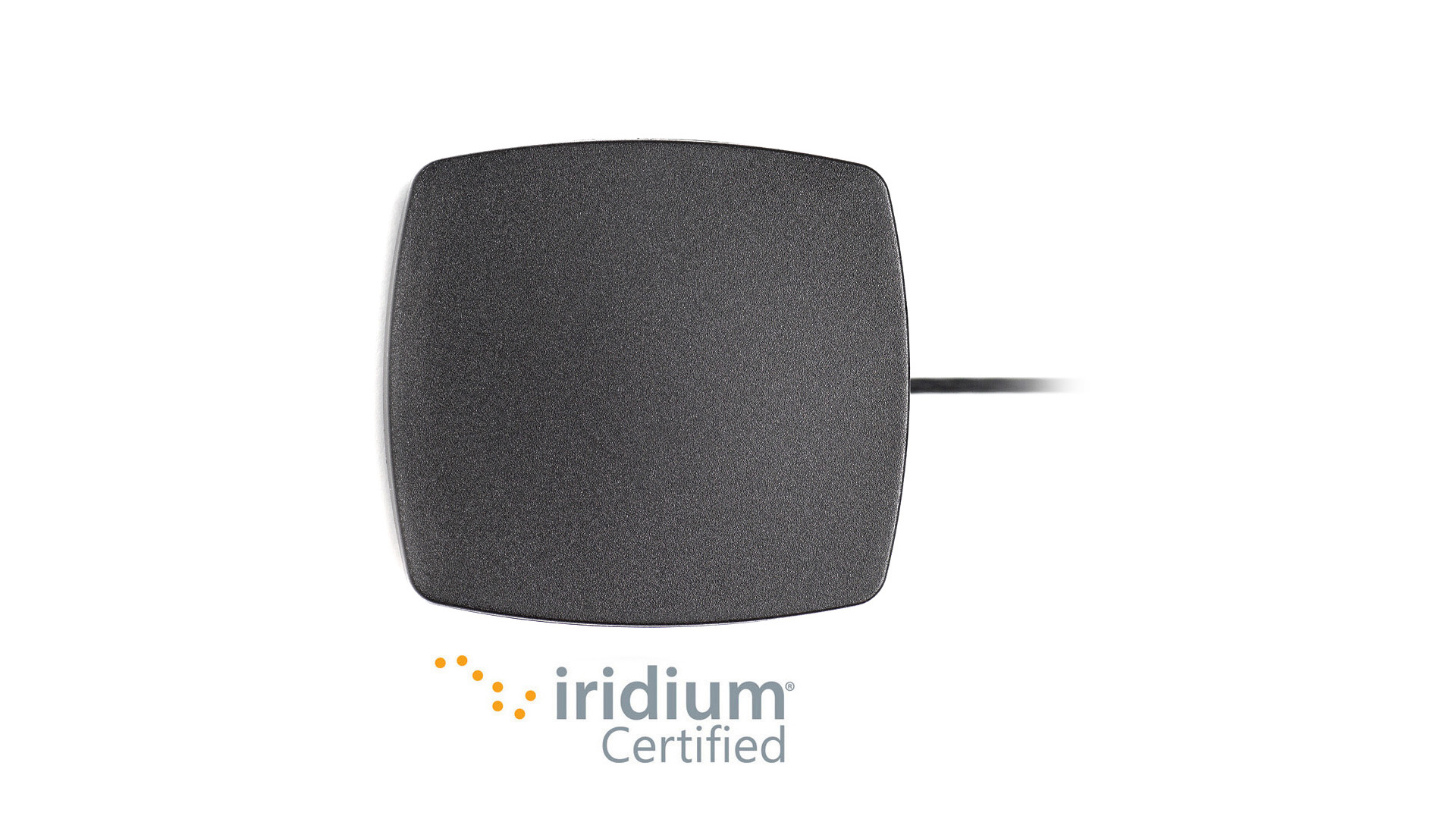

2J6926B

Designed for Applications that Rely on Quality, Performance and Global Connectivity

The Iridium Certified Low Profile, High Gain Screw Mount Antenna (2J6926B) is part of our “Phoenix Series” and is designed to have full access to the Iridium satellite network with global M2M coverage for voice and data communication. This antenna is ideal for devices such as hand-held satellite phones, standalone transceiver units, monitoring devices in markets like automotive, transportation and any other voice and data communication applications that rely on signal strength, speed, and quality.

Integrating a hemispherical radiation pattern and RHCP, this antenna can achieve full spectrum signal quality with peak gains of ~4.5 dBic while rejecting multi-path interference resulting in optimal antenna performance.

Suggested applications include:

    - Commercial / Residential Voice and Data Communications
    - Emergency Communications
    - Transportation
    - Asset Tracking
    - Environmental Monitoring
    - Fleet Management

    Installation / Environmental

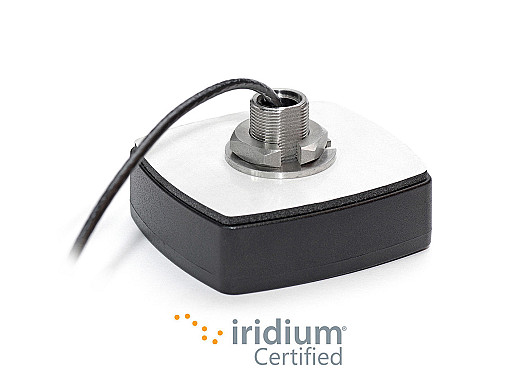

    This low-profile antenna has dimensions of 80 x 74 x 25.6 mm and is manufactured with IP67/IP69 certified ABS UV stable material (available in black and white). ABS material provides durability and protection against indoor or outdoor environmental temperatures ranging from -40C to + 85C without compromising antenna performance.  A screw mount with anti-rotation mechanism offers a secure installation to a wide range of horizontal and vertical surfaces.

    The 2J6926B comes with standard SMA-Male connector and a 300 cm long LL195 cable. We also offer a wide range of alternative connectors and cables for any customization needs. Our team of experts is available to assist our customers with antenna selection and customizations needs.

    2J Antennas takes pride in offering the most reliable communication products by testing all our products to assure the highest antenna quality with the best global connectivity. Protecting the environment is important to us and all our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.

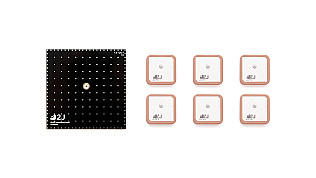

    Related antennas
