Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~1.7:1, ~1.7:1, ~1.5:1
Efficiency (%) ~50.7, ~52.6, ~50.6
Peak Gain (dBi) ~1.3, ~4.8, ~5.0
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~1.7:1, ~1.7:1, ~1.4:1
Efficiency (%) ~50.7, ~52.7, ~58.4
Peak Gain (dBi) ~0.9, ~4.4, ~5.5
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 3

2.4/5.0 GHz ISM

Standards WiFi, BT, ZigBee, ISM
Frequency 2410-2490, 4920-5925
VSWR ~1.8:1, ~1.4:1
Efficiency (%) ~45.4, ~45.7
Peak Gain (dBi) ~4.3, ~5.2
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 4

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1606
Passive Gain (dBi) ~3.6
Impedance (Ohm) 50
Voltage Range (V) 1.5 - 3.6
Active Gain (dB) 28 @ 2.7 V
Noise Figure (dB) 1.8 @ 2.7 V
Current Consumption (mA) 9 @ 2.7 V
Power Consumption (mW) 24.3 @ 2.7 V
Saw Filter Type Pre-Filter
Out of Band Rejection (dB) 43
ESD Protection (kV) 6

Key Features

4-in-1 Combination Antenna
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
5.5 dBi 4G LTE Peak Gain
5.2 dBi WIFI Peak Gain
High Performance
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
Heavy Duty antenna
Customizable Cable and Connector

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 698-960 1710-2170 2500-2700
Band (MHz) 700, 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B12, B13, B14, B17,
B18, B19, B20, B26, B27, B28,
B29, B44, B67, B68, B85
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16

Antenna Description

The Ideal On-the-go Antenna Solution with Exceptional Performance

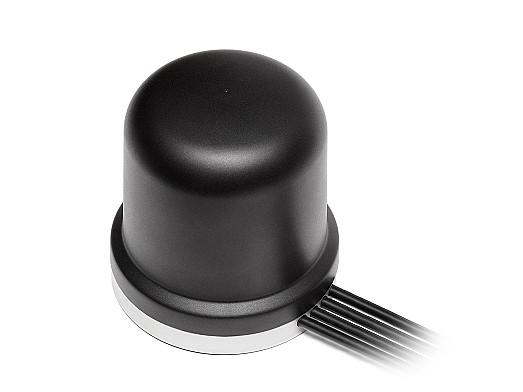

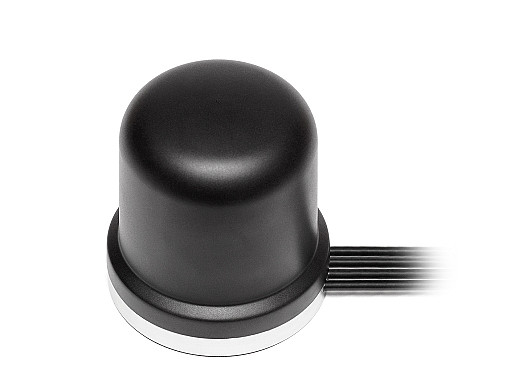

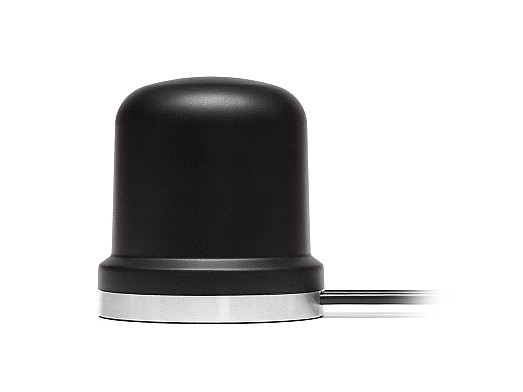

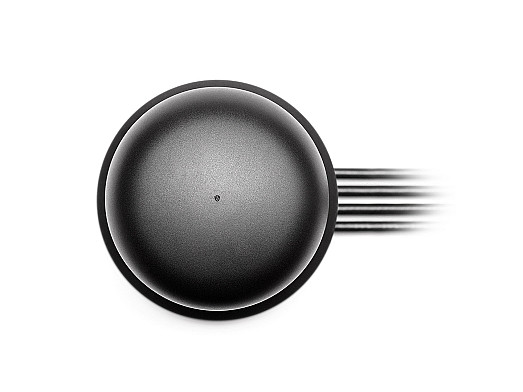

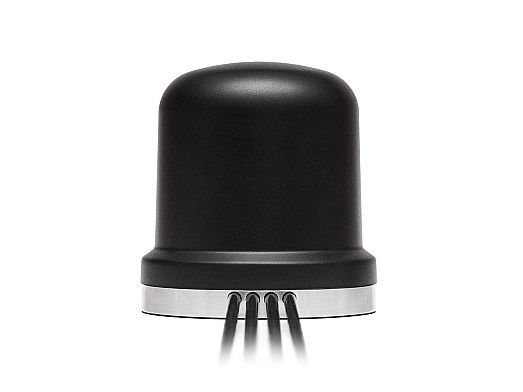

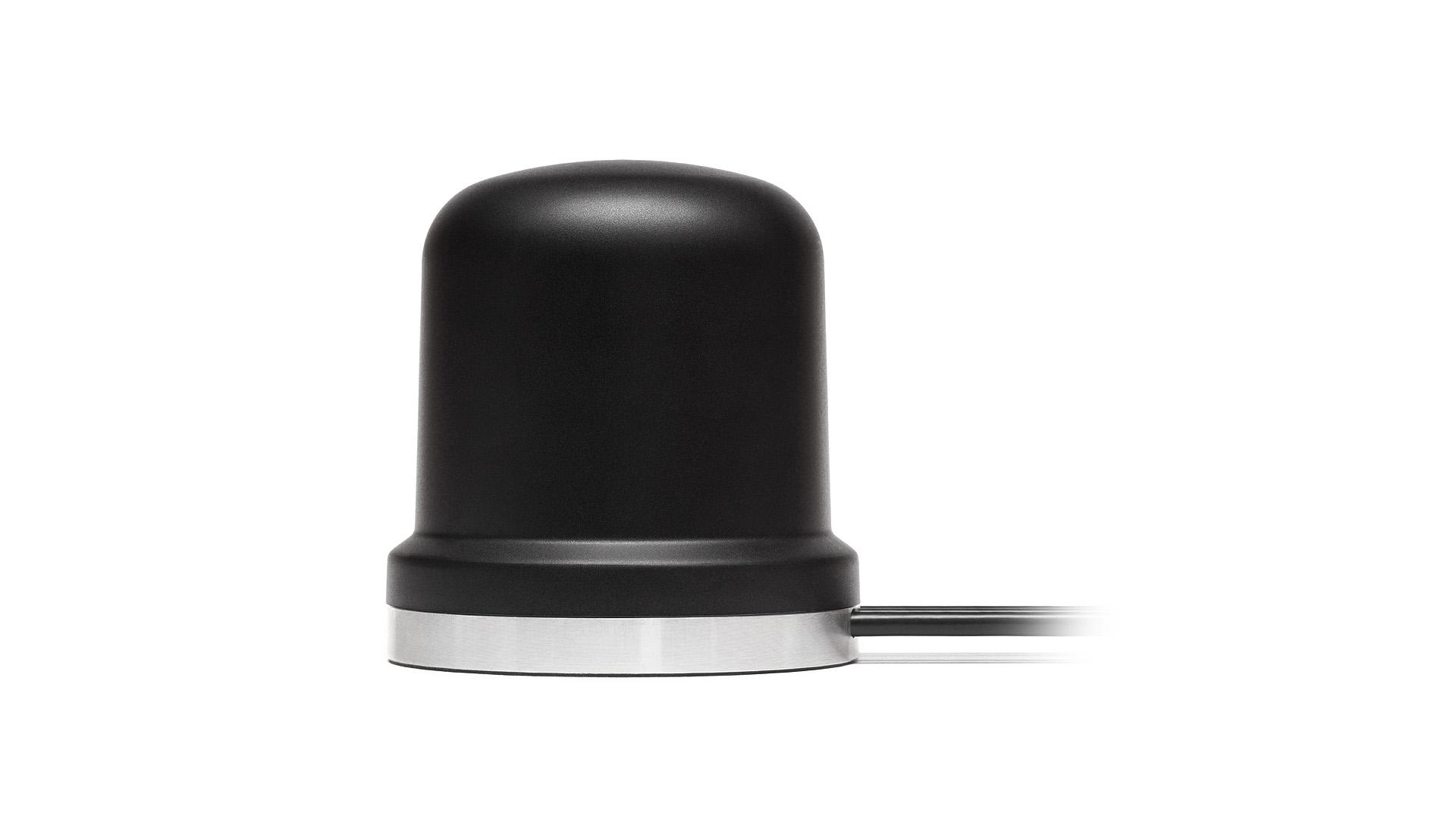

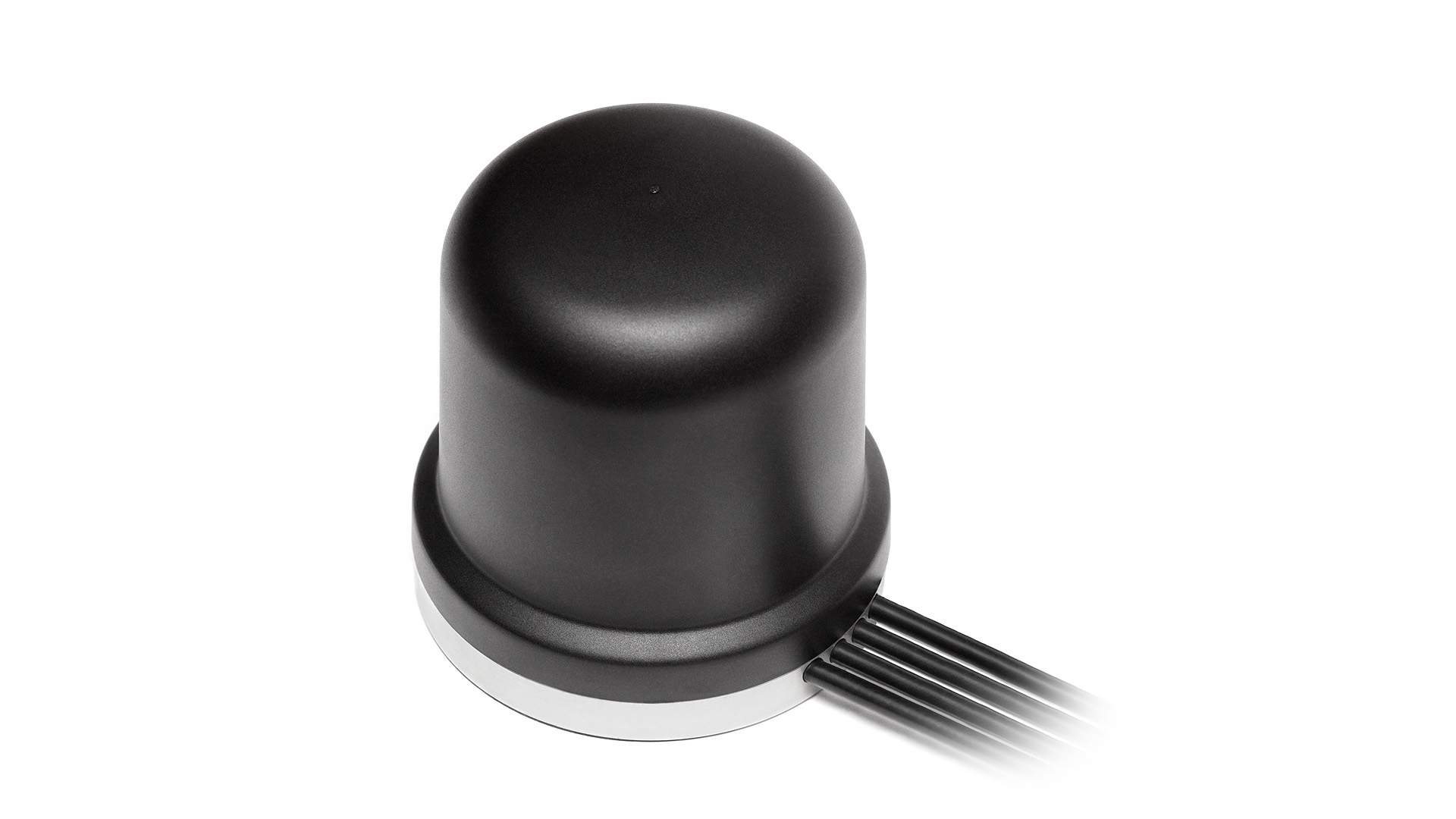

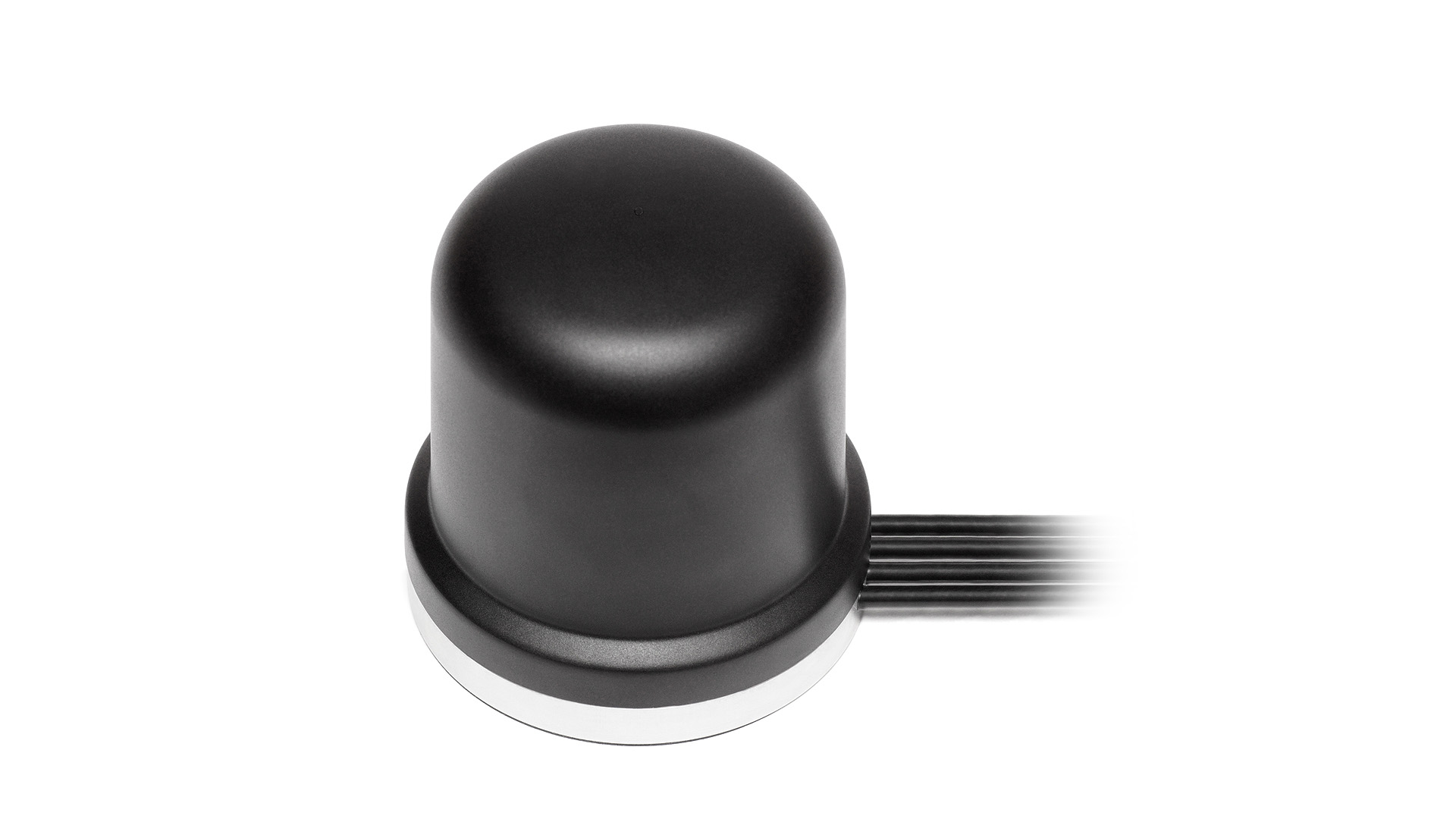

This 4-in-1 High Gain Combination Antenna includes 2x Cellular/ LTE, 2.4/5.0 GHz ISM and GNSS all in one compact ASA housing.  If performance is a priority while on the go, then this antenna is the right choice for you. The powerful magnetic mount allows for easy antenna installation even for heavy duty applications in extreme outdoor environments.

The dual Cellular/LTE MIMO cable is tuned for data and voice devices that operate on 4G LTE FirstNet, LPWA, NB-IoT, Cat-X-Mx-NBx, 3G and 3G networks. By adding dual cellular capabilities, the antenna can consistently search and pair the strongest signal to assure continuous connectivity.

Its 2.4/5.0 GHz ISM single connection is for low-power, wide-area applications that operate within WiFi, BT, ZigBee, and ISM standards. With a high WiFi gain up to  5.4 dBi, this antenna can maintain long range or short-range connectivity in rural or busy urban areas which is ideal for home automation and monitoring applications.

The GNSS connection is for navigation applications that require precise and stable positioning services for devices that operate within the GPS, QZSS, Galileo and Glonass standards. Designed with hemispherical radiation pattern, RHCP and pre-filter, this antenna offers an active gain of ~28 dB @ 2.7V and GNSS voltage range of 1.5V to 3.6V. This antenna is ideal for built-up areas where buildings may obscure the view to some GPS signals by locating fixed positions quickly and accurately.

For detailed antenna specifications, please see our comprehensive data sheet.

Suggested applications include:

- Telematics
- Cellular Mobile and Internet
- Industrial Machinery and Automation
- Automobile/ Transportation
- Tracking / Mapping
- Data Terminals
- Bluetooth Devices
- Wearables
- Critical Communication Services
- Consumer Electronics and Smart Home/Office
- Outdoor building and Roofs



Installation / Environmental

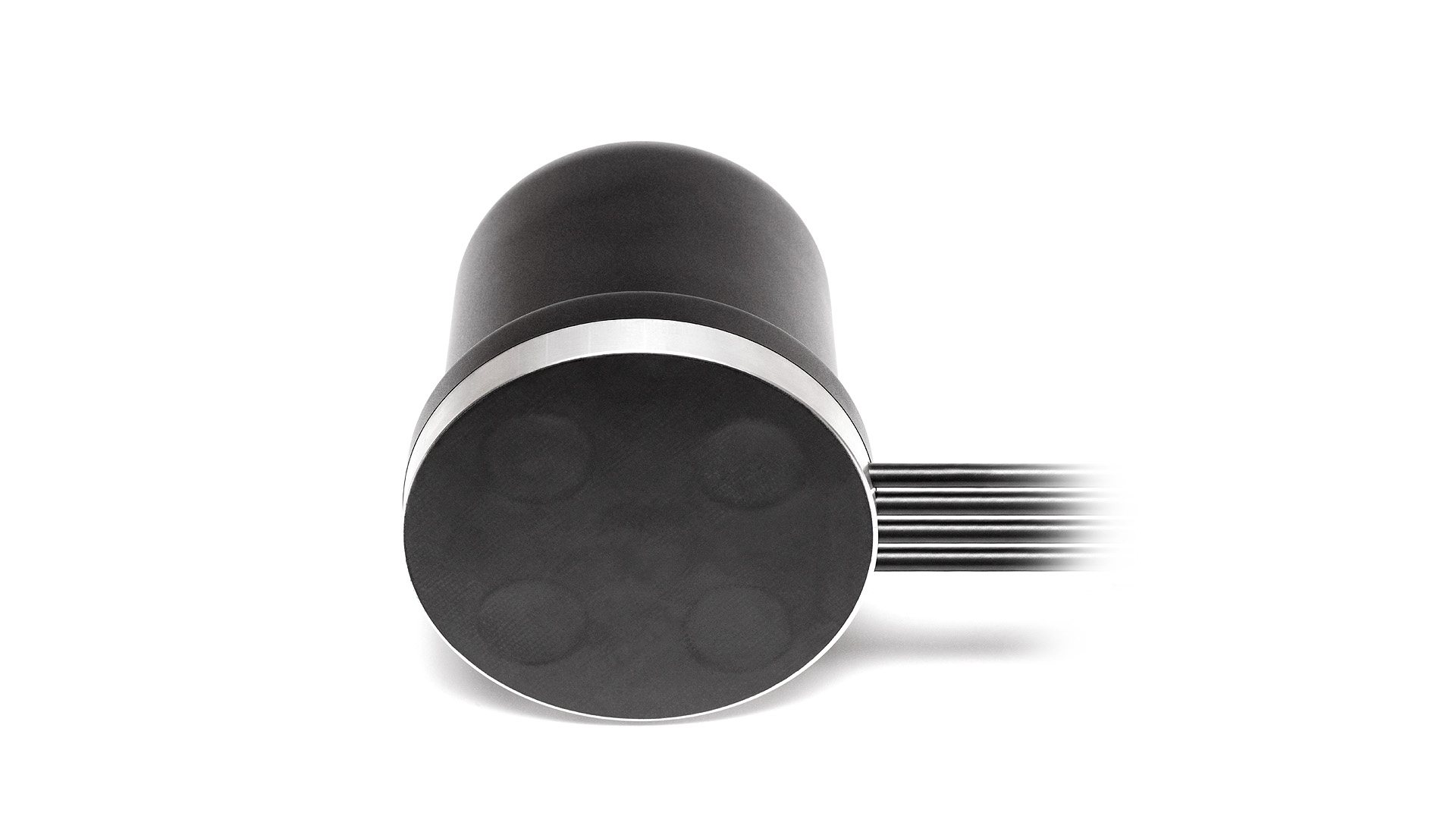

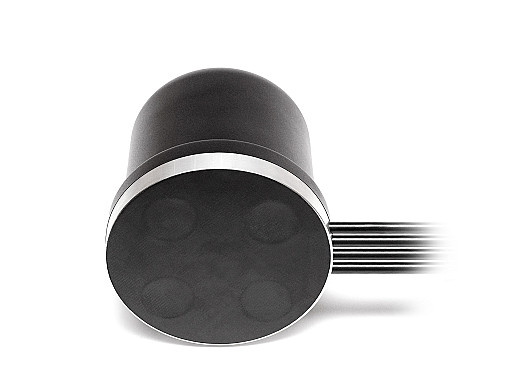

This antenna is fully IP67, IP69 and IK09 certified making it fully waterproof and resistant to dust, high temperatures and impact. The ground plane independent 2J7050MGFc has a dome shape form factor and measures Ø 96 × 102 mm. The antenna housing is manufactured with high quality ASA material and includes a sturdy aluminum alloy base. The powerful magnetic mount is strong enough for long term installations and also allows for easy temporary installations on metal surfaces ideal for on the go applications. A thin rubber layer protects any metal surfaces from scratches or damage during installation or removal.

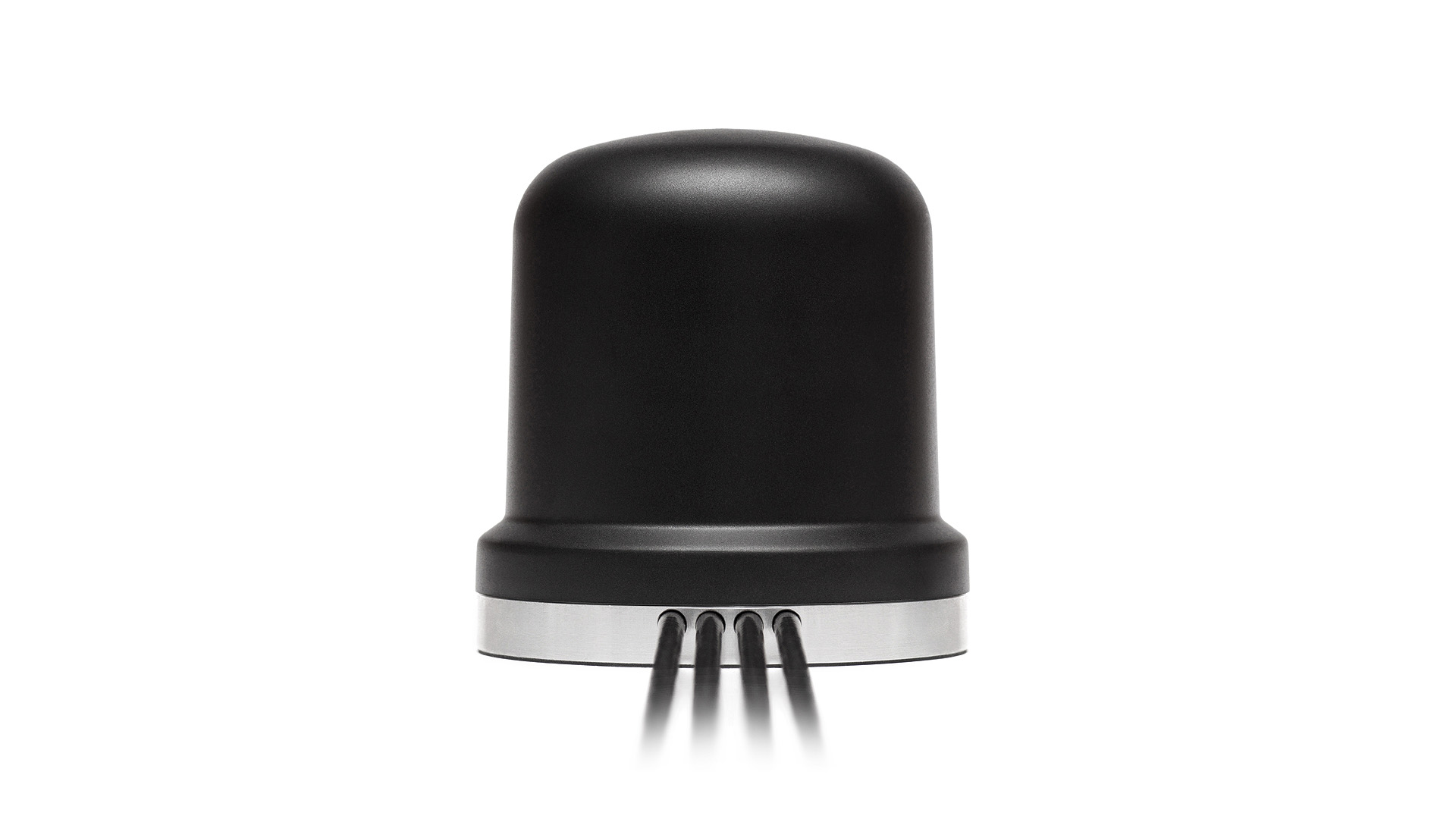

All four cables connect via SMA-Male connector and feed through the side edge of the antenna base. This antenna has been tuned to our standard 300 cm long LL195/LL100 cables for optimal performance.  In addition to our standard specifications, we also offer a large selection of alternative cables and connectors to meet all our customers’ expectations.  Our 2J Antennas engineers are available 24/7 to assist with any customization or antenna selection needs.

All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.

Applications

Mobile Networks Cellular Networks Machine Control Wearables Asset Tracking and Security Civil Applications Automotive Telecommunication Broadband Communications Wireless Security System Energy Monitoring Air Quality and Pollution Monitoring Telemetry / Telematics Entertainment and Multimedia IoT - Internet of Things Smart Home Logistics and Shipping Smart Cities Industrial IoT & Monitoring Smart Farming Fleet Management Medical and Healthcare Autonomous Driving Drone Operation Security and Surveillance Gaming and Virtual Reality Mission Critical Communications Transportation GIS - Geographic Information System Cartographic Hazard Mitigation Automation Agriculture Construction Mining Industry Unmanned Vehicles Surveying Defense Aerial Photogrammetry Logistics Location Based Services Road Applications Rail Applications Maritime Applications Autonomous Applications Mobile Applications Data Processing Remote Monitoring and Control Smart Metering Smart Lighting Smart Parking and Vehicle Control Infrastructure Management Fire Detection & Management Waste Management Water Metering & Management Government & Public Safety Building Control Manufacturing Video Streaming Smart Grid Private Cellular Networks Electricity Metering & Management Resources Management Digital Signage Routers, Gateways & Data Terminals Utilities First Responder Fleets Fire Departments C-V2X - Cellular Vehicle to Everything Retail Services Marine Home Applications Public Wi-Fi Short-Range Personal Area Networks RFID devices V2X - Vehicle to Everything Aviation Applications Satellite Realtime Navigation MIMO Device Connectivity
