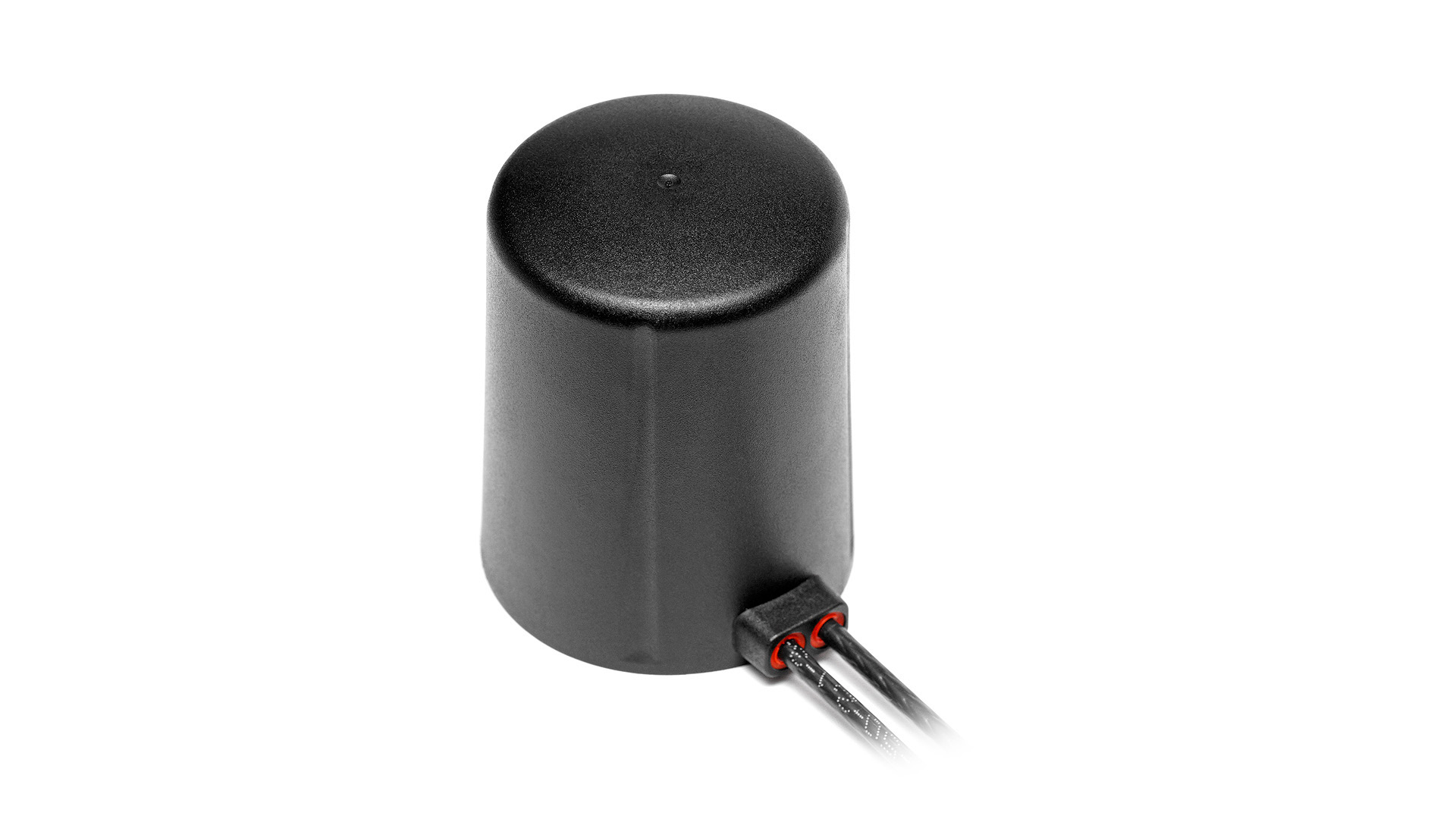

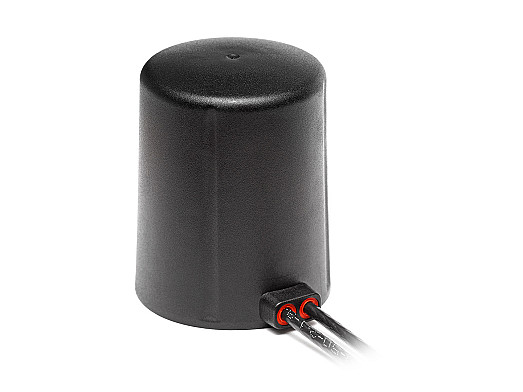

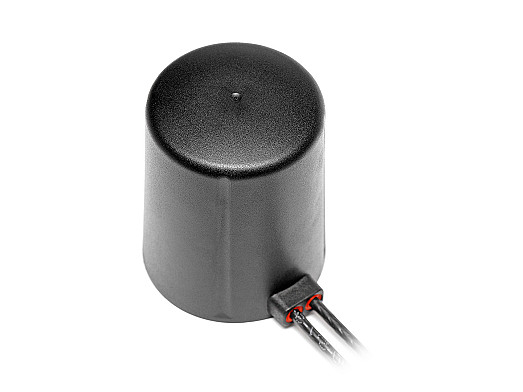

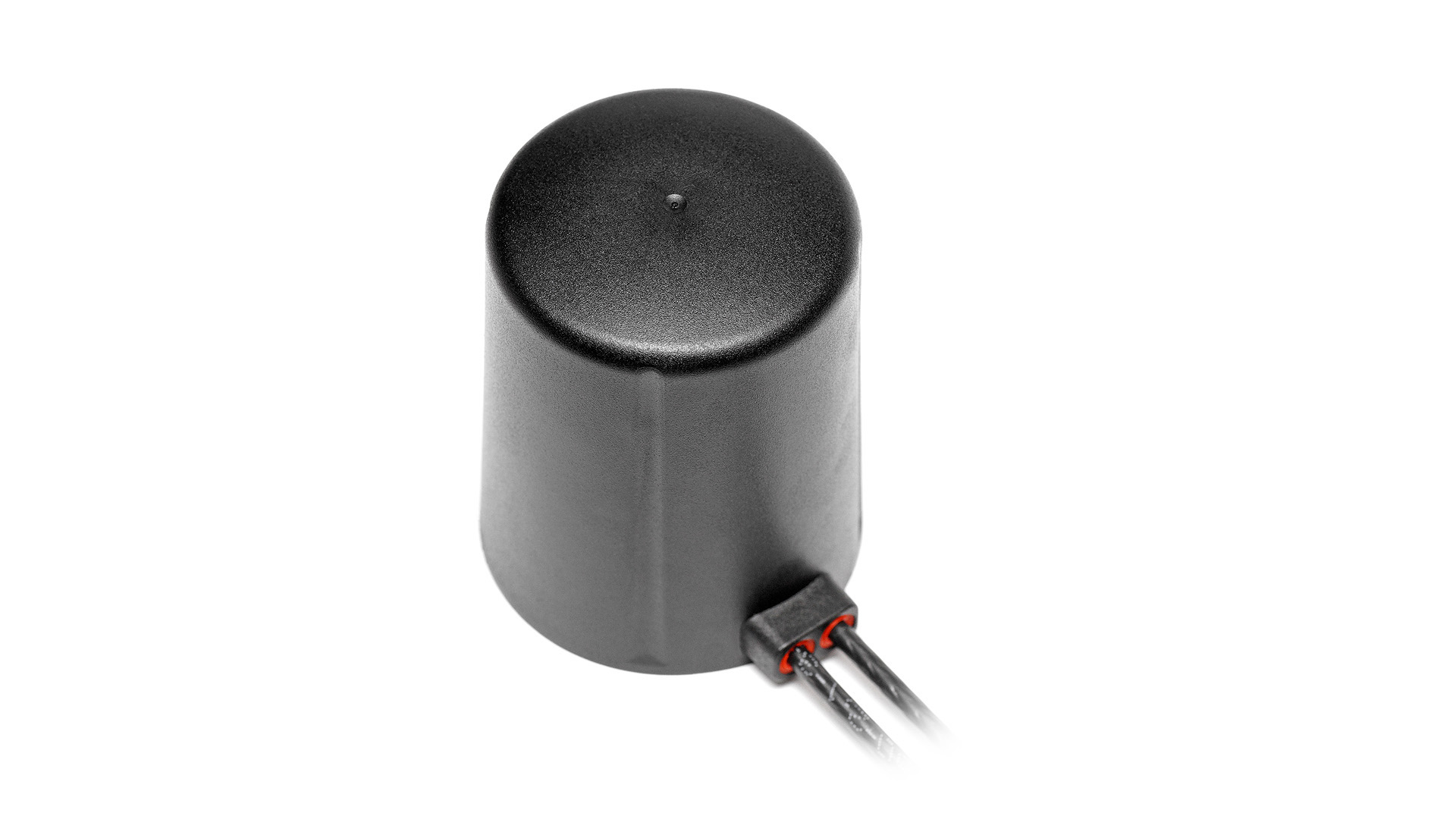

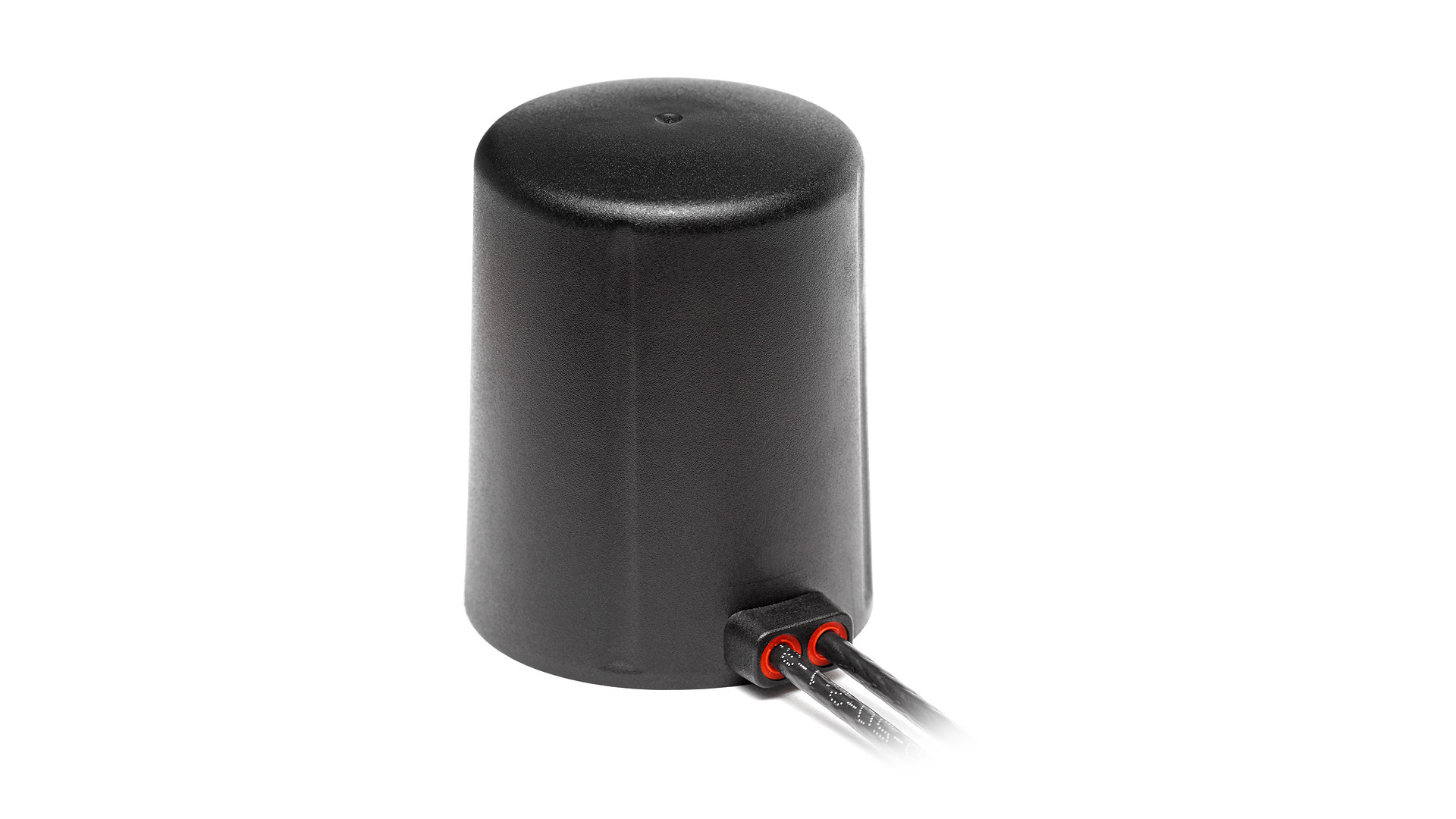

Antenna and electrical specifications

connection 1

915 MHz ISM

Standards ZigBee, ISM, SIGFOX, LoRa
Frequency 902-928
VSWR ~1.8:1
Efficiency (%) ~59
Peak Gain (dBi) ~2.0
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1606
VSWR <=1.4:1
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 28 @ 2.7 V
Saw Filter Type Pre-Filter
Voltage (V) 1.5 - 3.6
Current (mA) 9 Typ
Power Consumption (mW) 24.3 Typ

Key Features

2-in-1 Combination Antenna
Ground Plane Dependent
2.0 dBi 915 MHz ISM Peak Gain
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
Heavy Duty antenna
Customizable Cable and Connector
