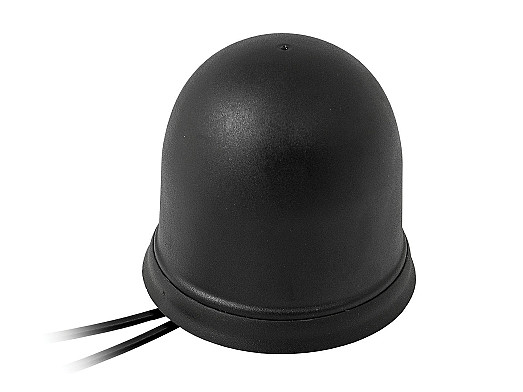

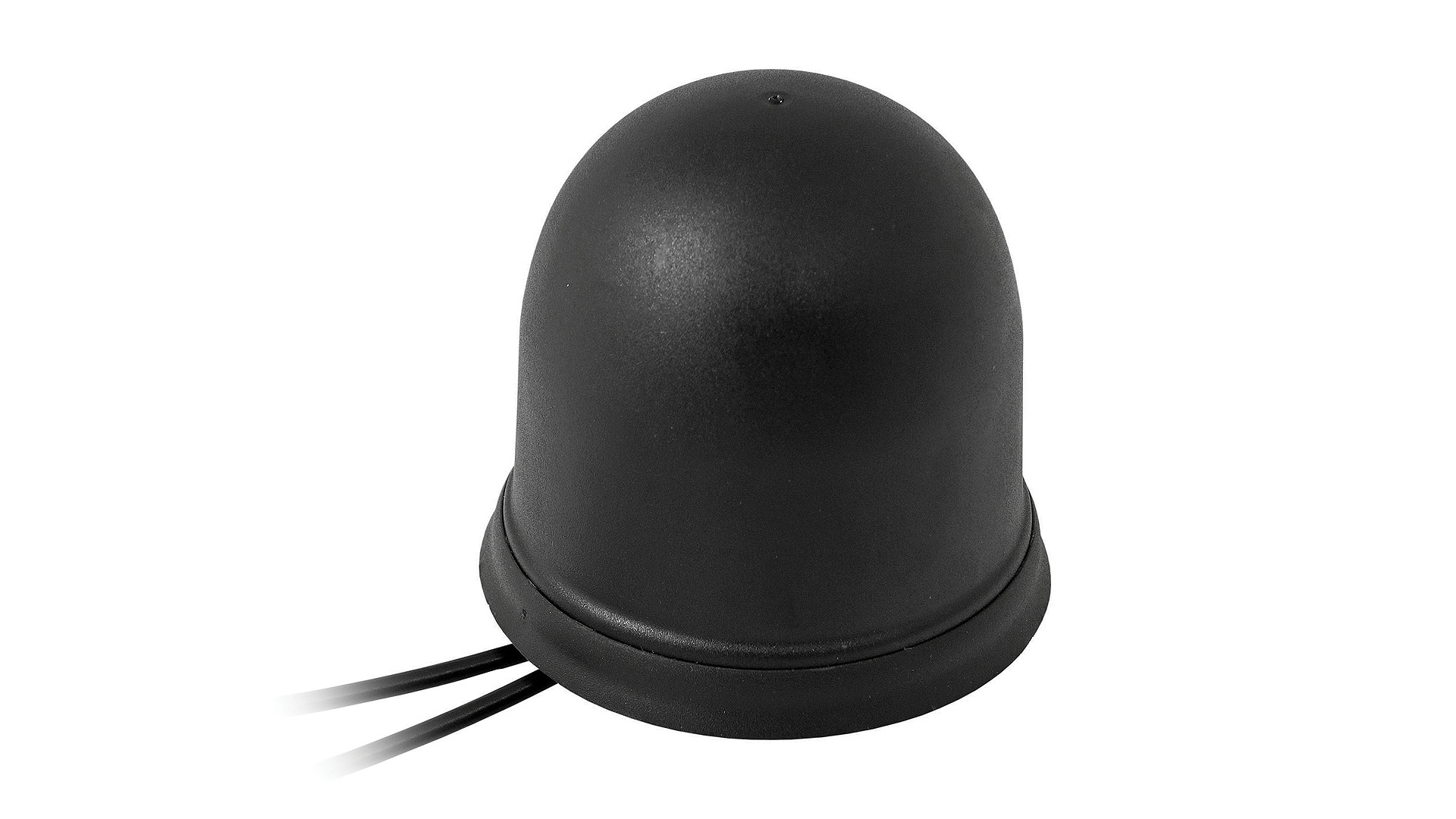

2J6A02Ba Antenna

2 × WiFi ISM MIMO Surge Protection Up To 6kV Customizable Antenna

General specification
Frequency 2 × 2.4/5.0 GHz ISM MIMO

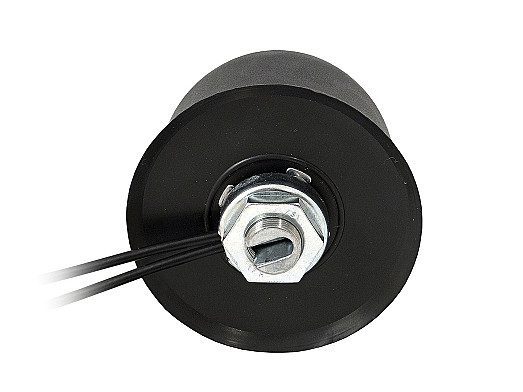

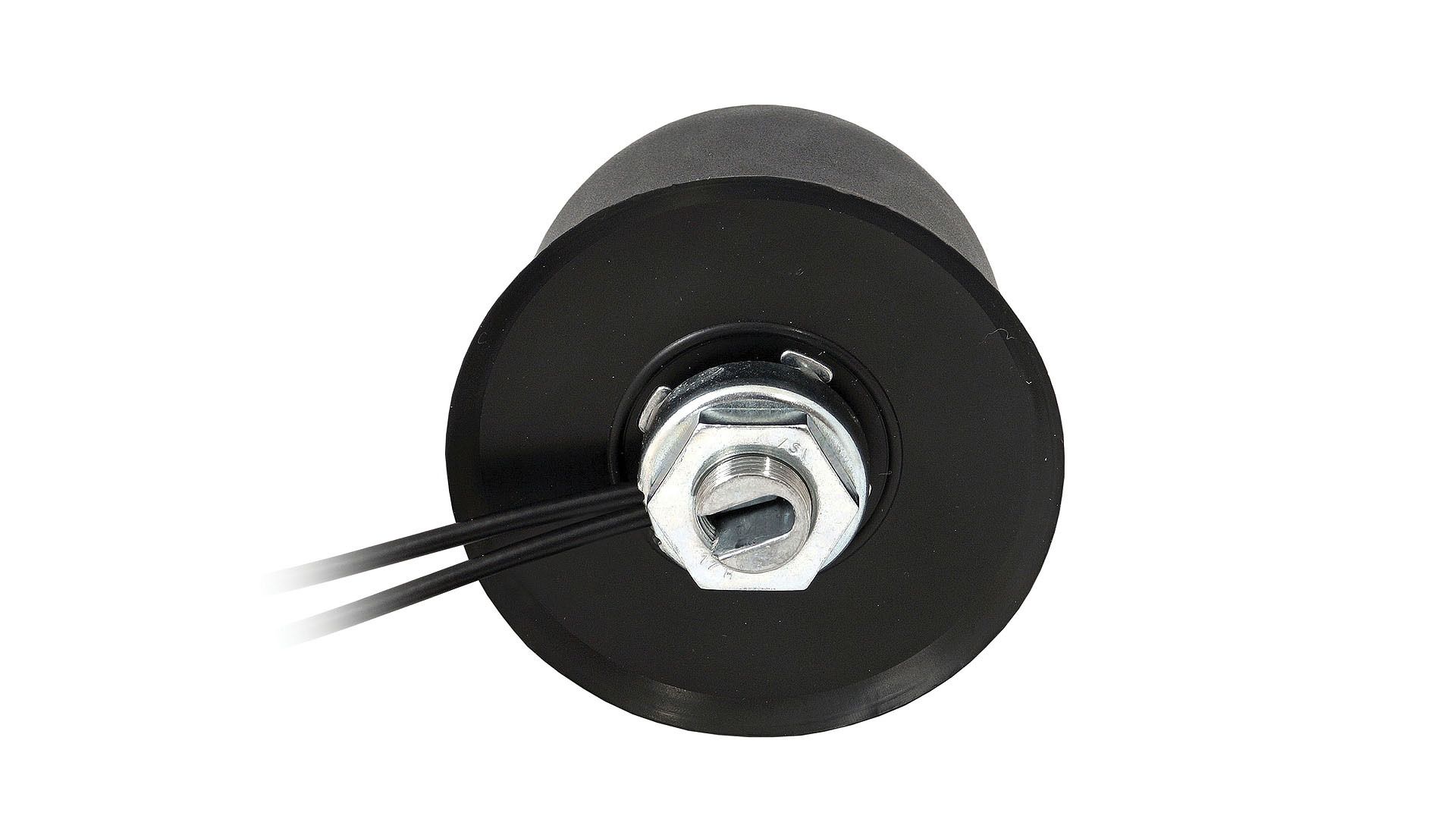

Mounting Screw mount
Dimensions (mm) Ø 77.3 × 65.5
Operating temperature -40 °C to +85 °C
Note Antenna is isolated from ground plane to provide common mode surge protection up to 6kV
Certificates IP67, IK09, IP69K
Standard colors
Get Datasheet
Product added to cart

Key Features

  • Ground Plane Independent
  • Customizable Cable and Connector
  • Screw Mount
  • Anti-Rotation Mechanism
  • Certificates: IP67, IK09, IP69K
  • 2 × WIFI MIMO antenna
  • surge protection up to 6kV
  • Antenna and electrical specifications

    connection 1

    2.4/5.0 GHz ISM

    Standards WiFi, BT, ZigBee, ISM
    Frequency 2410-2490, 4920-5925
    VSWR ~1.8:1, ~1.8:1
    Efficiency (%) ~50.5, ~48
    Peak Gain (dBi) ~2.6, ~4.4
    50
    Polarisation Linear
    Max. Input Power (W) 25
    connection 2

    2.4/5.0 GHz ISM

    Standards WiFi, BT, ZigBee, ISM
    Frequency 2410-2490, 4920-5925
    VSWR ~2.1:1, ~1.9:1
    Efficiency (%) ~44.6, ~45
    Peak Gain (dBi) ~2.4, ~4.4
    50
    Polarisation Linear
    Max. Input Power (W) 25
