Key Features

  • GPS/GLONASS/QZSS/Galileo
  • Adhesive Mount
  • Ground Plane Independent
  • Customizable Cable and Connector
  • 2 × 5G NR MIMO Antenna
  • Applications

    Antenna and electrical specifications

    connection 1

    5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

    Technologies 5G, 4G, 3G and 2G
    Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
    Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
    Return Loss (dB) ~-6.9, ~-13.5, ~-9.1, ~-7.2
    VSWR ~3.4:1, ~1.7:1, ~2.3:1, ~2.6:1
    Efficiency (%) ~42.6, ~58.8, ~37.5, ~31.8
    Peak Gain (dBi) ~2.4, ~4.4, ~2.0, ~1.1
    Impedance (Ohm) 50
    Polarisation Linear
    Radiation Pattern Omni-Directional
    Max. Input Power (W) 35
    connection 2

    5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

    Technologies 5G, 4G, 3G and 2G
    Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
    Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
    Return Loss (dB) ~-6.1, ~-15.5, ~-9.2, ~-8.0
    VSWR ~3.5:1, ~1.6:1, ~2.3:1, ~2.3:1
    Efficiency (%) ~43.9, ~63.9, ~36.8, ~31.1
    Peak Gain (dBi) ~1.9, ~4.7, ~1.9, ~1.4
    Impedance (Ohm) 50
    Polarisation Linear
    Radiation Pattern Omni-Directional
    Max. Input Power (W) 25
    connection 3

    GPS/GLONASS

    Standards GPS/QZSS/Galileo/GLONASS
    Frequency 1575.42, 1598-1606
    VSWR <=1.4:1
    50
    Polarisation RHCP
    Active Gain (dB) 28 @ 2.7 V
    Voltage (V) 1.5 - 3.6
    Noise Figure (dB) 1.5 Typ
    Current Consumption (mA) 9 Typ
    Power Consumption (mW) 24.3 Typ
    Saw Filter Type Pre-Filter
    ESD Protection (kV) 2

    5GNR Antenna Bands list



    Parameters 5GNR Antenna
    Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
    Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
    1900, 2000, 2100, 2300,
    2500, 2600
    3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
    5GNR Bands n5, n8 ,12, n20, n28, n71,
    n81, n82, n83,
    n1, n2, n3, n7, n25, n34,
    n38, n39, n40, n41, n50,
    n51, n66, n70, n74, n75,
    n76, n80, n84, n86
    n77, n78, n79
    4GLTE Bands B5, B6, B8, B12, B13, B14,
    B17, B18, B19, B20, B26,
    B27, B28, B29, B44, B67,
    B68, B71, B85
    B1, B2, B3, B4, B7, B9,
    B10, B11, B21, B23, B24,
    B25, B30, B32, B33, B34,
    B35, B36, B37, B38, B39,
    B40, B41, B45, B50, B51,
    B65, B66, B69, B70, B74,
    B75, B76
    B22, B42, B43, B48,
    B49, B52
    B46, B47, B252, B255
    3GCELL Bands B5, B6, B8, B12, B13, B14,
    B19, B20, B26
    B1, B2, B3, B4, B7, B9,
    B10, B11, B21, B25, B32,
    B33, B34, B35, B36, B37,
    B38, B39, B40
    B22
    2GCELL Bands 710, 750, 810T, 850, 900P,
    900E, 900R
    1800DCS, 1900PCS
    CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
    BC10, BC12, BC18, BC19
    BC1, BC4, BC6, BC8,
    BC13, BC14, BC15, BC16,
    BC20, BC21




    2J6084PGFA

    The # 1 Choice Antenna Solution for Enhanced Global Coverage

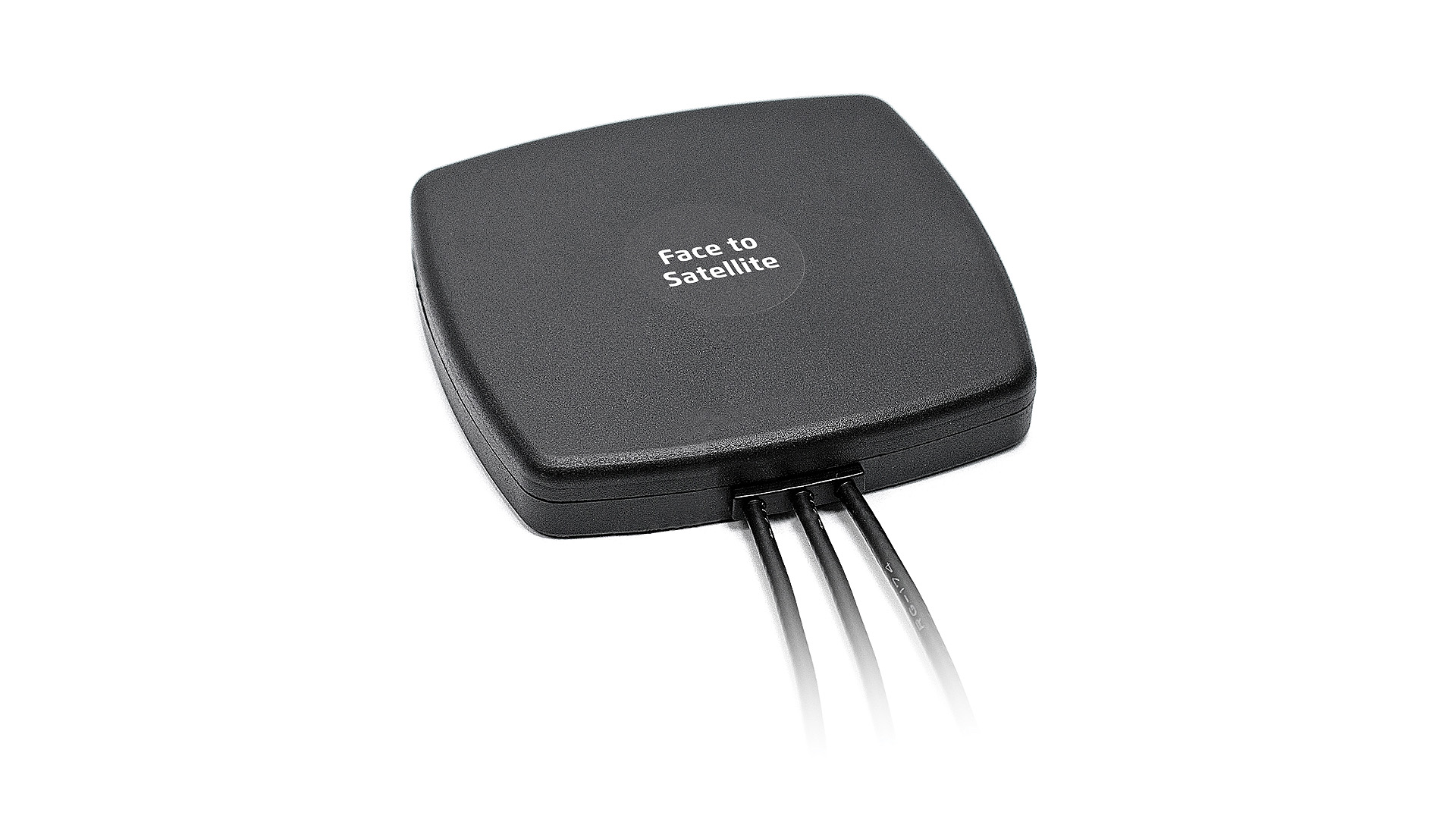

    2J Antennas is excited to introduce our new “Falcon Series” 5GNR MIMO and GNSS Adhesive Mount Antenna (2J6084PGFa) designed for MIMO devices operating within 617-5925 MHz frequencies serving 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-x, CAT-Mx, CAT-NBx, NB-IoT, 3G, 2G,CDMA as well as GPS/QZSS/Galileo GNSS standards.  The low-profile compact design and high-quality adhesive mount make this antenna an ideal solution for outdoor applications with quick and easy installation on a wide range of surfaces.



    Cable 1 and 2: 5GNR (617-960, 1427-2690, 3300-5000 and 5150-5925 MHz)

    Cable 1 and 2 are designed with 5G New Radio (5GNR) technology that enhances coverage through high gain adaptive beamforming to meet the growing demands of Massive MIMO devices. This results in low latency, high efficiency, higher capacity and higher coverage with low power consumption and low interference while supporting additional bandwidths. The omni-directional radiation pattern allows for 360-degree clear signal strength and maximizes throughput.



    Cable 3: GPS/GLONASS (1575-1610 MHz)

    Cable 3 caters to precision navigational applications that operate within GPS, QZSS, Galileo and GLONASS standards. Designed with hemispherical radiation pattern and right-hand circular polarization allows cable 3 to radiate on all planes and maximize connectivity by avoiding conflict with propagating signals and boost resistance to signal degradation caused by inclement weather conditions. To block inadequate frequencies (within 1575-1610 MHz) from passing to the receiver, cable 3 includes an electrostatic discharge (ESD) protection for up to 2KV and a SAW pre-filter.



    Suggested Applications:

    Cable 1 & 2

    - Terminals, Base Stations and Routers
    - Massive MIMO Device Connectivity
    - Industrial, Commercial and Residential IoT/Smart Home/Office
    - Electrical and Environmental Monitoring
    - RFID Asset Tracking
    - HD Video over LTE

    Cable 3

    - Large Scale Transportation Monitoring and Tracking Systems
    - Automotive and Commercial Vehicle Tracking and Telematics
    -Geo-Special Asset Tracking
    -First Responder and Emergency Services
    -GPS-Enabled IoT Applications

    All our products have been tested by our expert engineers and measured in our certified CTIA 3D Anechoic Chamber. Please contact our experienced team for assistance with antenna selection and recommendations.



    Installation / Environmental

    The 2J6084PGFa housing is IP67 certified and manufactured from black or white ABS / UV stable material offering exceptional durability at a low cost for maximum protection from extreme outdoor applications. Cable 1 and 2 come with standard SMA-Male connector and 300 cm long DACAR302 Coaxial cable, a popular choice for automotive applications due to its environmental properties, best coupling resistance and stable impedance. Cable 3 comes with standard SMA-Male connector and 300 cm long LMR100 Low Loss Coaxial cable offering an economical solution with excellent performance for short antenna runs. 2J Antennas offers a wide range of alternative connectors and cables for any customization needs. With a compact design (80 x 76 x 13 mm), ground plane independence and high-grade adhesive mounting allow for easy installation on any non-metal surfaces. 2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully RoHS compliant.
