Antenna and electrical specifications

connection 1

433 MHz ISM

Standards ISM, LoRa
Frequency 433-435
VSWR ~1.5:1
Efficiency (%) ~61
Peak Gain (dBi) ~0.3
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 50
connection 2

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1610
VSWR <=1.2:1
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 26 @ 3V / 27dB @ 5V
Saw Filter Type No-Filter
Voltage (V) 2.7 - 5.5
Current (mA) 15 - 25
Power Consumption (mW) 40.5 – 137.5

Key Features

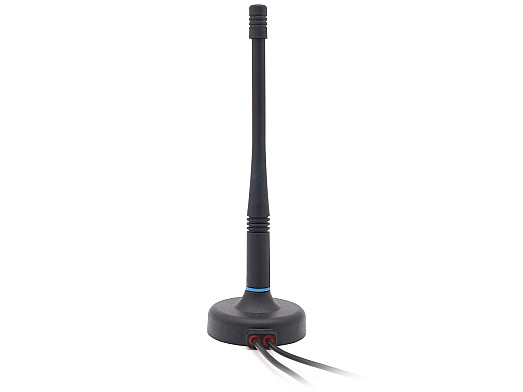

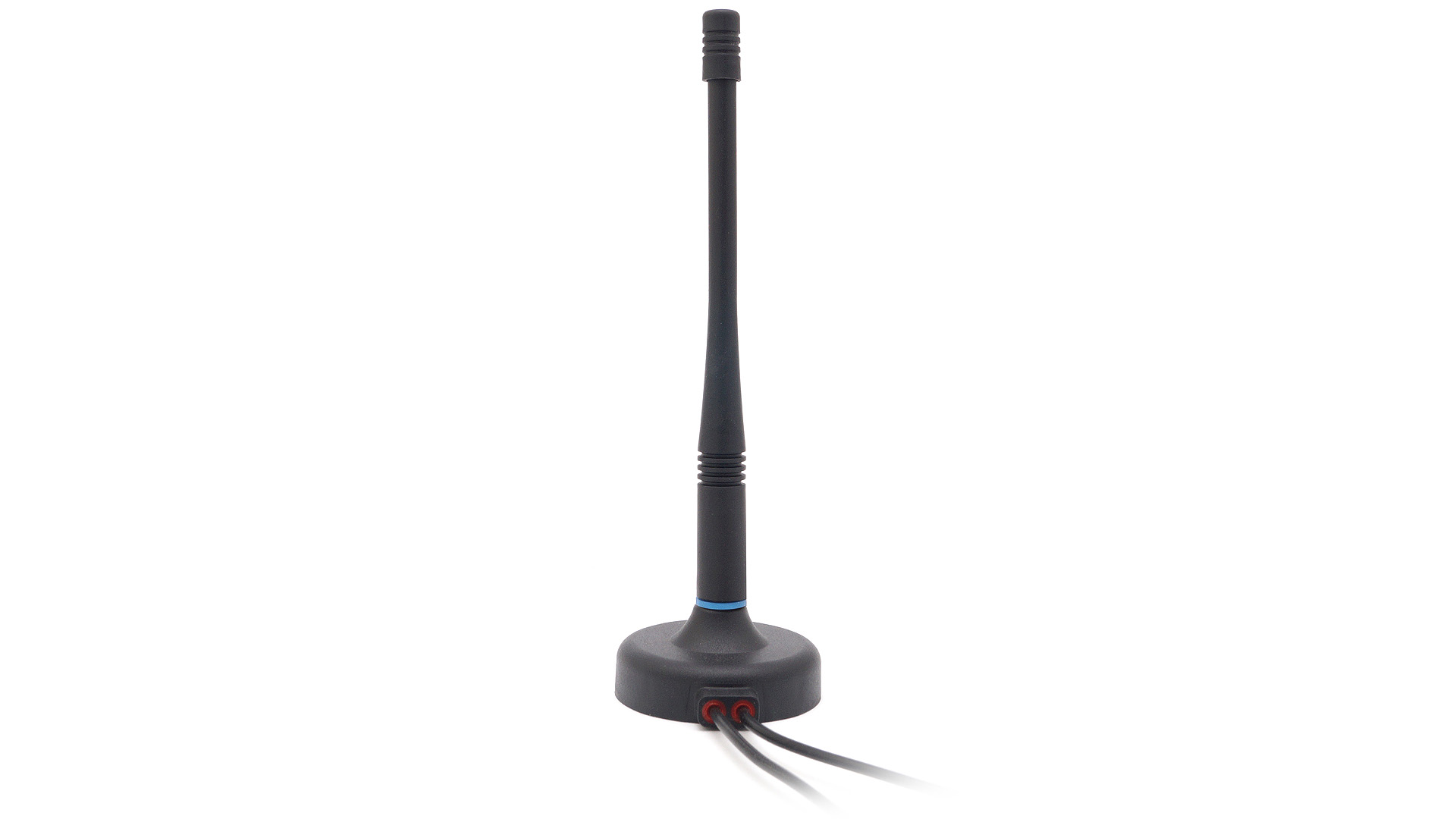

2-in-1 Combination Antenna
Ground Plane Dependent
0.3 dBi 433 MHz ISM Peak Gain
Active GNSS Antenna
26 dB GNSS Active Gain
Non-Filter GNSS
GNSS Voltage Range 2.7 - 5.5 V
Flexible Rod
Customizable Cable and Connector
