Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 791-960, 1710-2170, 2500-2700
VSWR ~2.1:1, ~1.4:1, ~1.6:1
Efficiency (%) ~27.5, ~30.7, ~20.0
Peak Gain (dBi) ~0.1, ~2.1, ~-0.8
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 791-960, 1710-2170, 2500-2700
VSWR ~2.1:1, ~1.5:1, ~1.6:1
Efficiency (%) ~25.6, ~30.4, ~19.1
Peak Gain (dBi) ~-0.1, ~1.5, ~-0.7
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 3

2.4 GHz ISM

Standards WiFi, BT, ZigBee, ISM
Frequency 2410-2490
VSWR ~1.3:1
Efficiency (%) ~26.8
Peak Gain (dBi) ~1.6
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 4

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1606
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 23 @ 3V, 24 @ 5V
Saw Filter Type Post-Filter
Voltage (V) 2.7 - 5.5
Noise Figure (dB) 1.2
Current Consumption (mA) 22 @ 5V
Power Consumption (mW) max 138

Key Features

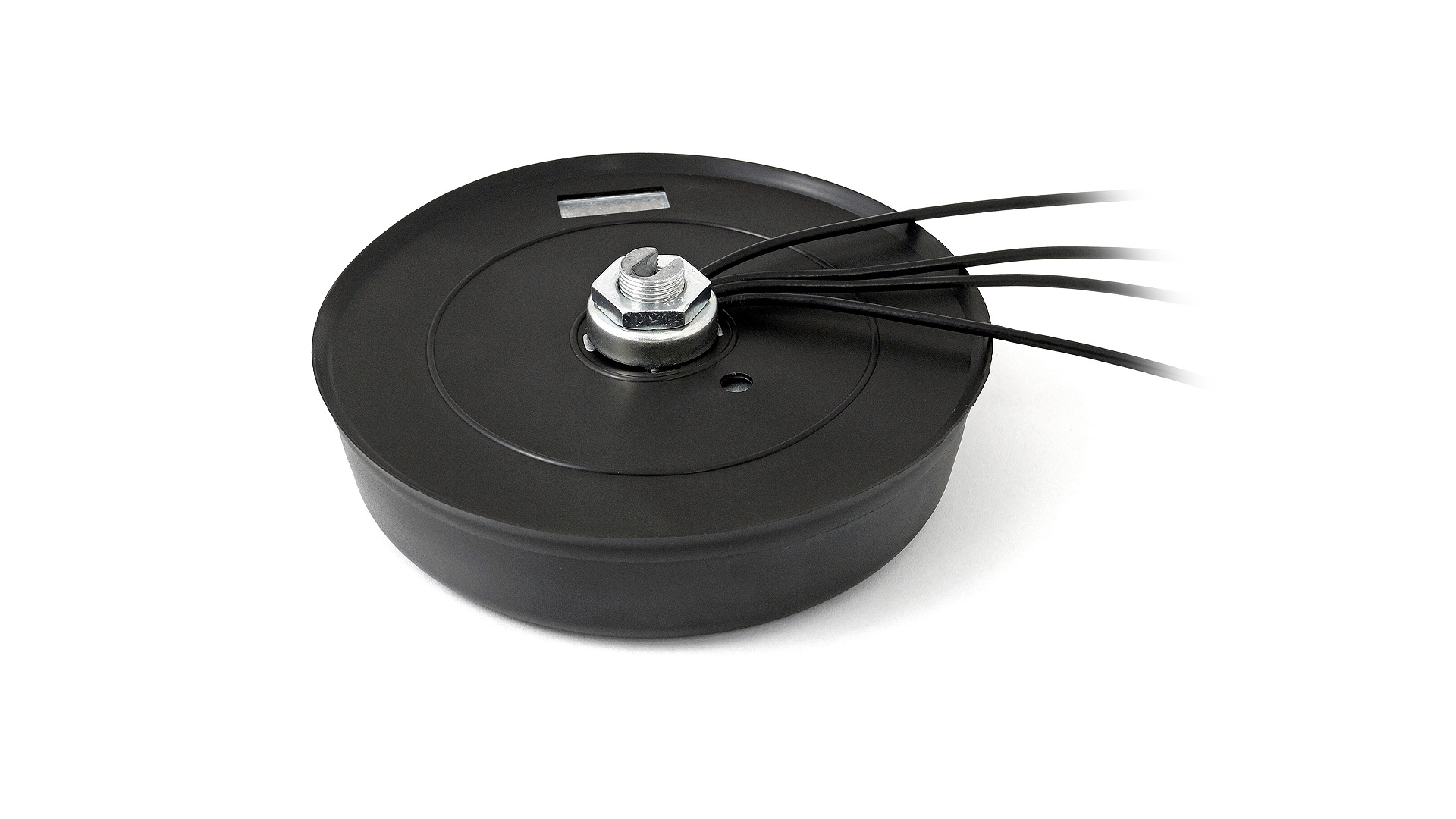

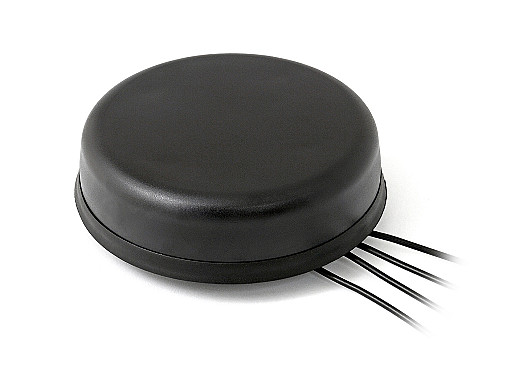

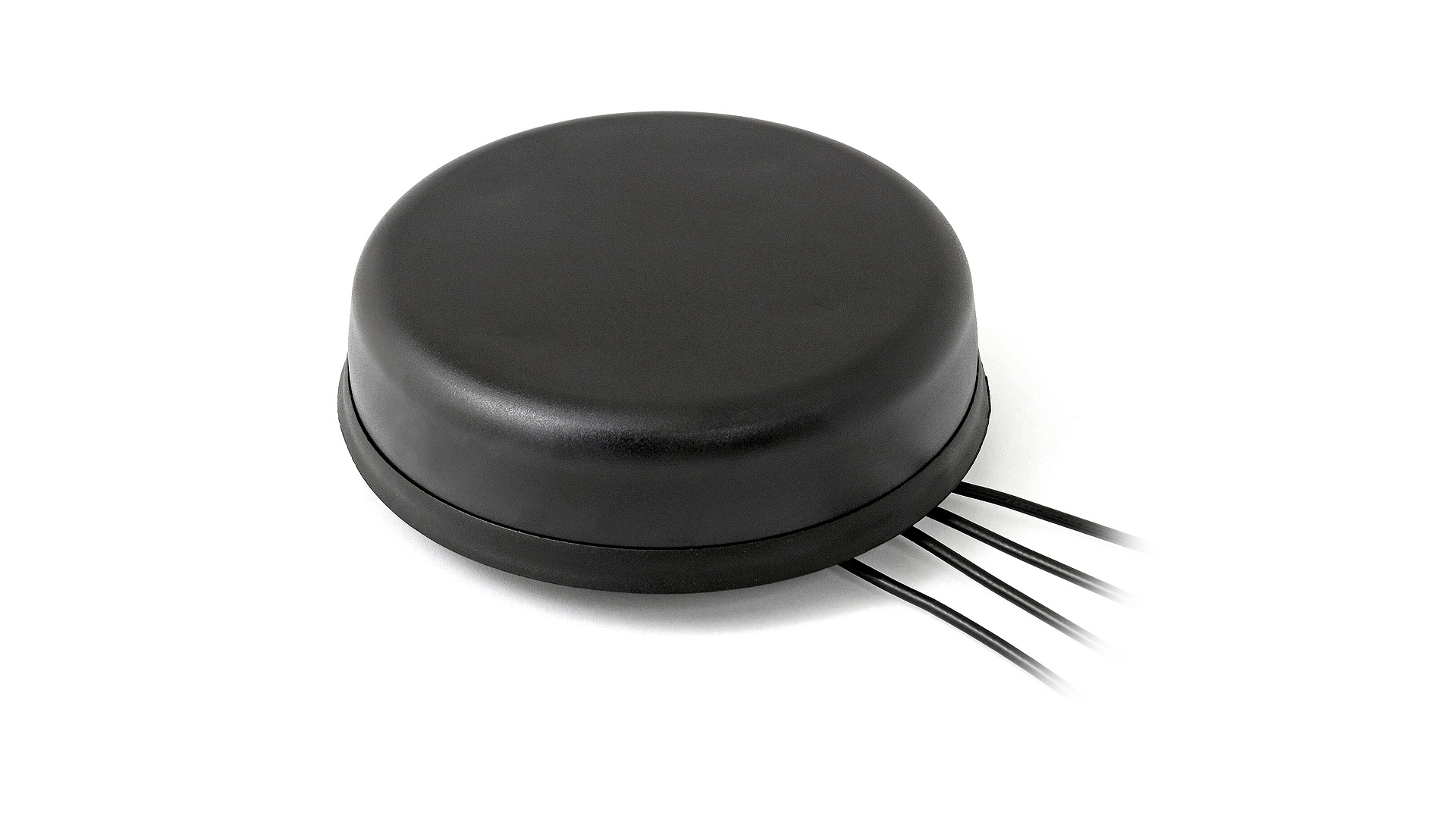

4-in-1 Combination Antenna
Ground Plane Dependent
Wide band Antenna
791-2700 MHz 4GLTE Bands
suitable for EU LTE only
2.1 dBi 4G LTE Peak Gain
1.6 dBi WIFI Peak Gain
Active GNSS Antenna
24 dB GNSS Active Gain
Post Filter GNSS
GNSS Voltage Range 2.7 - 5.5 V
Heavy Duty antenna
Anti-Rotation Mounting
Customizable Cable and Connector

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 791-960 1710-2170 2500-2700
Band (MHz) 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B18,
B19, B20, B26, B27,
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC9,
BC10, BC12,
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16



Applications

Mobile Networks Cellular Networks Machine Control Wearables Asset Tracking and Security Civil Applications Automotive Telecommunication Broadband Communications Wireless Security System Energy Monitoring Air Quality and Pollution Monitoring Telemetry / Telematics Entertainment and Multimedia IoT - Internet of Things Smart Home Logistics and Shipping Smart Cities Industrial IoT & Monitoring Smart Farming Fleet Management Medical and Healthcare Autonomous Driving Drone Operation Security and Surveillance Gaming and Virtual Reality Mission Critical Communications Transportation GIS - Geographic Information System Cartographic Hazard Mitigation Automation Agriculture Construction Mining Industry Unmanned Vehicles Surveying Defense Aerial Photogrammetry Logistics Location Based Services Road Applications Rail Applications Maritime Applications Autonomous Applications Mobile Applications Data Processing Remote Monitoring and Control Smart Metering Smart Lighting Smart Parking and Vehicle Control Infrastructure Management Fire Detection & Management Waste Management Water Metering & Management Government & Public Safety Building Control Manufacturing Video Streaming Smart Grid Private Cellular Networks Electricity Metering & Management Resources Management Digital Signage Routers, Gateways & Data Terminals Utilities First Responder Fleets Fire Departments C-V2X - Cellular Vehicle to Everything Retail Services Marine Home Applications Public Wi-Fi Short-Range Personal Area Networks RFID devices Aviation Applications Satellite Realtime Navigation MIMO Device Connectivity
