Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 791-960, 1710-2170, 2500-2700
VSWR ~2.7:1, ~1.6:1, ~2.1:1
Efficiency (%) ~35.7, ~39.8, ~21.1
Peak Gain (dBi) ~0.3, ~2.6, ~-0.4
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 791-960, 1710-2170, 2500-2700
VSWR ~2.1:1, ~1.4:1, ~1.5:1
Efficiency (%) ~23.9, ~25.7, ~14.1
Peak Gain (dBi) ~-1.2, ~0.9, ~-1.5
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 3

GPS/GLONASS

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1606
Impedance (Ohm) 50
Polarisation RHCP
Active Gain (dB) 23 @ 3V, 24 @ 5V
Saw Filter Type Post-Filter
Voltage (V) 2.7 - 5.5
Noise Figure (dB) 1.2
Current Consumption (mA) 22 @ 5V
Power Consumption (mW) max 138

Key Features

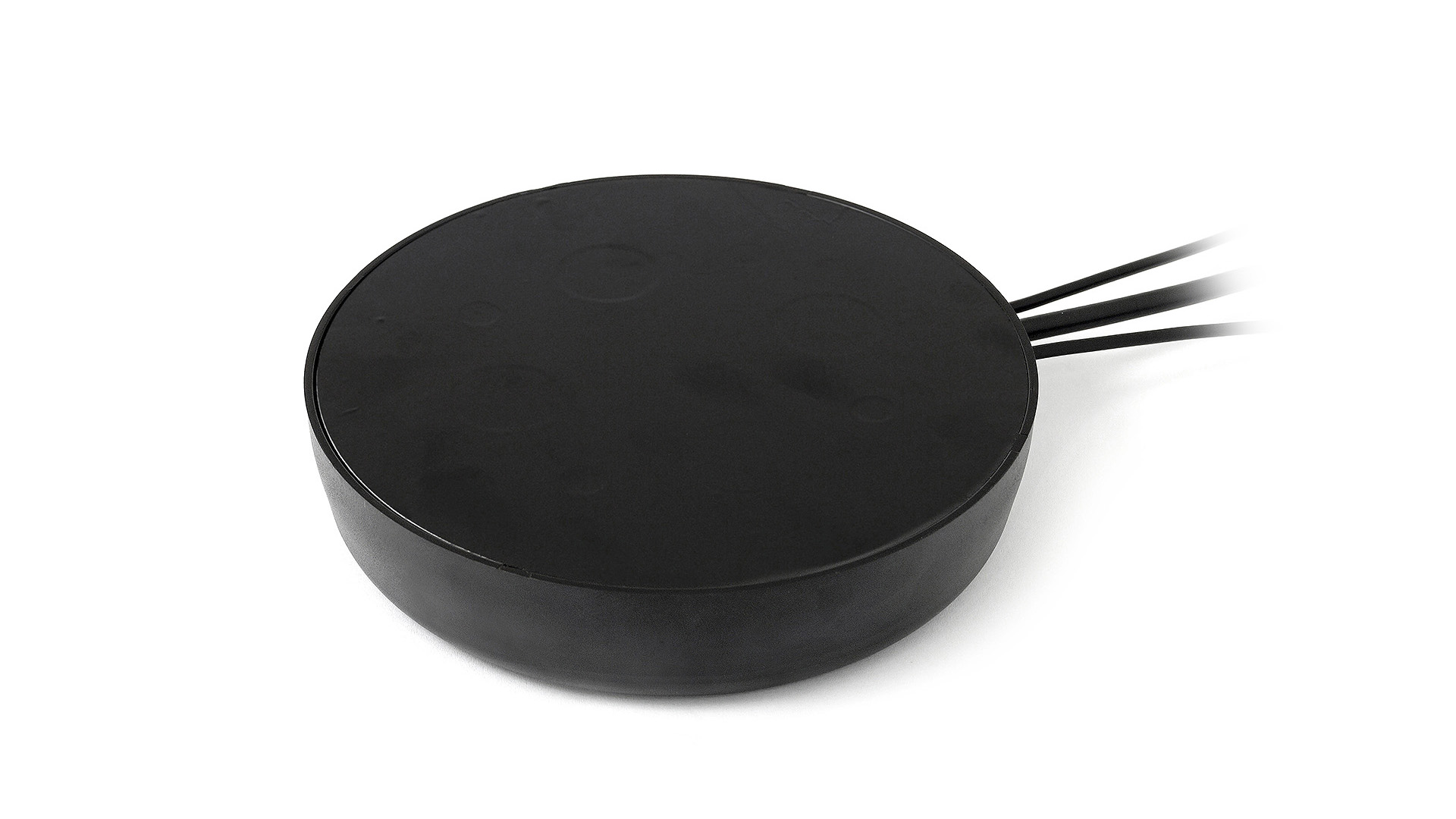

3-in-1 Combination Antenna
Ground Plane Dependent
Wide band Antenna
791-2700 MHz 4GLTE Bands
suitable for EU LTE only
2.6 dBi 4G LTE Peak Gain
Active GNSS Antenna
24 dB GNSS Active Gain
Post Filter GNSS
GNSS Voltage Range 2.7 - 5.5 V
Heavy Duty antenna
Customizable Cable and Connector

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 791-960 1710-2170 2500-2700
Band (MHz) 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B18,
B19, B20, B26, B27,
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC9,
BC10, BC12,
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16
