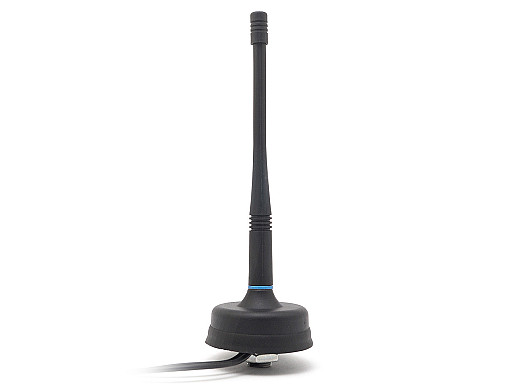

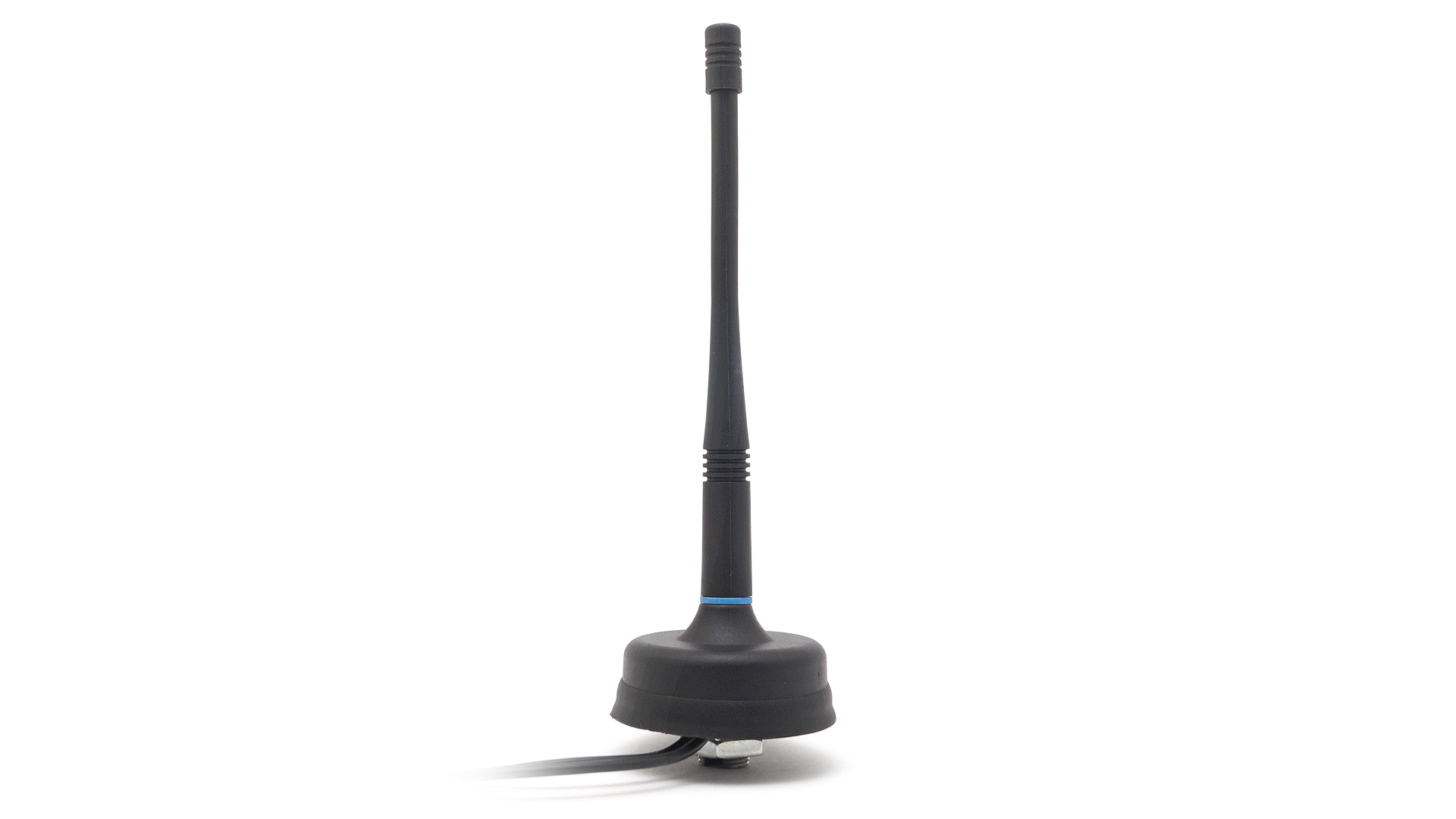

2J7807BG Antenna

433 MHz ISM And GPS/GLONASS Screw Mount Ground Plane Dependent Antenna

General specification
Frequency
433MHz/Sigfox/LoRa/LPWA/RFID/ISM
GPS/GLO/QZSS/Galileo/L1

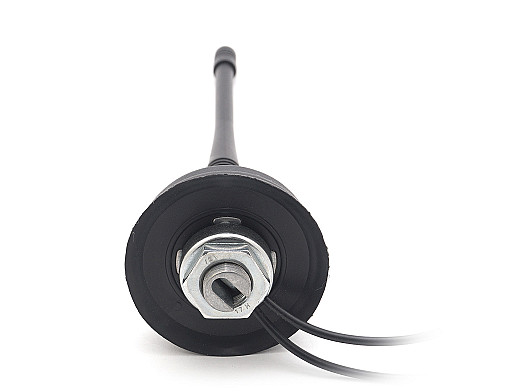

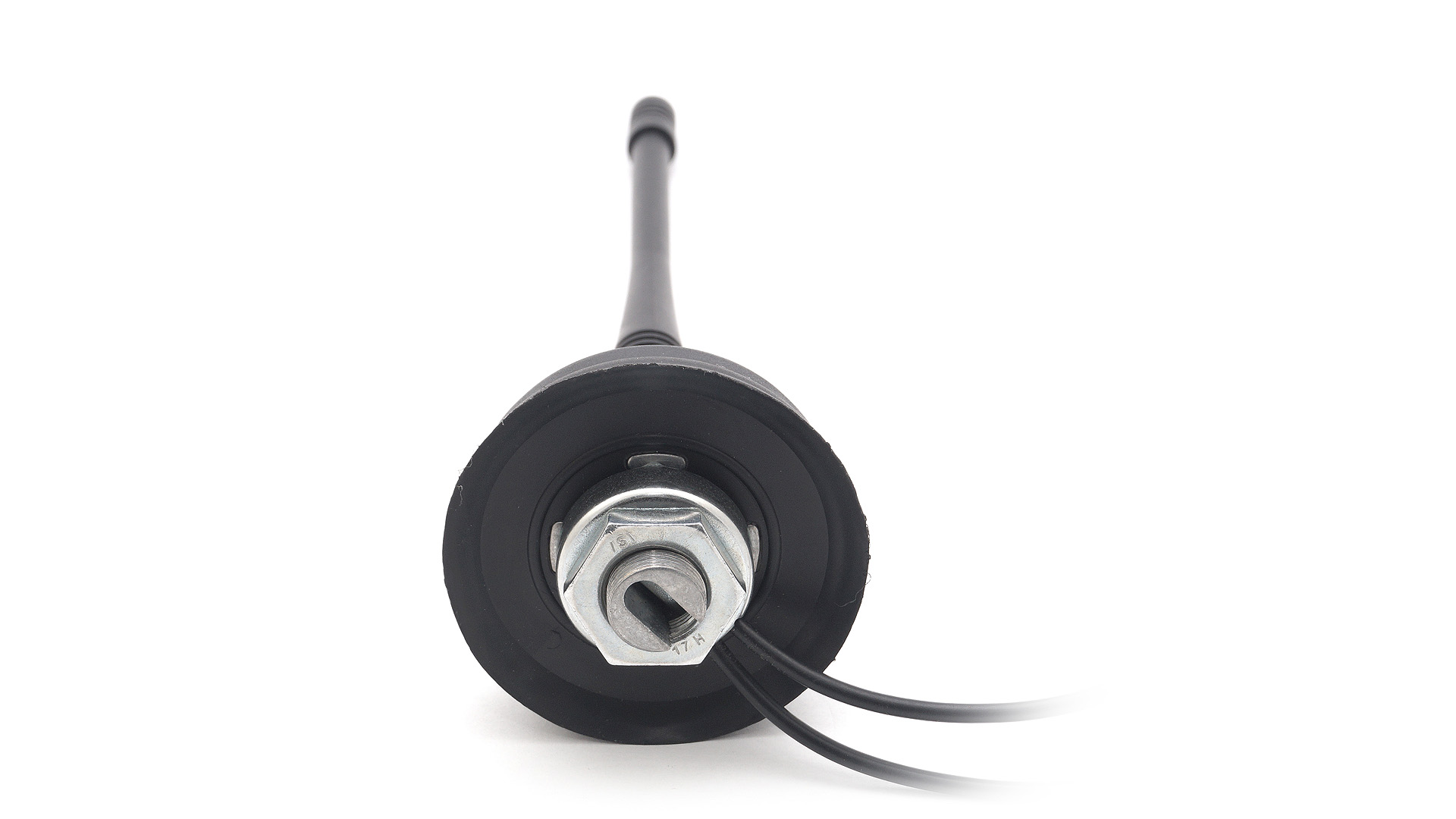

Mounting Screw Mount
Dimensions (mm) 186.5 x 63
Operating temperature -40 °C to +85 °C
Certificates IP67, IP69K
Standard colors
Get Datasheet
Product added to cart

Key Features

  • Customizable Cable and Connector
  • Ground Plane Dependent
  • Screw Mount
  • Certificates: IP67, IP69K
  • GPS/GLONASS/QZSS/Galileo
  • Antenna and electrical specifications

    connection 1

    433 MHz ISM

    Standards ISM, LoRa
    Frequency 433-435
    VSWR ~1.7:1
    Efficiency (%) ~51
    Peak Gain (dBi) ~-0.4
    Impendance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 50
    connection 2

    GPS/GLONASS

    Standards GPS/QZSS/Galileo/GLONASS
    Frequency 1575.42, 1598-1610
    VSWR <=1.2:1
    Impendance (Ohm) 50
    Polarisation RHCP
    Active Gain (dB) 26 @ 3V / 27dB @ 5V
    Voltage (V) 2.7 – 5.5
    Current (mA) 15 - 25
    Power Consumption (mW) 40.5 – 137.5
