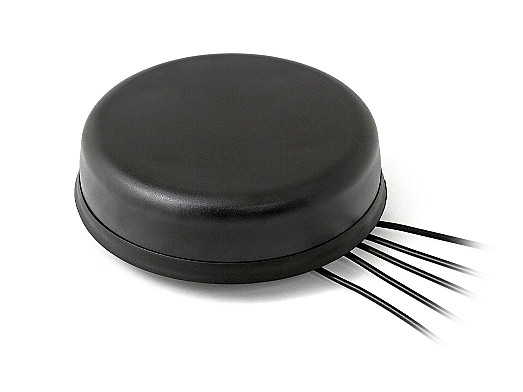

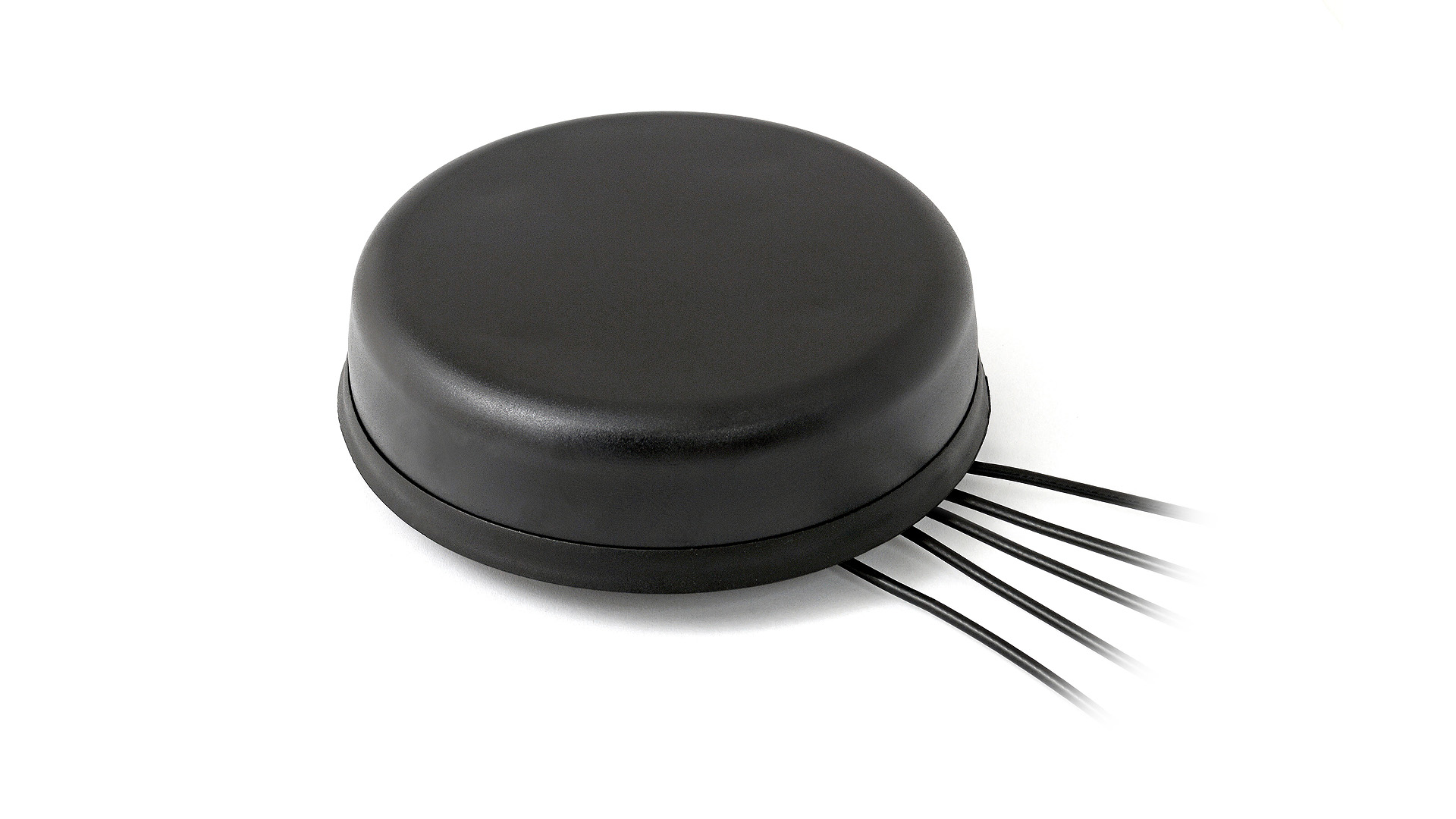

2J6550BGFa - for EU LTE only Antenna

4G LTE/3G/2G MIMO, WiFi ISM MIMO, GPS/GLONASS/Galileo SM Antenna

General specification
Frequency
2× 4GLTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
2× 2.4-5.0GHz MIMO/WiFi/Sigfox/LoRa/LPWA/BT/ZigBee/RFID/ISM
GPS/GLO/QZSS/Galileo/L1

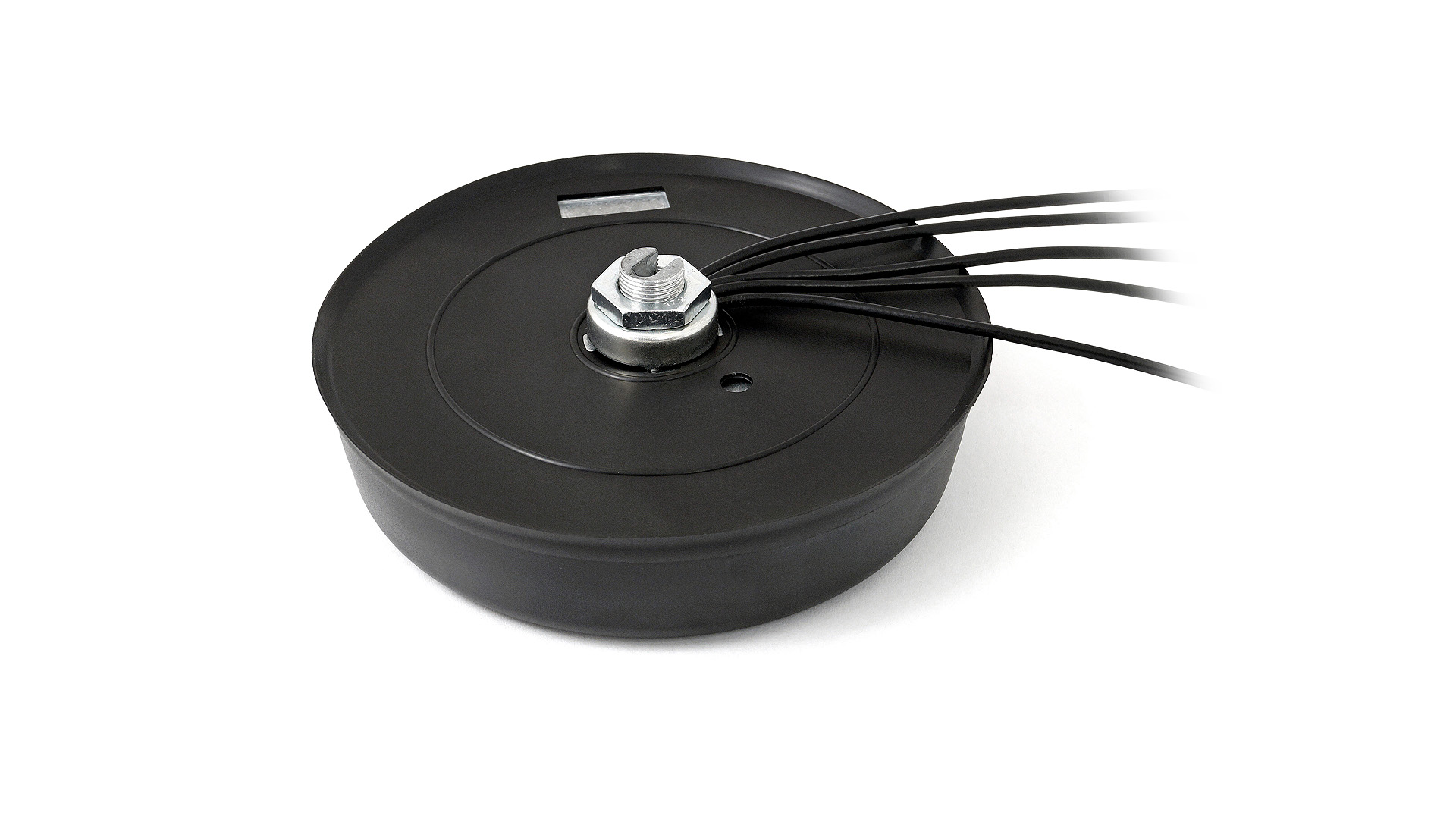

Mounting Screw Mount
Dimensions (mm) Ø 146 x 31.5
Operating temperature -40 °C to +85 °C
Note This antenna is suitable only for European LTE frequency bands - Specification subject to change
Certificates IP67, IP69, IK09
Standard colors
Get Datasheet
Product added to cart

Key Features

  • 2 × 4G LTE & 2 × WIFI MIMO antenna
  • GPS/GLONASS/QZSS/Galileo
  • Heavy Duty antenna
  • High Performance
  • Anti-Rotation Mounting
  • Certificates: IP67, IP69, IK09
  • suitable for EU LTE only
  • Antenna and electrical specifications

    connection 1

    CELLULAR/4G LTE

    Standards 2G,3G and 4G
    Frequency 791-960, 1710-2170, 2500-2700
    VSWR ~3.2:1, ~1.7:1, ~1.9:1
    Efficiency (%) ~32.7, ~40.1, ~30.2
    Peak Gain (dBi) ~0.4, ~2.4, ~0.7
    Impedance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 25
    connection 2

    CELLULAR/4G LTE

    Standards 2G,3G and 4G
    Frequency 791-960, 1710-2170, 2500-2700
    VSWR ~3.0:1, ~1.7:1, ~1.8:1
    Efficiency (%) ~28.2, ~40.7, ~30.5
    Peak Gain (dBi) ~-1.4, ~3.2, ~1.0
    Impedance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 25
    connection 3

    2.4/5.0 GHz ISM

    Standards WiFi, BT, ZigBee, ISM
    Frequency 2410-2490, 4920-5925
    VSWR ~2.2:1, ~1.4:1
    Efficiency (%) ~16.4, ~20.4
    Peak Gain (dBi) ~-0.6, ~1.0
    Impedance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 25
    connection 4

    2.4/5.0 GHz ISM

    Standards WiFi, BT, ZigBee, ISM
    Frequency 2410-2490, 4920-5925
    VSWR ~2.0:1, ~1.3:1
    Efficiency (%) ~19.6, ~22.4
    Peak Gain (dBi) ~0.3, ~0.8
    Impedance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 25
    connection 5

    GPS/GLONASS

    Standards GPS/QZSS/Galileo/GLONASS
    Frequency 1575.42, 1598-1606
    Impedance (Ohm) 50
    Polarisation RHCP
    Active Gain (dB) 28 @ 2.7 V
    Voltage (V) 1.5 - 3.6
    Noise Figure (dB) 1.8 @ 2.7 V
    Current Consumption (mA) 9 @ 2.7 V
    Power Consumption (mW) 24.3 @ 2.7 V
    Saw Filter Type Pre-Filter
    ESD Protection (kV) 6
