Antenna and electrical specifications

connection 1

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~1.7:1, ~1.3:1, ~1.3:1
Efficiency (%) ~72, ~71, ~72
Peak Gain (dBi) ~3.5, ~4.6, ~3.9
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25
connection 2

CELLULAR/4G LTE

Standards 2G,3G and 4G
Frequency 698-960, 1710-2170, 2500-2700
VSWR ~1.7:1, ~1.3:1, ~1.2:1
Efficiency (%) ~74, ~72, ~70
Peak Gain (dBi) ~3.8, ~5.8, ~4.0
Impedance (Ohm) 50
Polarisation Linear
Max. Input Power (W) 25

Key Features

2-in-1 Combination Antenna
For Marine, RV and Outdoor installation
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
5.8 dBi 4G LTE Peak Gain
High Performance
High Efficiency
Antenna Bracket included
Customizable Cable and Connector

4GLTE Antenna Bands list

Parameters 4G LTE Antenna
Frequency (MHz) 698-960 1710-2170 2500-2700
Band (MHz) 700, 850, 900 1700, 1800, 1900, 2000, 2100 2500, 2600
4GLTE Bands B5, B6, B8, B12, B13, B14, B17,
B18, B19, B20, B26, B27, B28,
B29, B44, B67, B68, B85
B1, B2, B3, B4, B9, B10,
B25, B33, B34, B35, B36,
B37, B39, B65, B66, B70
B7, B38, B41, B69
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B9, B10, B25,
B33, B34, B35, B36, B37, B39
B7, B38
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC14, BC15
BC13, BC16

Antenna Description

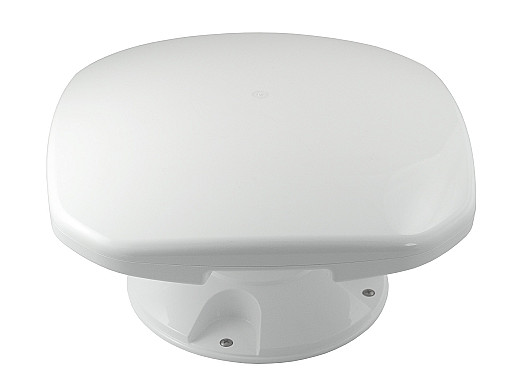

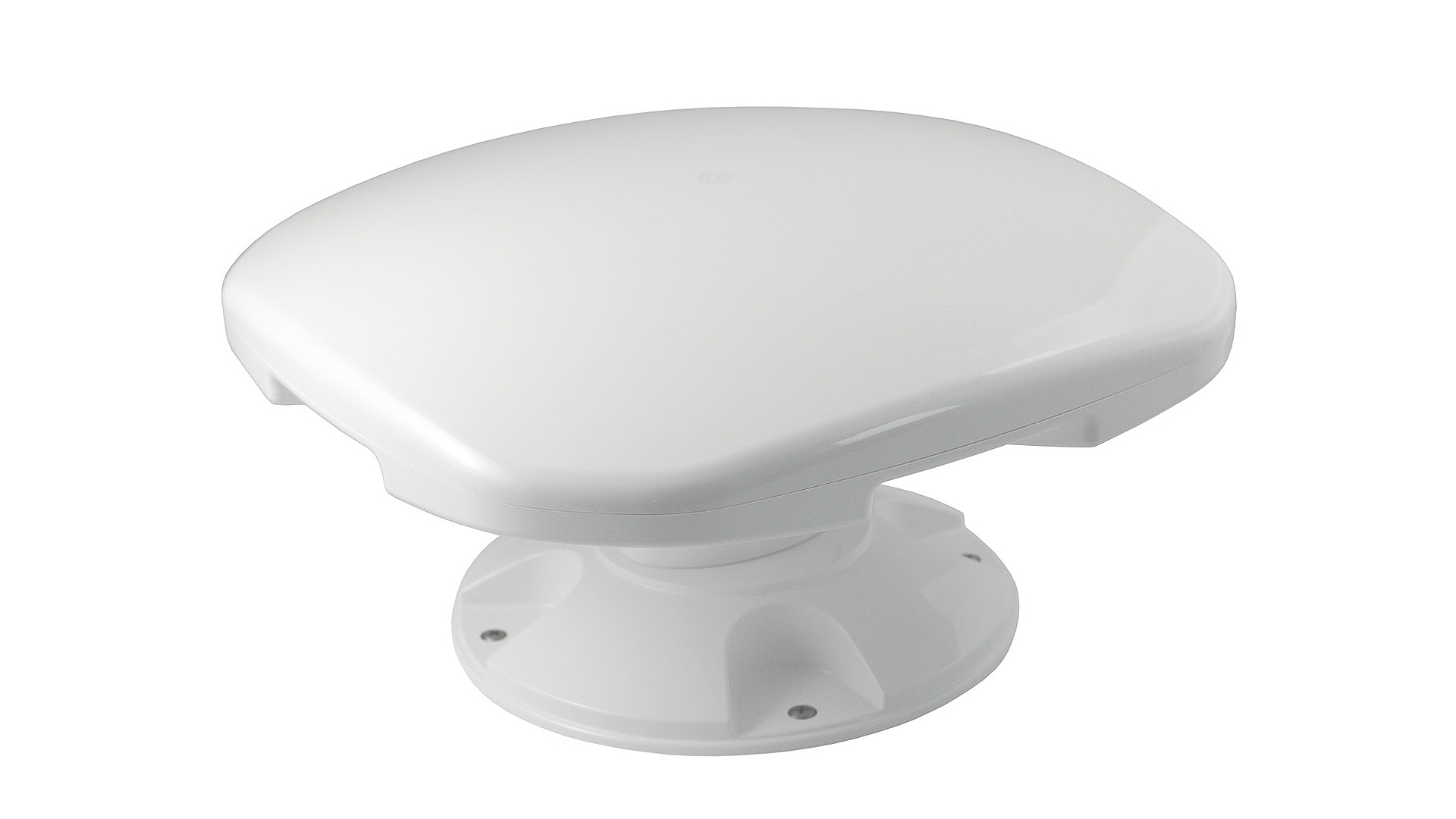

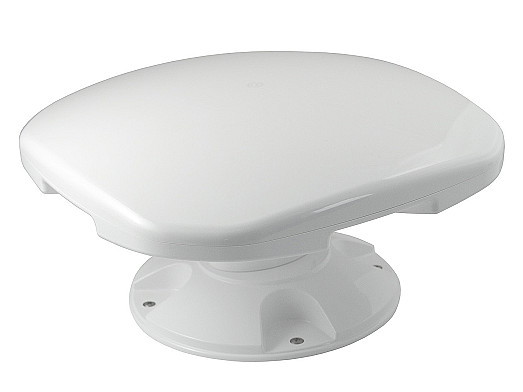

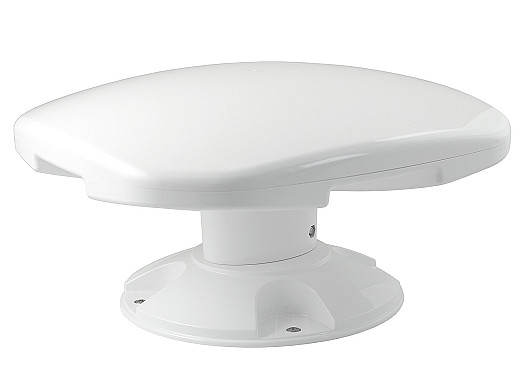

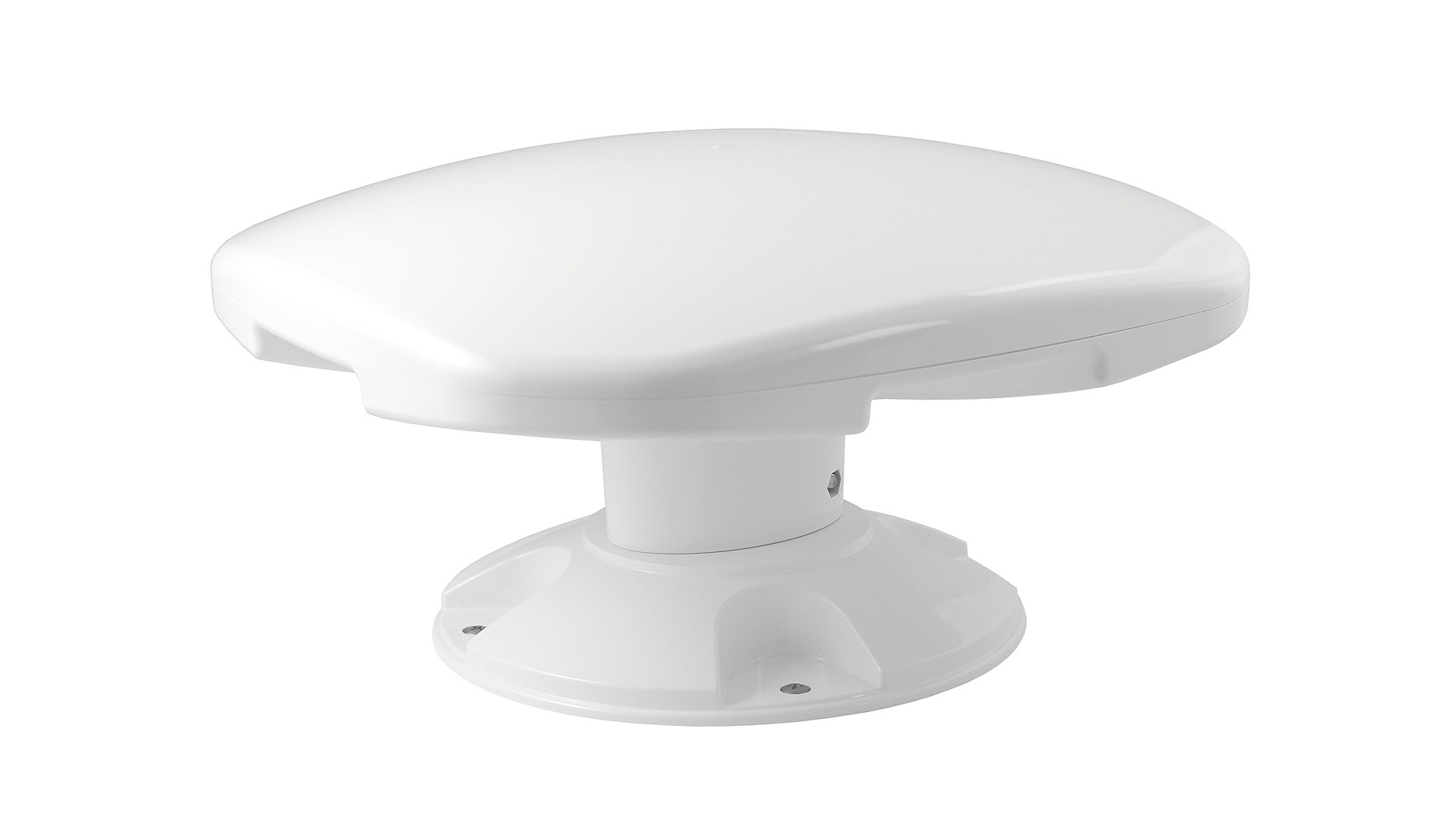

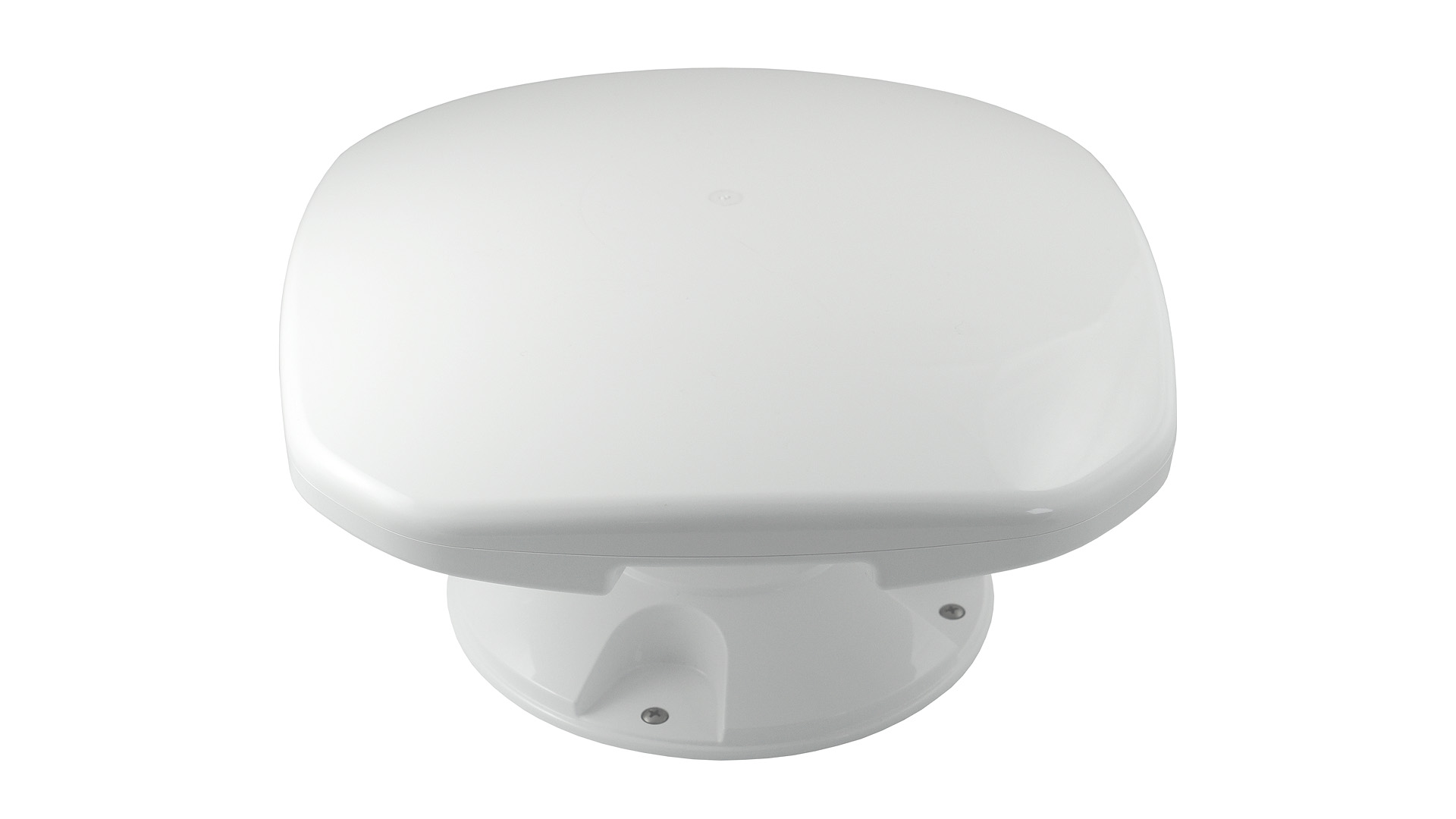

2-in-1 Cellular/LTE MIMO Combination Marine Grade Antenna Ideal For Onboard Ships, RV and Outdoor Installations

This external Cellular/LTE MIMO wideband waterproof antenna is ideal for high-performance marine and outdoor applications, while on the move. The 2J9524JBWa-B01BW covers all the Cellular/LTE bands making it suitable for a wide range of uses and enabling internet connectivity on board. This antenna is powerful and cost-effective, perfect for applications that facilitate high-volume device traffic.

Cable 1 and Cable 2 are designed within 4G LTE, 3G, 2G, FirstNet, LPWA, NB-Iot and Cat-X-Mx-NBx standards, covering frequency bands within 698-960, 1710-2170 and  2500-2700MHz.

This solution is engineered with an omni-directional radiation pattern and linear polarization. It is tuned and calibrated to improve signal strength and allow for uninterrupted connectivity, better signal quality, and reliability while providing increased long- and short-range cellular data and video bandwidth throughput. With a 360°-degree horizontal and vertical signal capacity, this antenna provides the best read range and allows for simultaneous device operation while maintaining superior quality. The 2J9524JBWa-B01BW maintains up to 74% efficiency and max peak gain of up to ~5.8 dBi.

Suggested applications include:

  • HD voice and data
  • Marine
  • Boat,yachts, ferries, leasure
  • Marine coastal stations
  • Recreational vehicles
  • Land-based applications
  • Outdoor applications
  • Cellular communications
  • Infotainment systems
  • MIMO applications
  • Logistics

Installation / Environmental

This antenna features a high-quality ASA material, making it robust and all-weatherproof for harsh conditions at sea. With ground plane independence, this screw mount antenna is easy to install with maximum durability. All cables on the 2J9524JBWa-B01BW antenna have RF connectors (SMA-Male standard), 300cm standard cable length and are fully customizable by offering additional connector types, cable lengths, and cable types. This solution is both RoHS and REACH compliant with complete IP69 certification.
