Antenna and electrical specifications

connection 1

5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) ~-14.0, ~-14.4, ~-8.4, ~-11.7
VSWR ~1.6:1, ~1.5:1, ~2.4:1, ~1.9:1
Efficiency (%) ~53.4, ~68.9, ~51.9, ~55.4
Peak Gain (dBi) ~0.8, ~3.2, ~3.9, ~4.3
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25

Key Features

Ultra Wide band Antenna
Flexi Internal Antenna
617-5925 MHz Sub 6GHz Bands
Full 4GLTE backward compatibility
Ground Plane Independent
4.3 dBi 5G NR Peak Gain
High Performance
Self-Adhesive
Customizable Cable and Connector

5GNR Antenna Bands list

Parameters 5GNR Antenna
Frequency (MHz) 617-960 1427-2690 3300-5000 5150-5925
Band (MHz) 600, 700, 850, 900 1500, 1600, 1700, 1800,
1900, 2000, 2100, 2300,
2500, 2600
3300, 3500, 3600, 3700, 4500 5200, 5500, 5800
5GNR Bands n5, n8 ,12, n20, n28, n71,
n81, n82, n83,
n1, n2, n3, n7, n25, n34,
n38, n39, n40, n41, n50,
n51, n66, n70, n74, n75,
n76, n80, n84, n86
n77, n78, n79
4GLTE Bands B5, B6, B8, B12, B13, B14,
B17, B18, B19, B20, B26,
B27, B28, B29, B44, B67,
B68, B71, B85
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B23, B24,
B25, B30, B32, B33, B34,
B35, B36, B37, B38, B39,
B40, B41, B45, B50, B51,
B65, B66, B69, B70, B74,
B75, B76
B22, B42, B43, B48,
B49, B52
B46, B47, B252, B255
3GCELL Bands B5, B6, B8, B12, B13, B14,
B19, B20, B26
B1, B2, B3, B4, B7, B9,
B10, B11, B21, B25, B32,
B33, B34, B35, B36, B37,
B38, B39, B40
B22
2GCELL Bands 710, 750, 810T, 850, 900P,
900E, 900R
1800DCS, 1900PCS
CDMACELL Bands BC0, BC2, BC3, BC7, BC9,
BC10, BC12, BC18, BC19
BC1, BC4, BC6, BC8,
BC13, BC14, BC15, BC16,
BC20, BC21




Antenna Description

2JF0283P

Excellent Efficiency on All Bands and Designed With Flexibility And Size In Mind

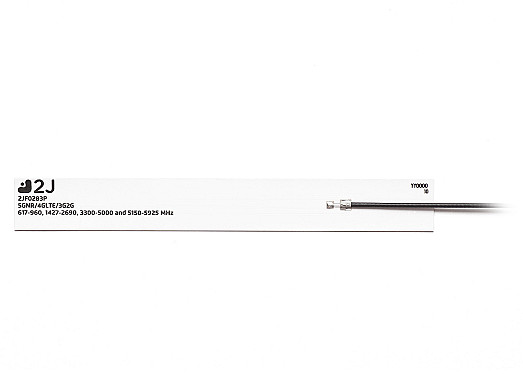

The 5GNR/4GLTE/3G/2G Flexible Polymer Adhesive Antenna (2JF0283P) combines flexibility, conformability, and ease of integration with exceptional global cellular and broadband Internet connectivity and is fully compatible with existing LTE networks. This high-performance antenna is an easy peel-and-stick low-cost solution with high efficiency, reliability, and low device power consumption making it ideal for high volume device manufacturers of consumer, industrial and commercial device applications.

Suggested applications include:

- Industrial / Commercial and Residential IoT
- Consumer Electronics / Wearables
- Public Safety Broadband Devices
- Business / Home Automation Devices
- Transportation / Automotive
- Robotics / Automation
- Drones and UAV’s

The 2JF0283P optimizes full-range signal strength and signal quality within 617MHz - 5925MHz frequencies for Sub6GHz spectrum via omni-directional radiation pattern while maintaining stable peak gains and efficiency across all bands. In addition to the new 5GNR technology enhancing mobile broadband and ultra-reliable low-latency communications, this antenna also includes 3G and 2G designed for previous technologies when 5GNR and 4GLTE are not available while improving data transmission, higher bit-rates and advanced multiplexing techniques resulting in increased capacity and maximum throughput.

Installation and Durability

The 2JF0283P is a ground plane independent embedded antenna designed with ultra-thin dimensions of 120 x 15 x 0.2mm and strong adhesive mounting allowing for easy installation to the inside of plastic housings where space is restricted, including curved surfaces. This antenna is manufactured with high-grade flexible polymer and is also available in rigid fiberglass materials. It can withstand extreme temperatures ranging between -40C and +85C making it ideal for extreme indoor or outdoor device applications.

We recommend maximizing the position, orientation, cable routing, and the tuning of matching components during the antenna integration process for optimal antenna performance. Please contact our Sales Department. The 2JF0283P comes with a standard U.FL connector and 1.37mm Mini-Coax cable measuring 180mm in length.

Our team of experts is available to assist in customization options by offering a wide range of alternative connectors and cables for absolute customer satisfaction. We proudly offer antenna integration services including full antenna parameter reports for impedance and OTA (over the air) measurements.

2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.
