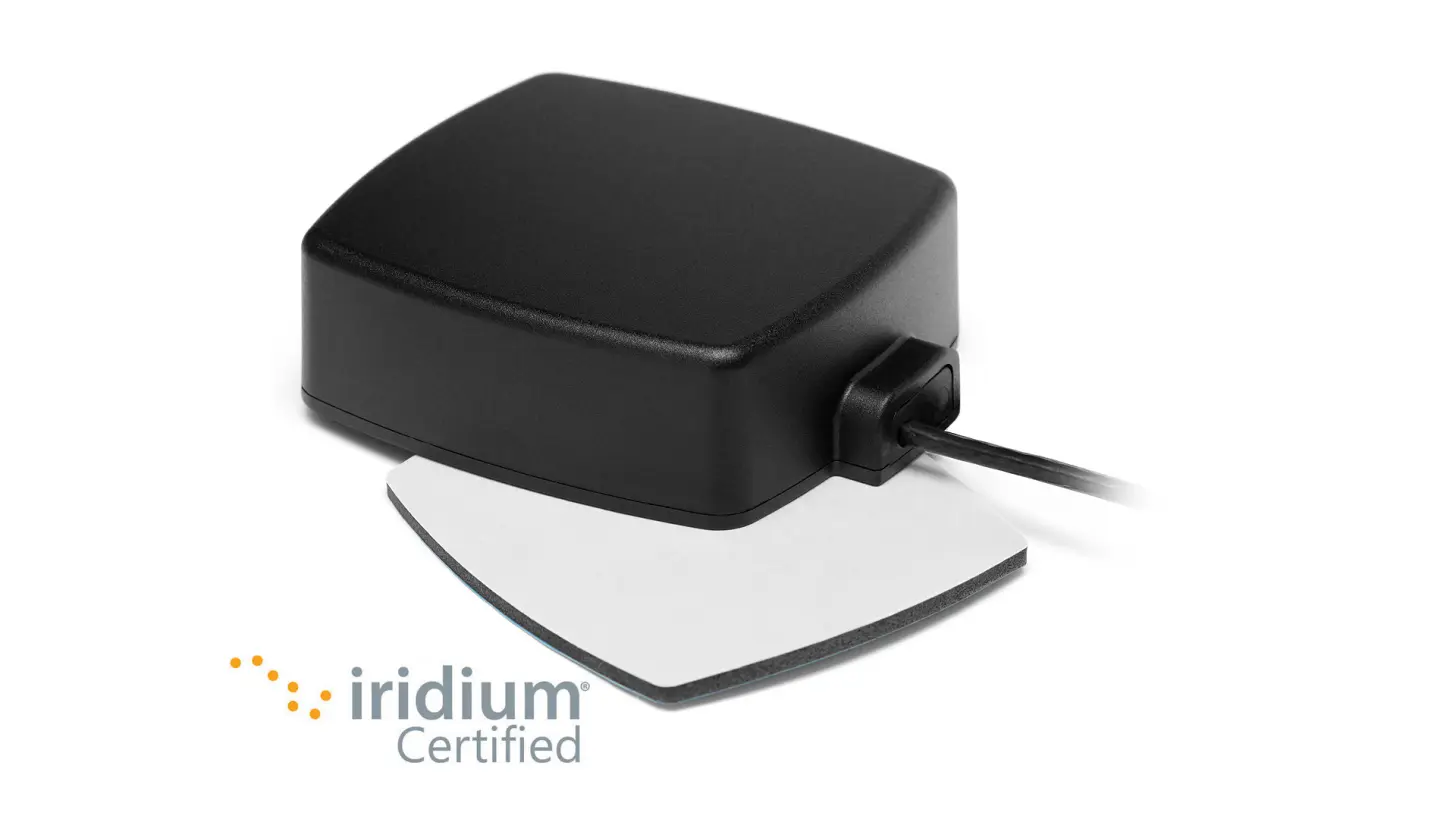

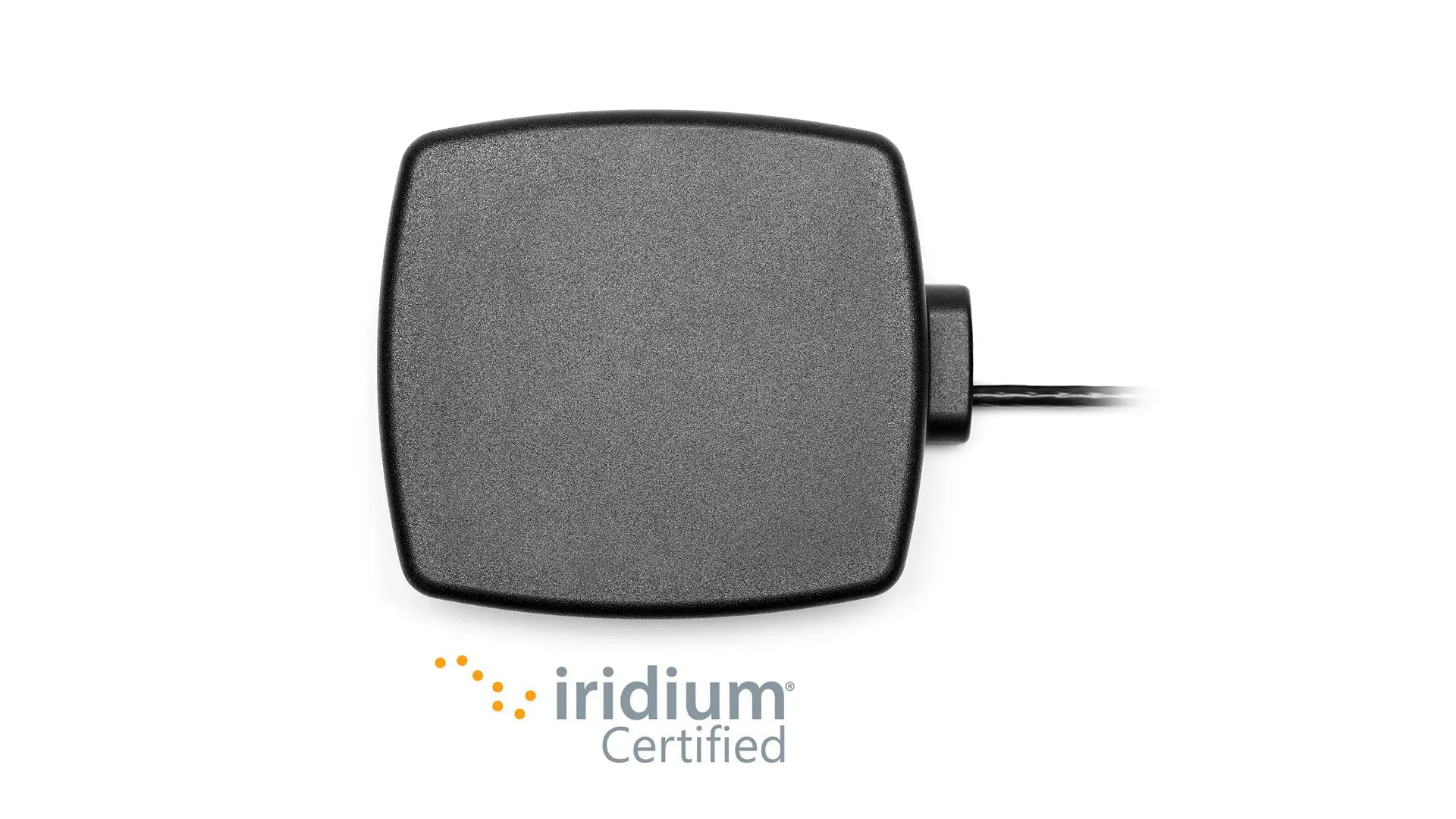

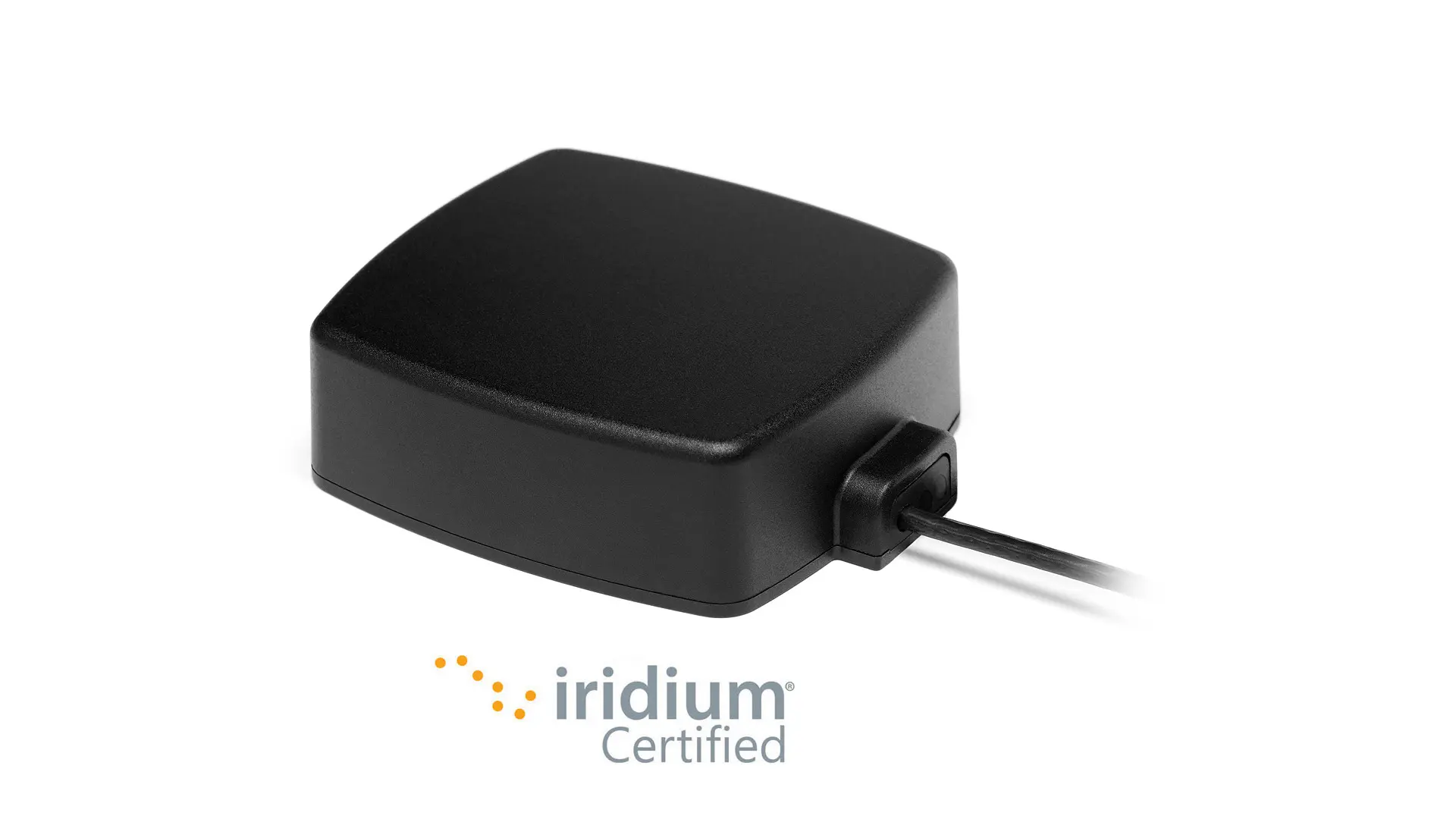

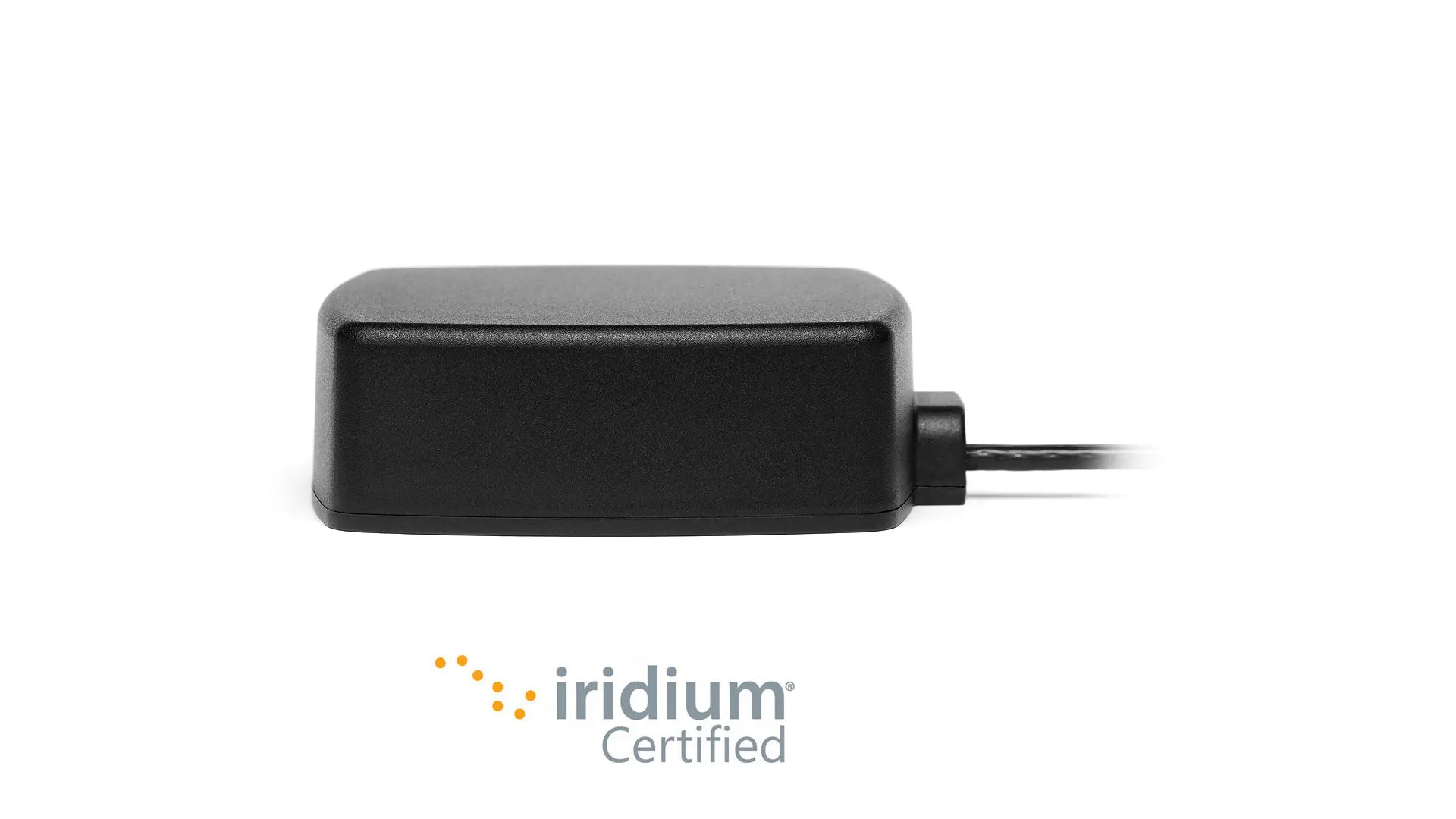

2J6926MP
Phoenix Iridium Certified High Gain Magnetic Adhesive Mount Antenna
Connections (1)
1×
IRIDIUM
| Mounting | Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount |
|---|---|
| Dimensions (mm) | 89 × 76 × 27/30 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 , Iridium Certified |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
IRIDIUM
| Standards | IRIDIUM |
|---|---|
| Frequency | 1616-1627 |
| VSWR | ~1.2:1 |
| Efficiency (%) | ~76 |
| Passive Gain (dBiC) | ~4.5 |
| Impedance (Ohm) | 50 |
| Axial Ratio (dB) | 3 max |
| Radiation Pattern | Hemispherical |
| Polarization | RHCP |
Antenna Description
Key Features
Ground Plane Independent
High Efficiency
Customizable Cable and Connector
Low Profile
High Gain
Adhesive Mounting sticker included
Iridium Certified Antenna
4.5 dBic IRIDIUM Peak Gain
Applications
Marine & Maritime
Satellite Communication
