2JP0126Bz

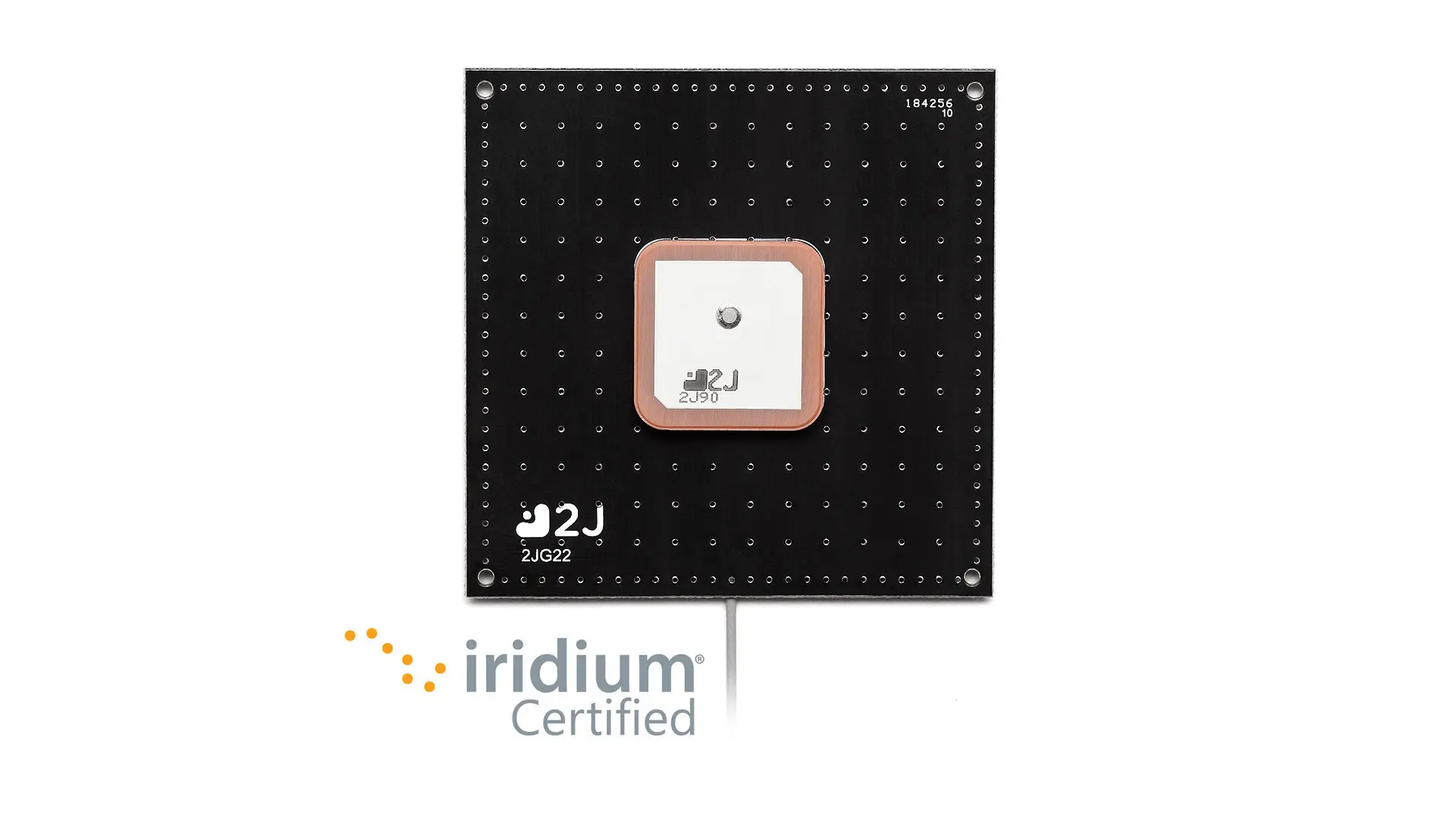

IRIDIUM High Performance, Embedded Passive Screw Mount Module Antenna
Connections (1)
1×
IRIDIUM
| Mounting | Screw Mount Module |
|---|---|
| Dimensions (mm) | 70 × 70 × 7.1 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | Iridium Certified |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
IRIDIUM
| Standards | IRIDIUM |
|---|---|
| Frequency | 1616-1627 |
| Peak Gain (dBi) | ~4.8 |
| Efficiency (%) | ~76.6 |
| Impedance (Ohm) | 50 |
| Axial Ratio (dB) | 3 max |
| Radiation Pattern | Hemispherical |
| Polarization | RHCP |
Antenna Description
Key Features
Ground Plane Independent
High Performance
Customizable Cable and Connector
Internal Antenna
Iridium Certified Antenna
4.8 dBi IRIDIUM Peak Gain
Applications
Marine & Maritime
Satellite Communication
Internal Antenna Solutions
