2J6026P

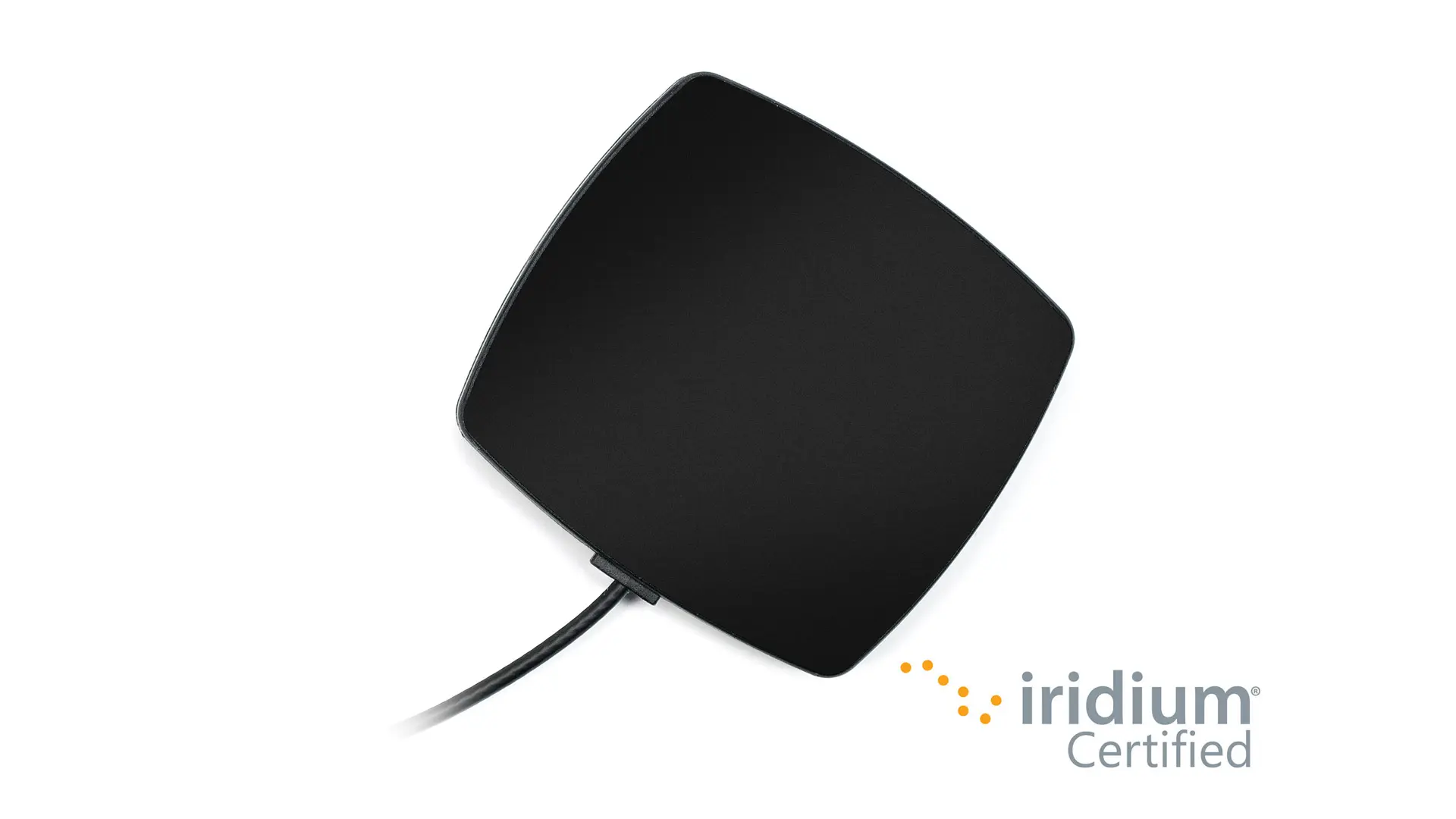

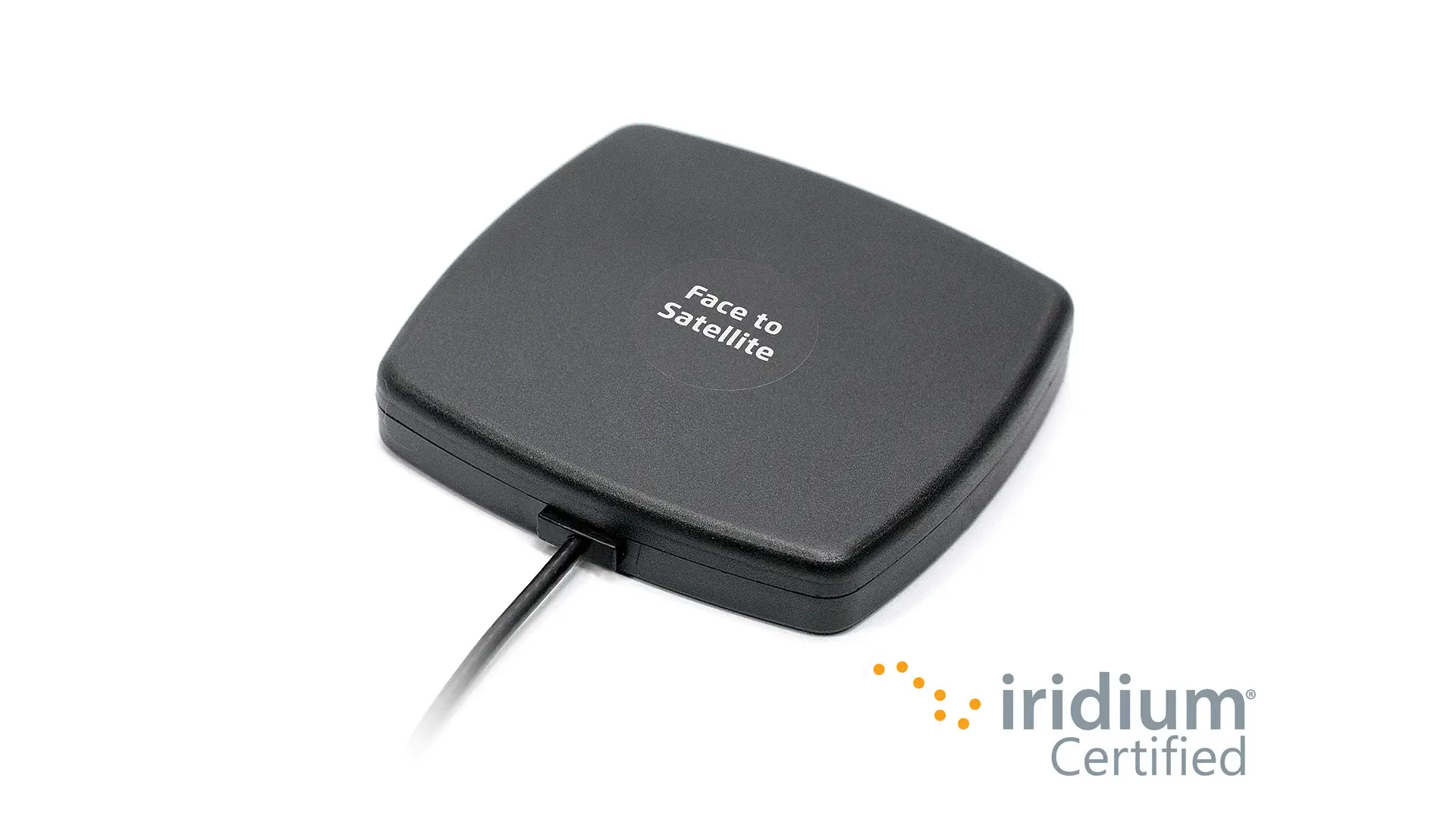

Falcon Iridium Low Profile Adhesive Mount Antenna
Connections (1)
1×
IRIDIUM
| Mounting | Adhesive Mount |
|---|---|
| Dimensions (mm) | 80 × 76 × 16 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | Iridium Certified |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
IRIDIUM
| Standards | IRIDIUM |
|---|---|
| Frequency | 1616-1627 |
| VSWR | ~1.2:1 |
| Efficiency (%) | ~76 |
| Passive Gain (dBiC) | ~4.5 |
| Impedance (Ohm) | 50 |
| Axial Ratio (dB) | 3 max |
| Radiation Pattern | Hemispherical |
| Polarization | RHCP |
Antenna Description
Key Features
Ground Plane Independent
High Performance
High Efficiency
Customizable Cable and Connector
Low Profile
Iridium Certified Antenna
4.5 dBic IRIDIUM Peak Gain
Applications
Marine & Maritime
Satellite Communication
