2JP0133BGF

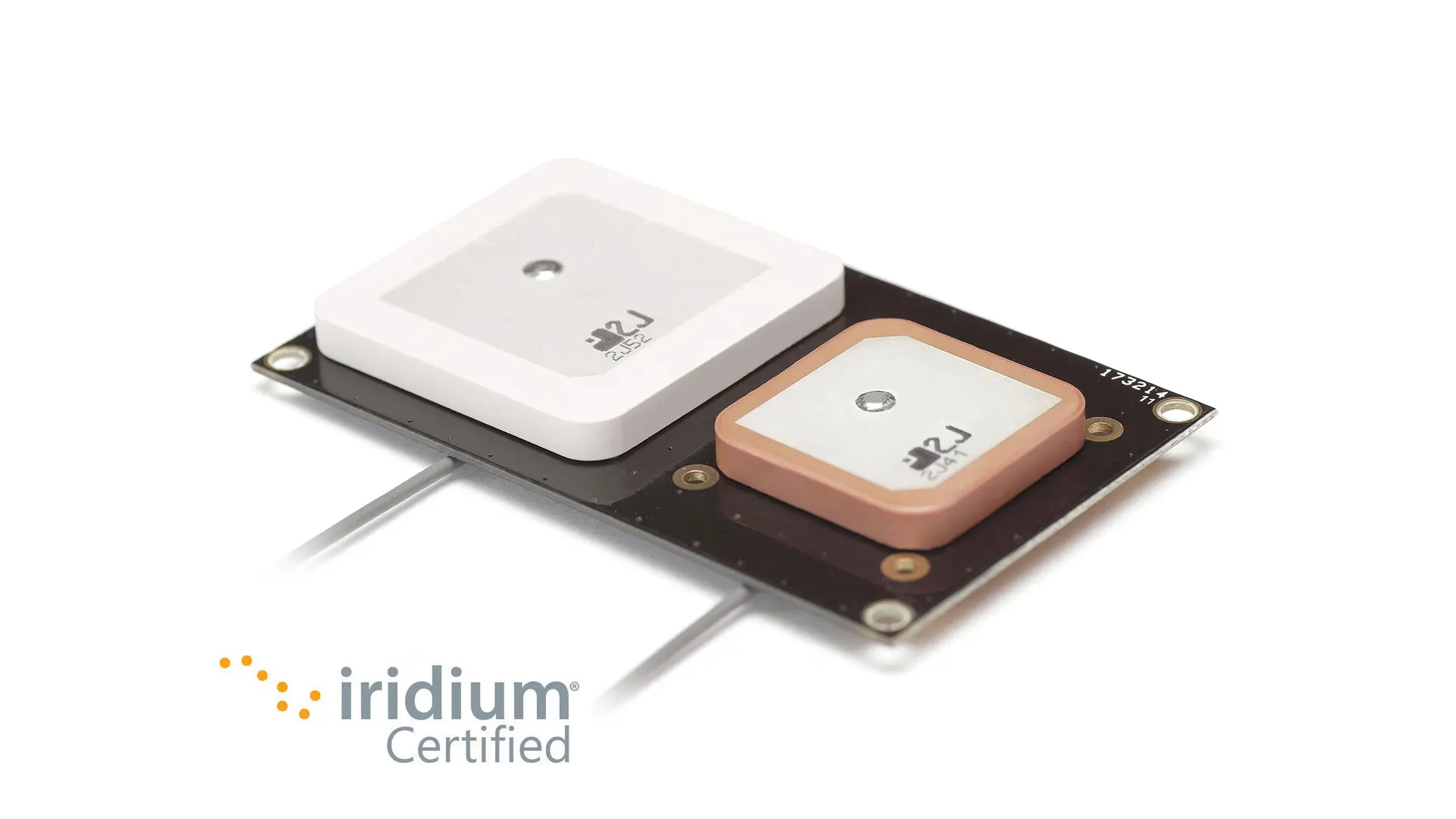

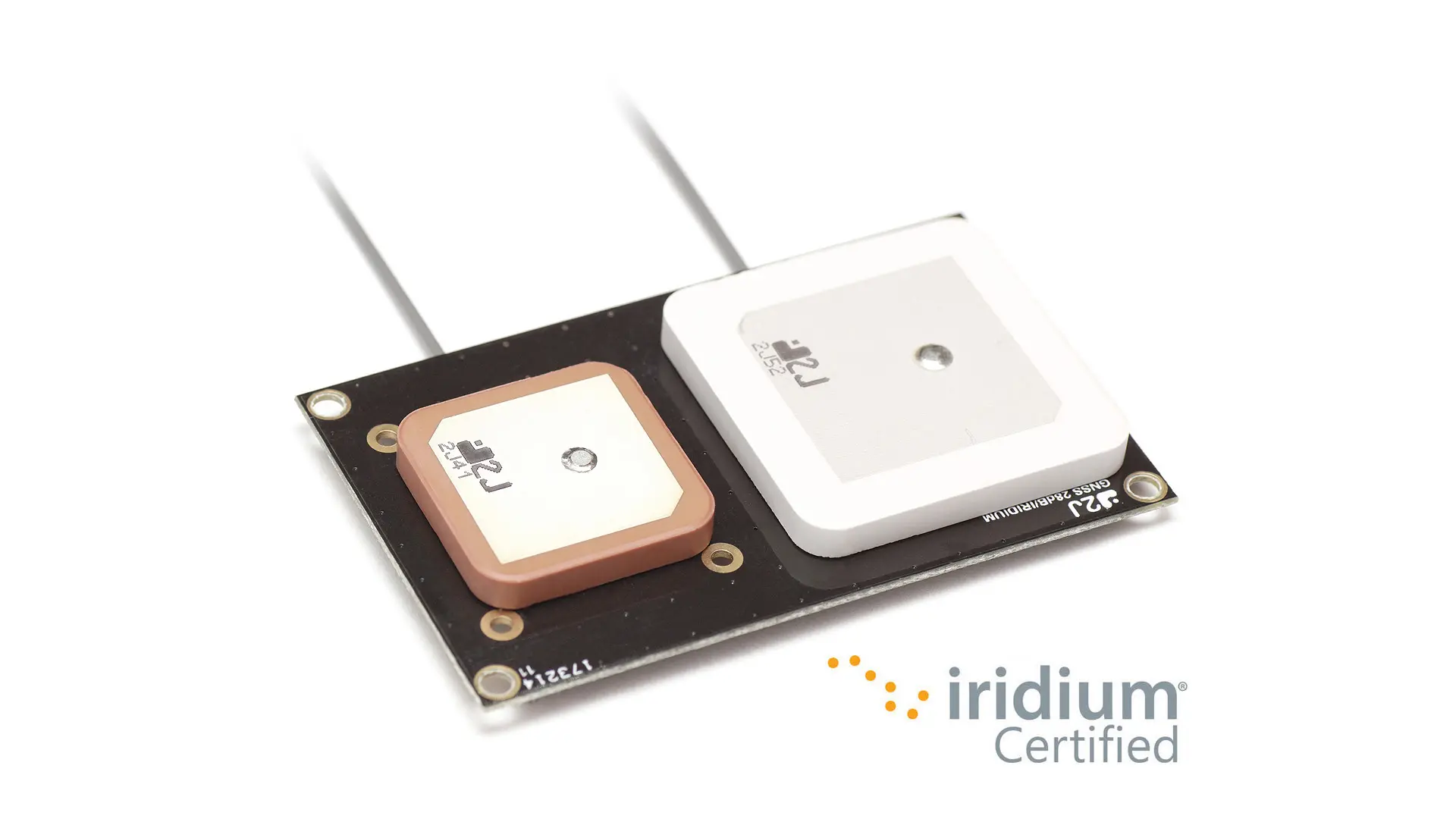

GPS/GLONASS and Iridium Screw Mount Embedded Dual Antenna
Connections (2)
1×
GPS / GLONASS / QZSS / Galileo - L1
1×
IRIDIUM
| Mounting | Screw Mount Module |
|---|---|
| Dimensions (mm) | 74 × 45 × 8.8 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | Iridium Certified |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
GPS / GLONASS / QZSS / Galileo - L1
| Standards | GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1575.42, 1598-1606 |
| Impedance (Ohm) | 50 |
| Active Gain (dB) | 28 @ 2.7 V |
| Voltage (V) | 1.5 - 3.6 |
| Current (mA) | 9 @ 2.7 V |
| Power Consumption (mW) | 24.3 @ 2.7V |
| Saw Filter Type | Pre-Filter |
connection 2
IRIDIUM
| Standards | IRIDIUM |
|---|---|
| Frequency | 1616-1627 |
| Passive Gain (dBi) | ~4.5 |
| Efficiency (%) | ~76 |
| Impedance (Ohm) | 50 |
| Axial Ratio (dB) | 3 max |
| Radiation Pattern | Hemispherical |
| Polarization | RHCP |
Antenna Description
Key Features
Ground Plane Independent
Customizable Cable and Connector
2-in-1 Combination Antenna
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
Internal Antenna
Voltage Range 1.5 - 3.6 V
Low Power Consumption
Iridium Certified Antenna
4.5 dBi IRIDIUM Peak Gain
Applications
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
Satellite Communication
