2JCP2542601a

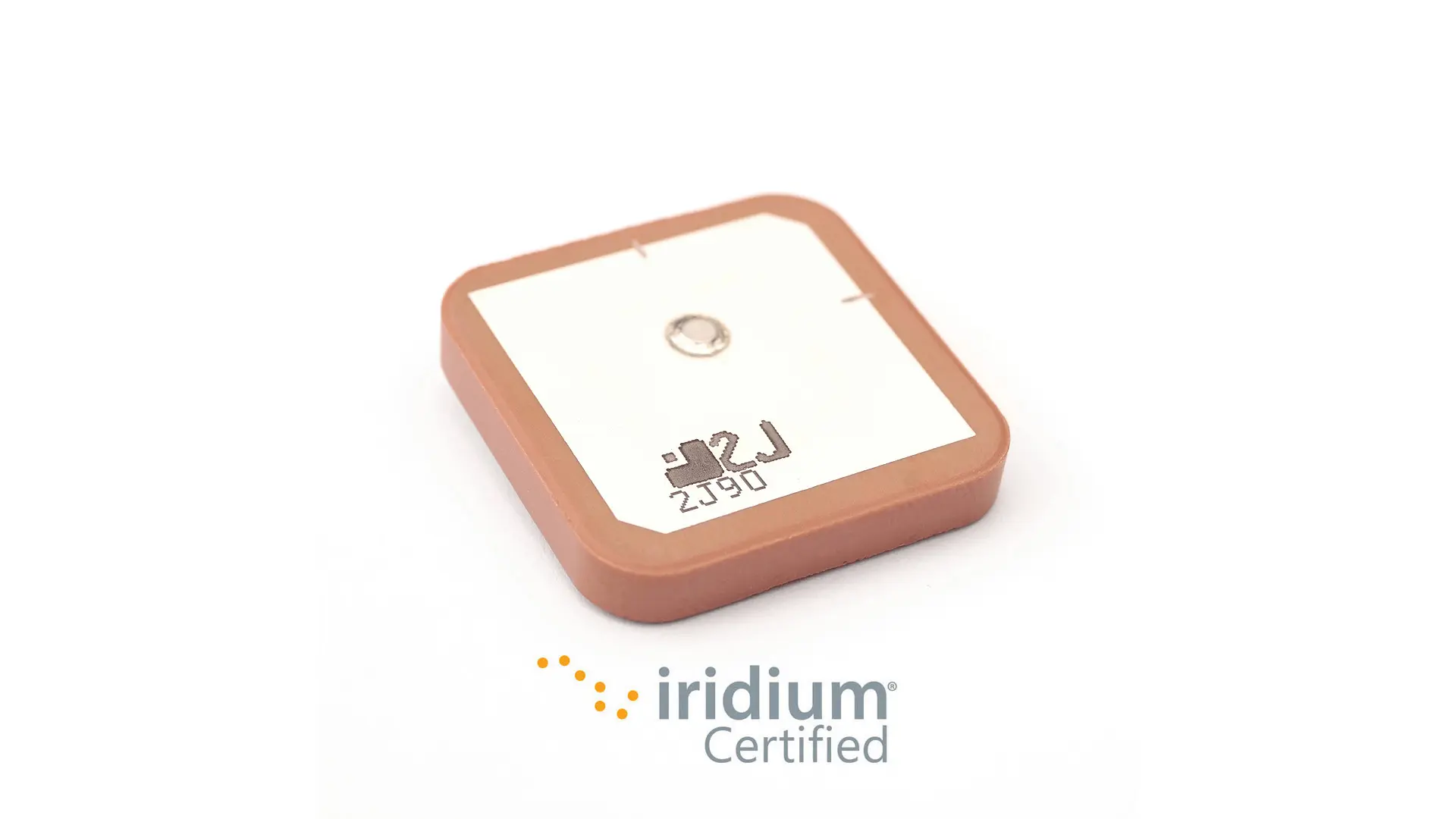

IRIDIUM Low-Profile Ceramic Patch Thru-Hole Mount Antenna
Connections (1)
1×
IRIDIUM
| Mounting | Thru-Hole Mount Ceramic |
|---|---|
| Dimensions (mm) | 25 × 25 × 4 |
| Operating temperature | -40 °C to +85 °C |
| Note | Specification only for the 2JDK0226a-C104N Development Kit |
| Certificates | Iridium Certified |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
IRIDIUM
| Standards | IRIDIUM |
|---|---|
| Frequency | 1616-1627 |
| Passive Gain (dBi) | ~5.1 |
| Efficiency (%) | ~82.3 |
| Impedance (Ohm) | 50 |
| Axial Ratio (dB) | 3 max |
| Radiation Pattern | Hemispherical |
| Polarization | RHCP |
Antenna Description
Key Features
Ground Plane Dependent
High Efficiency
Embedded Antenna
Iridium Certified Antenna
Ceramic Material
5.1 dBic IRIDIUM Peak Gain
Applications
Marine & Maritime
Satellite Communication
Embedded Antenna Solutions
