2J6C75BGFa

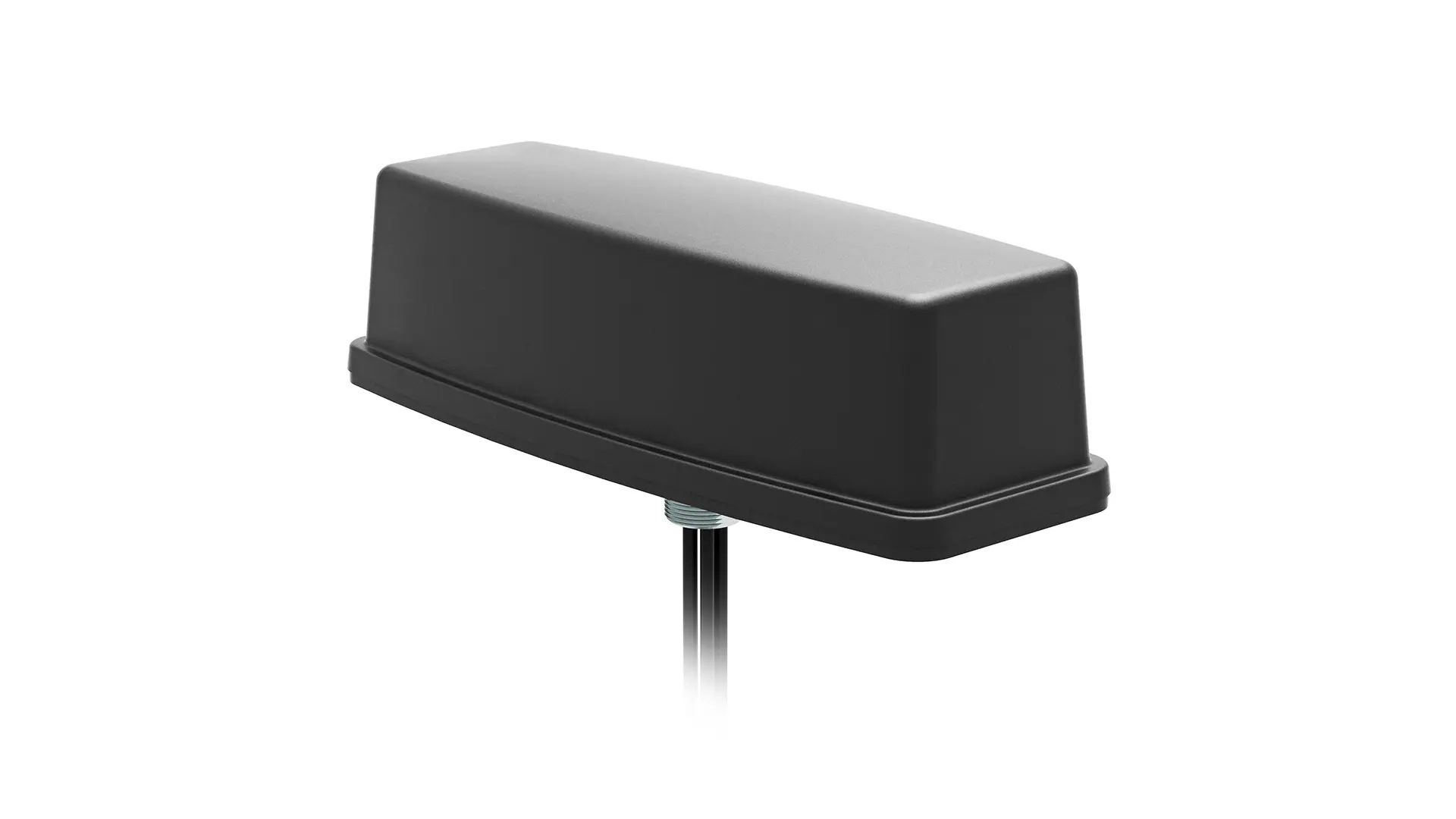

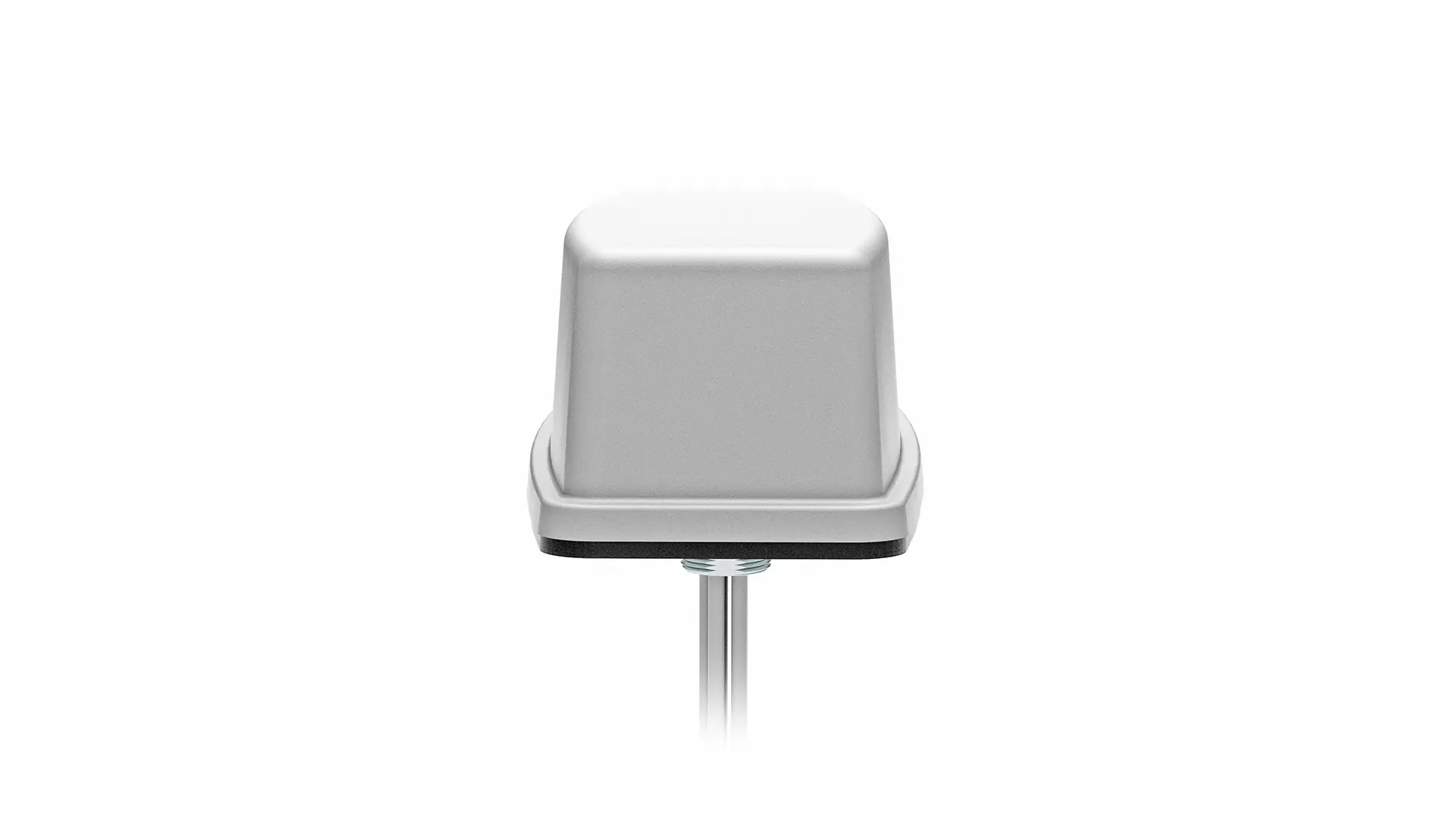

Bullion 4-in-1 2x 5GNR MIMO, GNSS and IRIDIUM Screw Mount
Connections (4)
2×
5G NR / Cellular / LPWA
1×
IRIDIUM
1×
GPS / GLONASS / QZSS / Galileo - L1
| Mounting | Screw Mount |
|---|---|
| Dimensions (mm) | 193 × 76.3 × 52.4 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
5G NR / Cellular / LPWA
| Technologies | 5G, 4G, 3G and 2G |
|---|---|
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G |
| Frequency | 617-960, 1427-2690, 3300-5000, 5150-5925, 5925-7125 |
| Return Loss (dB) | ~-8.5, ~-10.0, ~-12.0, ~-12.0, ~-8.5 |
| VSWR | ~2.2:1, ~2.0:1, ~1.7:1, ~1.7:1, ~2.2:1 |
| Efficiency (%) | ~40.8, ~46.1, ~52.1, ~40.2, ~30.8 |
| Peak Gain (dBi) | ~1.1, ~5.7, ~3.9, ~3.4, ~3.6 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 10 |
connection 2
5G NR / Cellular / LPWA
| Technologies | 5G, 4G, 3G and 2G |
|---|---|
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G |
| Frequency | 617-960, 1427-2690, 3300-5000, 5150-5925, 5925-7125 |
| Return Loss (dB) | ~-7.0, ~-10.0, ~-10.5, ~-13.7, ~-11.2 |
| VSWR | ~3.0:1, ~2.5:1, ~2.0:1, ~1.6:1, ~2.0:1 |
| Efficiency (%) | ~40.8, ~50.7, ~50.5, ~50.7, ~38.5 |
| Peak Gain (dBi) | ~1.3, ~6.1, ~4.1, ~4.7, ~4.4 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 10 |
connection 3
IRIDIUM
| Standards | IRIDIUM |
|---|---|
| Frequency | 1616-1627 |
| Peak Gain (dBic) | ~4.7 |
| Efficiency (%) | ~65.8 |
| Radiation Pattern | Hemispherical |
| Polarisation | RHCP |
connection 4
GPS / GLONASS / QZSS / Galileo - L1
| Standards | GPS/GLONASS/QZSS/Galileo |
|---|---|
| Frequency | 1575.42, 1598-1610 |
| VSWR | <=1.4:1 |
| Impedance (Ohm) | 50 |
| Polarisation | RHCP |
| Radiation Pattern | Hemispherical |
| Voltage Range (V) | 1.5 - 3.6 |
| Active Gain (dB) | 28 @ 2.7 V |
| Noise Figure (dB) | 1.5 @ 2.7 V |
| Current Consumption (mA) | 9 @ 2.7 V |
| Saw Filter Type | Pre-Filter |
| ESD Protection (kV) | 2 |
Antenna Description
Key Features
Ground Plane Independent
High Performance
Customizable Cable and Connector
Anti-Rotation Mounting
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
4-in-1 Combination Antenna
Ultra Wide band Antenna
Full 4GLTE backward compatibility
617-7125 MHz Bands
6.1 dBi 5G NR Peak Gain
4.7 dBic IRIDIUM Peak Gain
Applications
Cellular & Wireless
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
Satellite Communication
Broadcasting & Media
Consumer & Entertainment
Antenna band list
| Parameters | 5GNR Antenna | ||||
| Frequency (MHz) | 617-960 | 1427-2690 | 3300-5000 | 5150-5925 | 5925-7125 |
| Band (MHz) | 600, 700, 800, 850, 900 | 1500, 1600, 1700, 1800, 1900, 2000, 2100, 2300, 2500, 2600 | 3300, 3500, 3600, 3700, 4500 | 5200, 5500, 5800 | 6175, 6525, 6775 |
| 5GNR Bands | n5, n8 ,12, n13, n14, n18, n20, n26, n28, n29, n67, n71, n81, n82, n83, n85, n89, n100, n105, n106 | n1, n2, n3, n7, n, 24, n25, n30, n34, n38, n39, n40, n41, n50, n51, n53, n54, n65, n66, n70, n74, n75, n76, n80, n84, n86, n91, n92, n93, n94, n95, n97, n98, n99, n101, n109, n254, n255, n256 | n48, n77, n78, n79, n90 | n46, n47 | n96, n102, n104 |
| 4GLTE Bands | B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B71, B85 | B1, B2, B3, B4, B7, B9, B10, B11, B21, B23, B24, B25, B30, B32, B33, B34, B35, B36, B37, B38, B39, B40, B41, B45, B50, B51, B65, B66, B69, B70, B74, B75, B76 | B22, B42, B43, B48, B49, B52 | B46, B47, B252, B255 | |
| 3GCELL Bands | B5, B6, B8, B12, B13, B14, B19, B20, B26 | B1, B2, B3, B4, B7, B9, B10, B11, B21, B25, B32, B33, B34, B35, B36, B37, B38, B39, B40 | B22 | ||
| 2GCELL Bands | 710, 750, 810T, 850, 900P, 900E, 900R | 1800DCS, 1900PCS | |||
| CDMACELL Bands | BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19 | BC1, BC4, BC6, BC8, BC13, BC14, BC15, BC16, BC20, BC21 | |||
