2J9126JBW-B12JW-B10BW

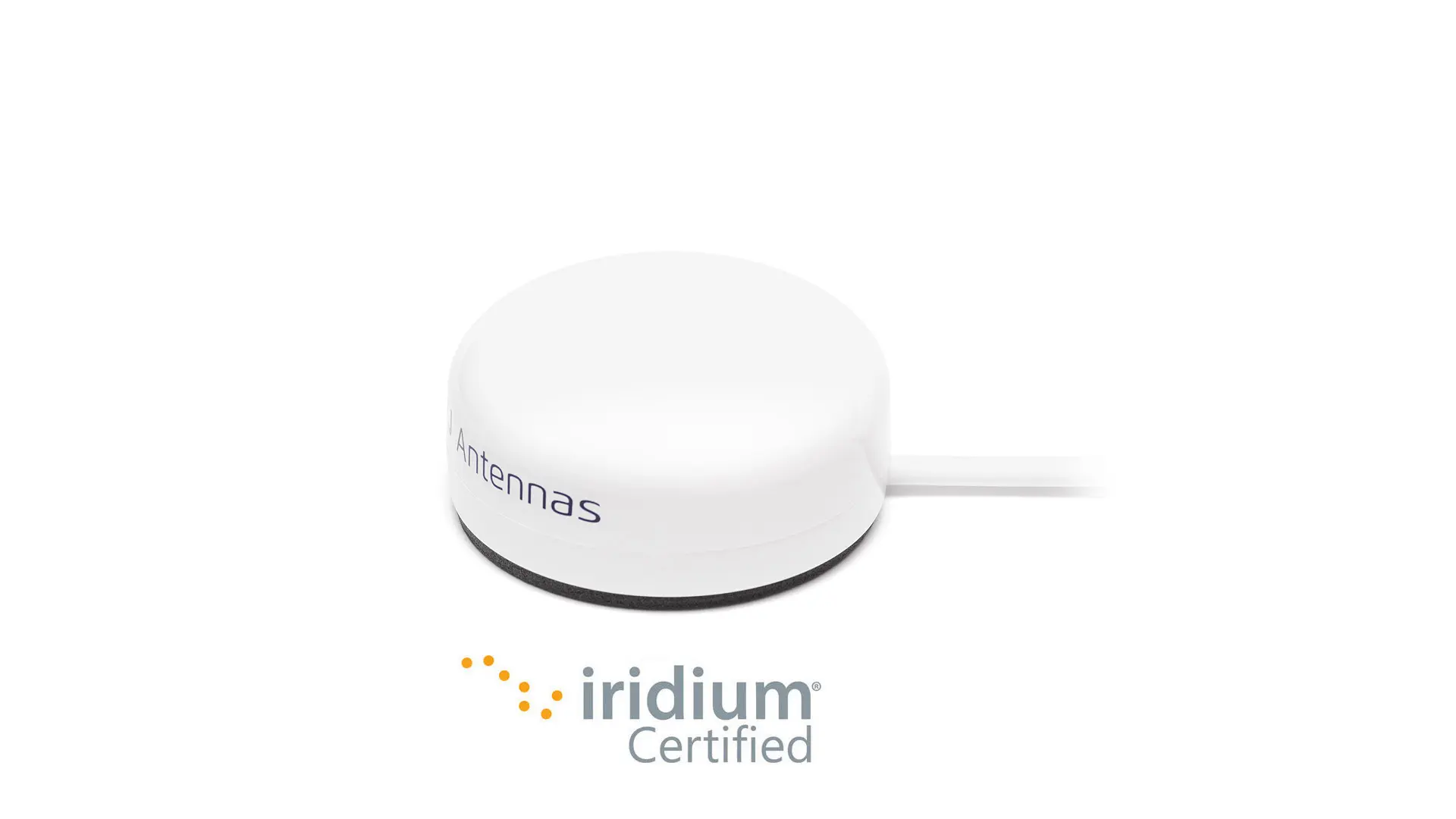

Iridium Certified Configurable Mounting Marine Antenna
Connections (1)
1×
IRIDIUM

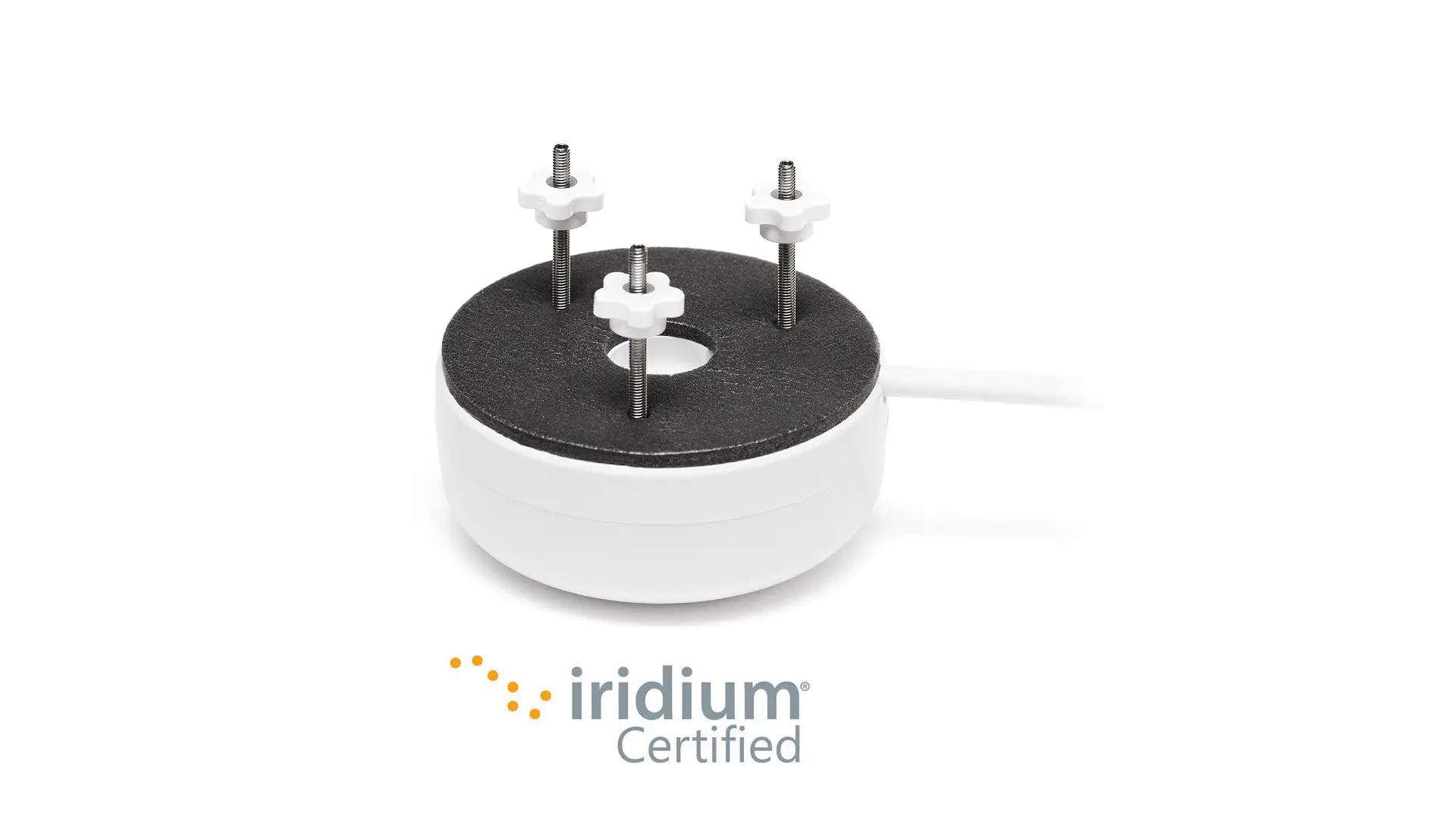

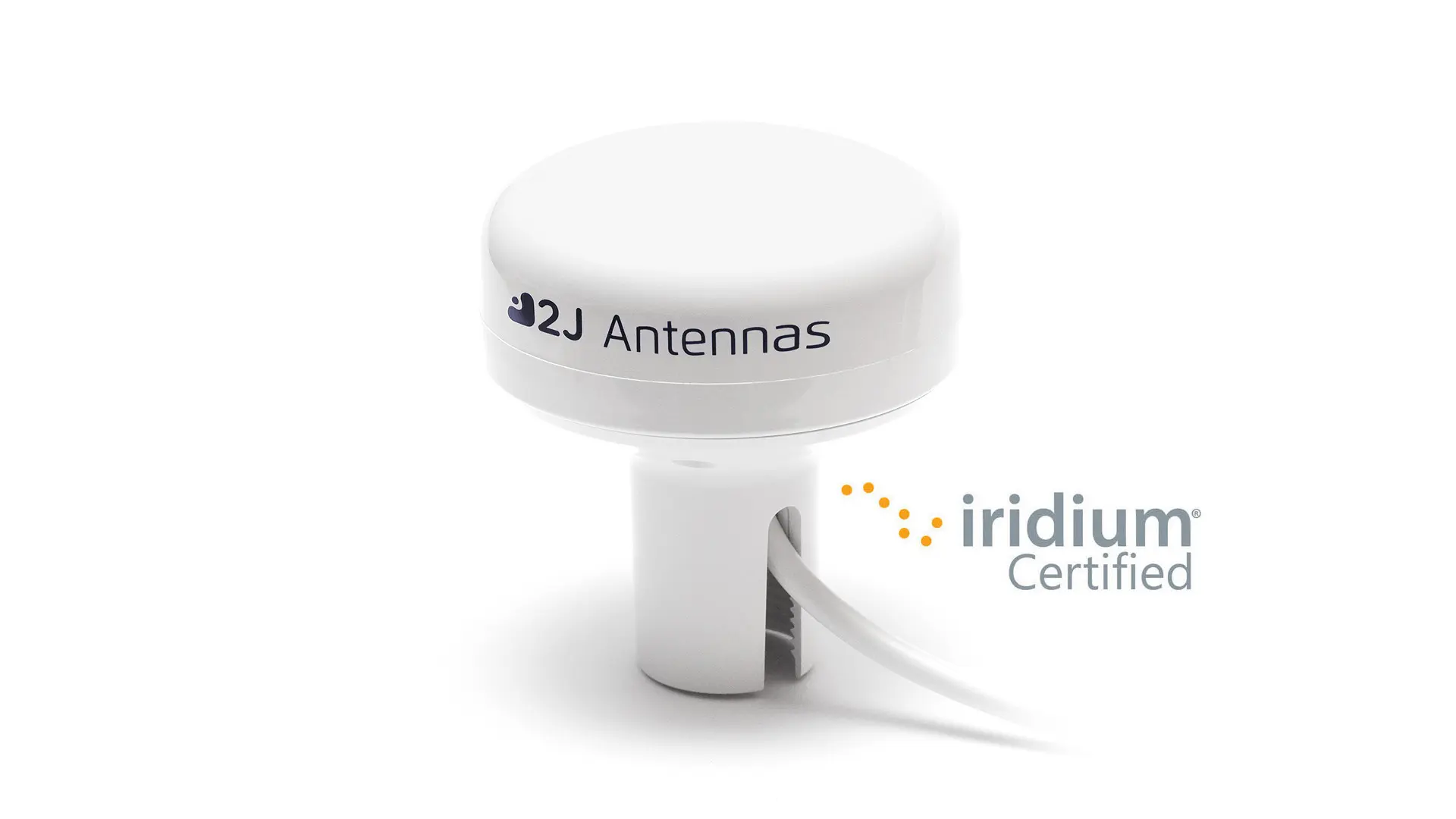

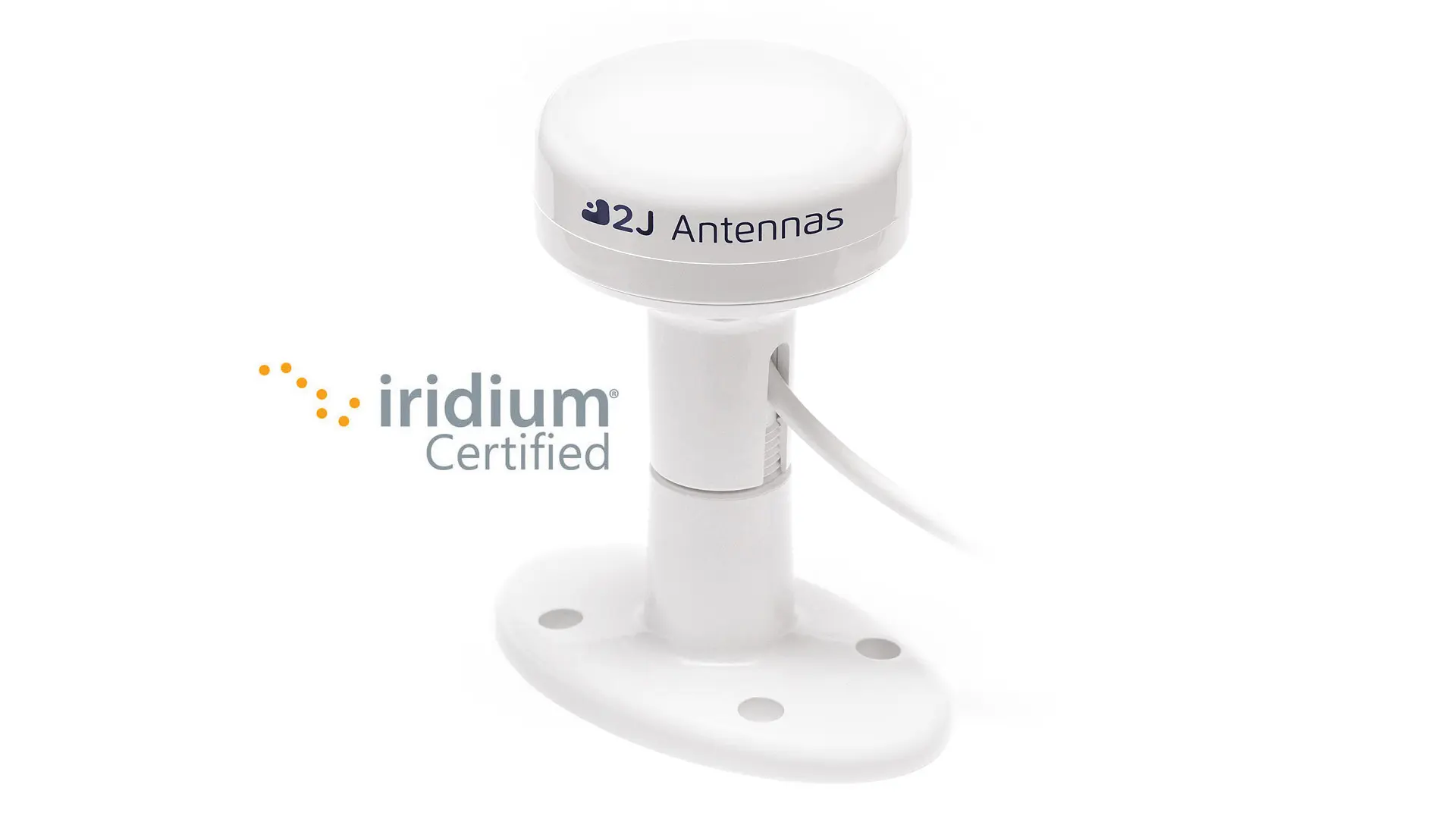

| Mounting | Screw Mount, Adhesive Mount, Pole Mount |
|---|---|
| Dimensions (mm) | 130 × 110 × 74 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | Iridium Certified , IP67 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
IRIDIUM
| Standards | IRIDIUM |
|---|---|
| Frequency | 1616-1627 |
| VSWR | ~1.2:1 |
| Efficiency (%) | ~76 |
| Passive Gain (dBiC) | ~4.5 |
| Impedance (Ohm) | 50 |
| Axial Ratio (dB) | 3 max |
| Radiation Pattern | Hemispherical |
| Polarization | RHCP |
Antenna Description
Key Features
Ground Plane Independent
High Performance
High Efficiency
Customizable Cable and Connector

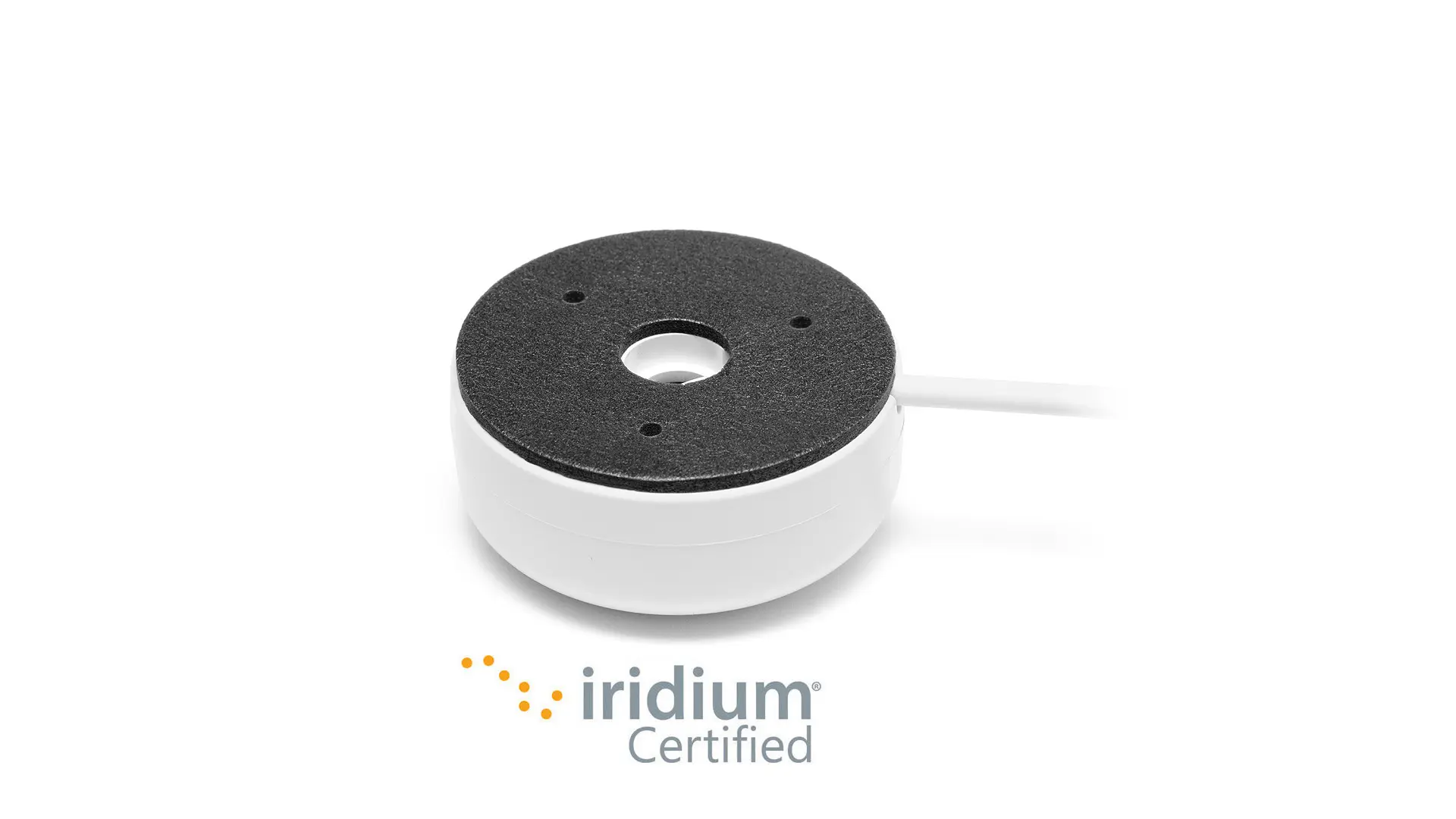

Adhesive Mounting sticker included
Iridium Certified Antenna
4.5 dBic IRIDIUM Peak Gain
Compact Marine antenna
Configurable Mount options
Applications
Marine & Maritime
Satellite Communication
