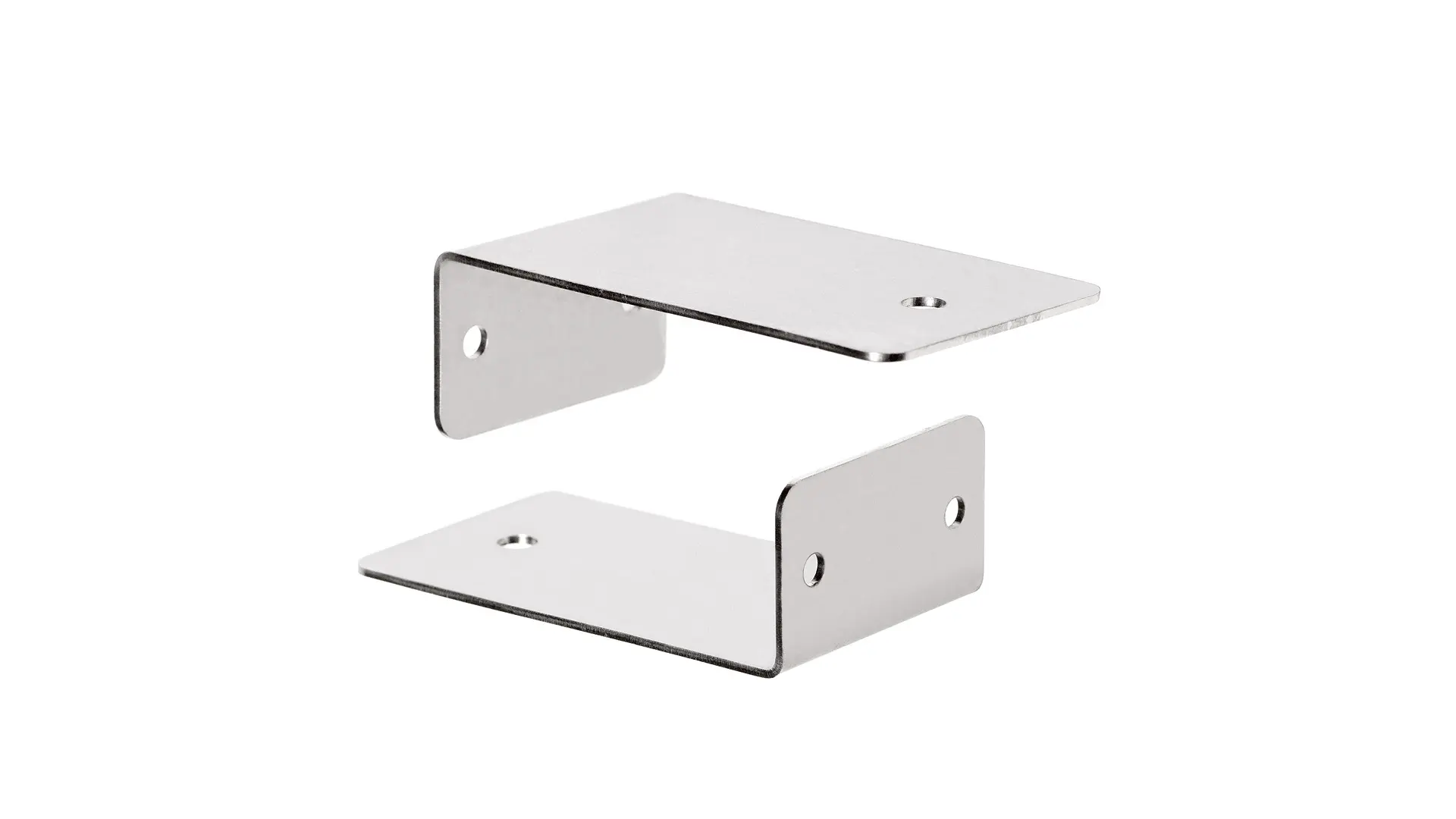

2JB04H
Wall Mount metal bracket for all antennas equipped with SMA M connector
| Mounting | Wall Mount |
|---|---|
| Dimensions (mm) | 91 × 50 × 31 |
| Operating temperature | -40 °C to +85 °C |
| Material | Stainless Steel |
| Note | Wall Mount metal bracket for all antennas equipped with SMA M connector to be connected onto SMA F bulkhead connector, |
Mounting Bracket Description
Key Features
Compatible antennas

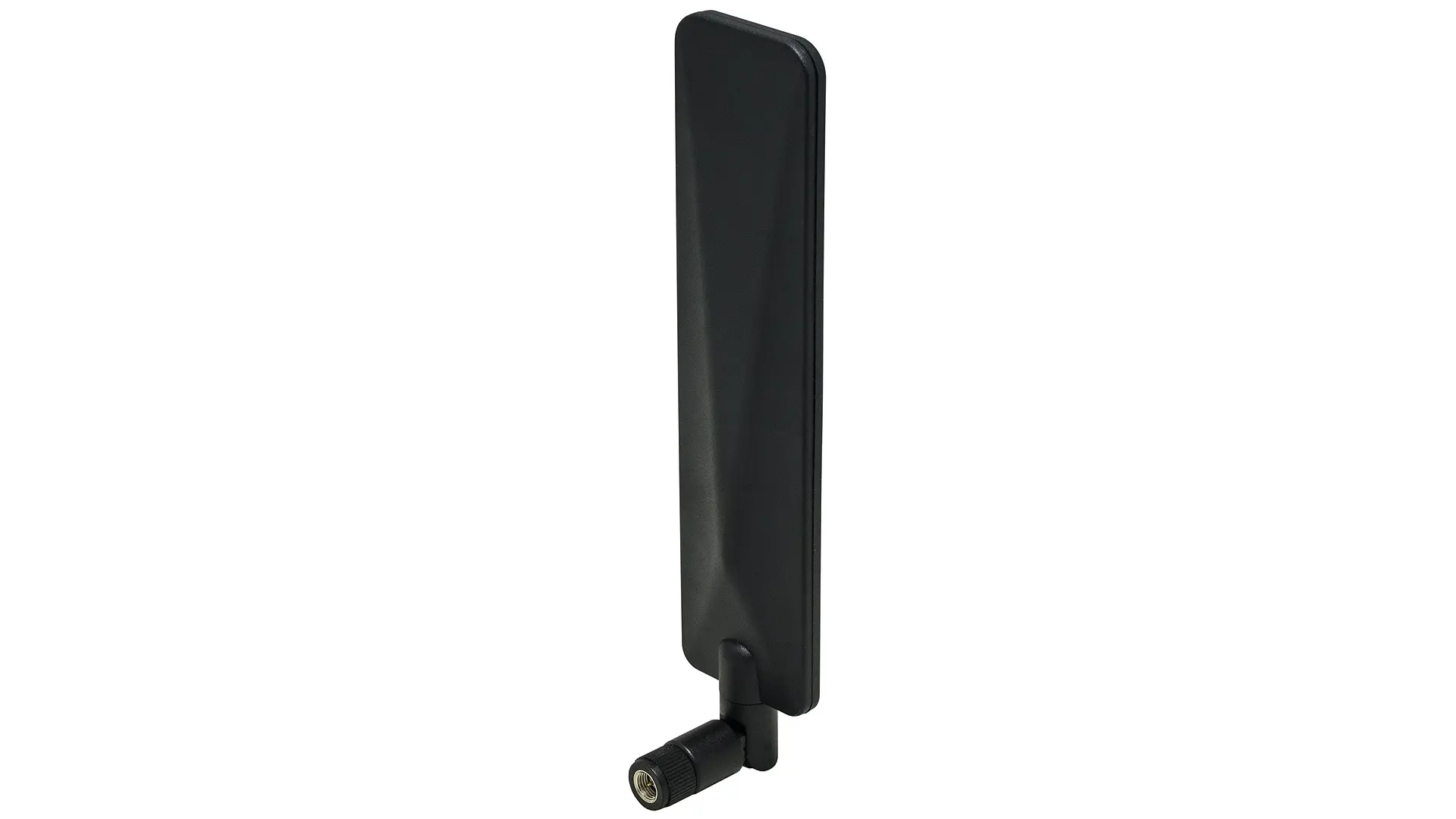

2JW0124-C868B
4G LTE/3G/2G Ultra Wideband 90 Degree Connector Antenna
2JW0304-C675B
CELLULAR Ultra Wideband Antenna
2JW0315-915-C675B
915 MHz ISM Narrowband Antenna

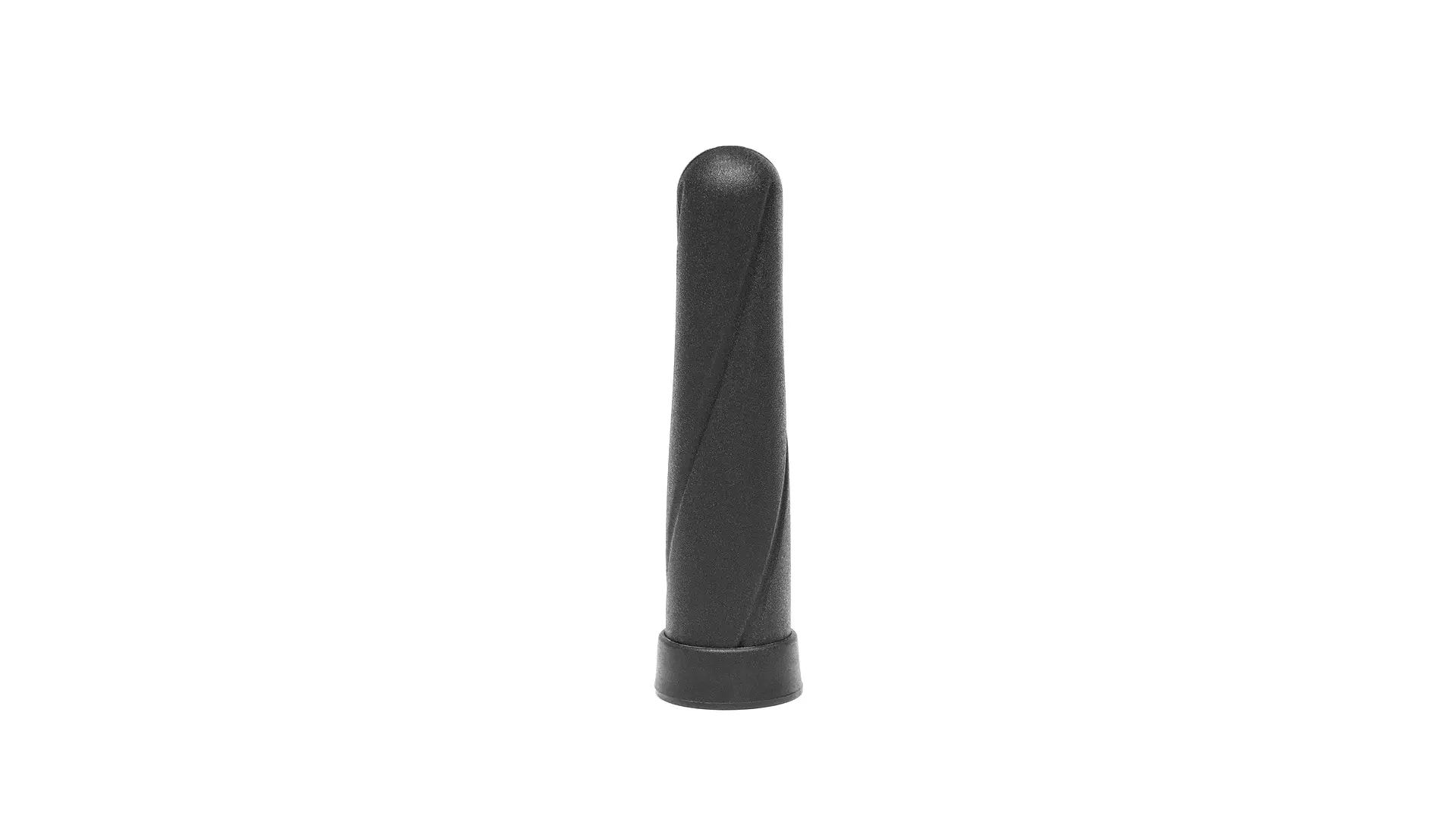

2J0710-C708N
Low-Profile 433 MHz ISM Compact Smart Monopole Connector Mount Antenna

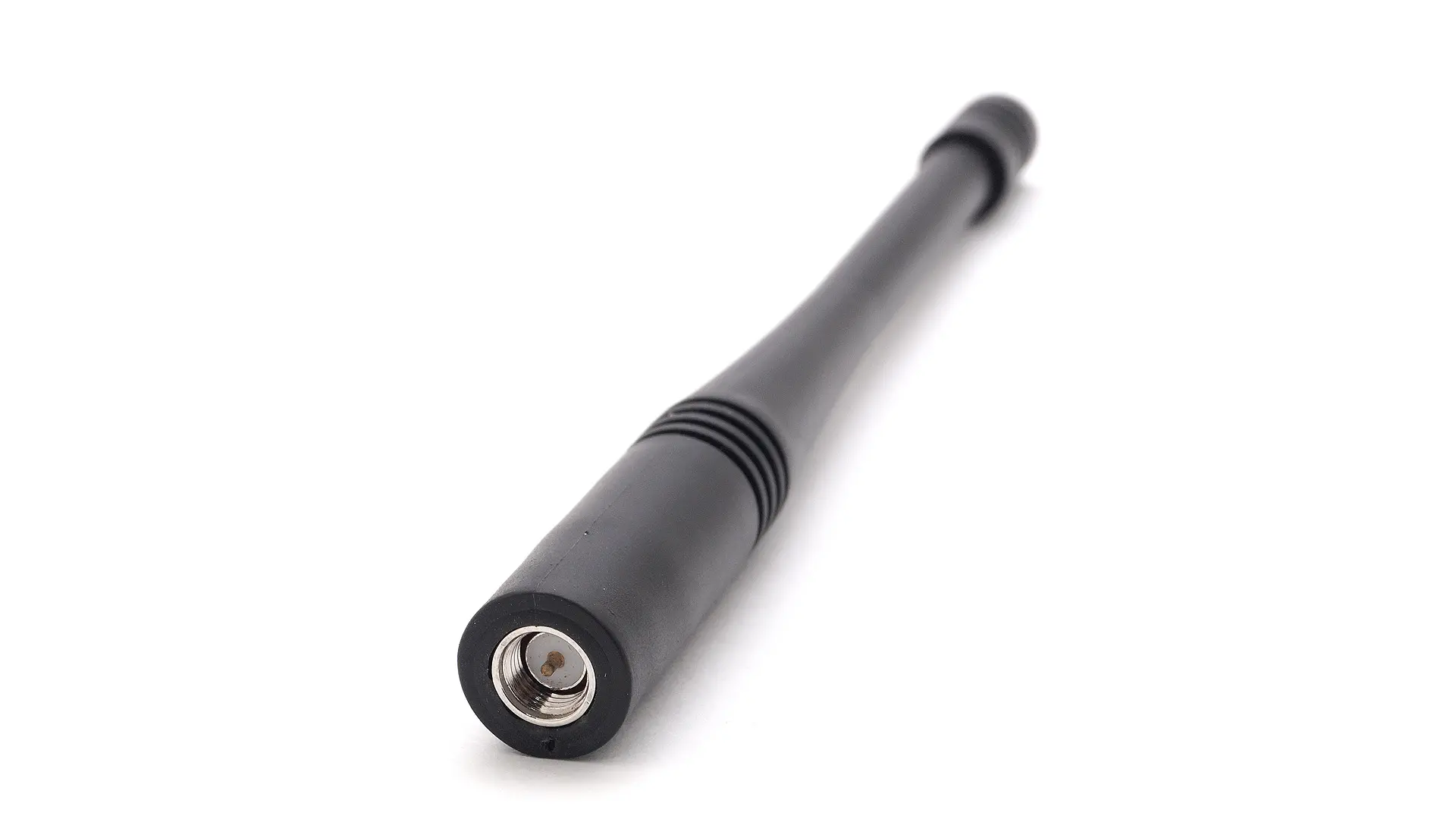

2JW0715-433-C20N
433 MHz ISM Ultra Wideband High Efficiency Antenna

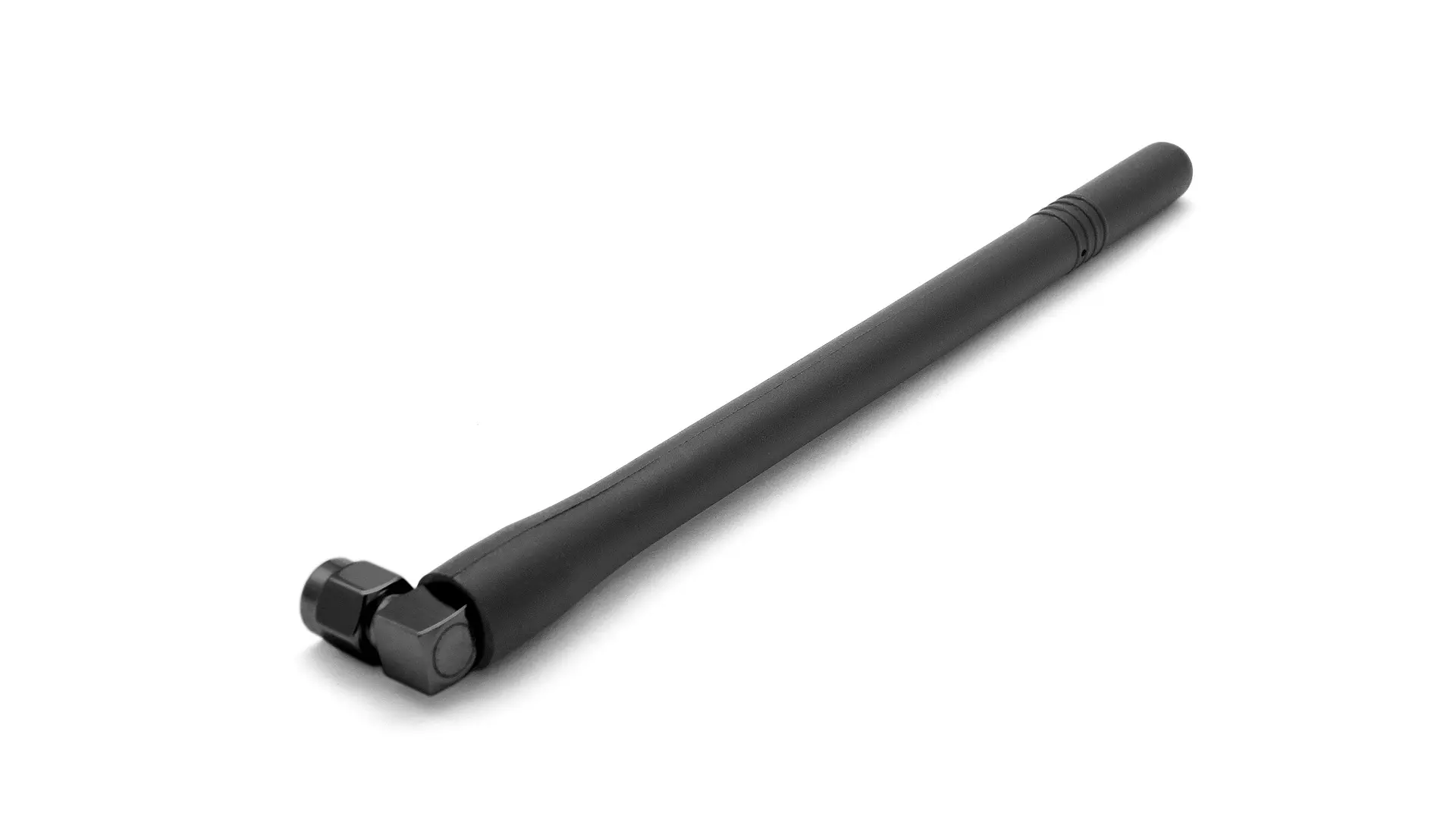

2JW0415-433-C109B
433 MHz ISM Narrow Band 90 Degree Connector Antenna

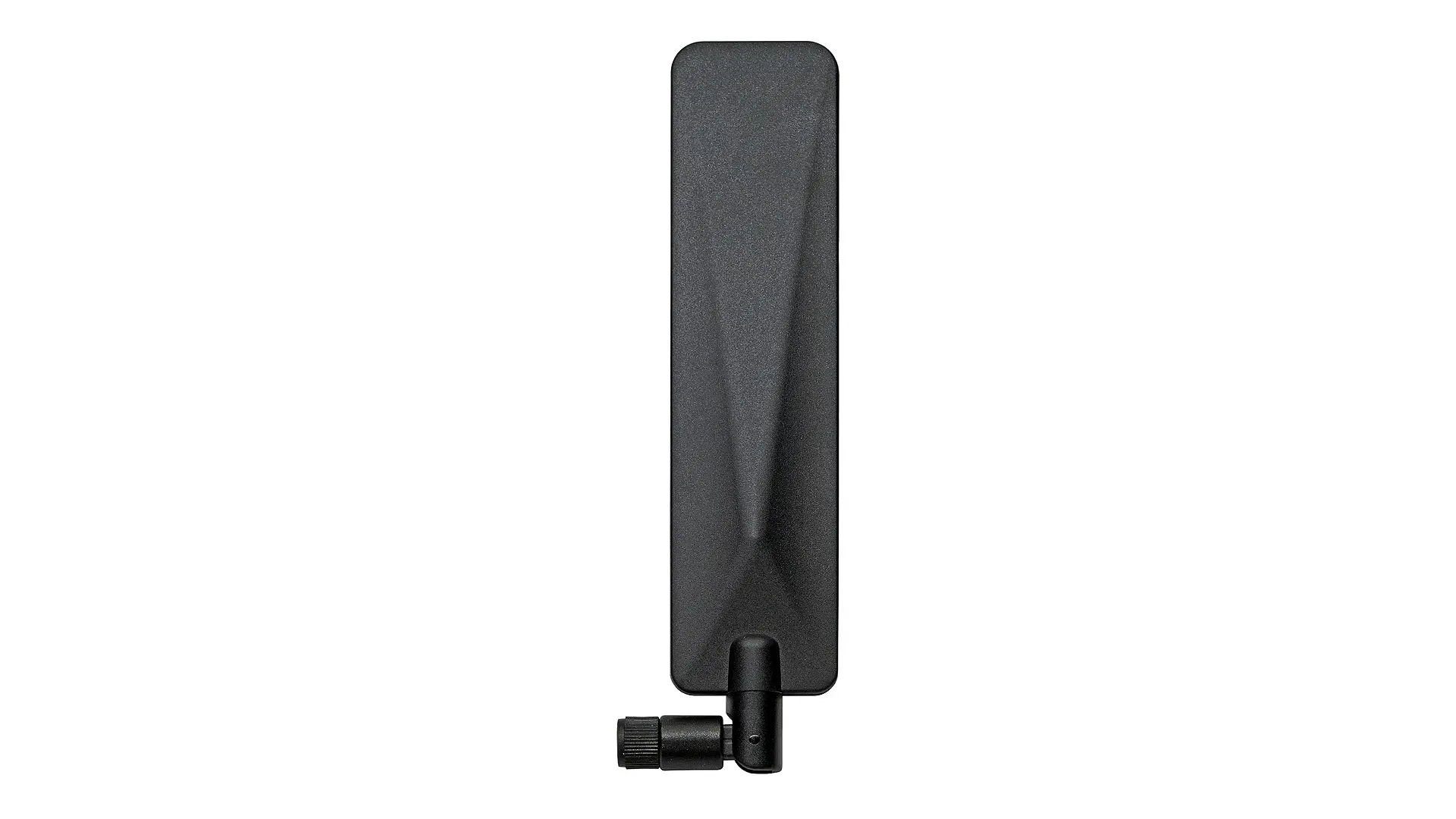

2JW0124z-C868B
4G LTE/3G/2G Ultra Wideband Antenna

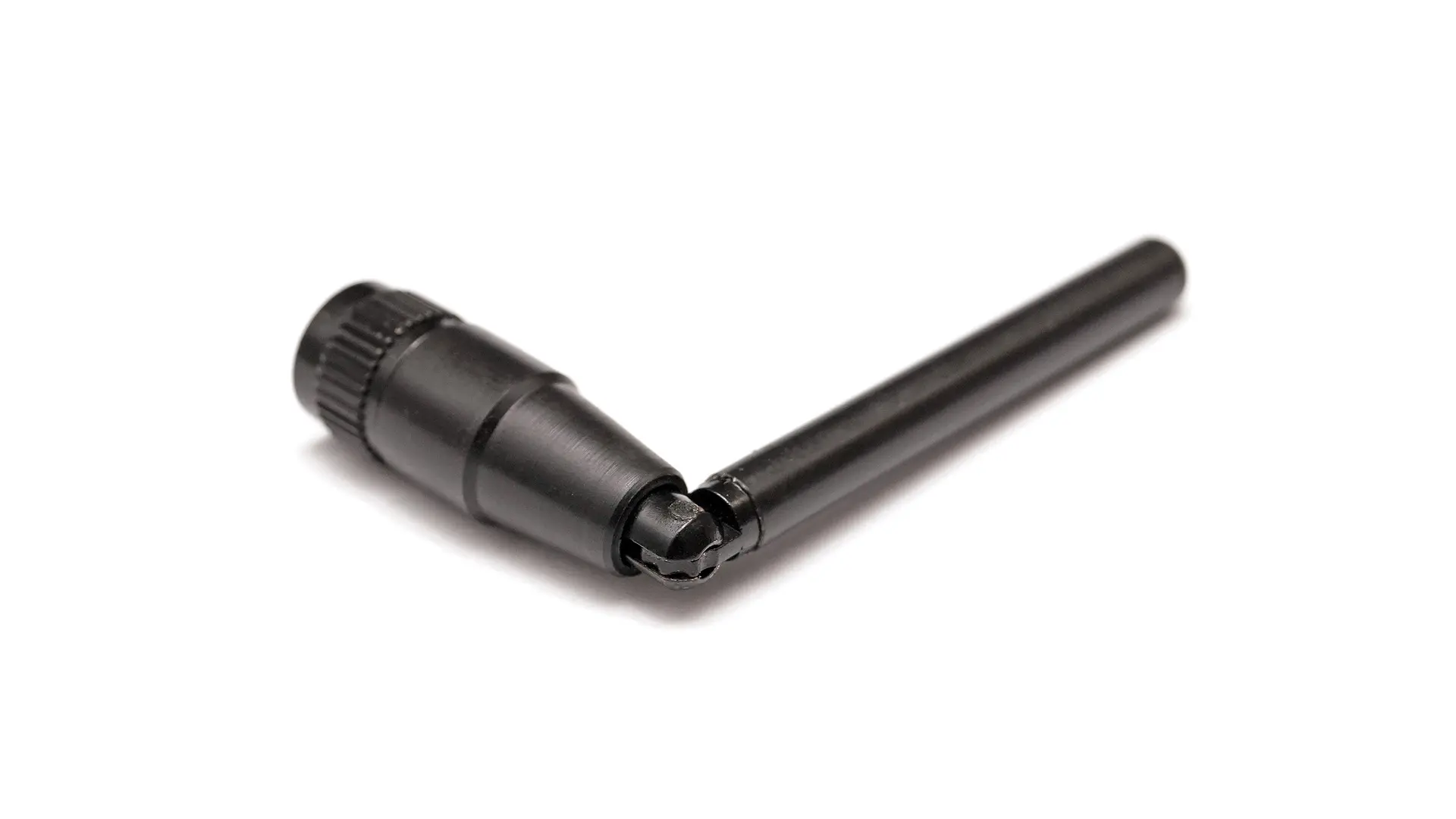

2JW1024
4G LTE/3G/2G Low Profile High Efficiency Antenna

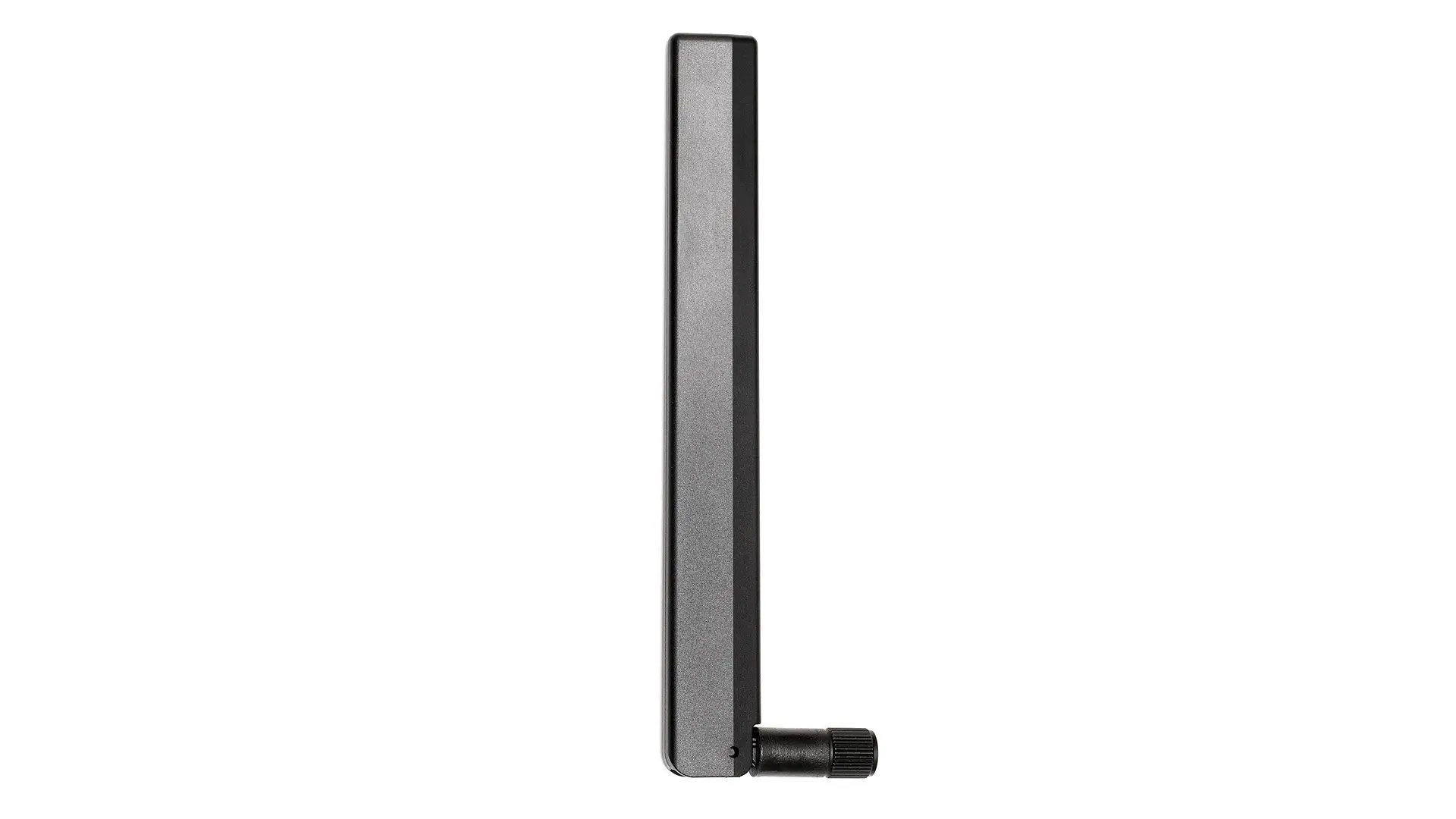

2JW0924-C952B
4G LTE/3G/2G Ultra Wideband Hinged Connector Antenna
2JW1124-C952B
4G LTE/3G/2G Ultra Wide band Hinged Connector Antenna
2J0B04-C884G
Cellular Low Profile Right Angle Smart Antenna

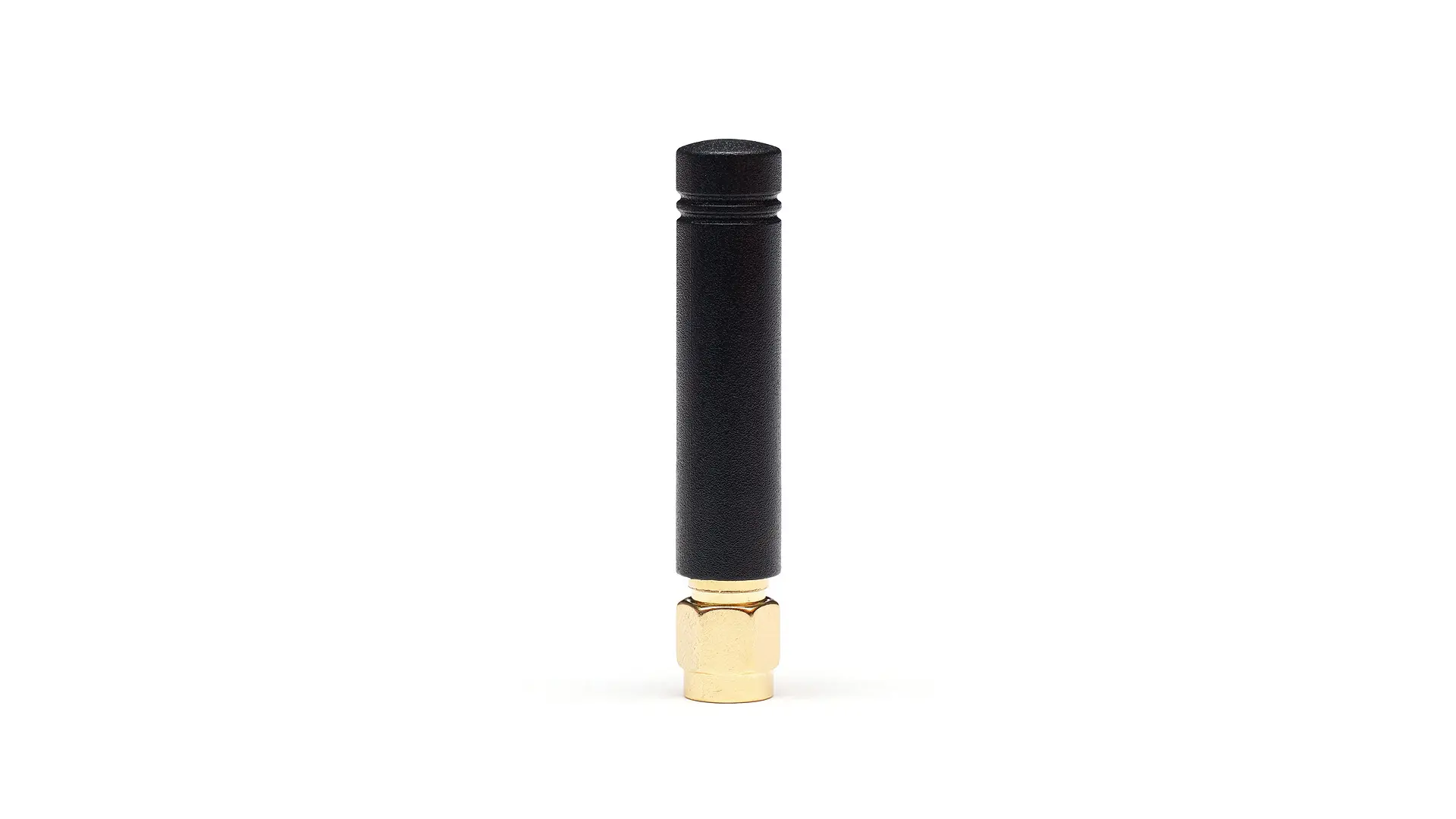

2J0B04-C885G
Cellular Omni-Directional Low Profile Ground Plane Dependent Antenna
2J0B15-433-C884G
433 MHz ISM Omni-Directional Right Angle Connector Antenna
2J0B15-433-C885G
433 MHz ISM Omni-Directional Ground Plane Dependent Antenna
2J0B15-868-C884G
868 MHz ISM Omni-Directional Right Angle Connector Antenna
2J0B15-868-C885G
868 MHz ISM Omni-Directional Ground Plane Dependent Antenna
2J0B15-915-C884G
915 MHz ISM Omni-Directional Right Angle Connector Antenna
2J0B15-915-C885G
915 MHz ISM Omni-Directional Ground Plane Dependent Antenna

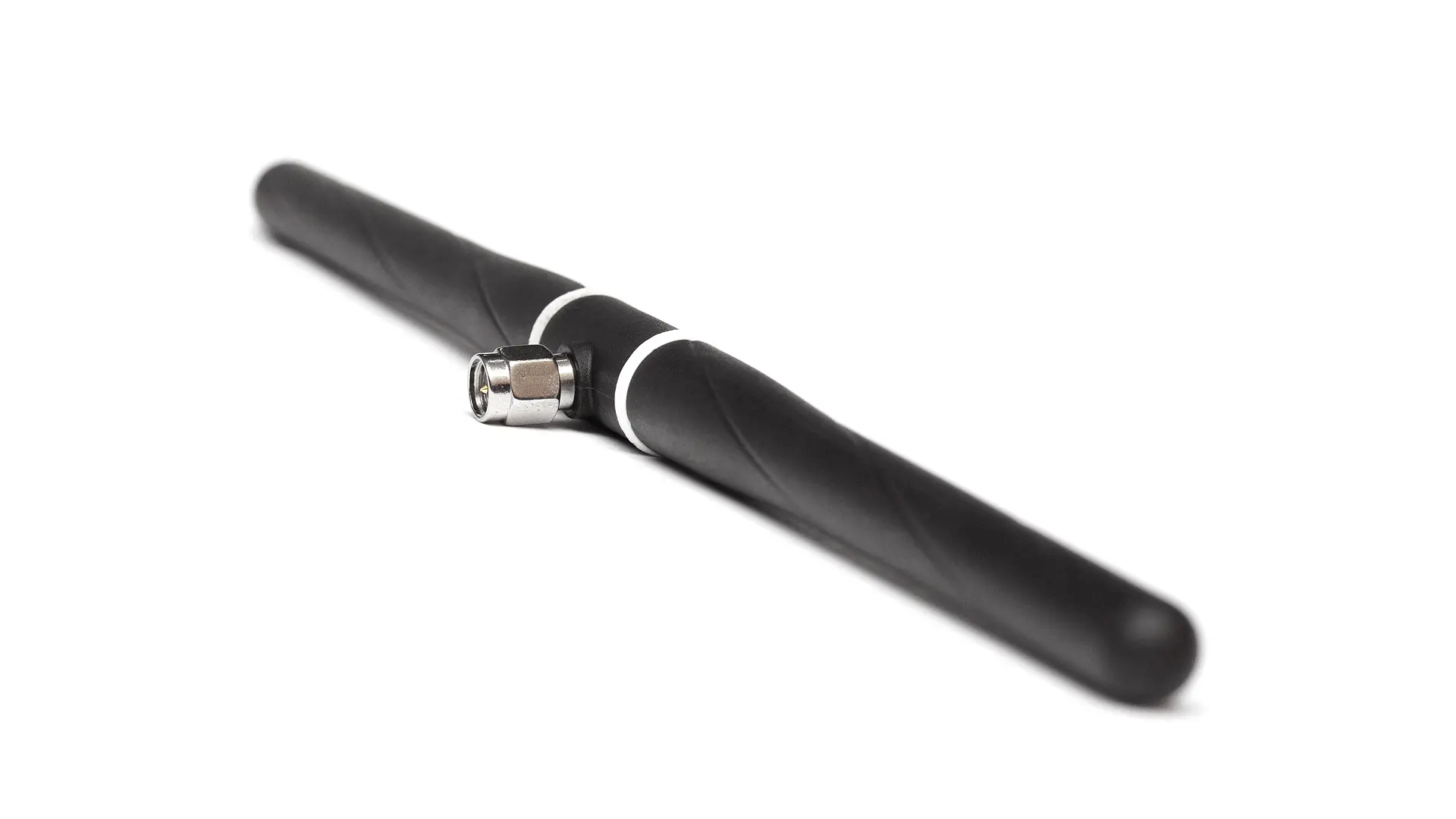

2JD0909-C728N
FM 88-108MHz Lossless 0 DBi Gain Dipole Connector Mount Radio Antenna

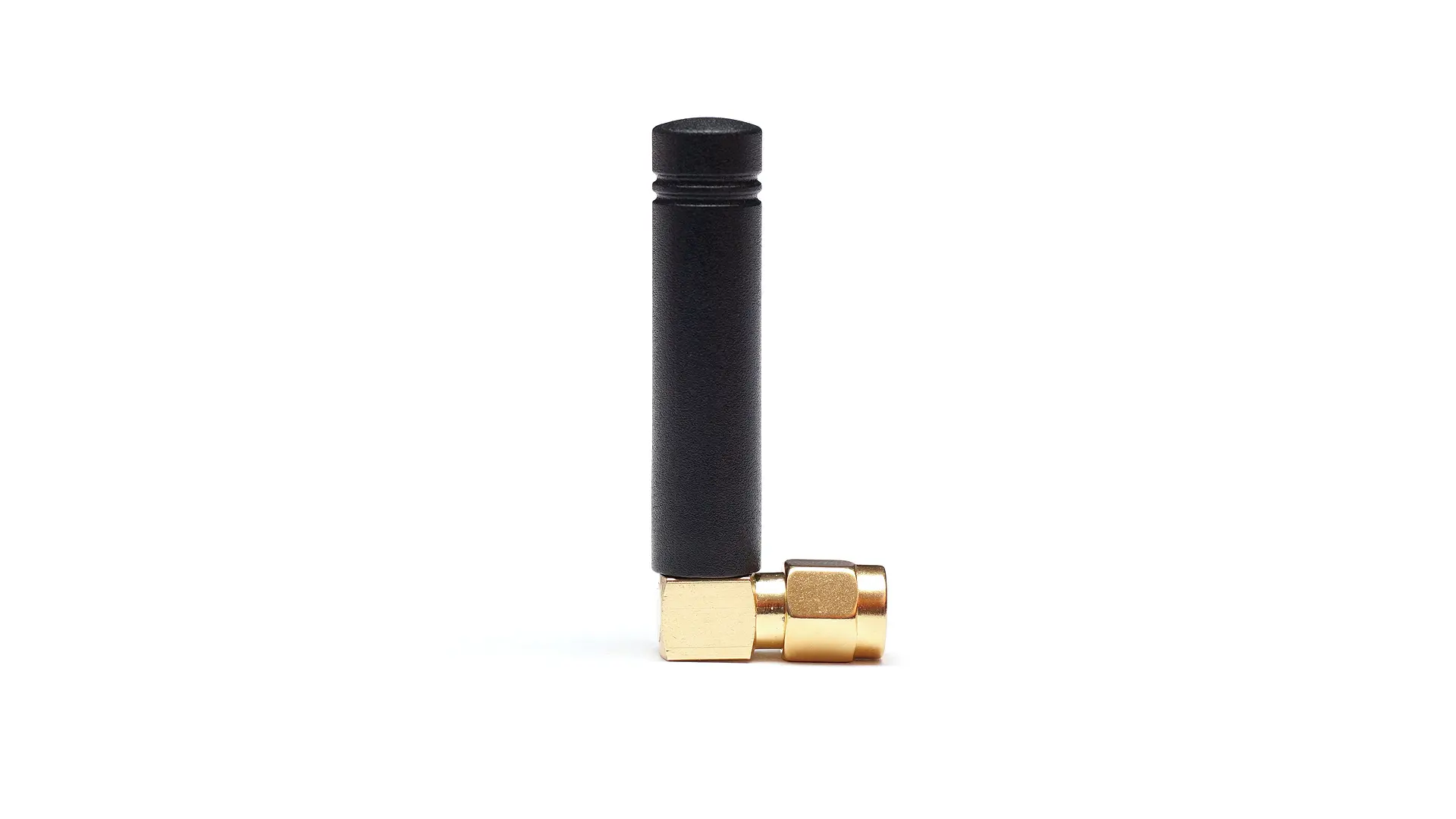

2J0B24-C884G
4G LTE 3G 2G Wideband Right Angle Smart Antenna
2J0B24-C885G
4G LTE 3G 2G Wideband Ground Plane Dependant Smart Antenna
2J0801CF-C40G
GPS/GLONASS/BeiDou/Galileo 28 dB Gain Antenna
2J0801CF-C40G-A38G
GPS/GLONASS/BeiDou/Galileo 28 dB Gain Right Angle Antenna
2JW0815-433-C20N
433 MHz ISM Ultra Wideband Low Profile Antenna

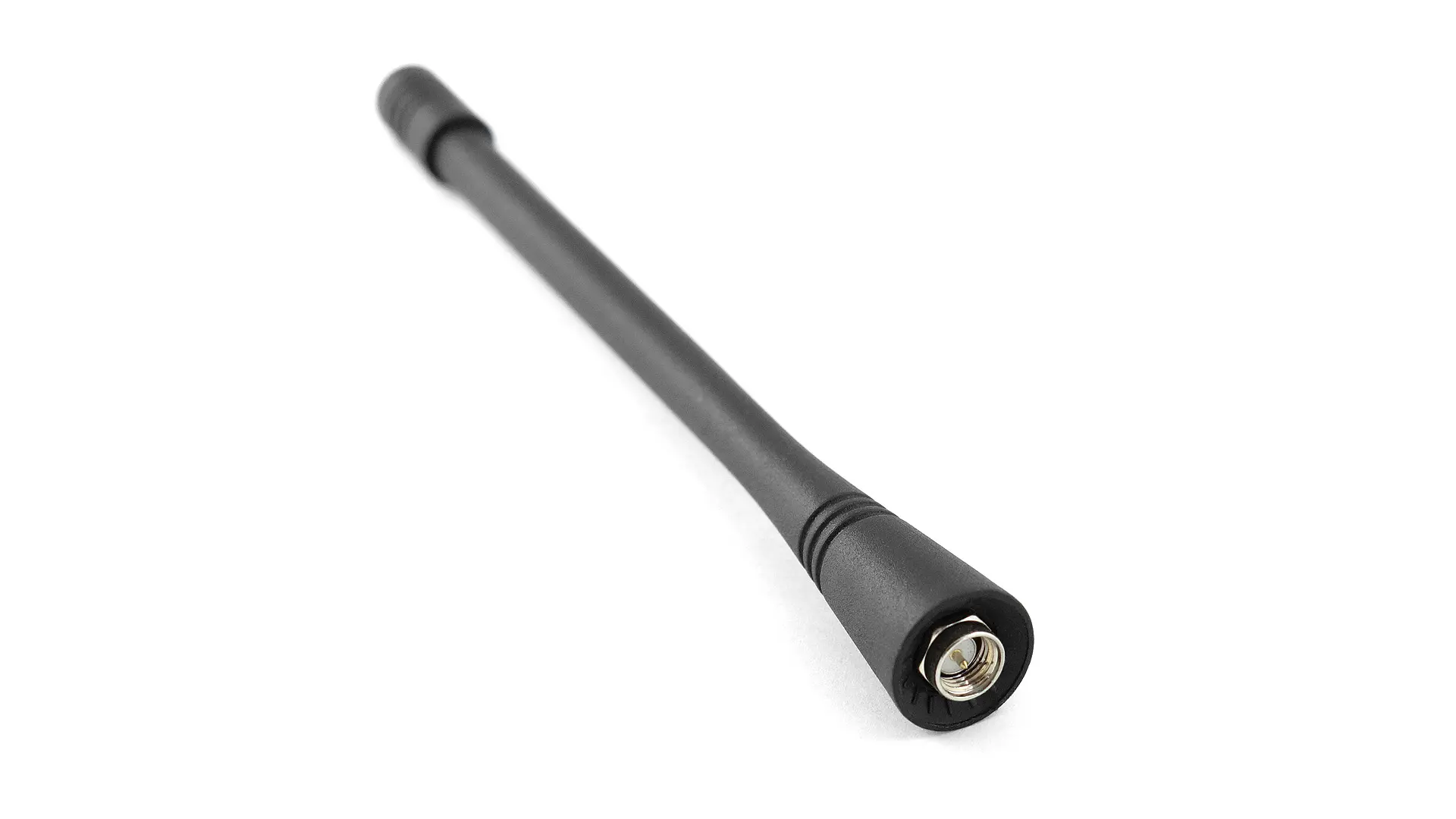

2JW0815-915-C20N
915 MHz ISM Low Profile Ultra Wideband Antenna
2JW1001
GPS/GLONASS/BeiDou/Galileo 1561-1606 MHz High Efficiency Antenna
2JW0183z-C276B
Machete 5GNR/4G/3G/2G Ultra Wide Band Hinged Swivel SMA-M Antenna
2JW1183-C952B
Blade 5GNR/4G/3G/2G Compact High Performance Hinged Swivel SMA-M

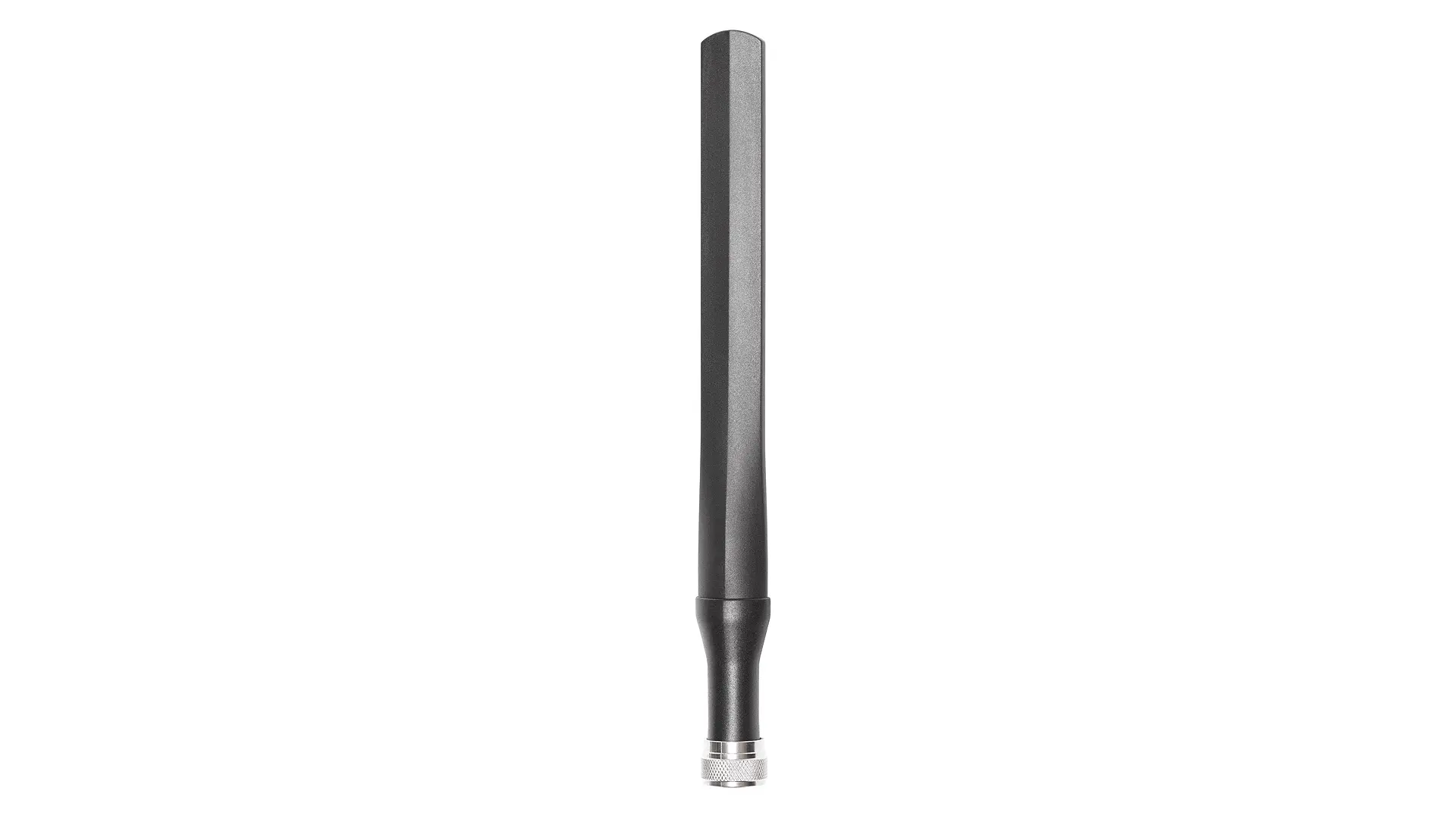

2JW1483
Dagger 5GNR/4G/3G/2G Waterproof IP67 IP69 Connector Mount Antenna

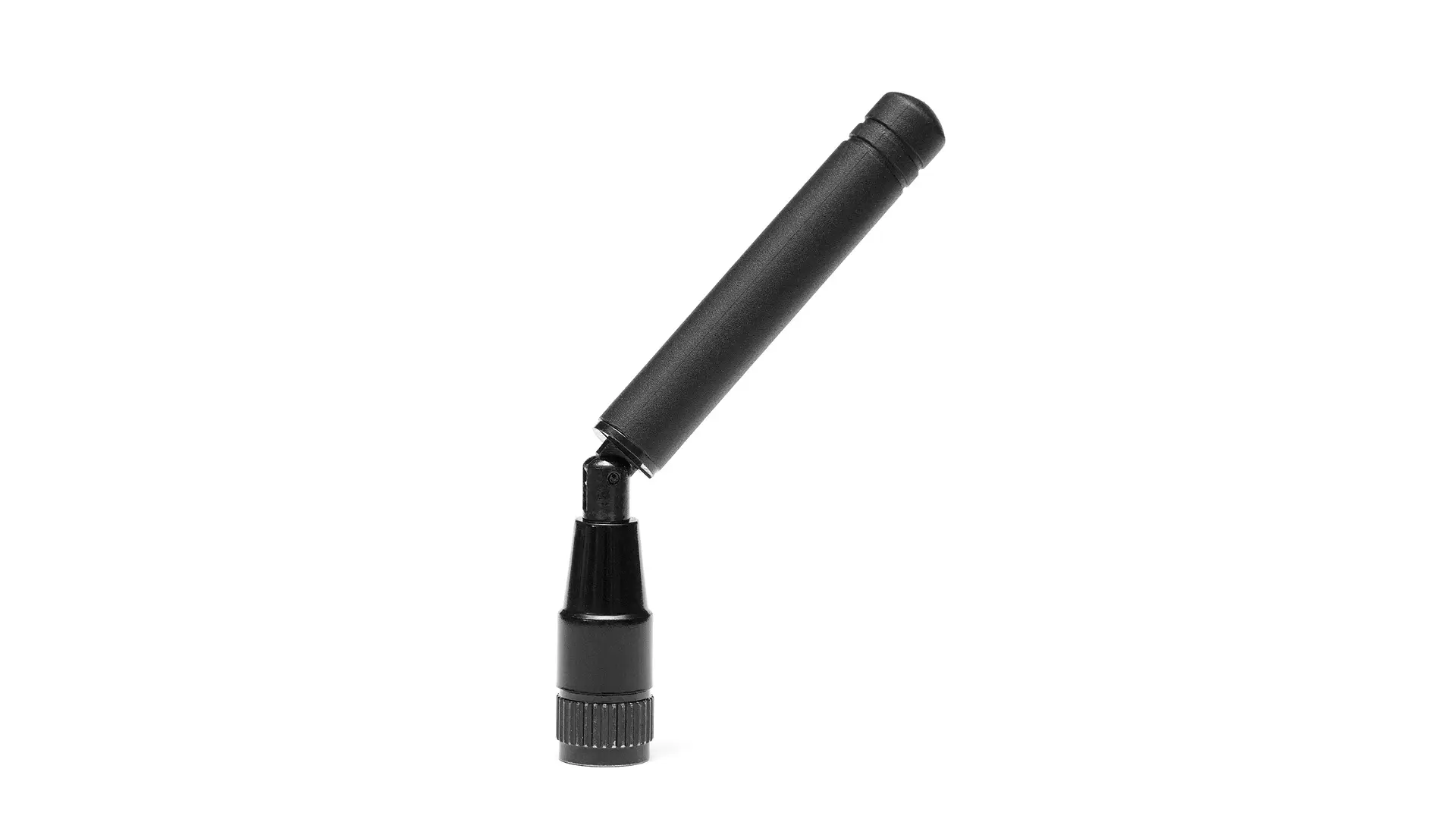

2JW1683
Katana 5GNR/4G LTE/3G/2G Ultra-Wide Band Swivel Connector Antenna
2JW0815-868-C20N
868 MHz ISM Connector Mount Antenna
2JW0315-868-C675B
868 MHz ISM Narrowband Antenna
2JW1101-C952B
GPS/GLONASS/BeiDou/Galileo 1561-1606 MHz High Efficiency Antenna

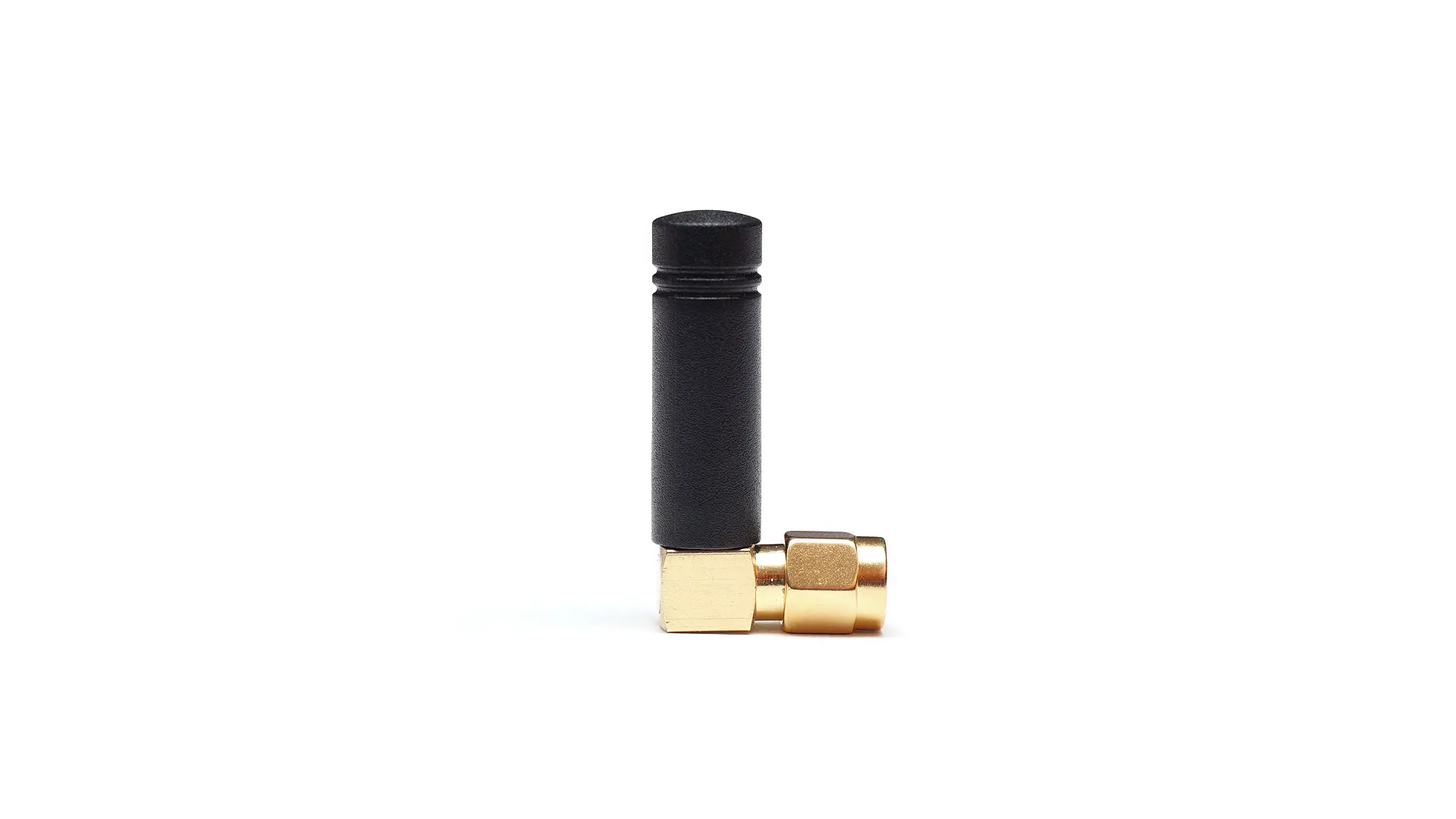

2J0C15-868-C884G
868 MHz ISM Omni-Directional Right Angle Connector Antenna
2J0C15-915-C884G
915 MHz ISM Omni-Directional Right Angle Connector Antenna

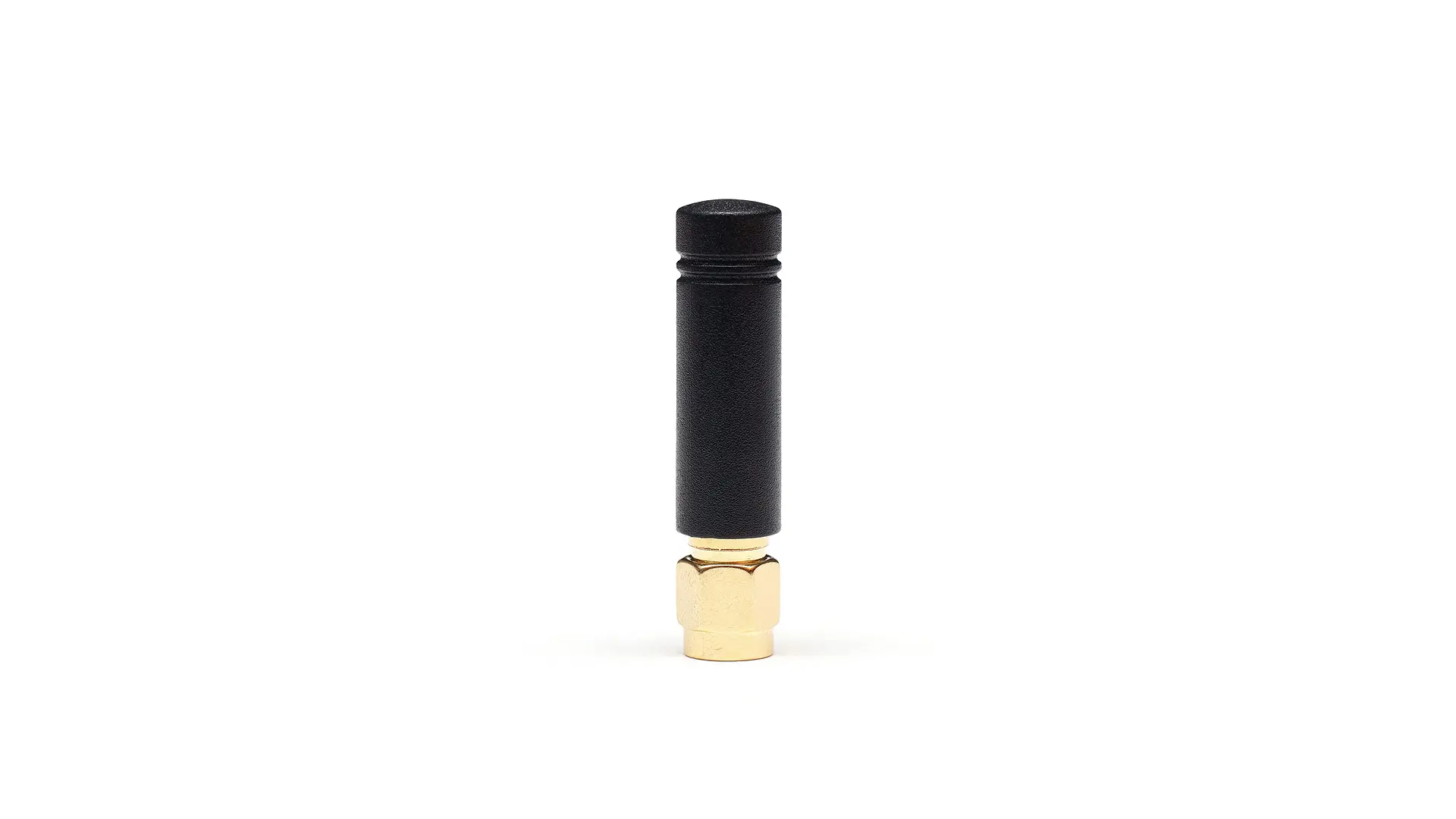

2J0C15-868-C885G
868 MHz ISM Omni-Directional Ground Plane Dependent Antenna
2J0C15-915-C885G
915 MHz ISM Omni-Directional Ground Plane Dependent Antenna
2JW0315-433-C675B
433 MHz ISM Narrowband Antenna
2JW0180z-C868B
Machete 5GNR/UHF/4GLTE/3G/2G Ultra Wide Band Hinged Swivel SMA-M Antenna

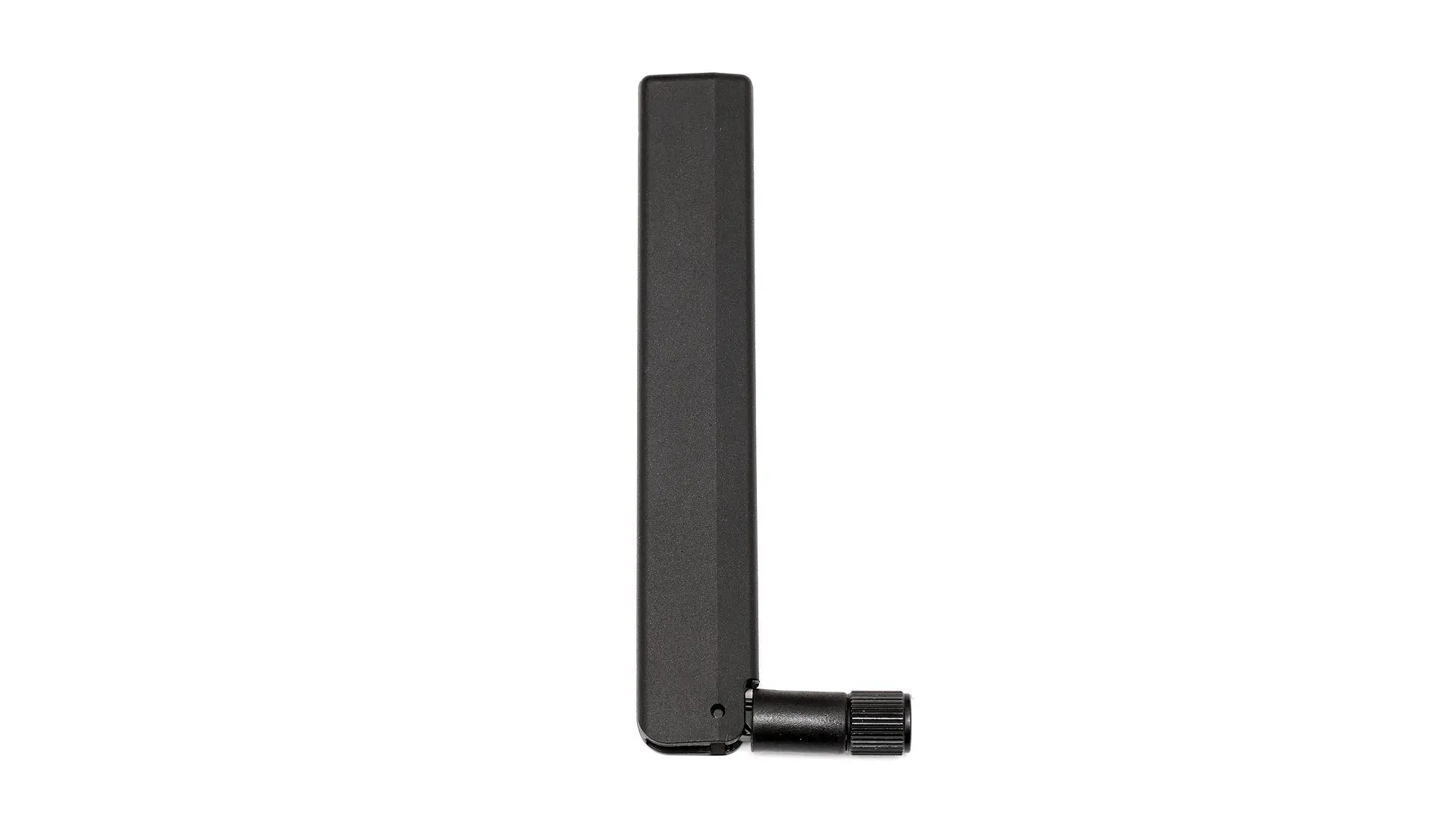

2JW1126-C952B
Iridium certified High Efficiency Antenna
2JD0510-C728N
380-470 MHz Connector Mount Dipole Antenna

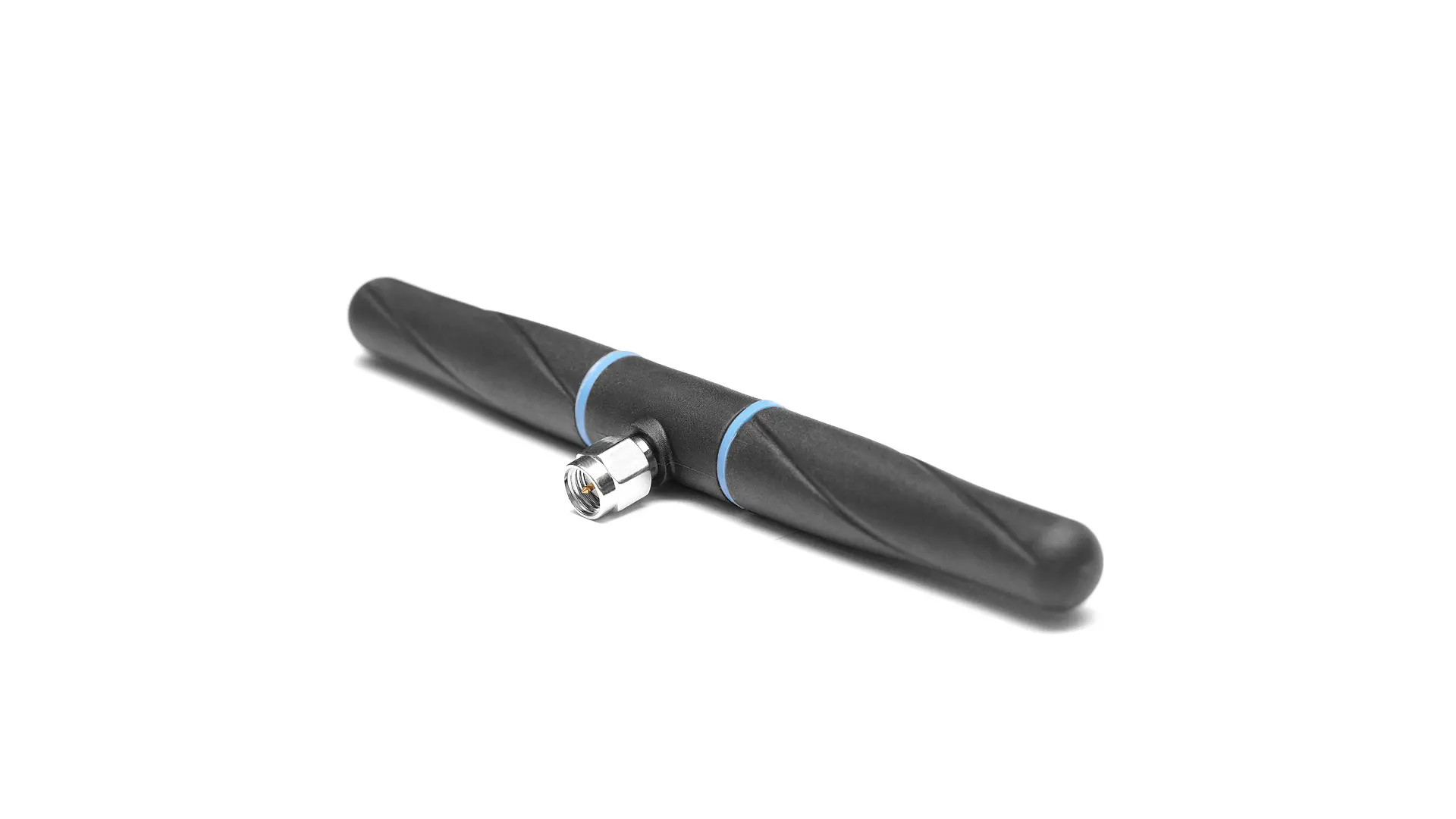

2JD0710-398-C728N
380-470 MHz LPWA/Tetra/UHF Narrowband Connector Mount Dipole Antenna
2JD0665-C728N
FM/DAB High Gain Dipole Radio Connector Mount Antenna

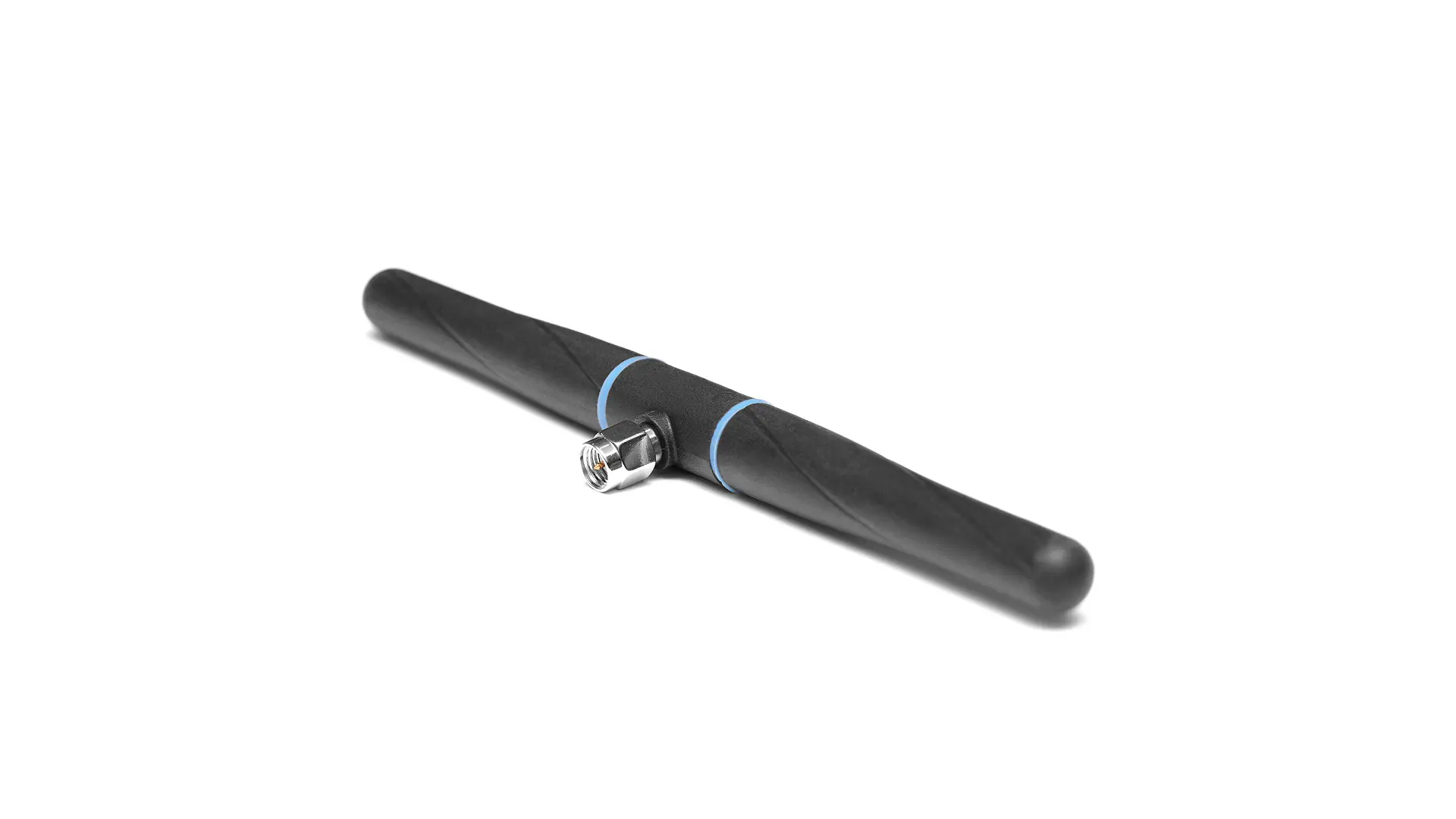

2JD0819-C728N
169MHz ISM-ERMES Compact Connector Mount Dipole Antenna
2JW1178-C952B
Blade DECAWAVE Compact High Performance Hinged Swivel Wide Band Antenna
2J0B15-C885G
868/915 MHz ISM Ground plane dependent connector mount Antenna
2J0819z-C708N
169MHz ISM-ERMES Compact Connector Mount Antenna
2JW0983-C952B
5GNR/4G/3G/2G Compact High Performance Hinged Swivel SMA-M
2JW1115-C952B
868/915 MHz ISM Ground plane independent connector mount Antenna
2JW1415
Dagger 868/915 MHz ISM Waterproof IP67 IP69 Connector Mount Antenna
2JW0915-C952B
868/915 MHz ISM Ground plane independent connector mount Antenna

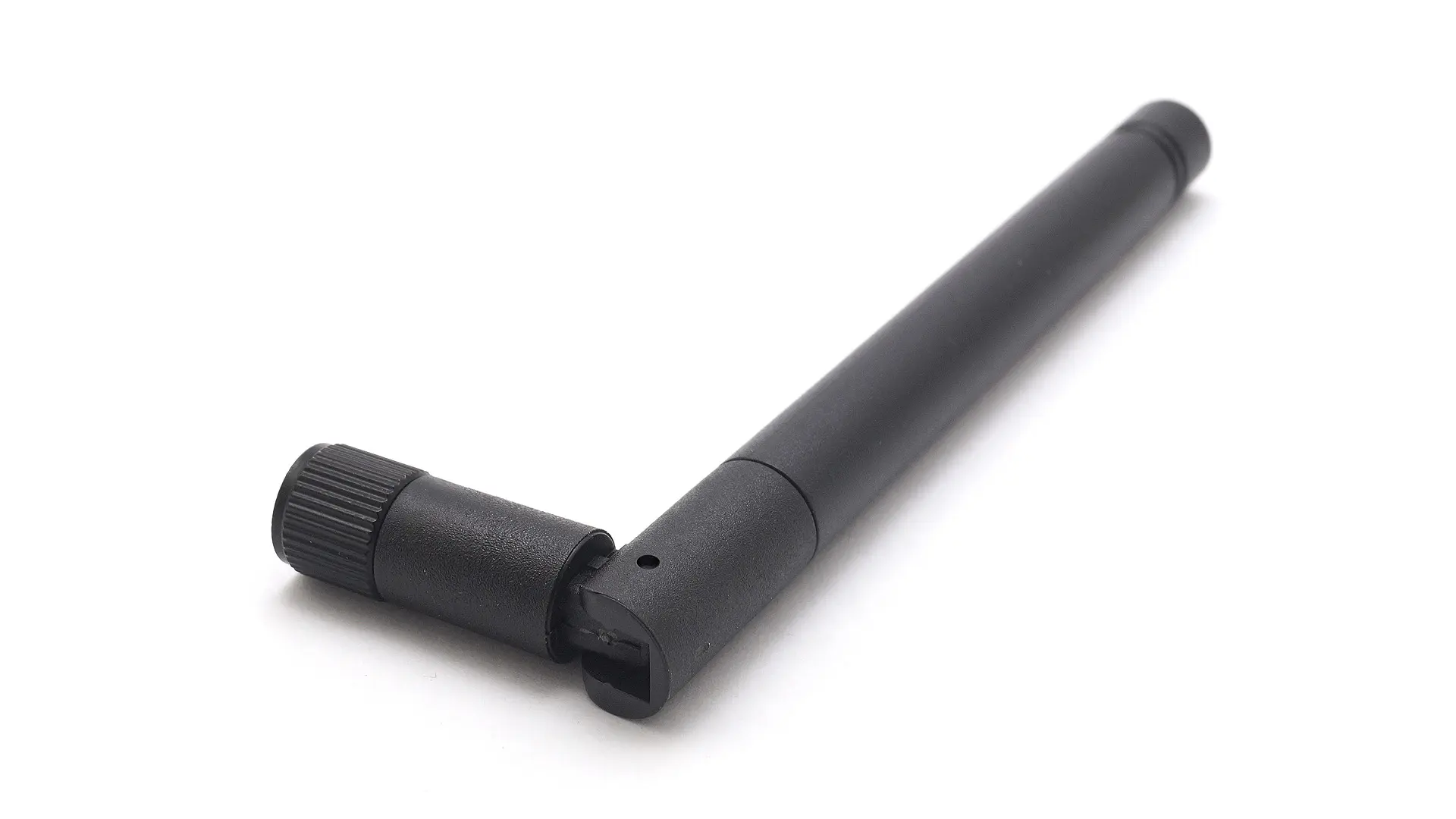

2JW0315-C675B
868/915 MHz ISM Ground plane independent connector mount Antenna
2JW0915-915-C952B
915 MHz ISM Ground plane independent connector mount Antenna
2JW0915-868-C952B
868 MHz ISM Ground plane independent connector mount Antenna

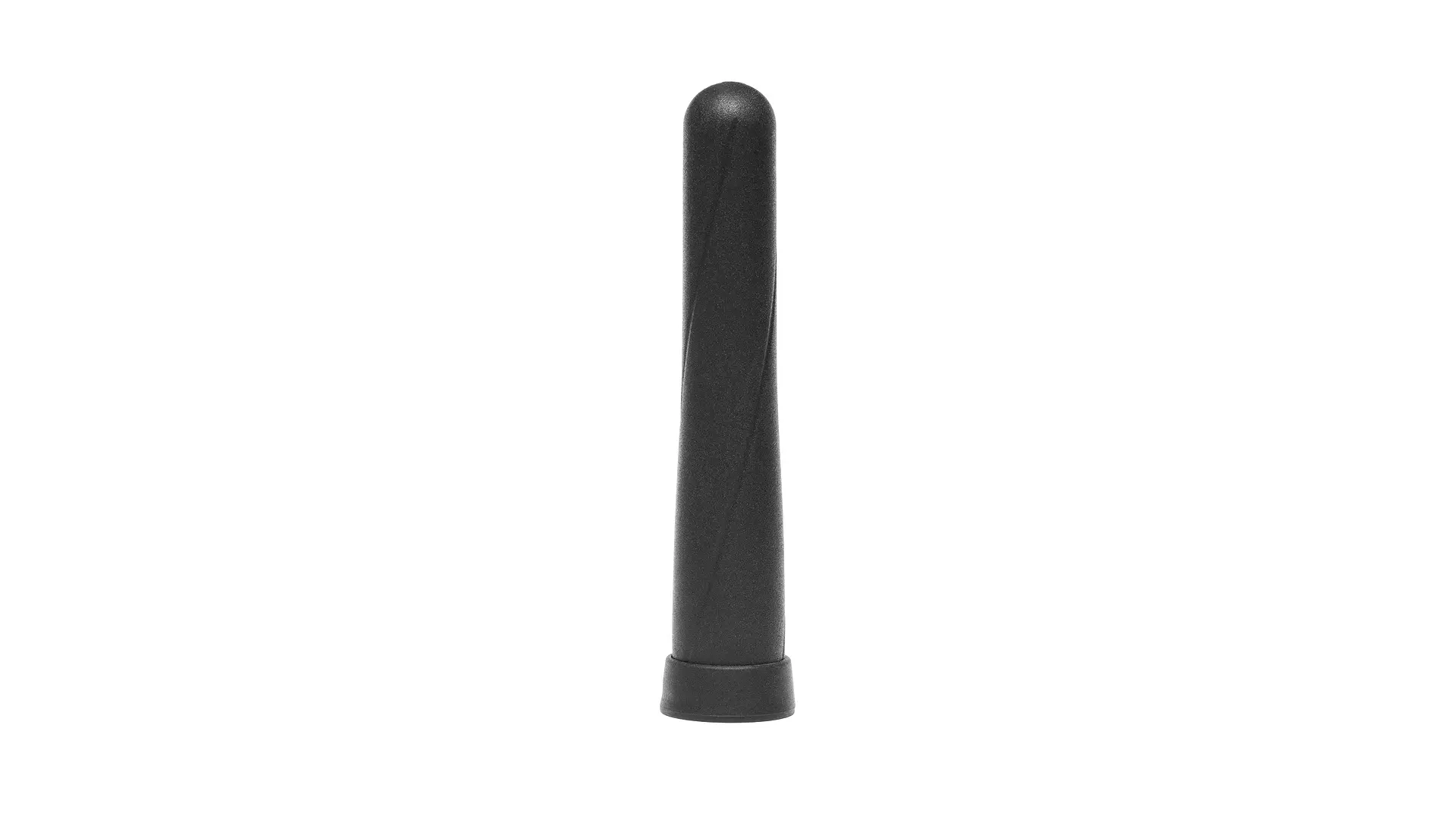

2J0801Cp-C40G
GPS/GLONASS/BeiDou/Galileo Passive Antenna

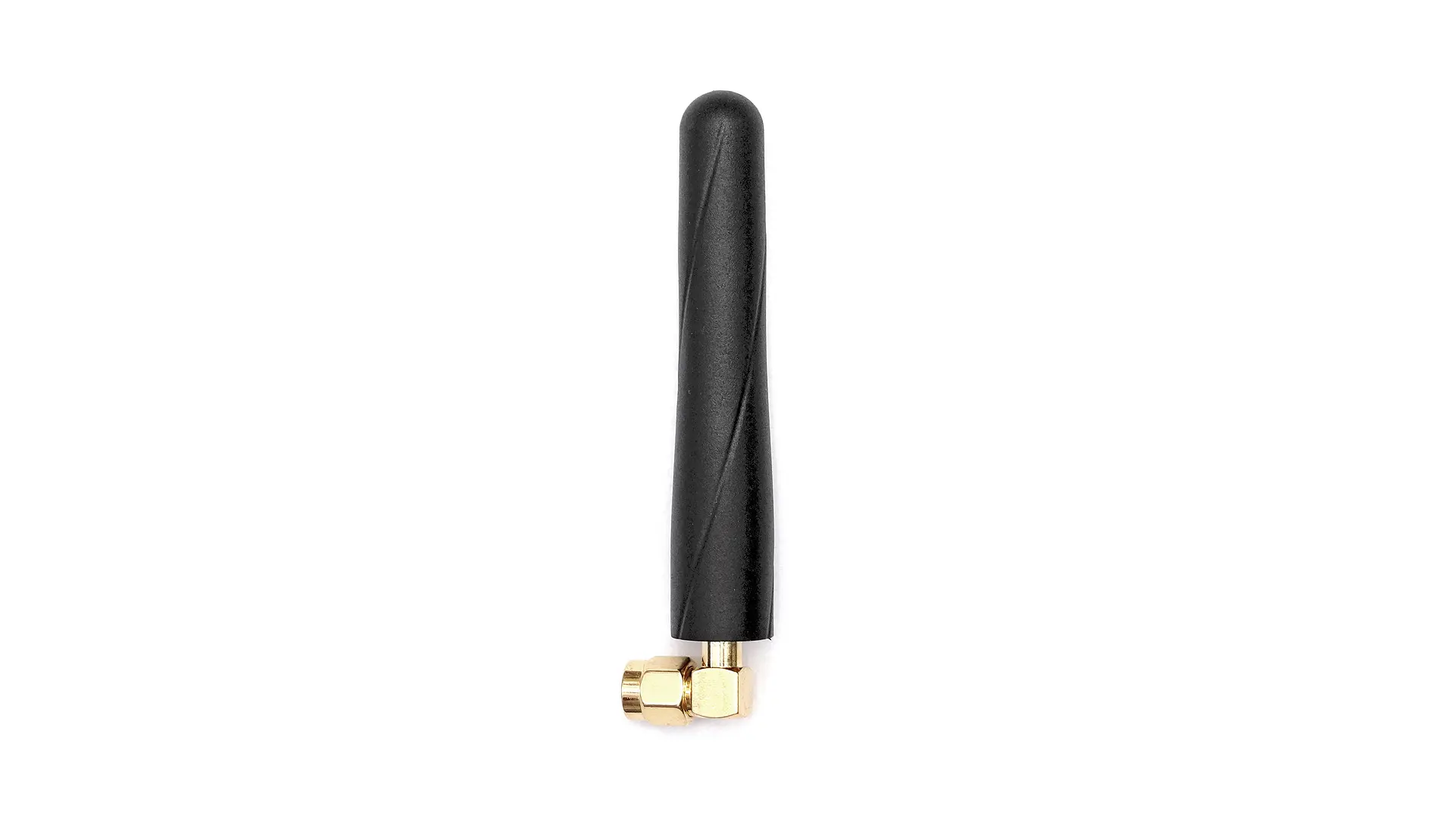

2J0801Cp-C40G-A38G
GPS/GLONASS/BeiDou/Galileo Passive Antenna
2JW0183y-C276B
Machete 5GNR/4G/3G/2G Ultra Wide Band Hinged Swivel SMA-M Antenna
2J0B15-C884G
868/915 MHz ISM Ground plane dependent Right Angle connector mount Antenna
2J0B01C6-C884G
High Precision Passive GPS/GNSS/L1/L2/L5/L6 Right Angle Connector Mount Antenna
