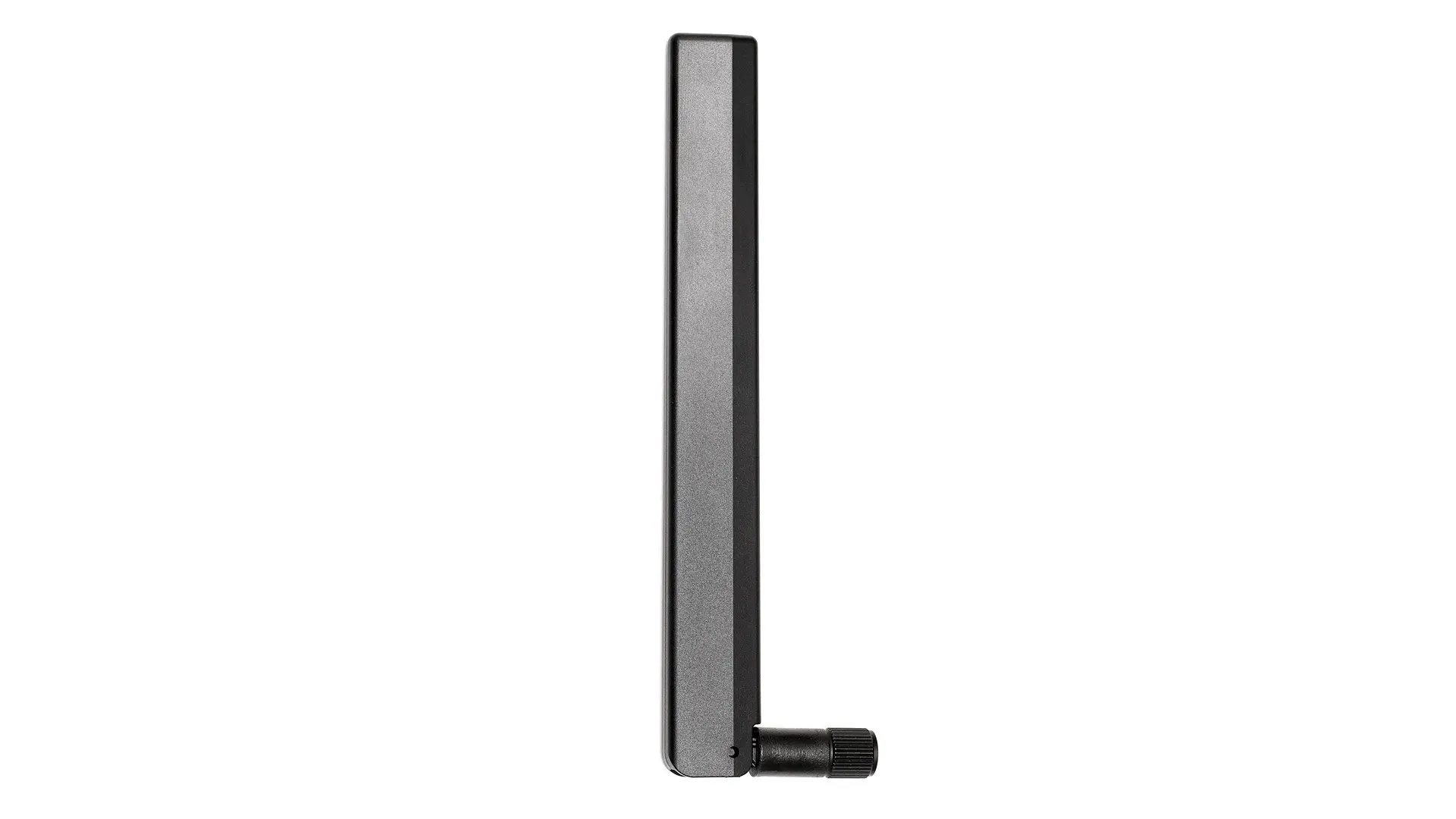

2JW0915-915-C952B
915 MHz ISM Ground plane independent connector mount Antenna
| Mounting | Connector Mount |
|---|---|
| Dimensions (mm) | 170 × 18 × 10 |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
Black
White
|
Antenna and electrical specifications
915 MHz ISM / Sigfox / LoRa / LPWA
| Standards | ZigBee, ISM, SIGFOX, LoRa |
|---|---|
| Frequency | 902-928 |
| VSWR | ~1.2:1 |
| Efficiency (%) | ~80.0 |
| Peak Gain (dBi) | ~3.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Applications
Antenna band list
Compatible mounting brackets
2JB02B
Screw mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB02Ba
Screw mount antenna bracket with D302 cable and SMA F connector
2JB02MP
Magnetic / Adhesive mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB02M
Magnetic mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB04H
Wall Mount metal bracket for all antennas equipped with SMA M connector
2JB06H
Wall Mount metal bracket for 2J2xxx series connector mount antennas equipped with N-Connector Female
