2JD0710-398-C728N

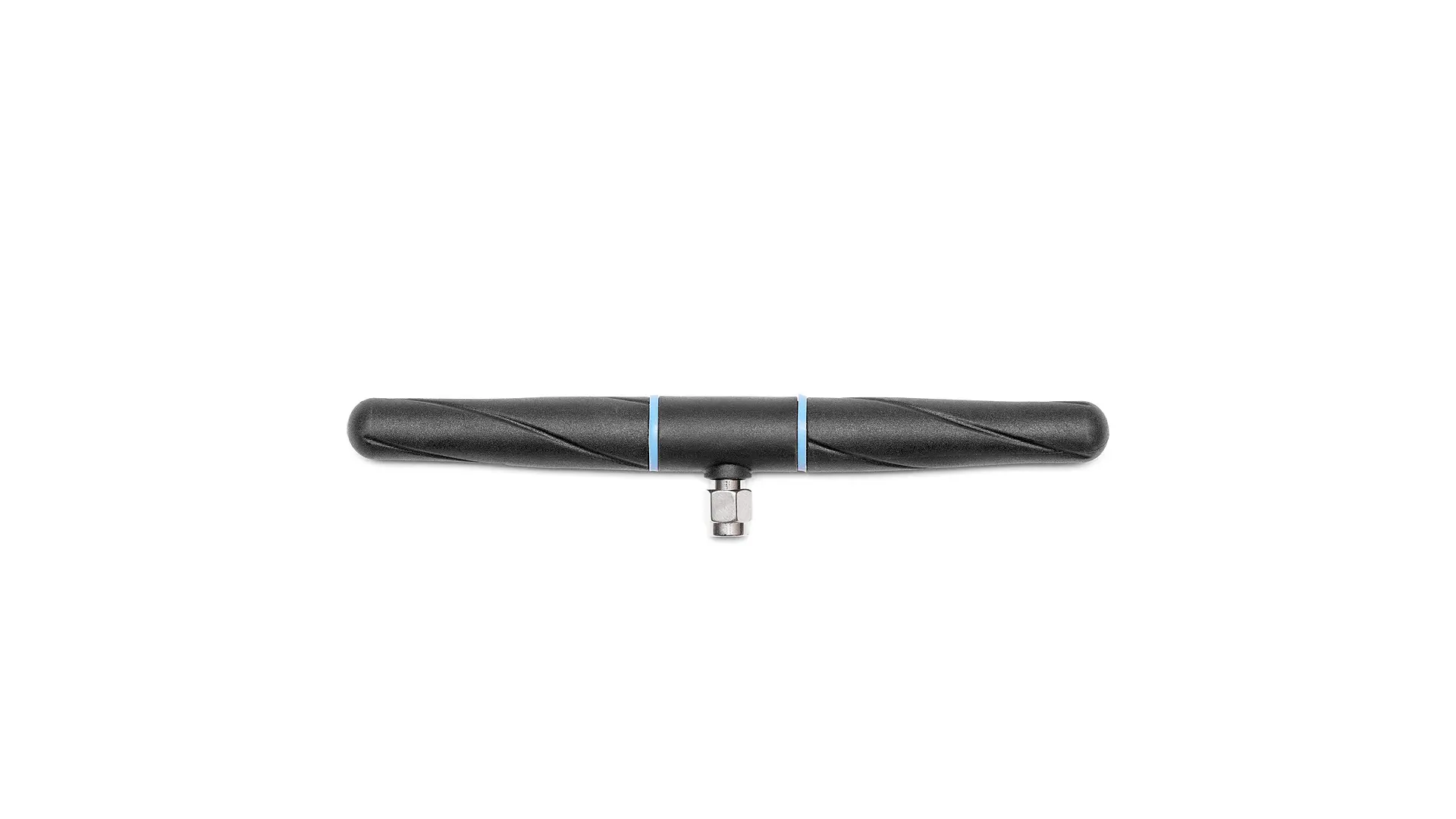

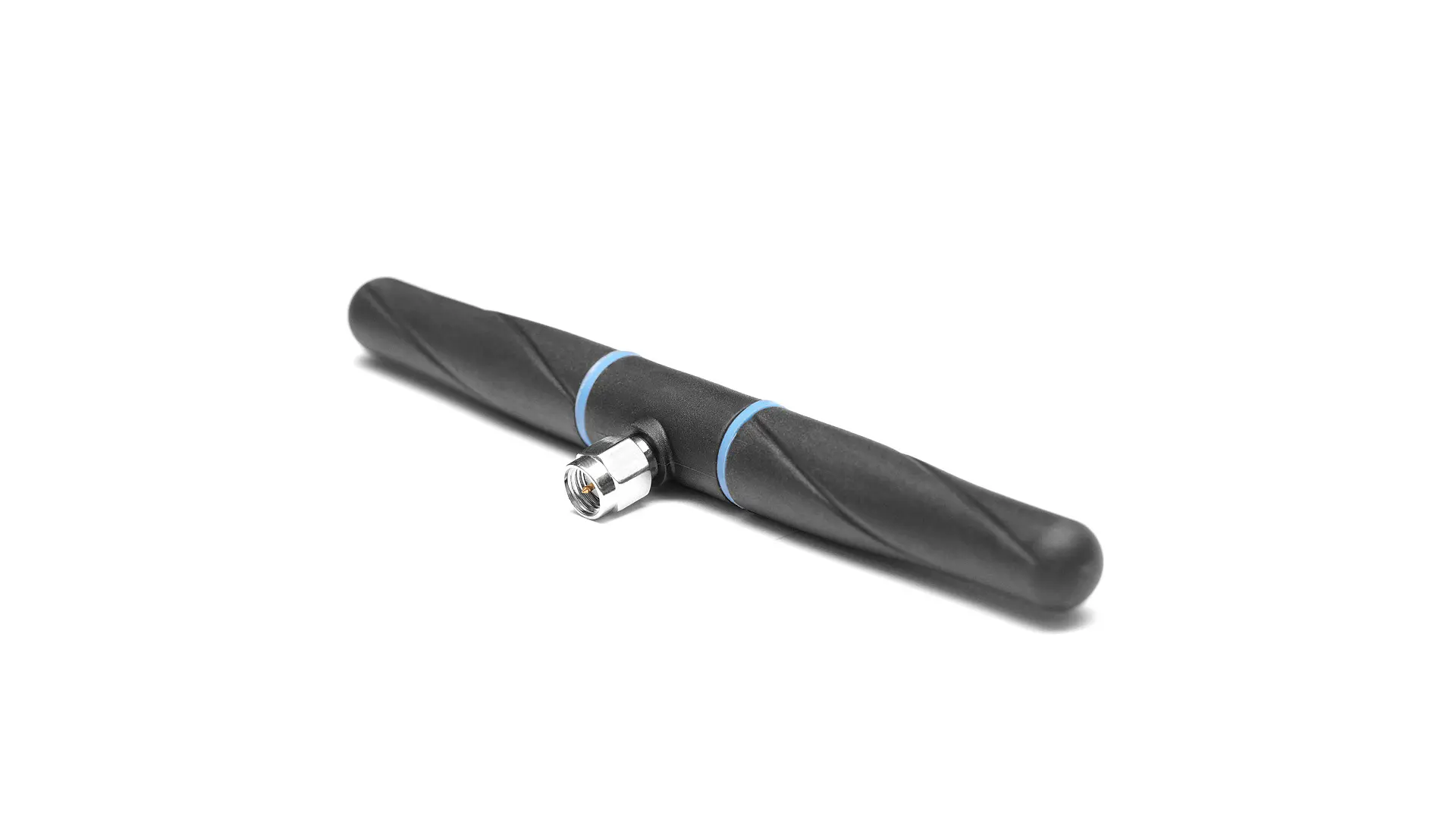

380-470 MHz LPWA/Tetra/UHF Narrowband Connector Mount Dipole Antenna
| Mounting | Connector Mount |
|---|---|
| Dimensions (mm) | Ø 13.6 × 138 |
| Operating temperature | -40 °C to +85 °C |
| Note | 398 MHz Default Frequency (Tunable to Desired Center Frequency within 380-470 MHz per request) |
| Standard colors |
Black
White
|
Antenna and electrical specifications
TETRA / UHF / LMR - 380-470 MHz
| Standards | TETRA/UHF |
|---|---|
| Frequency (MHz) | 398 Default Frequency (Tunable to Desired Center Frequency within 380-470 MHz per request)* |
| Bandwidth (MHz) | 10 |
| VSWR | ~6.0:1 |
| Efficiency (%) | ~38 |
| Peak Gain (dBi) | ~-1.2 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
| Note | *Subject to specific MOQ |
Antenna Description
Key Features
Applications
Antenna band list
Compatible mounting brackets
2JB02B
Screw mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB02Ba
Screw mount antenna bracket with D302 cable and SMA F connector
2JB02MP
Magnetic / Adhesive mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB02M
Magnetic mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB04H
Wall Mount metal bracket for all antennas equipped with SMA M connector
2JB06H
Wall Mount metal bracket for 2J2xxx series connector mount antennas equipped with N-Connector Female
