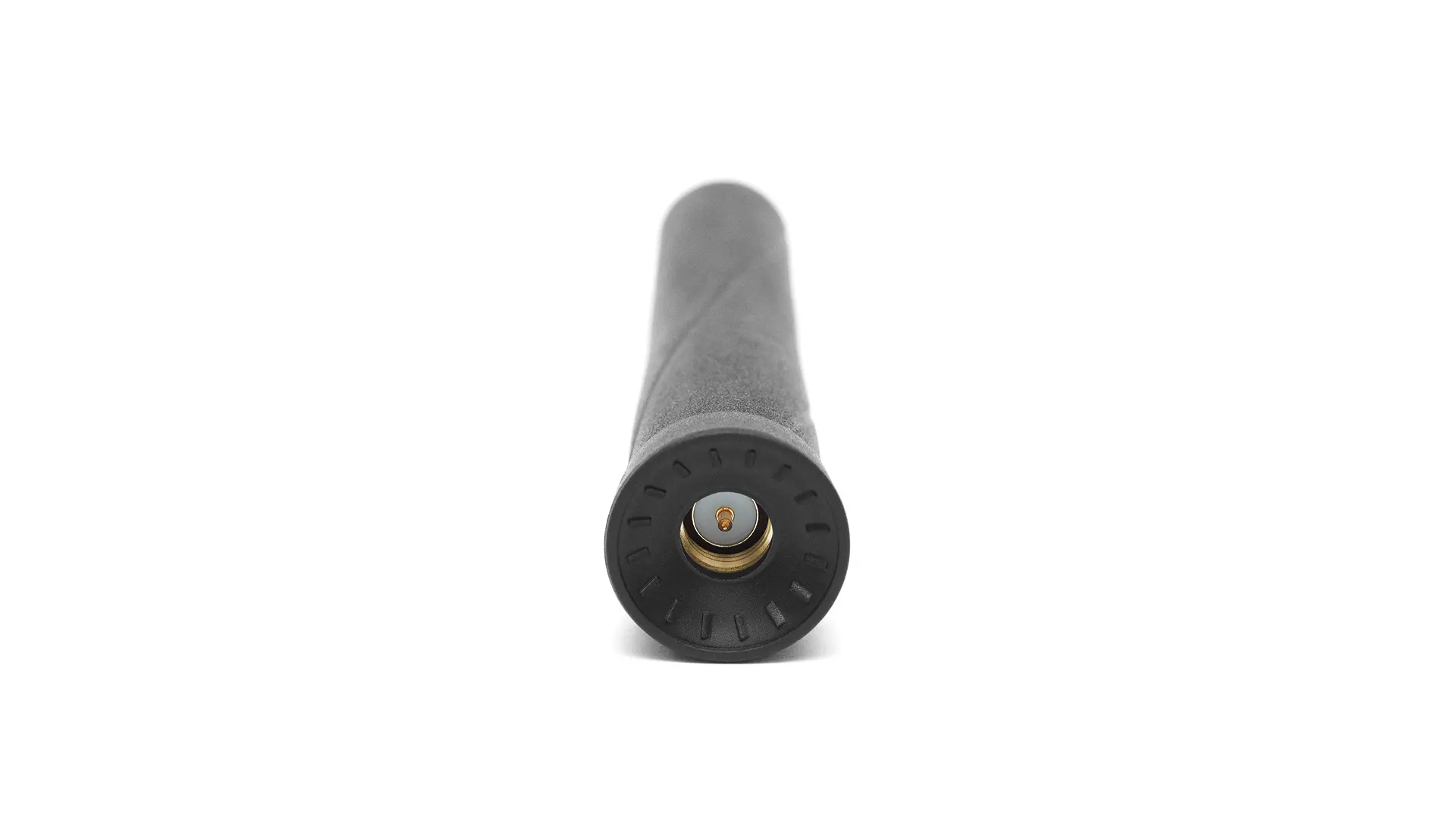

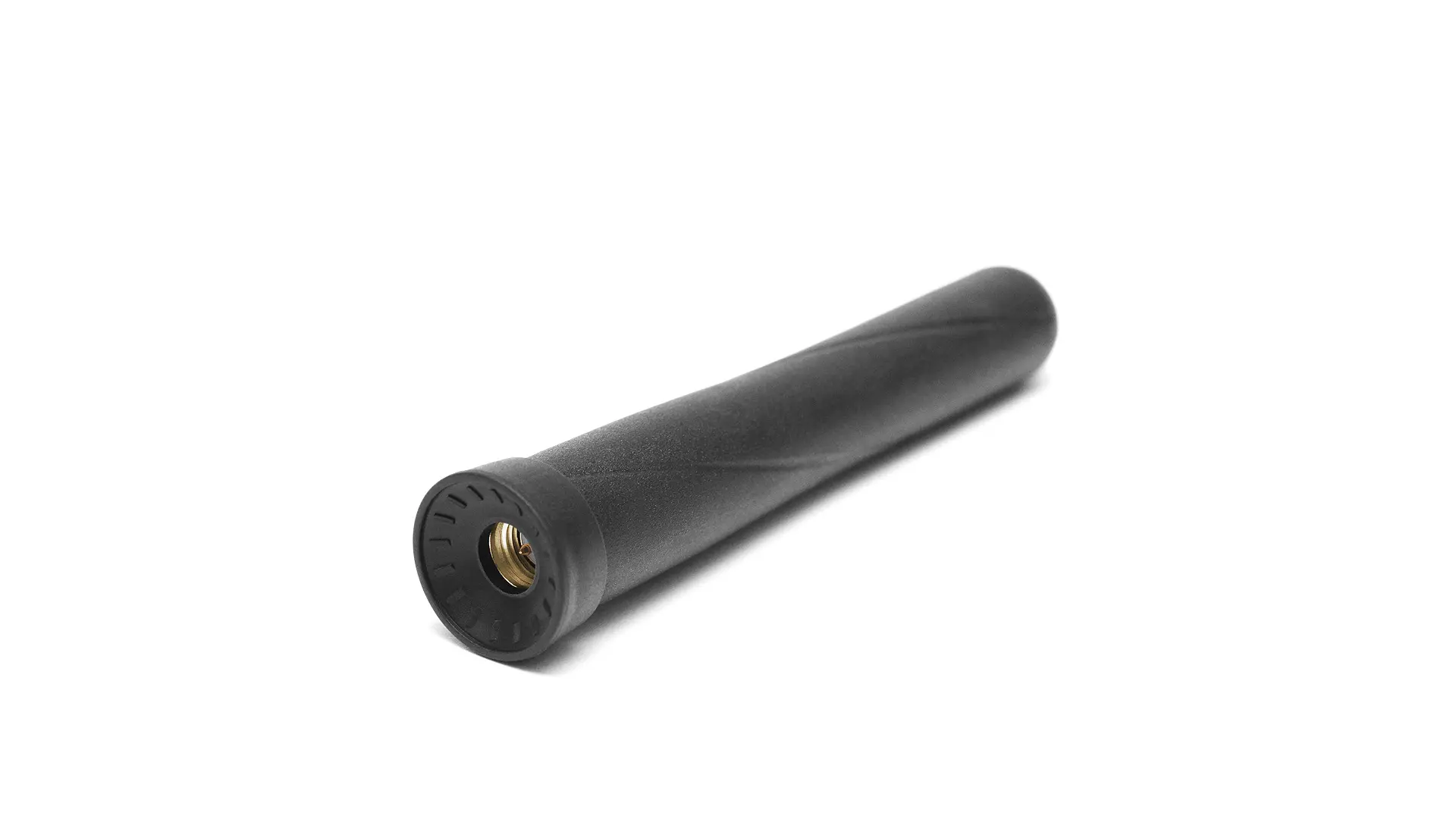

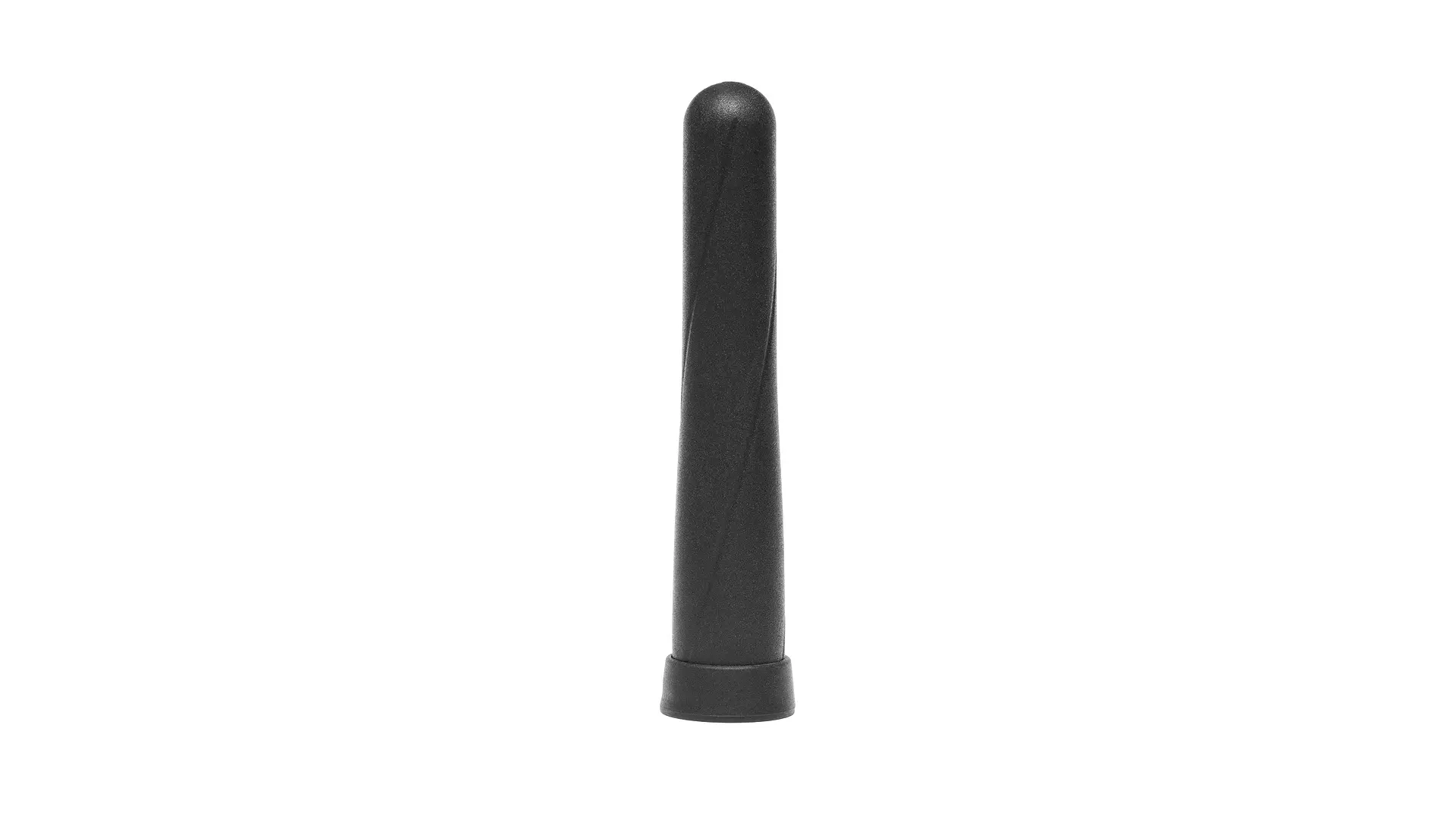

2J0801Cp-C40G
GPS/GLONASS/BeiDou/Galileo Passive Antenna
| Mounting | Connector Mount |
|---|---|
| Dimensions (mm) | Ø 15.7 × 73 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IPX7 |
| Standard colors |
Black
White
|
Antenna and electrical specifications
GPS / GLONASS / BeiDou / QZSS / Galileo - L1
| Standards | GPS/GLONASS/BeiDou/QZSS/Galileo |
|---|---|
| Frequency | 1561.098, 1575.42, 1598-1606 |
| VSWR | ~1.8:1, ~1.9:1, ~2.1:1 |
| Efficiency (%) | ~75.6, ~73.1, ~74.6 |
| Peak Gain (dBi) | ~3.8, ~3.6, ~3.8 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Hemispherical |
Antenna Description
Key Features
Applications
Antenna band list
Compatible mounting brackets
2JB02B
Screw mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB02Ba
Screw mount antenna bracket with D302 cable and SMA F connector
2JB02MP
Magnetic / Adhesive mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB02M
Magnetic mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB04H
Wall Mount metal bracket for all antennas equipped with SMA M connector
2JB06H
Wall Mount metal bracket for 2J2xxx series connector mount antennas equipped with N-Connector Female
