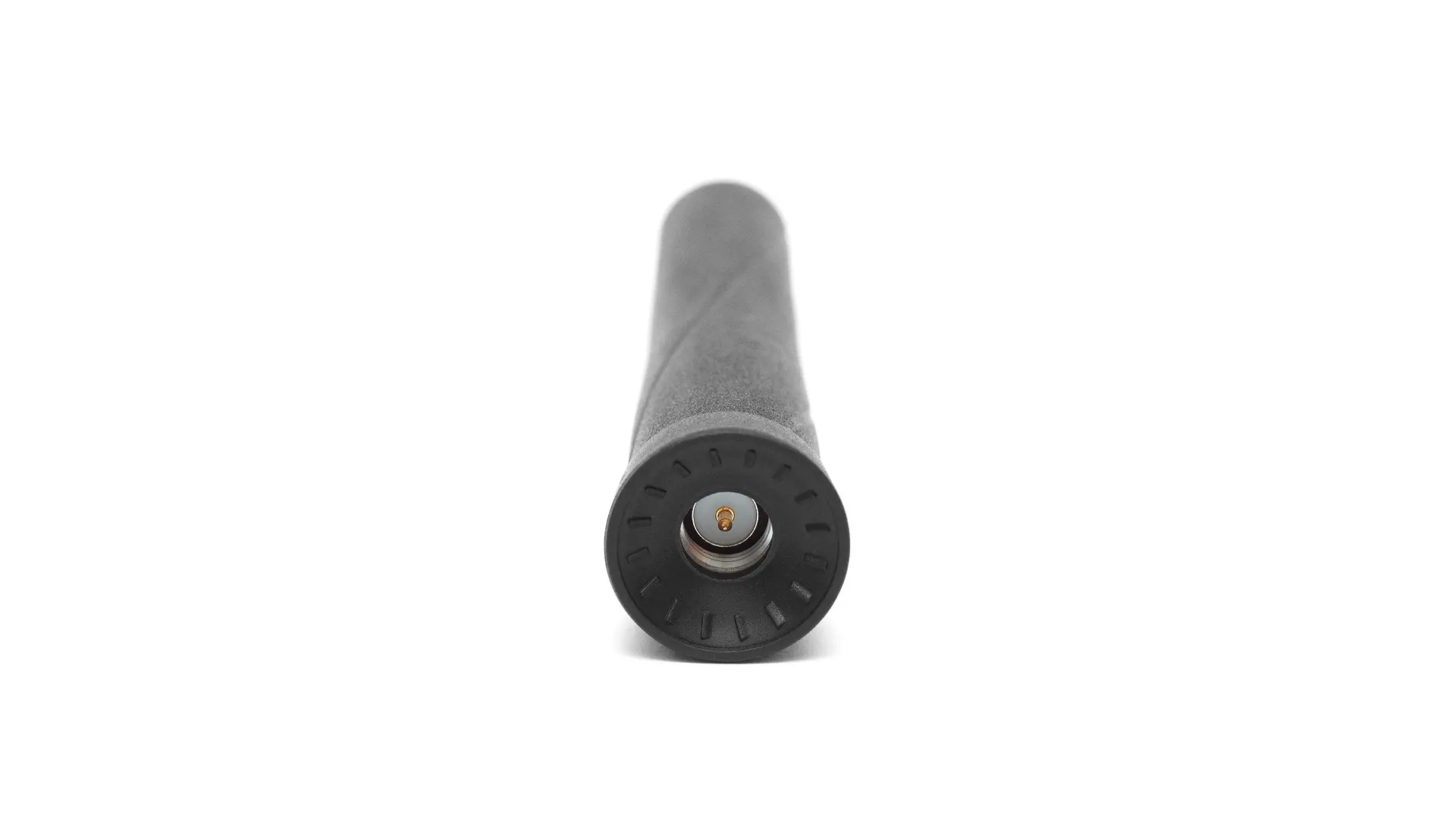

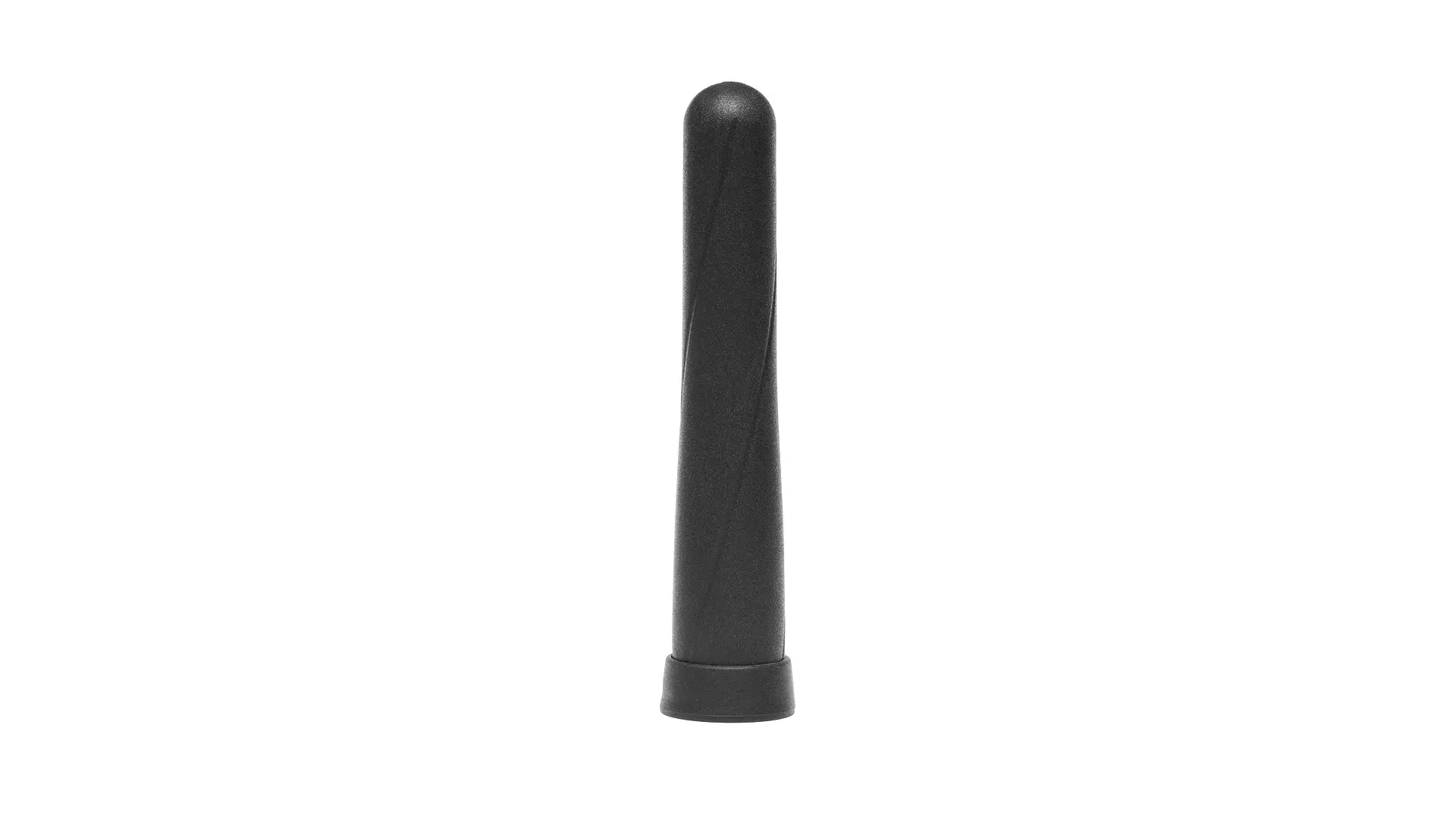

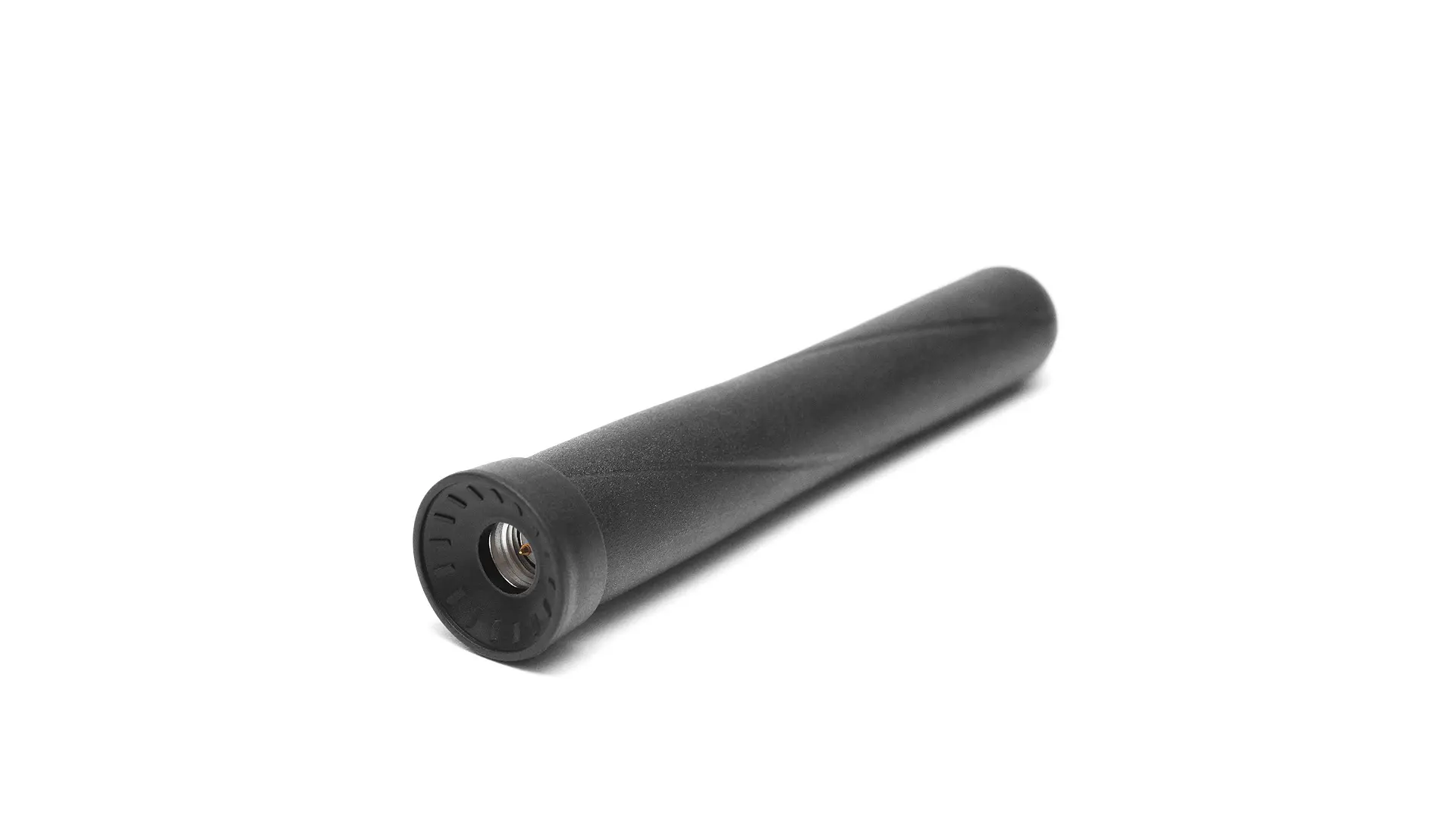

2J0819z-C708N
169MHz ISM-ERMES Compact Connector Mount Antenna
| Mounting | Connector Mount |
|---|---|
| Dimensions (mm) | Ø 15.7 × 73 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IPX7 |
| Standard colors |
Black
White
|
Antenna and electrical specifications
ERMES / VHF - 169 MHz
| Standards | ERMES, ISM, VHF |
|---|---|
| Frequency | 169.4-169.8 |
| Return Loss (dB) | ~-23.0 |
| VSWR | ~1.15:1 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Applications
Antenna band list
Compatible mounting brackets
2JB02B
Screw mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB02Ba
Screw mount antenna bracket with D302 cable and SMA F connector
2JB02MP
Magnetic / Adhesive mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB02M
Magnetic mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB04H
Wall Mount metal bracket for all antennas equipped with SMA M connector
2JB06H
Wall Mount metal bracket for 2J2xxx series connector mount antennas equipped with N-Connector Female
