2JW1483

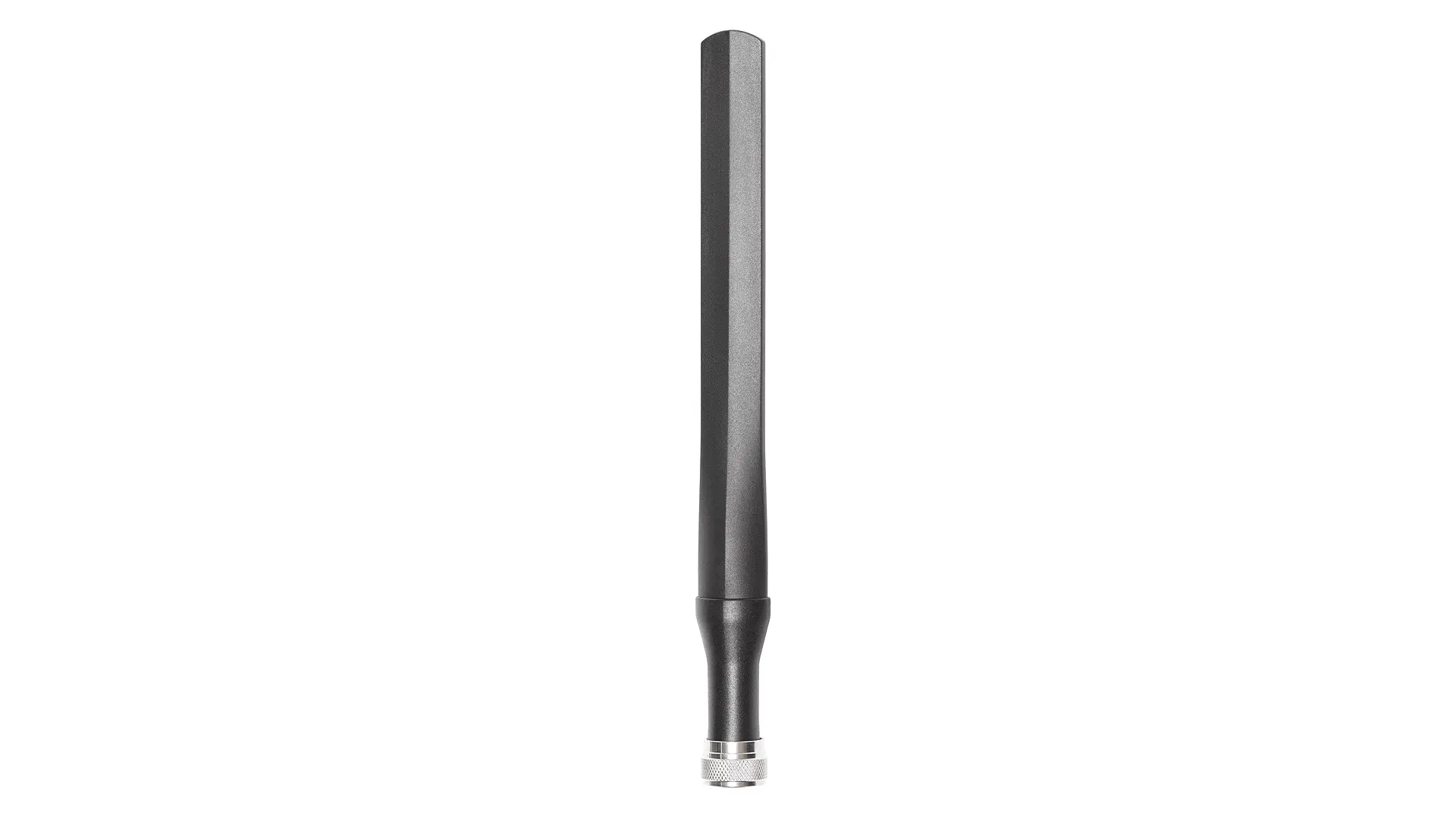

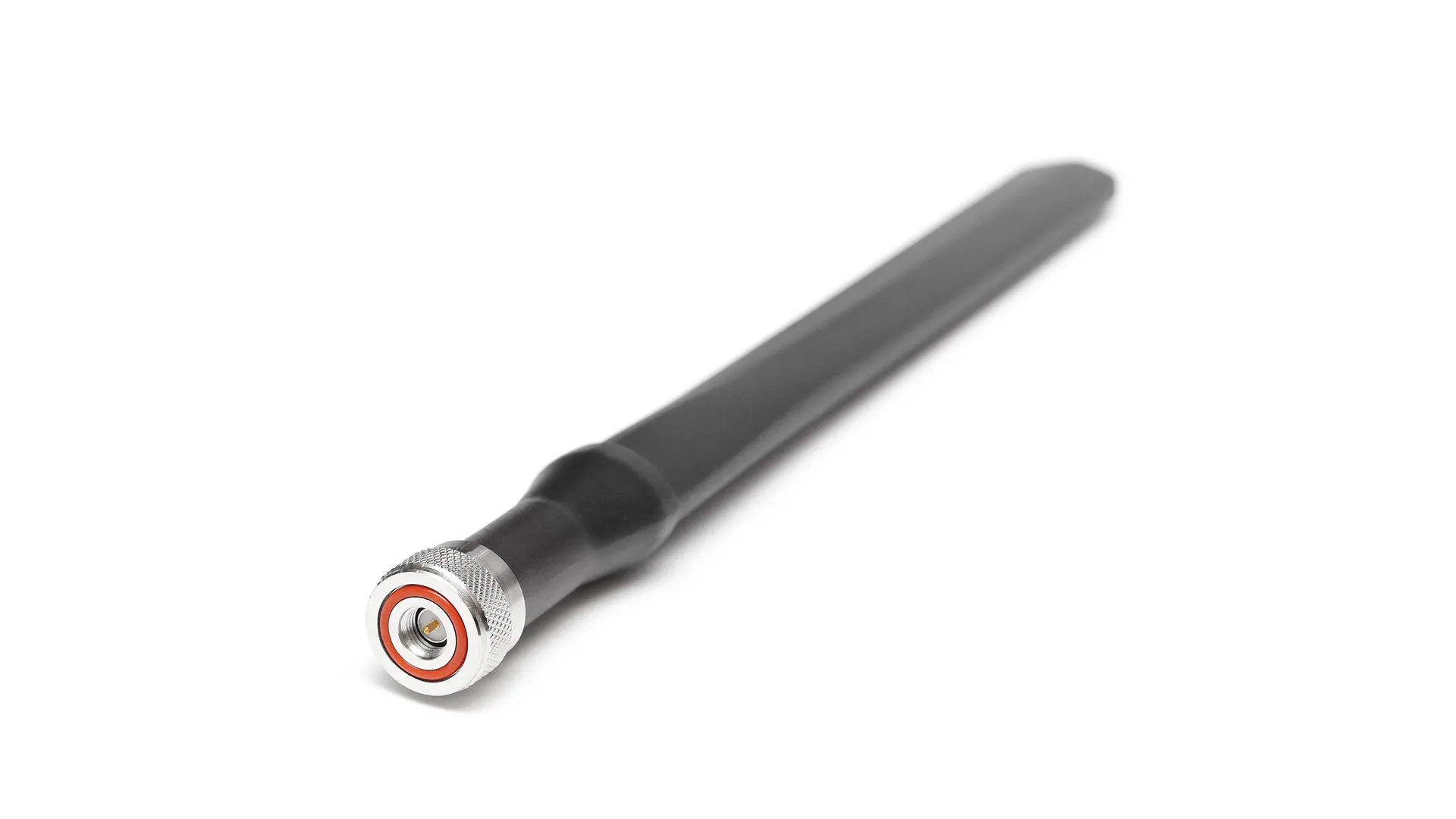

Dagger 5GNR/4G/3G/2G Waterproof IP67 IP69 Connector Mount Antenna
| Mounting | Connector Mount |
|---|---|
| Dimensions (mm) | 192 × 20 × 18 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 |
| Standard colors |
Black
White
|
Antenna and electrical specifications
5G NR / Cellular / LPWA
| Technologies | 5G, 4G, 3G and 2G |
|---|---|
| Standards | 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G |
| Frequency | 617-960, 1427-2690, 3300-3800 |
| Return Loss (dB) | ~-13.7, ~-14.3, ~-4.4 |
| VSWR | ~1.6:1, ~1.7:1, ~6.3:1 |
| Efficiency (%) | ~50.0, ~55.2, ~28.1 |
| Peak Gain (dBi) | ~-0.4, ~0.6, ~-1.6 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Radiation Pattern | Omni-Directional |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Applications
Antenna band list
| Parameters | 5GNR Antenna | ||
| Frequency (MHz) | 617-960 | 1427-2690 | 3300-3800 |
| Band (MHz) | 600, 700, 850, 900 | 1500, 1600, 1700, 1800, 1900, 2000, 2100, 2300, 2500, 2600 |
3300, 3500, 3600, 3700 |
| 5GNR Bands | n5, n8 ,12, n20, n28, n71, n81, n82, n83, |
n1, n2, n3, n7, n25, n34, n38, n39, n40, n41, n50, n51, n66, n70, n74, n75, n76, n80, n84, n86 |
n78 |
| 4GLTE Bands | B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B71, B85 |
B1, B2, B3, B4, B7, B9, B10, B11, B21, B23, B24, B25, B30, B32, B33, B34, B35, B36, B37, B38, B39, B40, B41, B45, B50, B51, B65, B66, B69, B70 |
B22, B42, B43, B48, B49, B52 |
| 3GCELL Bands | B5, B6, B8, B12, B13, B14, B19, B20, B26 |
B1, B2, B3, B4, B7, B9, B10, B11, B21, B25, B32, B33, B34, B35, B36, B37, B38, B39, B40 |
B22 |
| 2GCELL Bands | 710, 750, 810T, 850, 900P, 900E, 900R |
1800DCS, 1900PCS | |
| CDMACELL Bands | BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19 |
BC1, BC4, BC6, BC8, BC13, BC14, BC15, BC16, BC20, BC21 |
|
Compatible mounting brackets
2JB02B
Screw mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB02Ba
Screw mount antenna bracket with D302 cable and SMA F connector
2JB02MP
Magnetic / Adhesive mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB02M
Magnetic mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB04H
Wall Mount metal bracket for all antennas equipped with SMA M connector
2JB06H
Wall Mount metal bracket for 2J2xxx series connector mount antennas equipped with N-Connector Female
