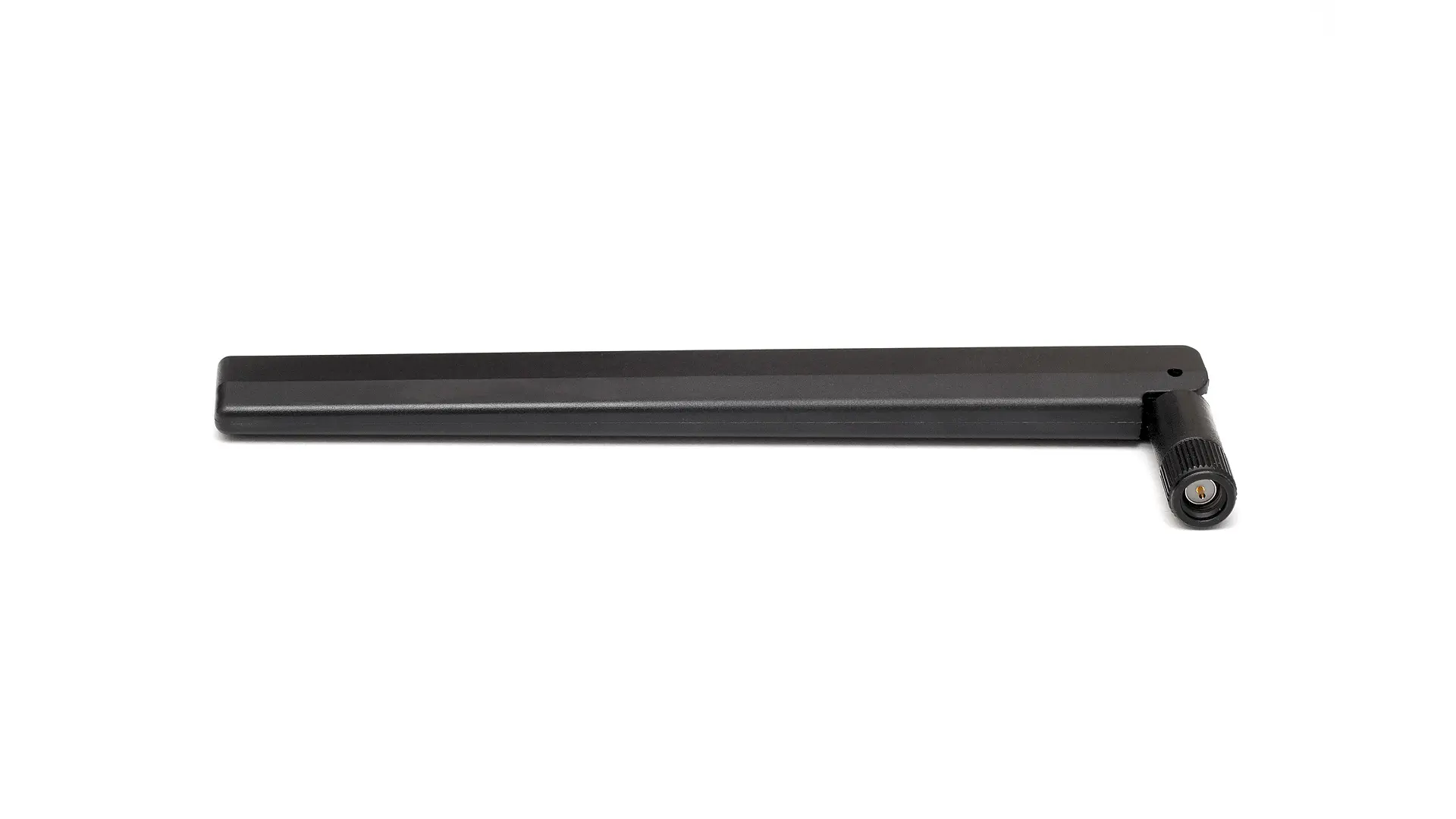

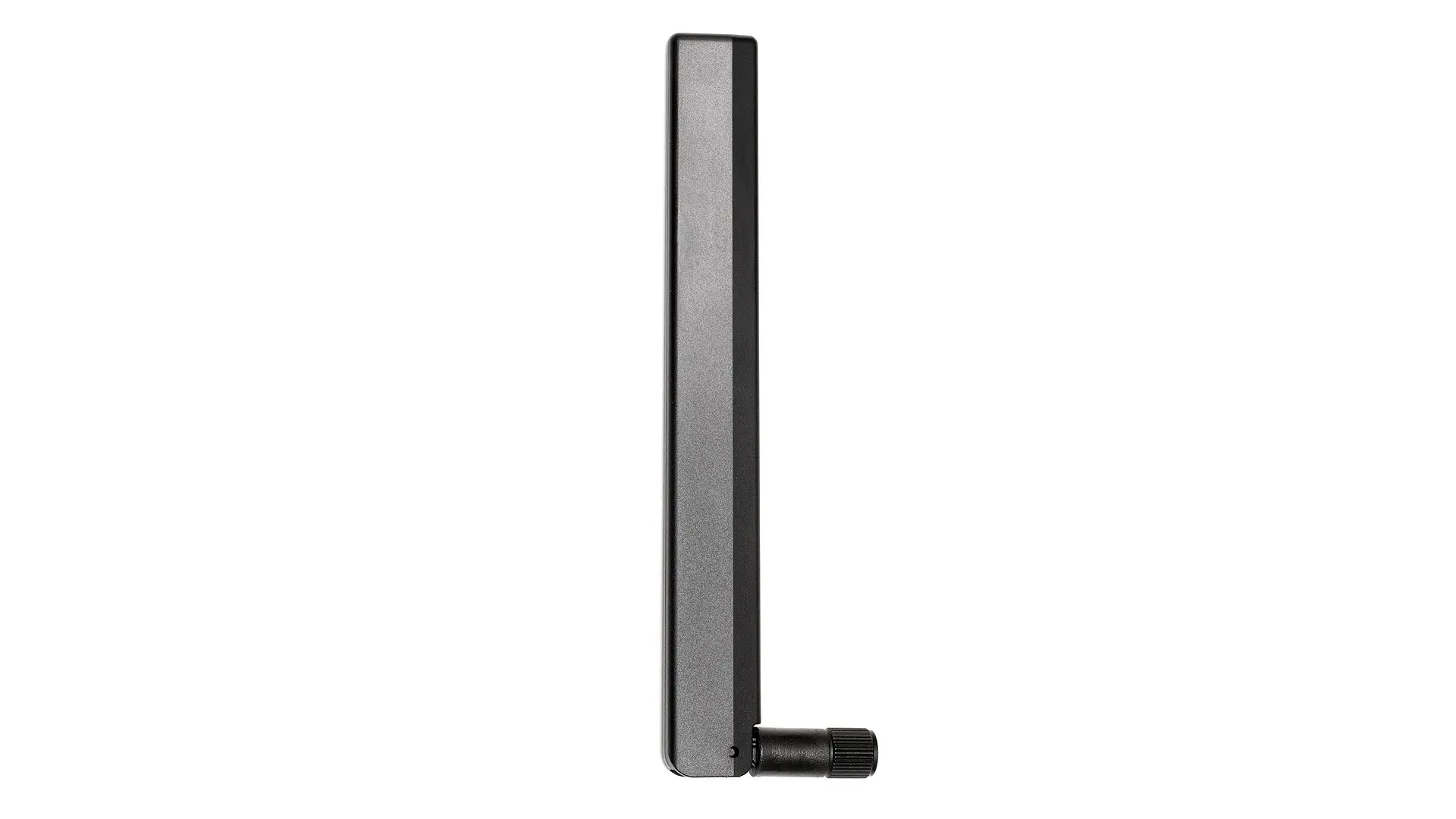

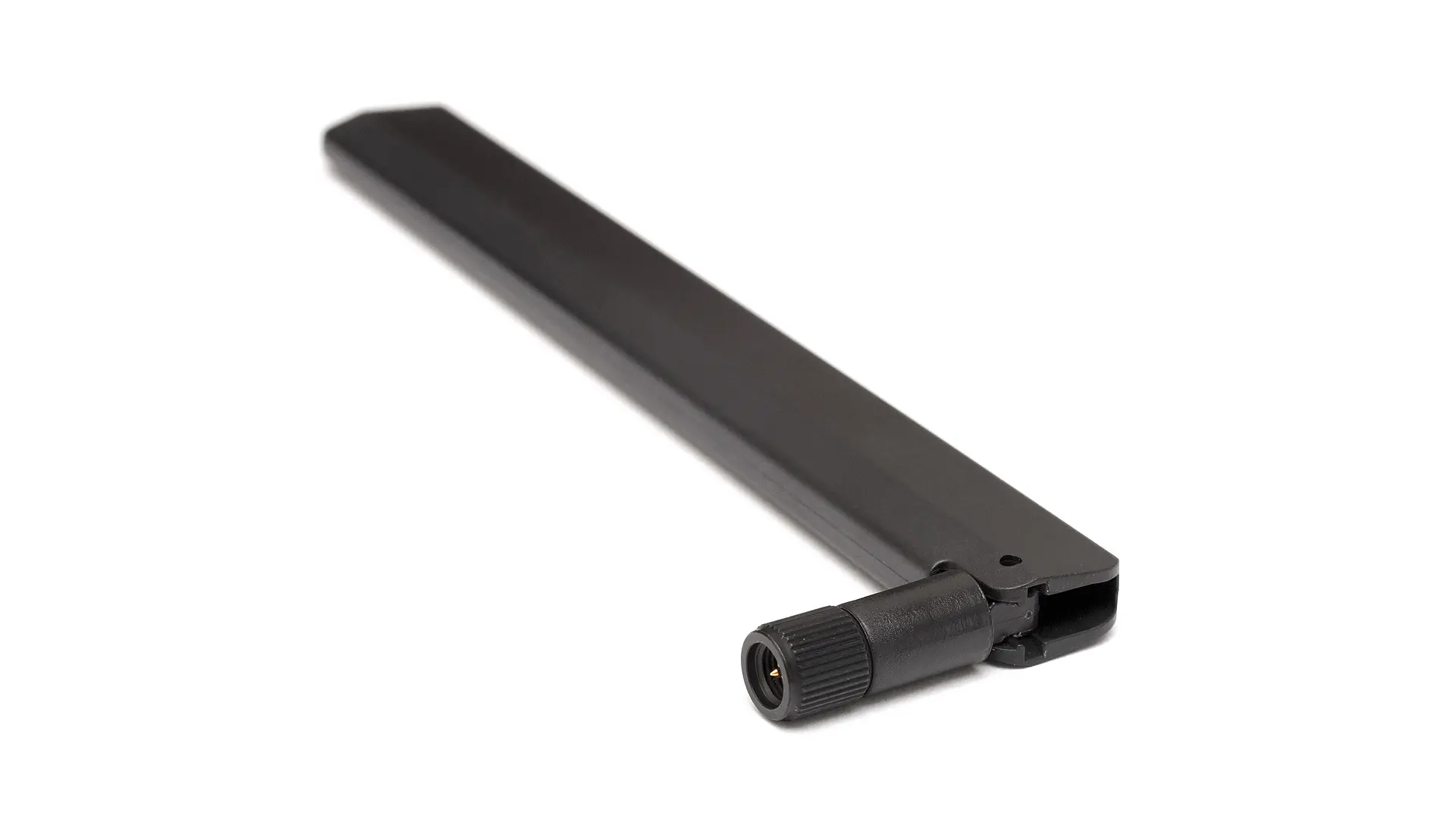

4G LTE/3G/2G Ultra Wideband Hinged Connector Antenna
| Mounting | Connector Mount |
|---|---|
| Dimensions (mm) | 170 × 18 × 10 |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
Black
White
|
Antenna and electrical specifications
4G LTE / Cellular / LPWA / NB-IoT
| Standards | GSM, CDMA, DCS, PCS, GPRS, WCDMA, UMTS, HSPA, EVDO and LTE |
|---|---|
| Frequency | 698-960, 1710-2170, 2500-2700 |
| VSWR | ~1.7:1, ~1.5:1, ~1.3:1 |
| Efficiency (%) | ~54, ~60, ~67 |
| Peak Gain (dBi) | ~0.6, ~2.6, ~2.3 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Applications
Antenna band list
| Parameters | 4G LTE Antenna | ||
| Frequency (MHz) | 698-960 | 1710-2170 | 2500-2700 |
| Band (MHz) | 700, 850, 900 | 1700, 1800, 1900, 2000, 2100 | 2500, 2600 |
| 4GLTE Bands | B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B85 |
B1, B2, B3, B4, B9, B10, B25, B33, B34, B35, B36, B37, B39, B65, B66, B70 |
B7, B38, B41, B69 |
| 3GCELL Bands | B5, B6, B8, B12, B13, B14, B19, B20, B26 |
B1, B2, B3, B4, B9, B10, B25, B33, B34, B35, B36, B37, B39 |
B7, B38 |
| 2GCELL Bands | 710, 750, 810T, 850, 900P, 900E, 900R |
1800DCS, 1900PCS | |
| CDMACELL Bands | BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19 |
BC1, BC4, BC6, BC8, BC14, BC15 |
BC13, BC16 |
Compatible mounting brackets
2JB02B
Screw mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB02Ba
Screw mount antenna bracket with D302 cable and SMA F connector
2JB02MP
Magnetic / Adhesive mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB02M
Magnetic mount antenna bracket with RG174 or LL100 cable and SMA F connector
2JB04H
Wall Mount metal bracket for all antennas equipped with SMA M connector
2JB06H
Wall Mount metal bracket for 2J2xxx series connector mount antennas equipped with N-Connector Female
