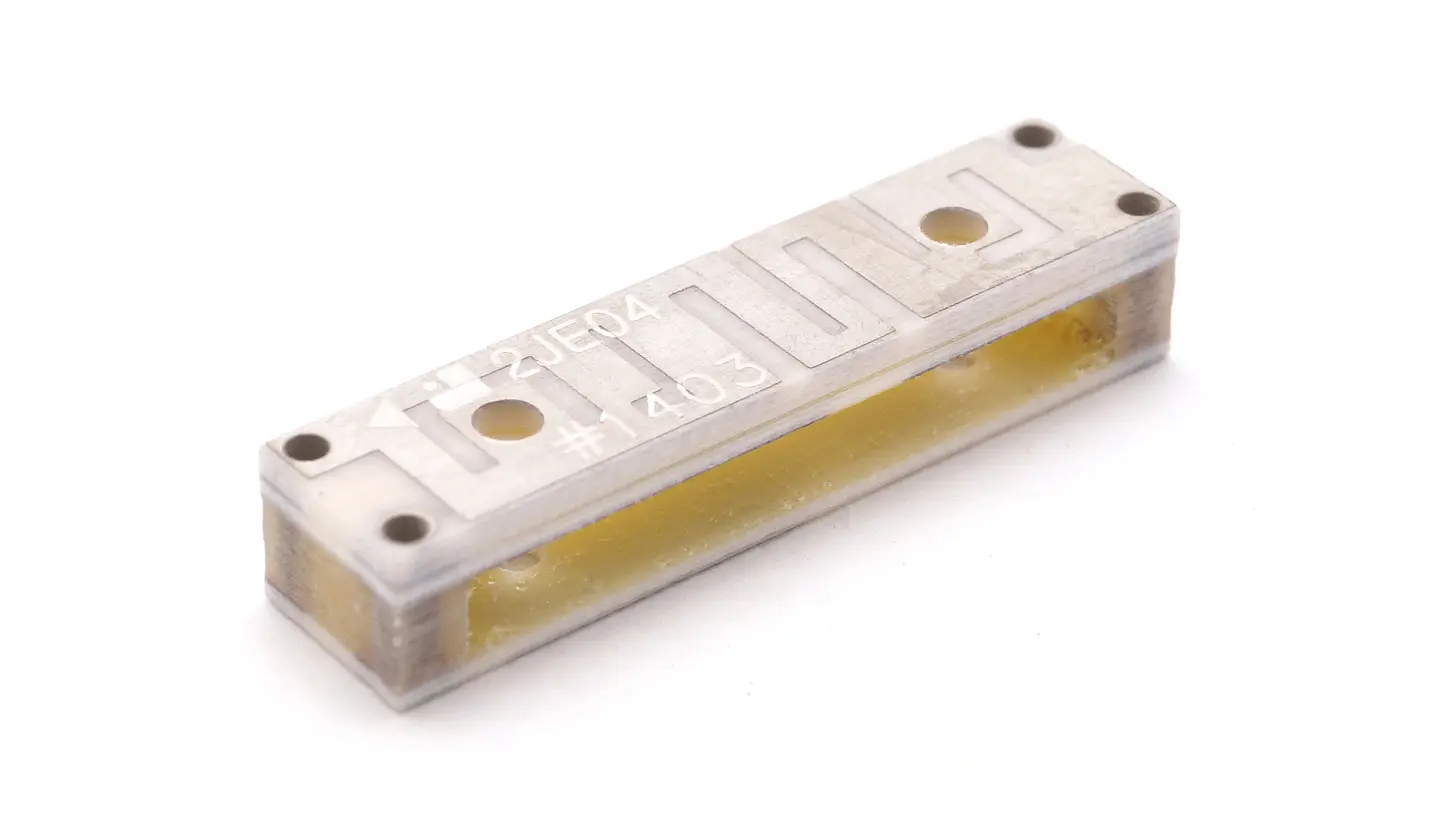

2JE04
Cellular SMT Fiberglass Surface Mount Embedded Antenna
Connections (1)
1×
3G / 2G / Cellular
| Mounting | Surface Mount Fiberglass |
|---|---|
| Dimensions (mm) | 24 × 5.5 × 4.4 |
| Operating temperature | -40 °C to +105 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
3G / 2G / Cellular
| Standards | 2G and 3G |
|---|---|
| Frequency | 824-960, 1710-2170 |
| VSWR | <=3:1, <=3:1 |
| Efficiency (%) | ~55, ~45 |
| Peak Gain (dBi) | ~1, ~3 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Dependent
High Performance
3.0 dBi 3G 2G Peak Gain
SMT Brick Embedded Antenna
Fiberglass Material
Compact Size
Easy to Integrate
Low Cost
Applications
Cellular & Wireless
Industrial & Automation
Embedded Antenna Solutions
