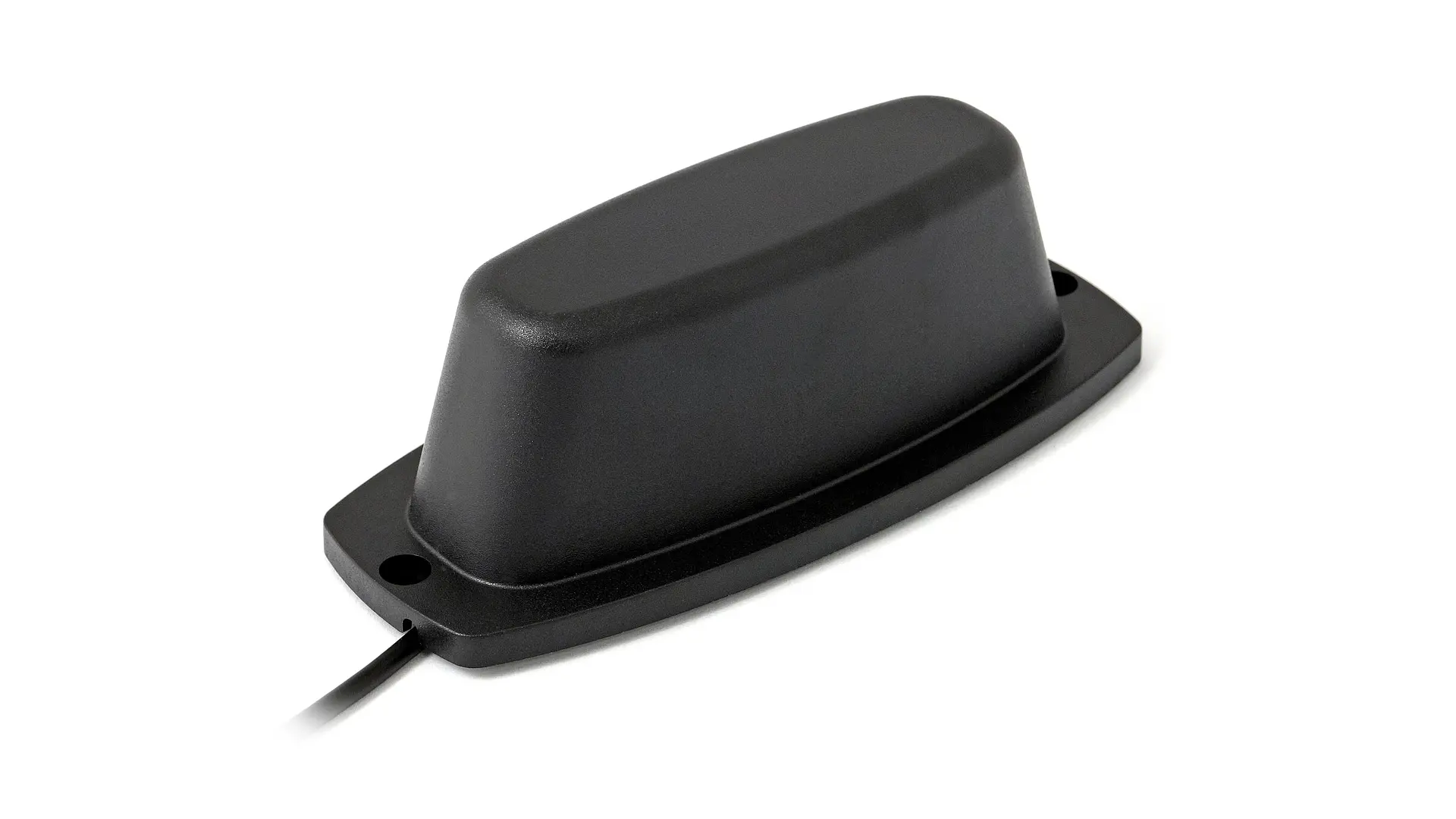

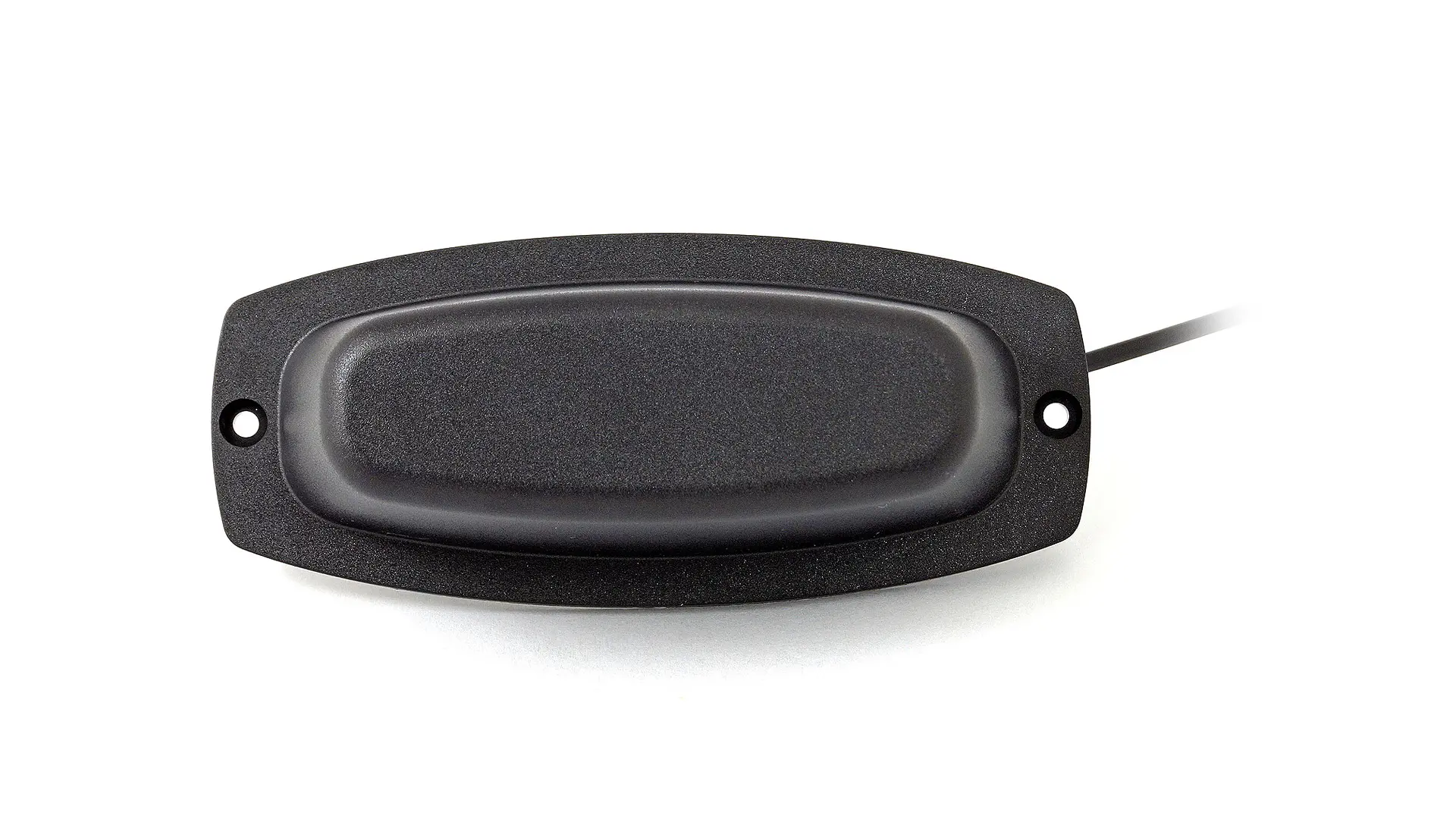

2J6804MP
Cellular Adhesive/Magnetic Mount Customizable Antenna
Connections (1)
1×
3G / 2G / Cellular

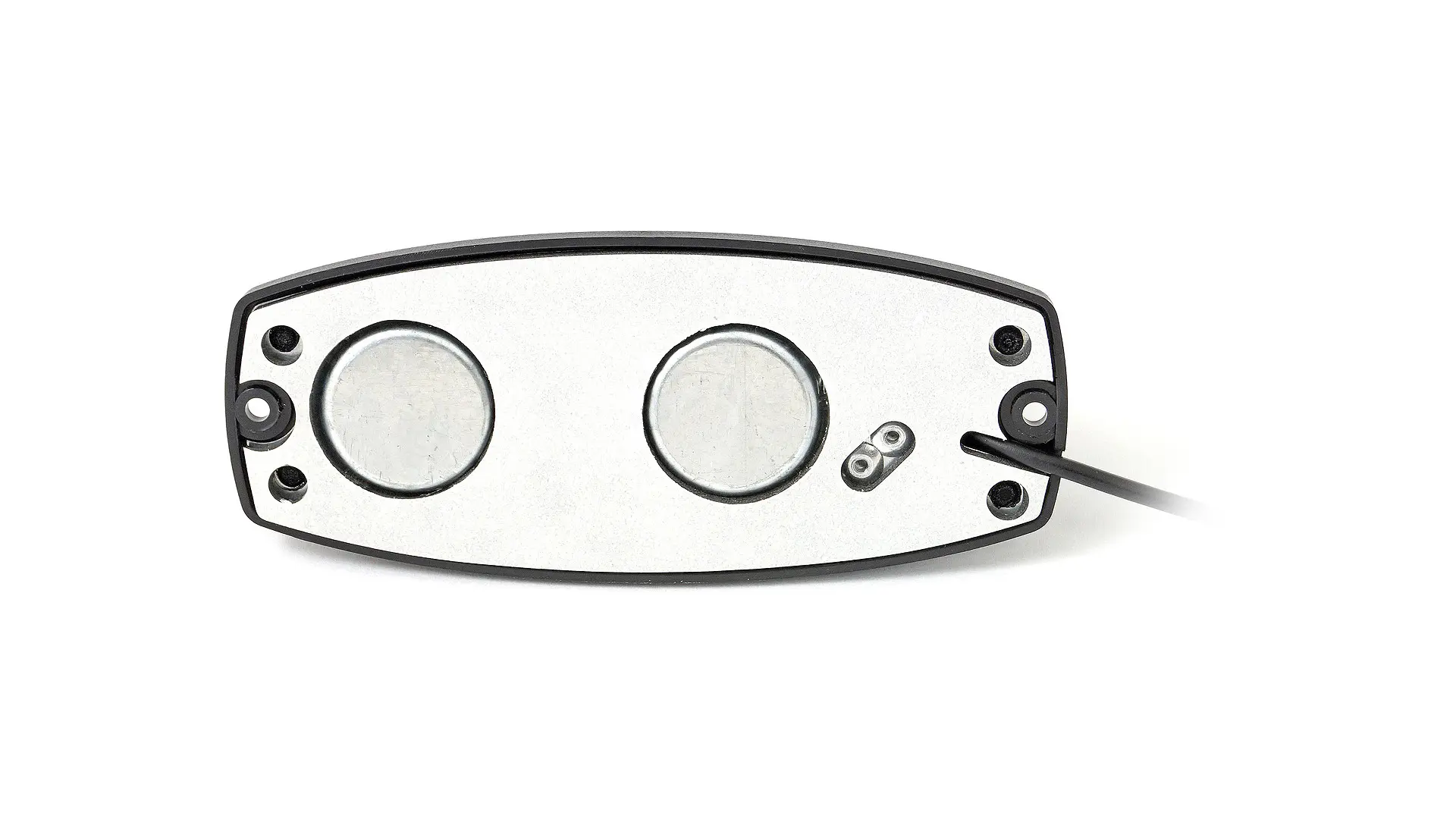

| Mounting | Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount |
|---|---|
| Dimensions (mm) | 117 × 49.5 × 38 |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
3G / 2G / Cellular
| Standards | 2G and 3G |
|---|---|
| Frequency | 824-960, 1710-2170 |
| VSWR | ~1.4:1, ~1.5:1 |
| Efficiency (%) | ~39, ~36 |
| Peak Gain (dBi) | ~0.9, ~0.7 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 50 |
Antenna Description
Key Features
Ground Plane Dependent
Customizable Cable and Connector
Adhesive Mounting sticker included
0.9 dBi 3G 2G Peak Gain
Applications
Cellular & Wireless
Industrial & Automation
