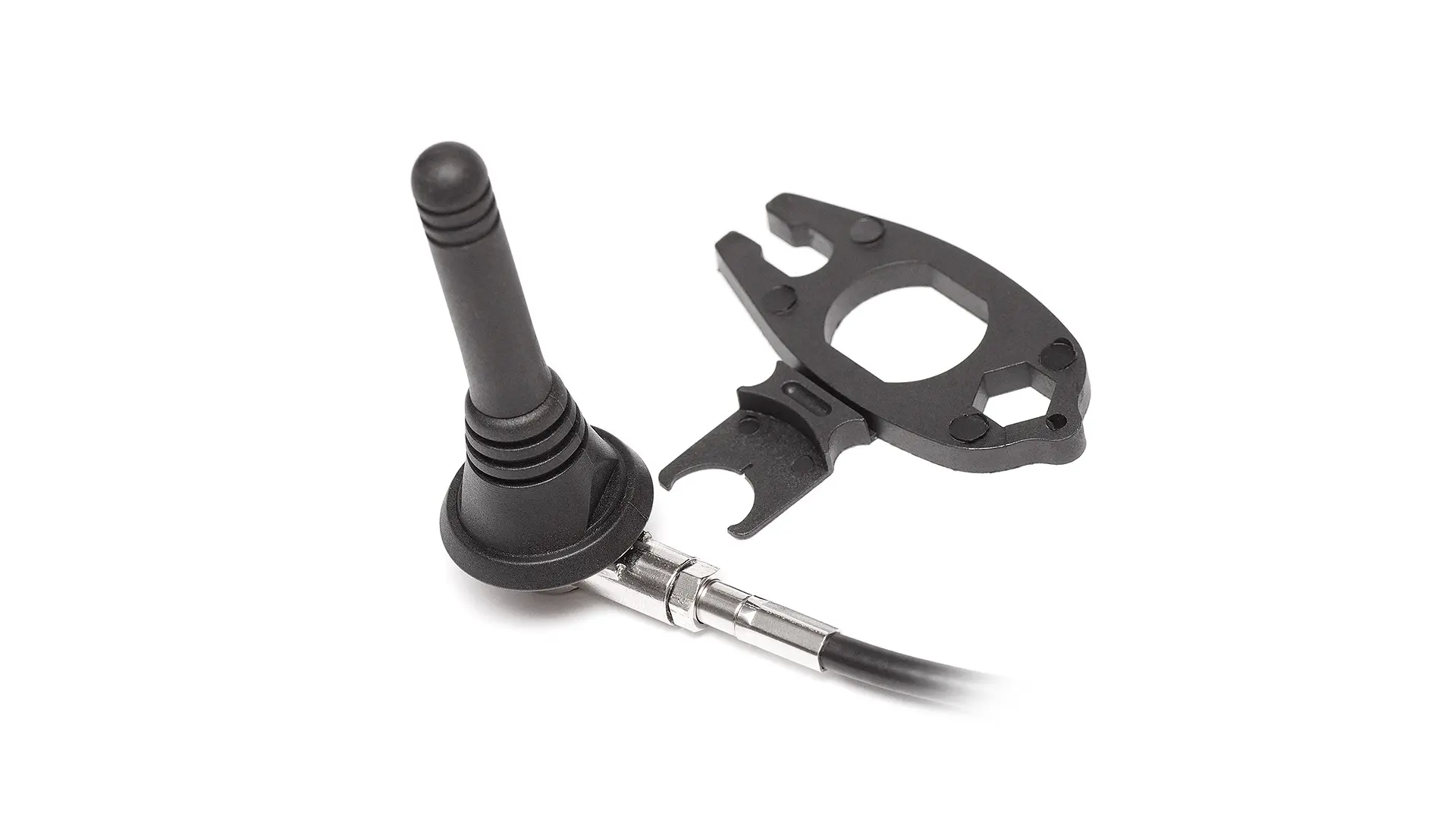

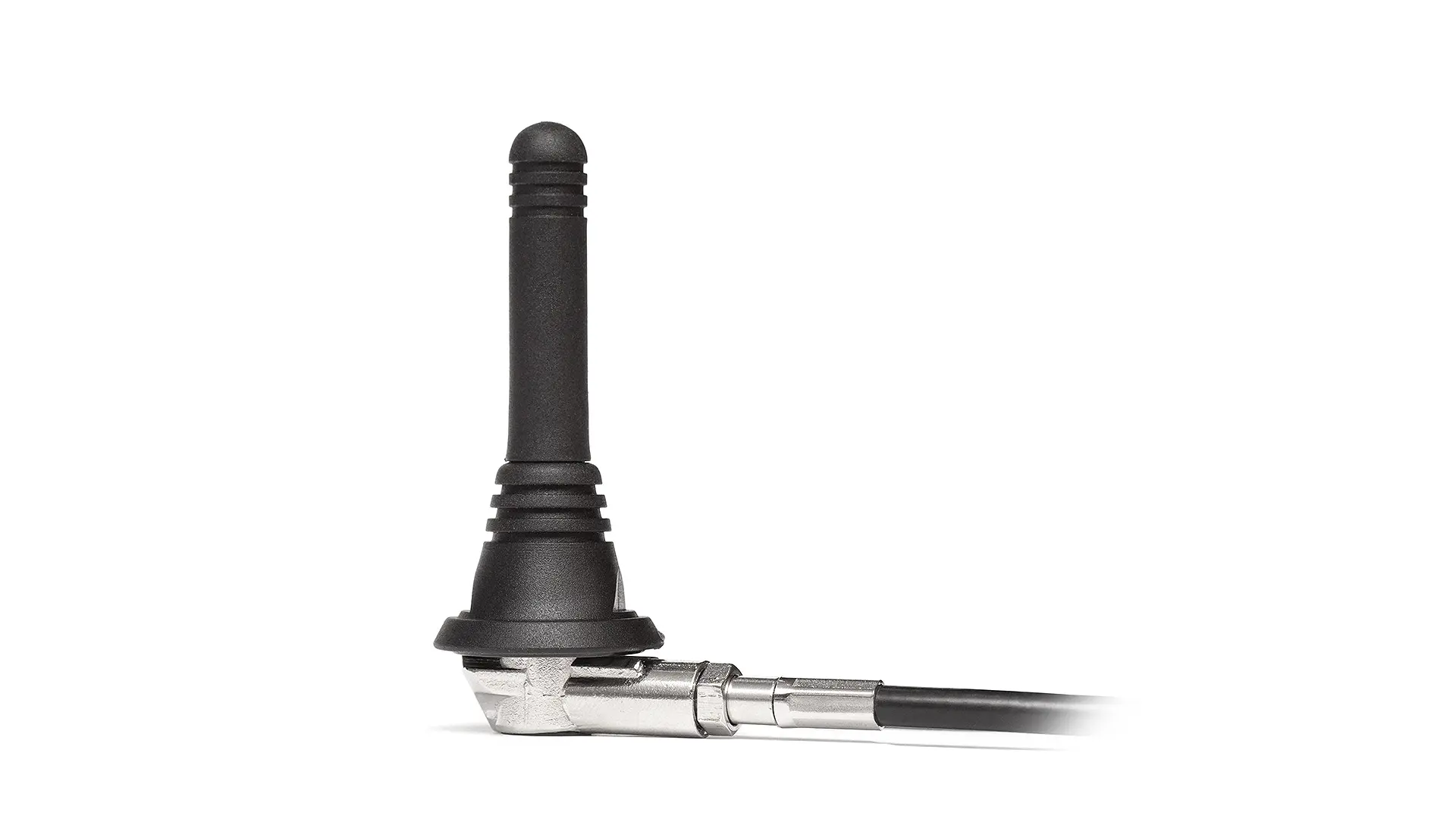

2J1204Bz
CELLULAR Screw Mount Antenna
Connections (1)
1×
3G / 2G / Cellular
| Mounting | Screw Mount |
|---|---|
| Dimensions (mm) | Ø 29 × 66.3 |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
3G / 2G / Cellular
| Standards | 2G and 3G |
|---|---|
| Frequency | 824-960, 1710-2170 |
| VSWR | ~1.6:1, ~1.7:1 |
| Efficiency (%) | ~52.2, ~40.7 |
| Peak Gain (dBi) | ~1.3, ~0.6 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 100 |
Antenna Description
Key Features
Small Form Factor
Ground Plane Dependent
Customizable Cable and Connector
1.3 dBi 3G 2G Peak Gain
Detachable Cable
Applications
Cellular & Wireless
Industrial & Automation
