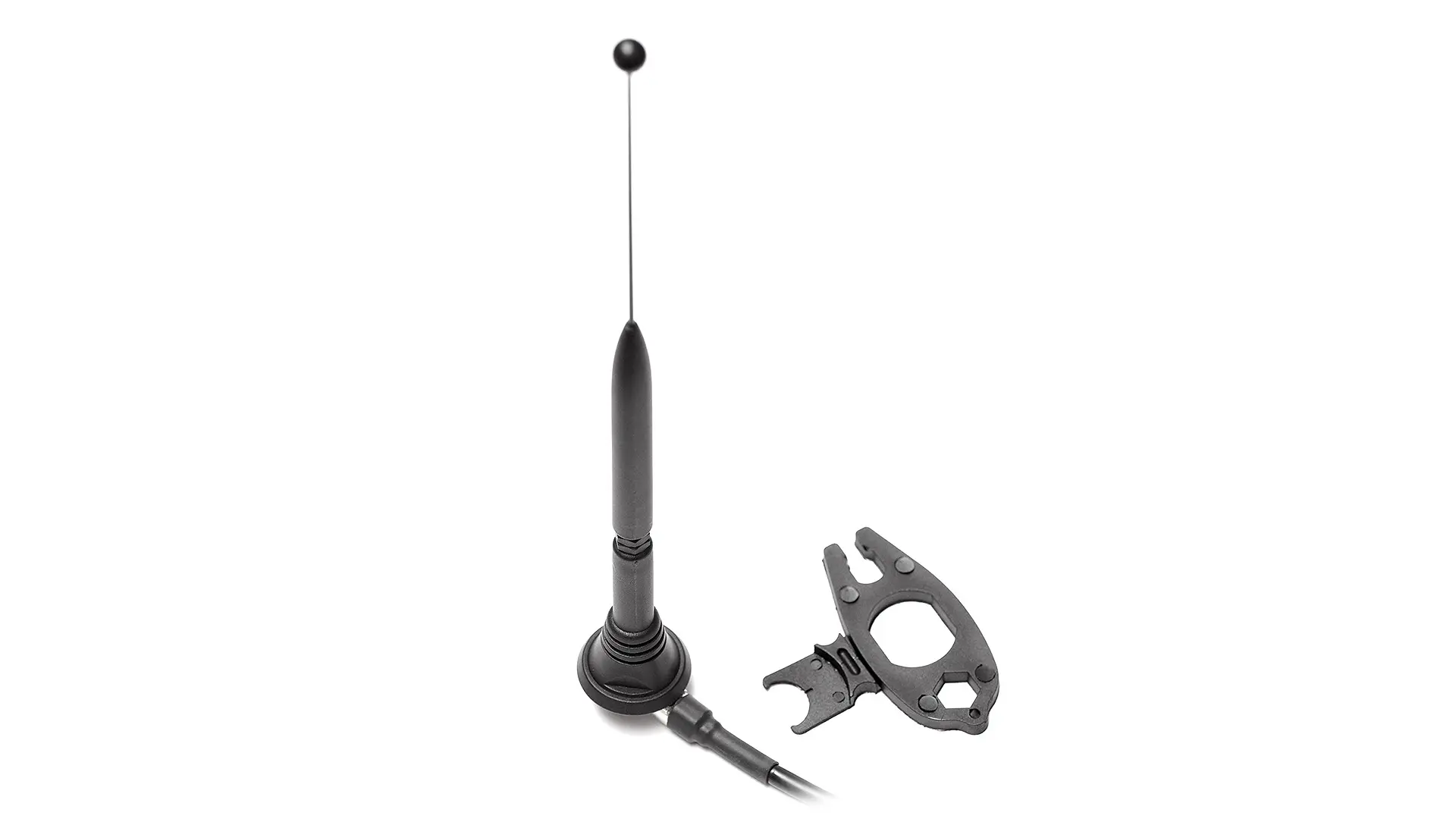

2J1504B
CELLULAR Screw Mount Antenna
Connections (1)
1×
3G / 2G / Cellular
| Mounting | Screw Mount |
|---|---|
| Dimensions (mm) | Ø 29 × 230.5 |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
3G / 2G / Cellular
| Standards | 2G and 3G |
|---|---|
| Frequency | 824-960, 1710-2170 |
| VSWR | ~1.4:1, ~2.6:1 |
| Efficiency (%) | ~62.9, ~30.5 |
| Peak Gain (dBi) | ~3.5, ~-0.3 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 100 |
Antenna Description
Key Features
Ground Plane Dependent
Customizable Cable and Connector
3.5 dBi 3G 2G Peak Gain
Applications
Cellular & Wireless
Industrial & Automation
