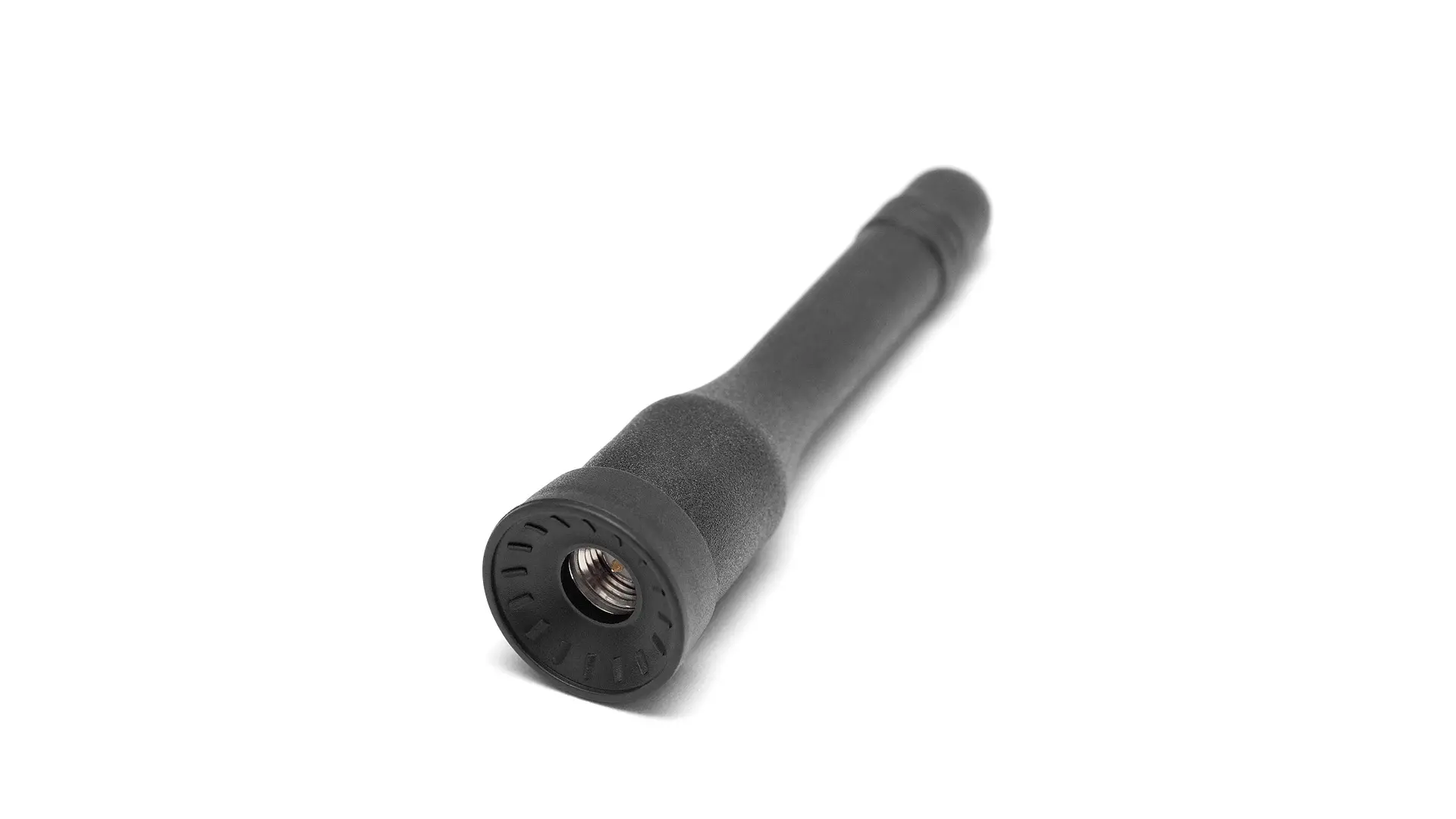

2J0504-C20N
Cellular Omni-Directional Monopole Ground Plane Dependent Antenna
Connections (1)
1×
3G / 2G / Cellular
| Mounting | Connector Mount |
|---|---|
| Dimensions (mm) | Ø 15.7 × 58.2 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
3G / 2G / Cellular
| Standards | 2G and 3G |
|---|---|
| Frequency | 824-960, 1710-2170 |
| VSWR | ~1.7:1, ~3.1:1 |
| Efficiency (%) | ~60.7, ~48.6 |
| Peak Gain (dBi) | ~0.6, ~2.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Monopole Antenna
Small Form Factor
Ground Plane Dependent
2.0 dBi 3G 2G Peak Gain
Gasket for waterproof solution
Applications
Cellular & Wireless
Industrial & Automation
