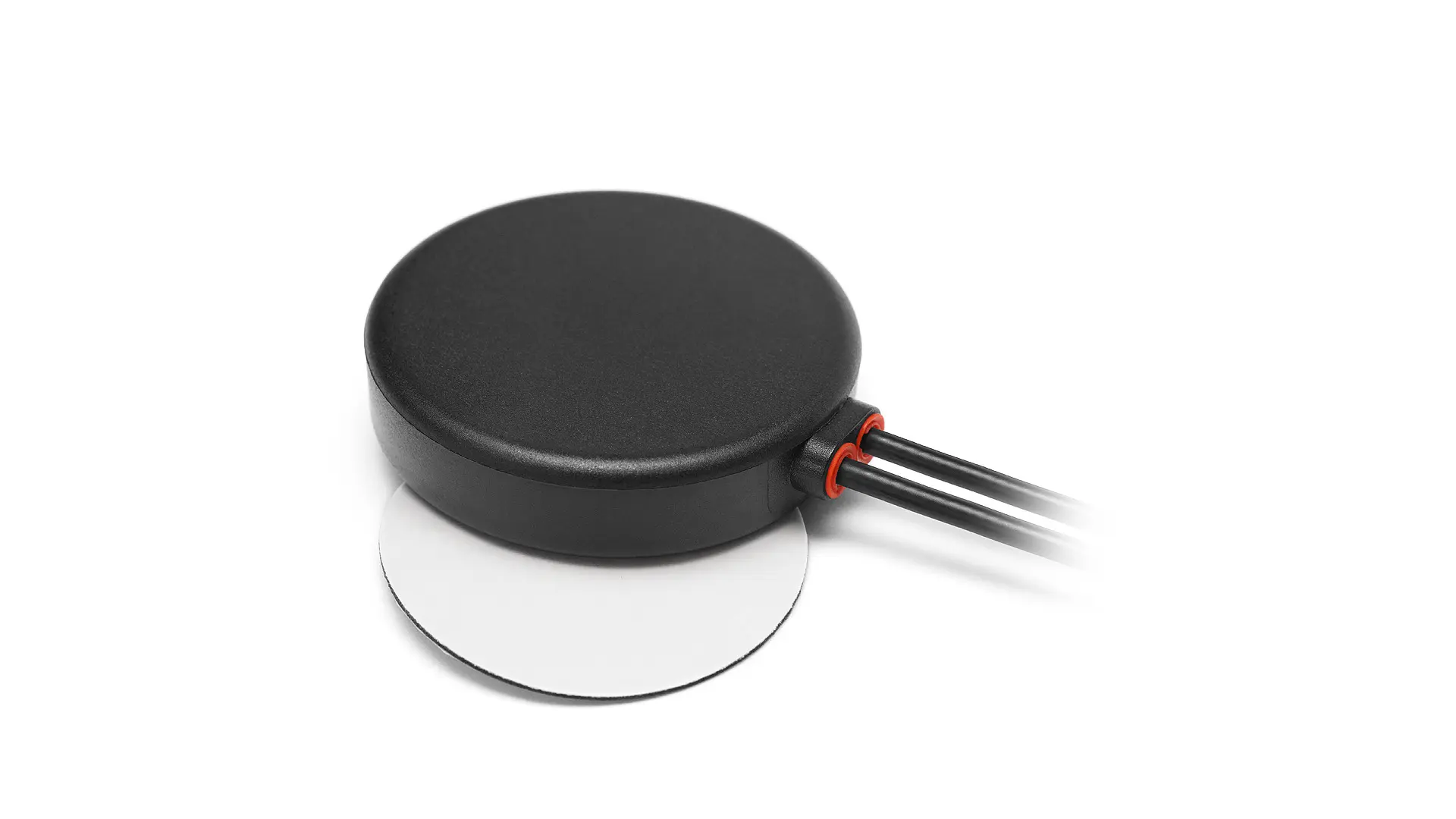

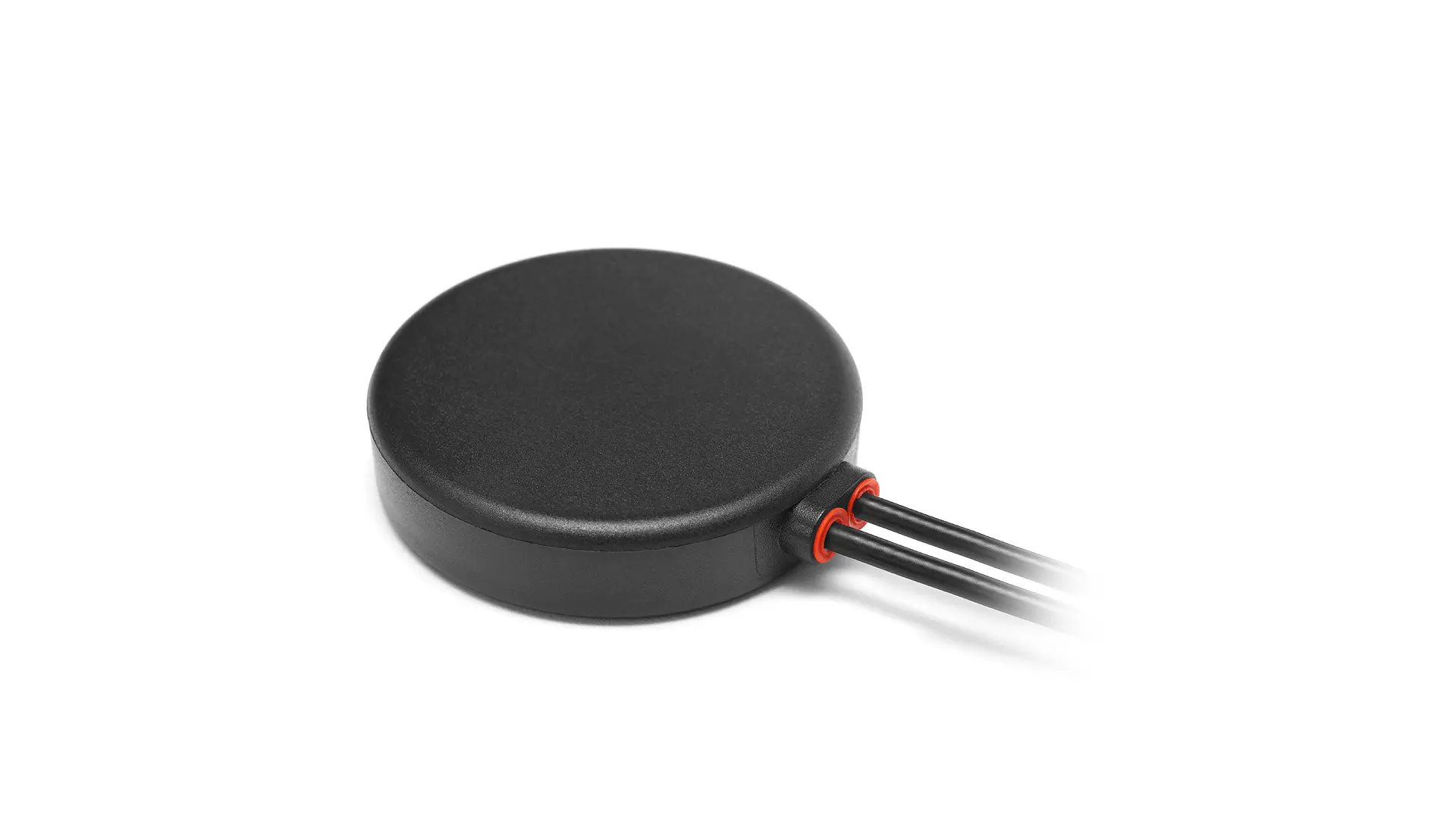

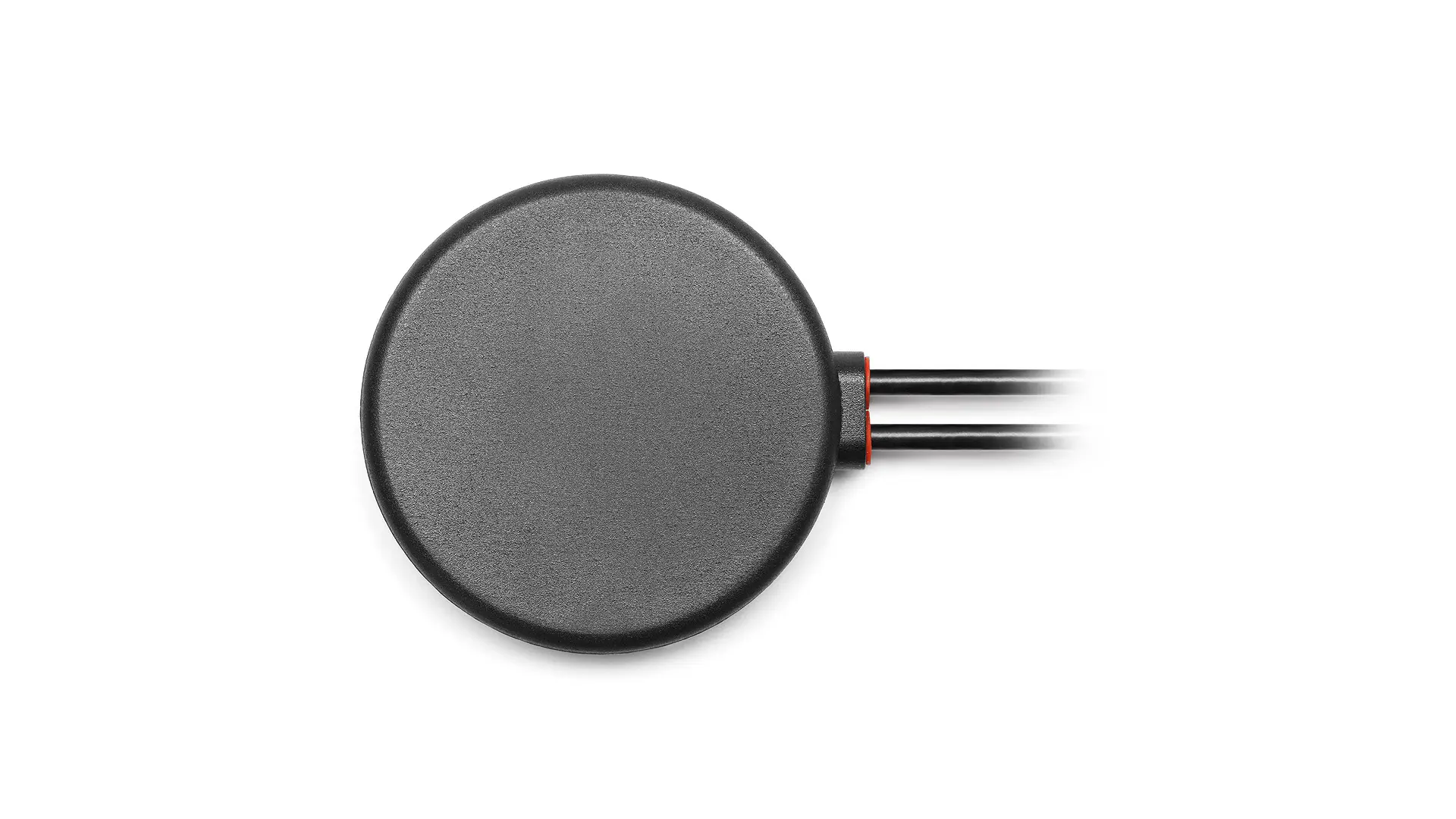

2J6300MPGF
CELLULAR, GPS/GLONASS/Galileo Magnetic Adhesive Mount Antenna
Connections (2)
1×
3G / 2G / Cellular
1×
GPS / GLONASS / QZSS / Galileo - L1
| Mounting | Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount |
|---|---|
| Dimensions (mm) | Ø 52.5 × 13.1/14.3 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
3G / 2G / Cellular
| Standards | 2G and 3G |
|---|---|
| Frequency | 824-960, 1710-2170 |
| VSWR | ~1.9:1, ~2.1:1 |
| Efficiency (%) | ~33.4, ~9.8 |
| Peak Gain (dBi) | ~1.2, ~-3.1 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 2
GPS / GLONASS / QZSS / Galileo - L1
| Standards | GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1575.42, 1598-1610 |
| Impedance (Ohm) | 50 |
| Active Gain (dB) | 26 @ 3V |
| Saw Filter Type | Pre-Filter |
| Voltage (V) | 2.7 - 5.5 |
| Current (mA) | 15 - 25 |
| Power Consumption (mW) | 40 - 137 |
Antenna Description
Key Features
Ground Plane Independent
Customizable Cable and Connector
Low Profile
Adhesive Mounting sticker included
2-in-1 Combination Antenna
Active GNSS Antenna
Pre-Filter GNSS
26 dB GNSS Active Gain
GNSS Voltage Range 2.7 - 5.5 V
1.2 dBi 3G 2G Peak Gain
Applications
Cellular & Wireless
Industrial & Automation
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
