2JE03

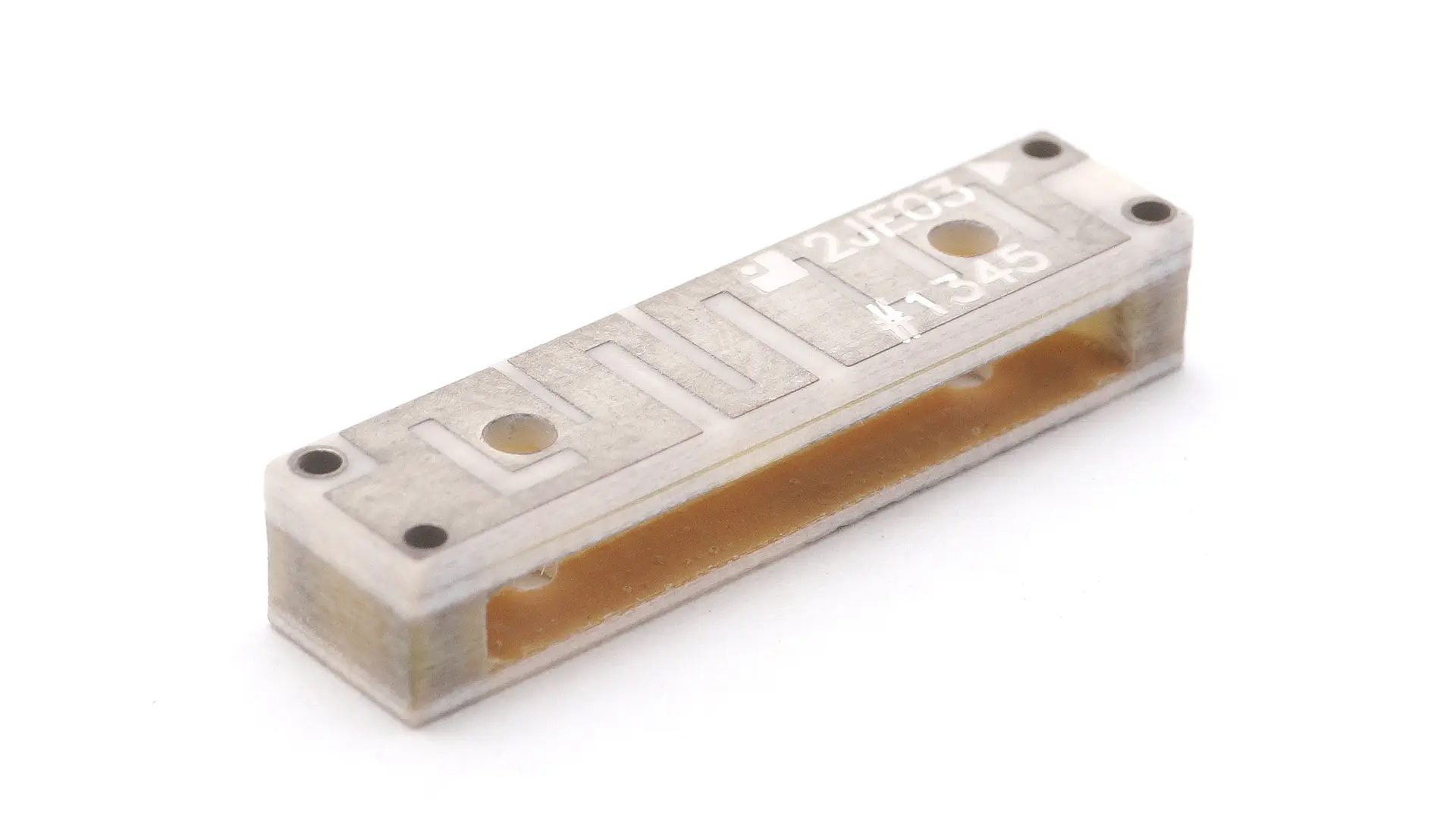

Cellular SMT Fiberglass High Performance Embedded Antenna
Connections (1)
1×
3G / 2G / Cellular
| Mounting | Surface Mount Fiberglass |
|---|---|
| Dimensions (mm) | 24 × 5.5 × 4.4 |
| Operating temperature | -40 °C to +105 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
3G / 2G / Cellular
| Standards | 2G and 3G |
|---|---|
| Frequency | 824-960, 1710-2170 |
| VSWR | <=3:1, <=3:1 |
| Efficiency (%) | ~55, ~45 |
| Peak Gain (dBi) | ~1, ~3 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Test
Key Features
Ground Plane Dependent
High Performance
3.0 dBi 3G 2G Peak Gain
SMT Brick Embedded Antenna
Fiberglass Material
Compact Size
Easy to Integrate
Low Cost
Applications
Cellular & Wireless
Industrial & Automation
Embedded Antenna Solutions
