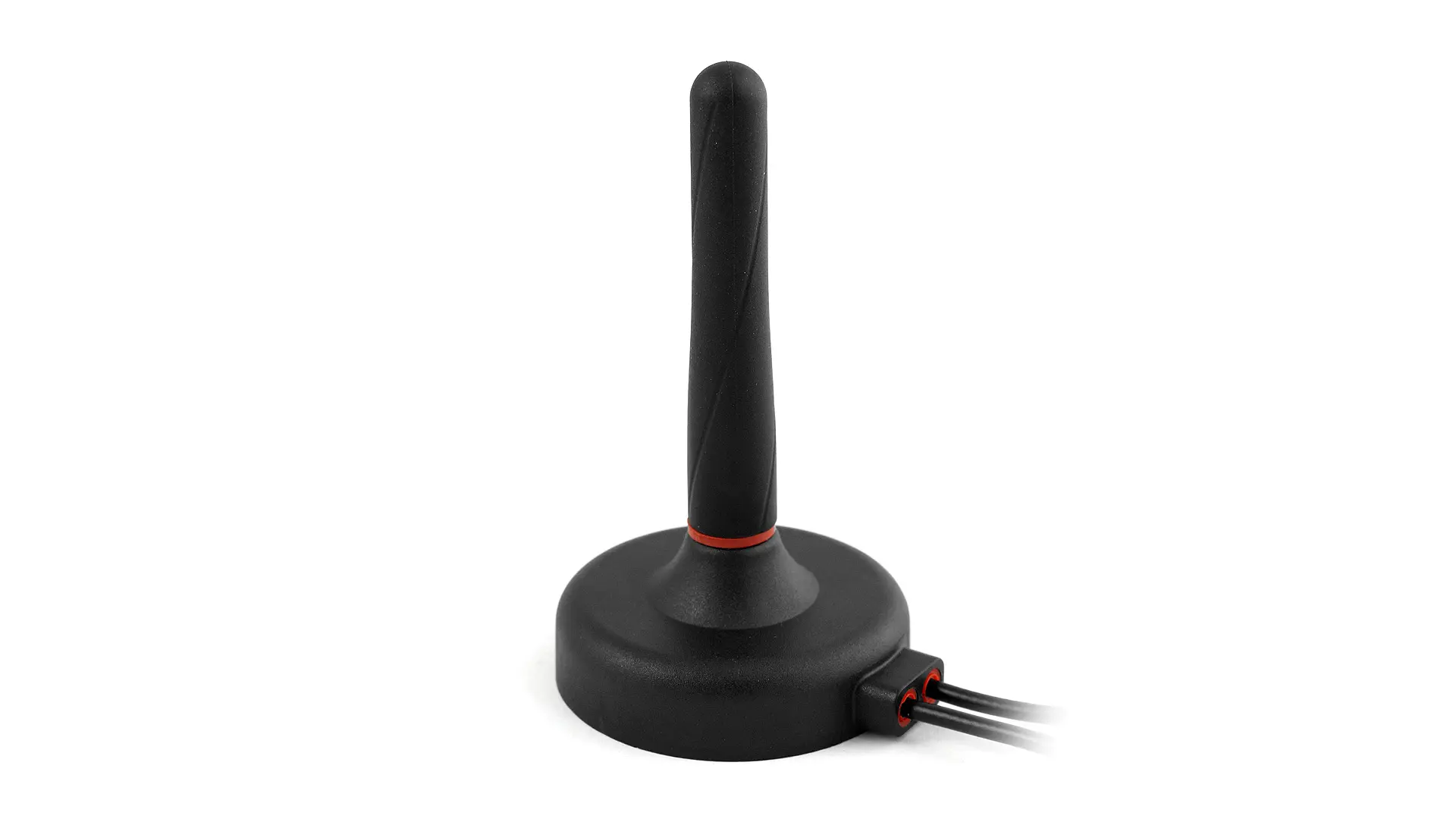

2J7225MG
GPS/GLONASS/Galileo, 169 MHz ISM-ERMES Antenna
Connections (2)
1×
ERMES / VHF - 169 MHz
1×
GPS / GLONASS / QZSS / Galileo - L1
| Mounting | Magnetic Mount |
|---|---|
| Dimensions (mm) | Ø 54 × 95.4 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
ERMES / VHF - 169 MHz
| Standards | ERMES, ISM, VHF |
|---|---|
| Frequency | 169.4-169.8 |
| VSWR | ~1.7:1 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 2
GPS / GLONASS / QZSS / Galileo - L1
| Standards | GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1575.42, 1598-1610 |
| VSWR | <=1.4:1 |
| Impedance (Ohm) | 50 |
| Polarisation | RHCP |
| Active Gain (dB) | 26 @ 3V / 27dB @ 5V |
| Saw Filter Type | No-Filter |
| Voltage (V) | 2.7 - 5.5 |
| Current (mA) | 15 - 25 |
| Power Consumption (mW) | 40 - 137 |
Antenna Description
Key Features
Ground Plane Dependent
Customizable Cable and Connector
2-in-1 Combination Antenna
Active GNSS Antenna
Non-Filter GNSS
27 dB GNSS Active Gain
GNSS Voltage Range 2.7 - 5.5 V
Applications
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Defense & Public Safety
Navigation & Positioning
Marine & Maritime
