2J6934B

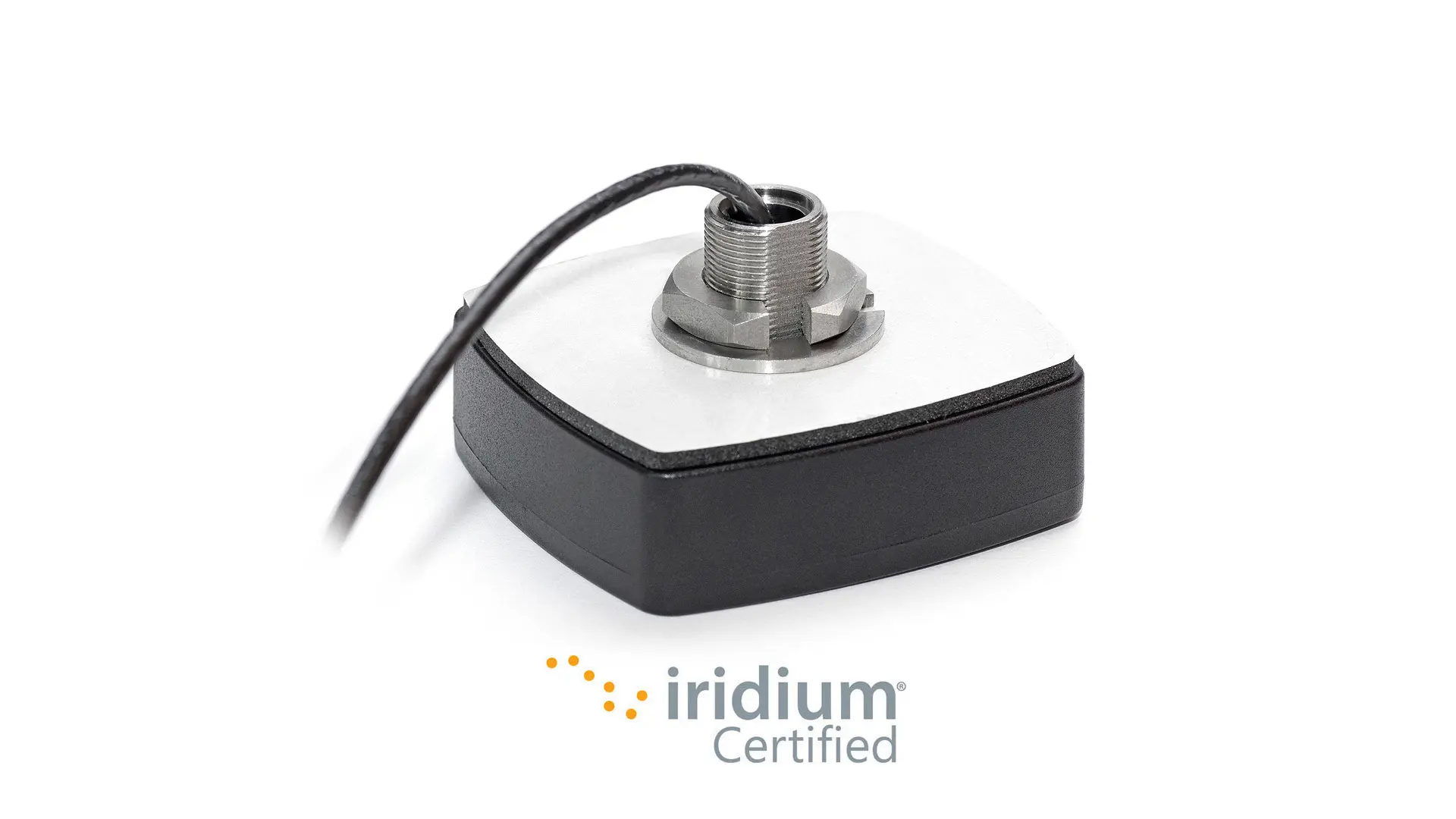

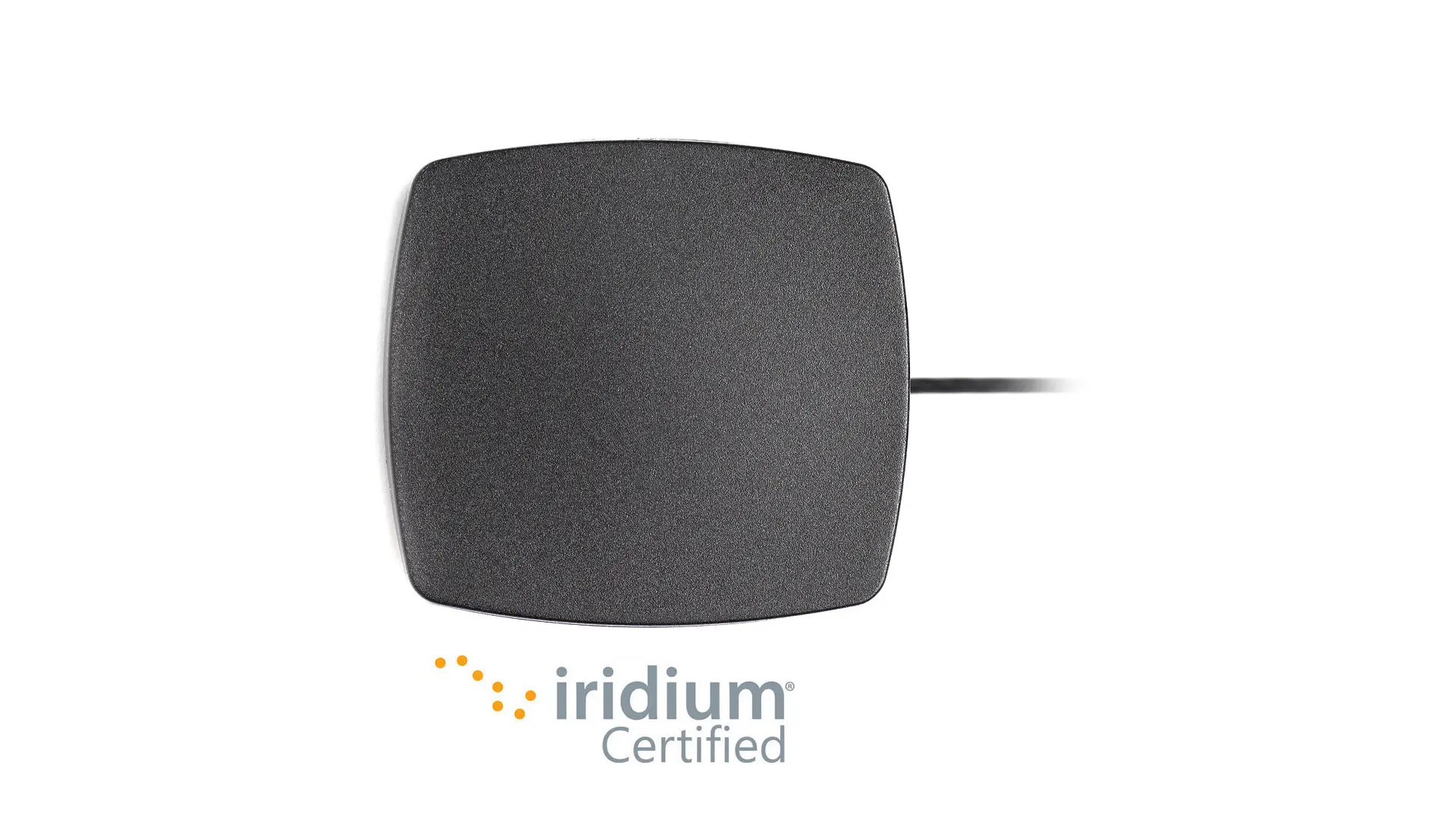

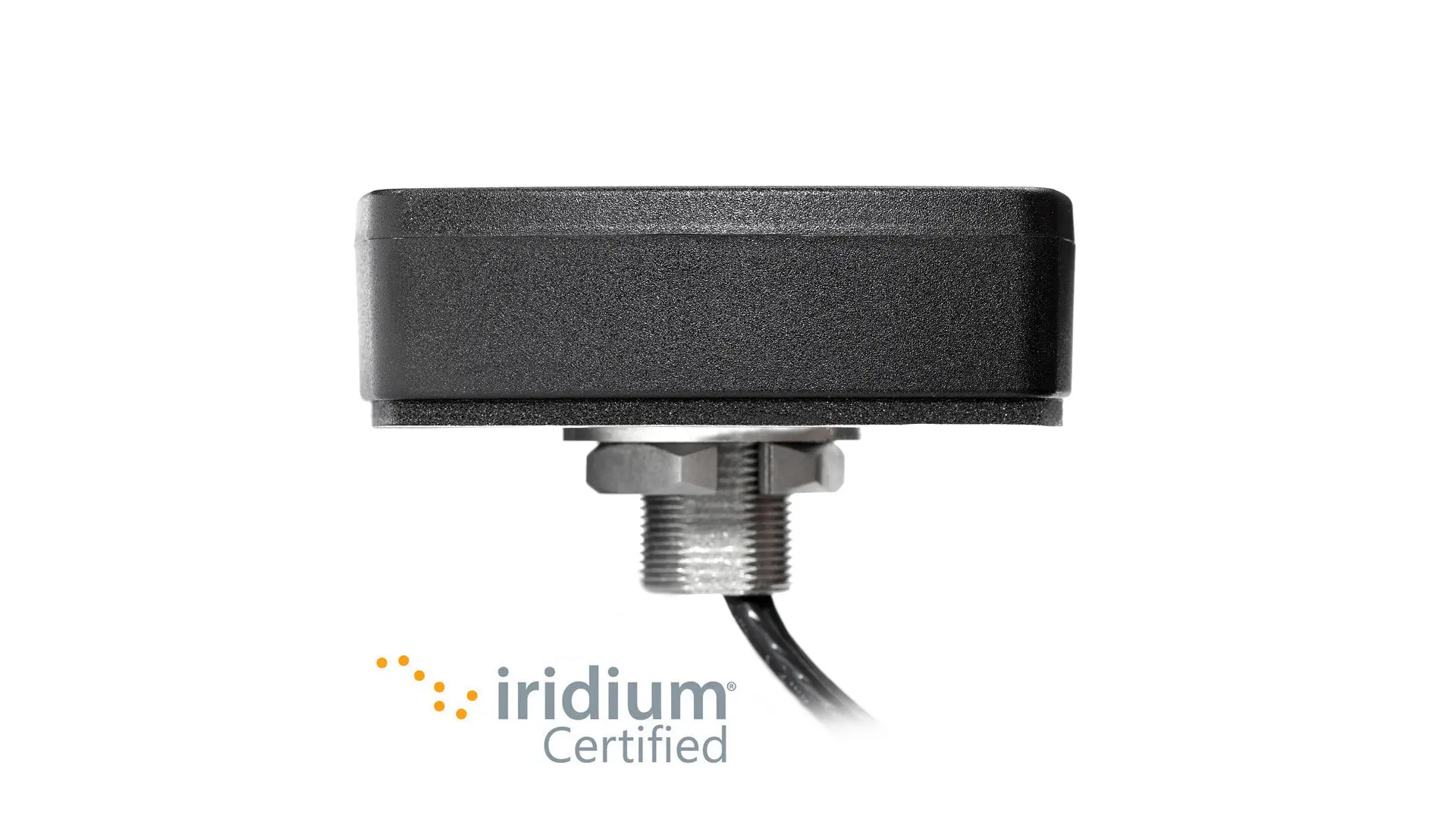

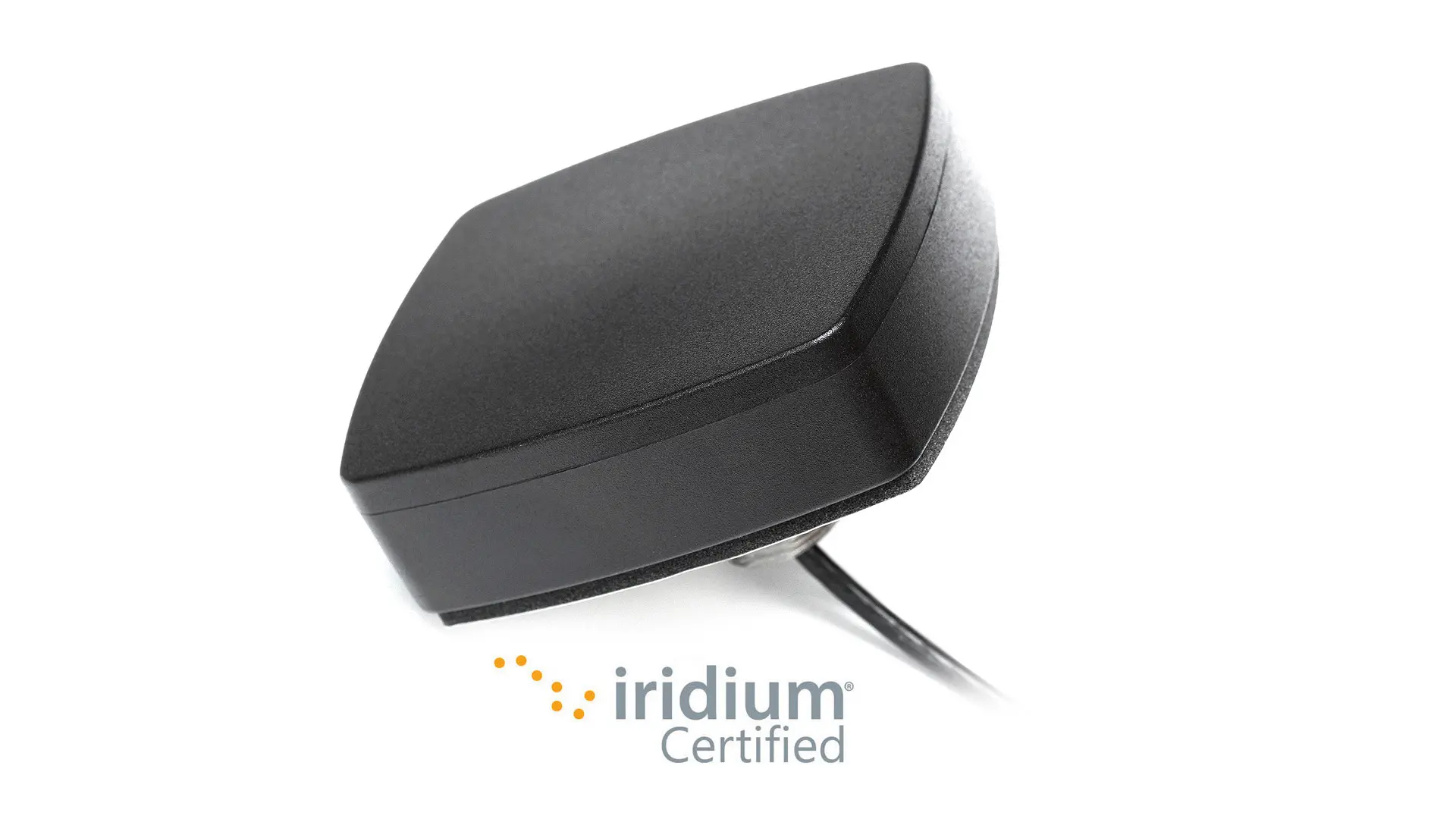

Phoenix Iridium GPS/GNSS High Gain IP67 IP69 Screw Mount Antenna
Connections (1)
1×
GPS & IRIDIUM
| Mounting | Screw Mount |
|---|---|
| Dimensions (mm) | 80 × 74 × 25.6 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | Iridium Certified , IP67 , IP69 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
GPS & IRIDIUM
| Standards | GPS/QZSS/Galileo-IRIDIUM |
|---|---|
| Frequency | 1575.42, 1616-1627 |
| Peak Gain (dBi) | ~5.1, ~5.7 |
| Efficiency (%) | ~93.8, ~92.9 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Hemispherical |
| Polarisation | RHCP |
Antenna Description
Key Features
Ground Plane Independent
High Performance
High Efficiency
Customizable Cable and Connector
Low Profile
Anti-Rotation Mounting
Iridium Certified Antenna
Single Feed Technology
Passive GNSS-IRIDIUM Antenna
5.7 dBi GNSS Peak Gain
Applications
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
Antenna band list
Compatible mounting brackets
2JB03Ha
Wall Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J6Axx, 2J6Cxx, 2J65xx, 2J66xx, 2J67xx, 2J69xx, 2J72xx, 2J74xx, 2J75xx, 2J77xx, 2J78xx, 2J83xx, 2J84xx, 2J86xx, 2J87xx antenna series
2JB03Ja
Pole Mount metal bracket for Screw Mount Antenna versions of 2J6Axx, 2J6Cxx, 2J65xx, 2J66xx, 2J67xx, 2J69xx, 2J72xx, 2J74xx, 2J75xx, 2J77xx, 2J78xx, 2J83xx, 2J84xx, 2J86xx, 2J87xx antenna series
