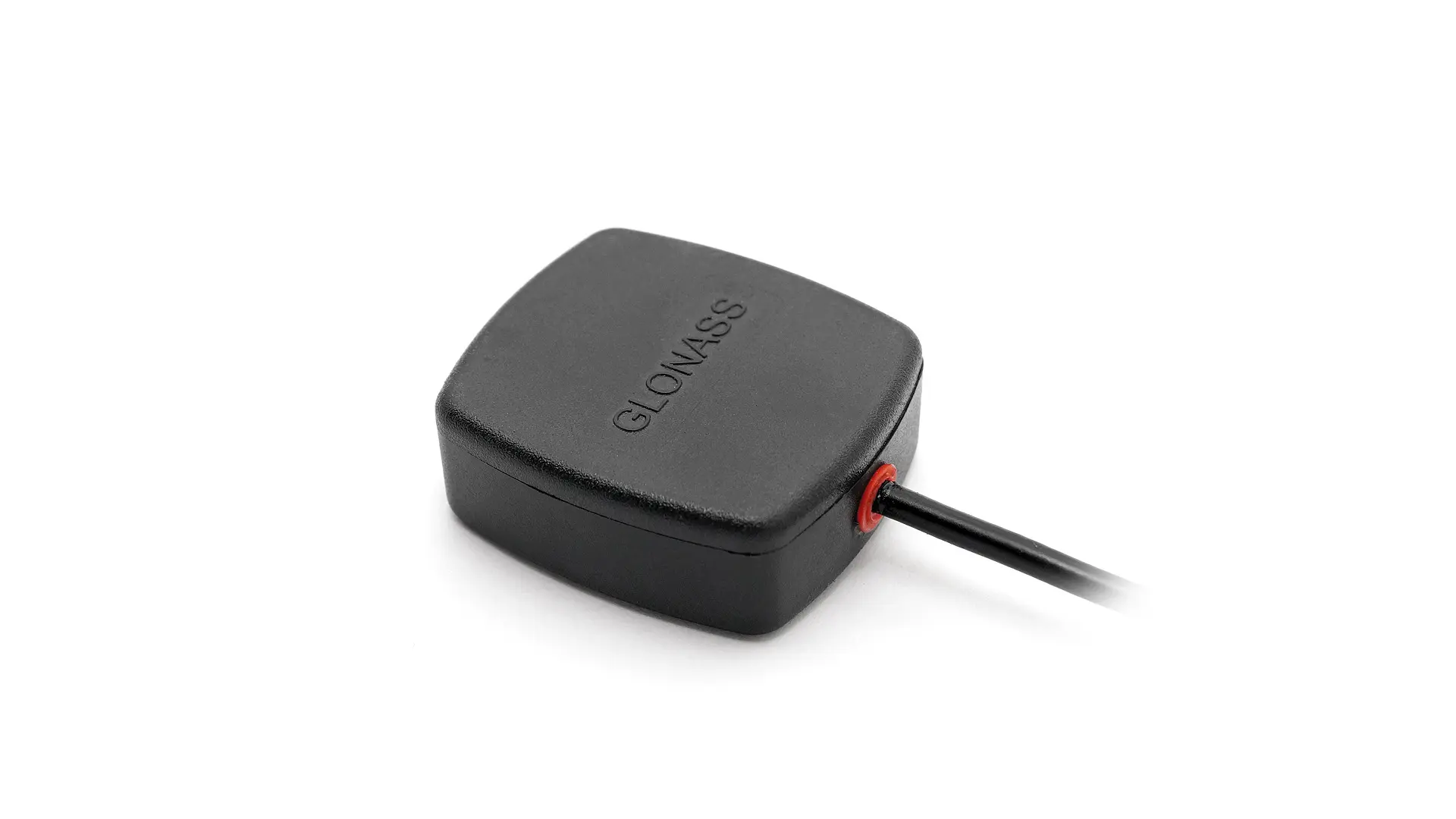

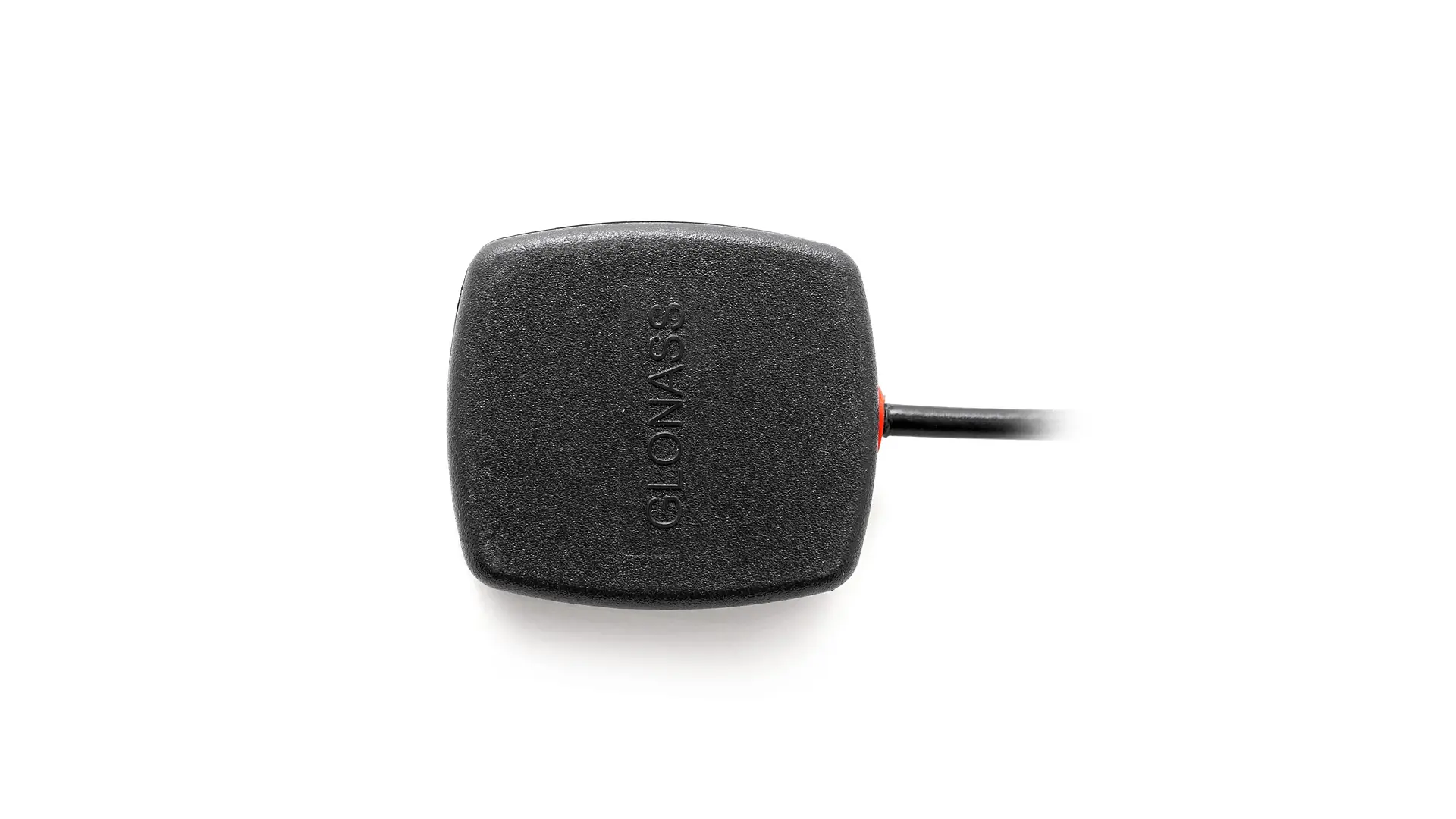

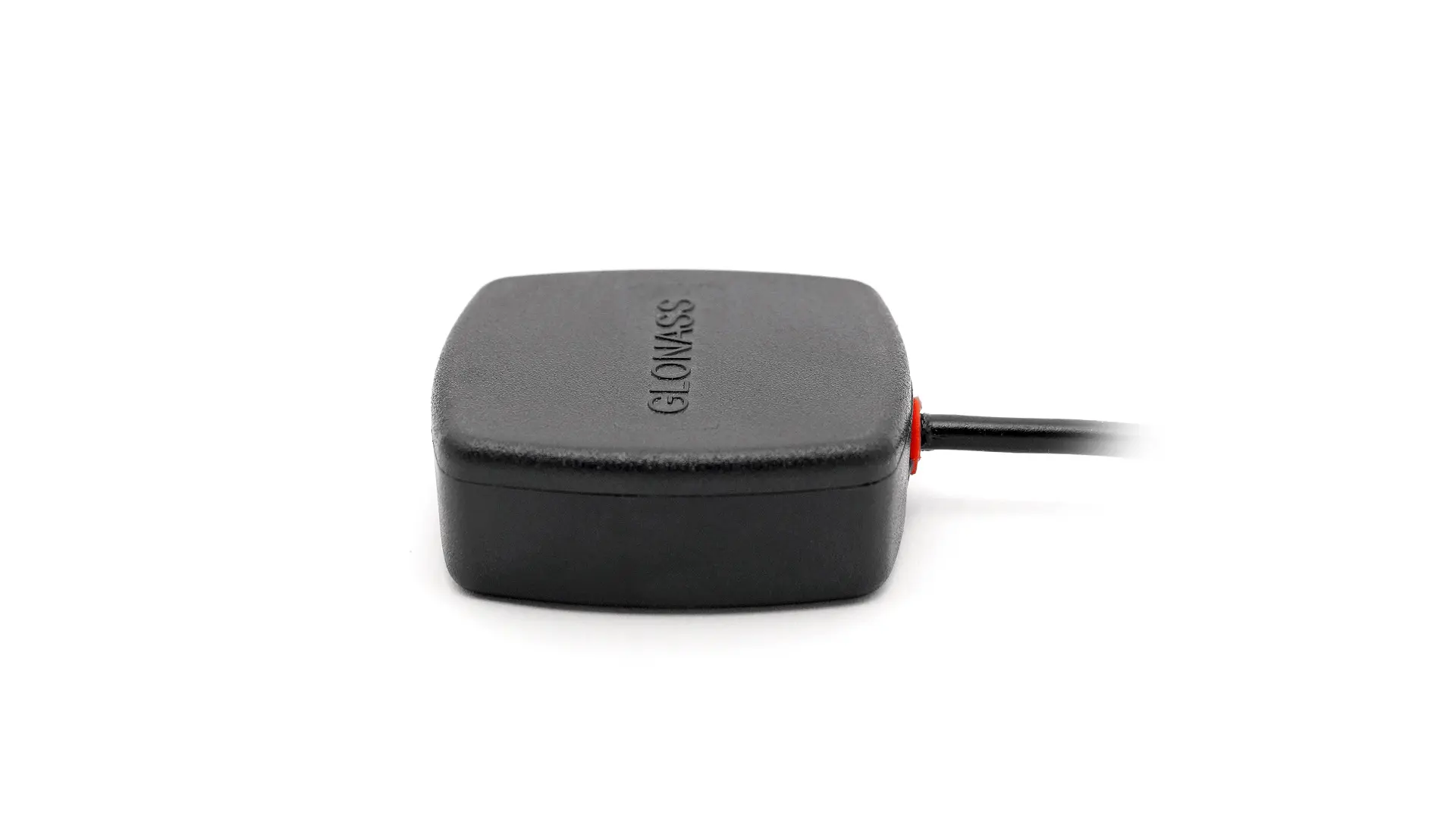

2J4301MPGFx
GPS/GLONASS/Galileo Post-Filter Adhesive Magnetic Mount Antenna
Connections (1)
1×
GPS / GLONASS / QZSS / Galileo - L1
| Mounting | Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount |
|---|---|
| Dimensions (mm) | 38 × 34 × 13.5/14.5 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
GPS / GLONASS / QZSS / Galileo - L1
| Standards | GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1575.42, 1598-1606 |
| VSWR | <1.2:1 |
| Efficiency (%) | ~65, ~68 |
| Impedance (Ohm) | 50 |
| Polarisation | RHCP |
| Active Gain (dB) | 23 @ 3V, 24 @ 5V |
| Saw Filter Type | Post-Filter |
| Voltage (V) | 2.7 - 5.5 |
| Current (mA) | 15 - 25 |
| Power Consumption (mW) | 138 Max |
Antenna Description
Key Features
Ground Plane Independent
Customizable Cable and Connector
Adhesive Mounting sticker included
Active GNSS Antenna
24 dB GNSS Active Gain
Post-Filter GNSS
Voltage Range 2.7 - 5.5 V
Applications
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
