2JDK0101a-C104N
GPS Development Kit - Set of 6 pcs of 18 mm patches to try on Device
Connections (1)
1×
GPS / QZSS / Galileo - L1
| Mounting | Thru-Hole Mount Ceramic |
|---|---|
| Included in Kit |

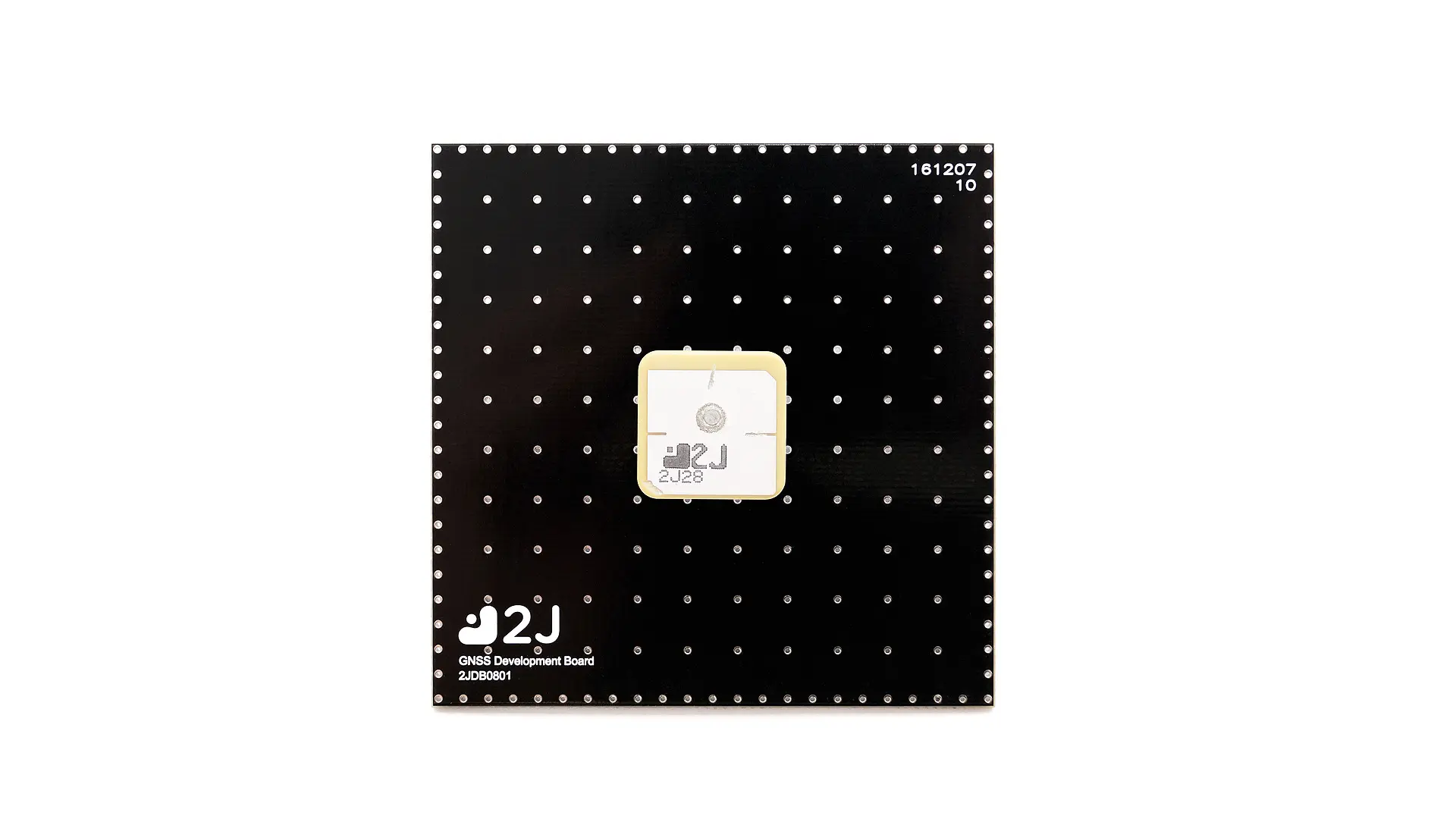

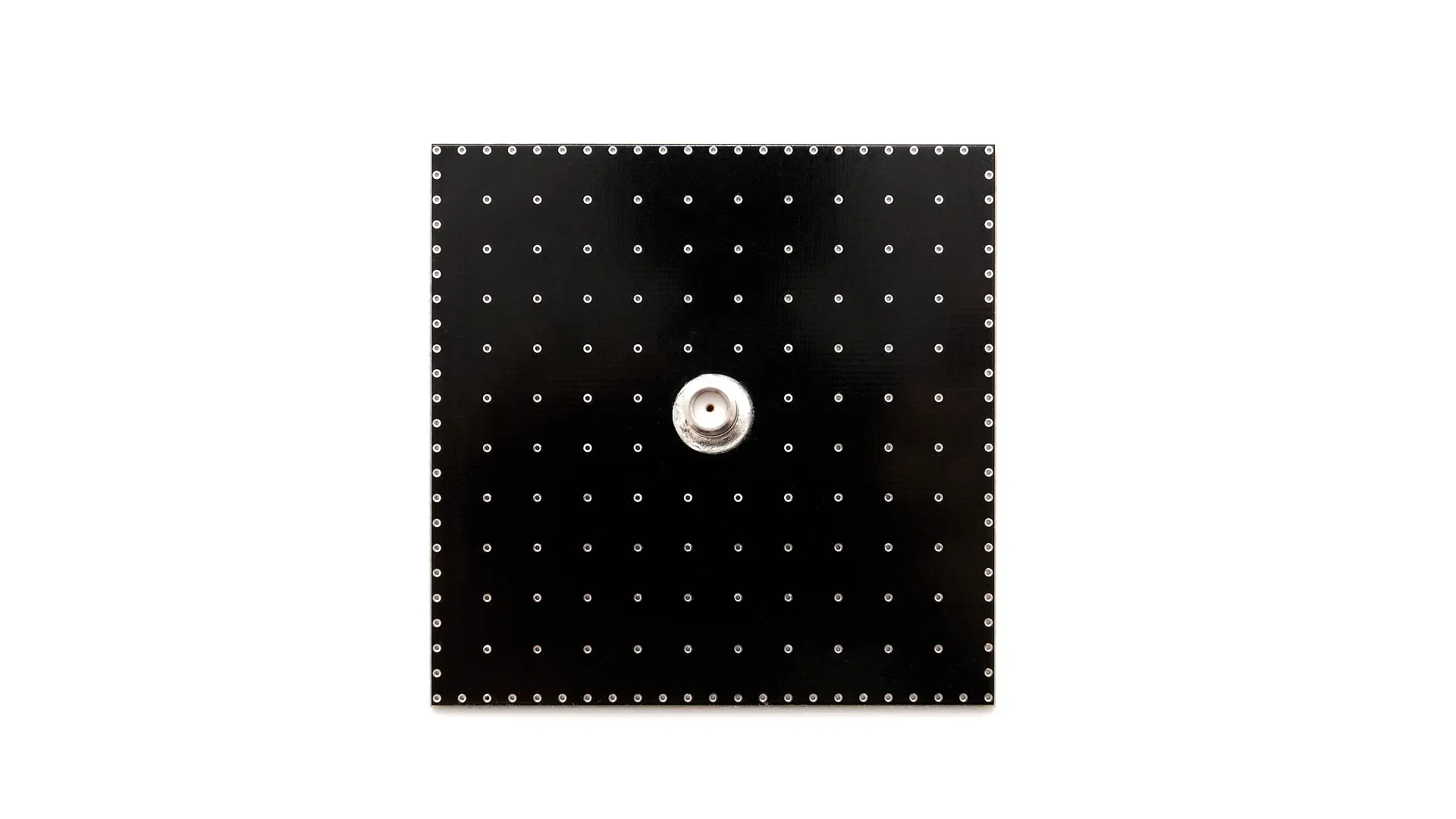

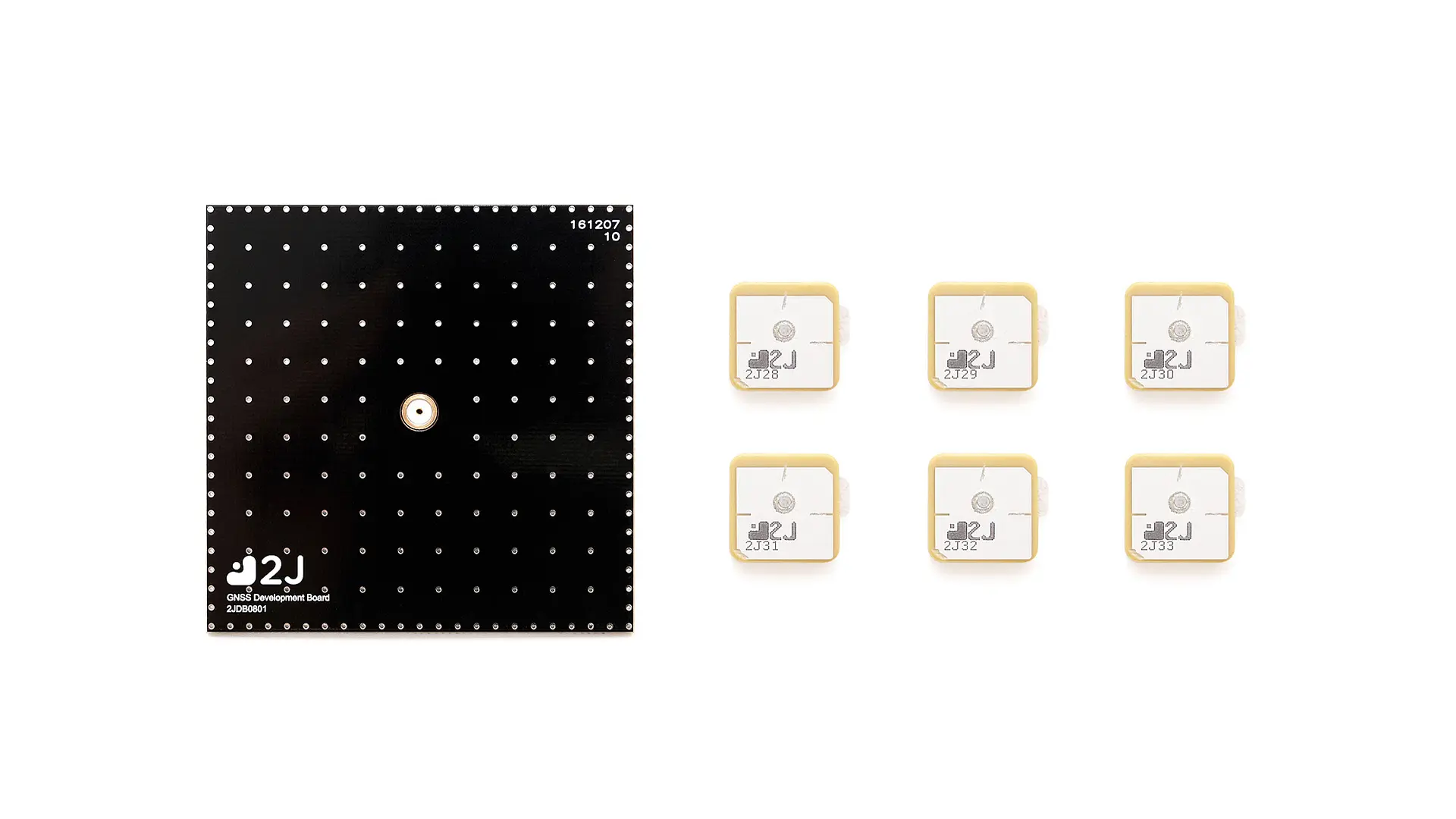

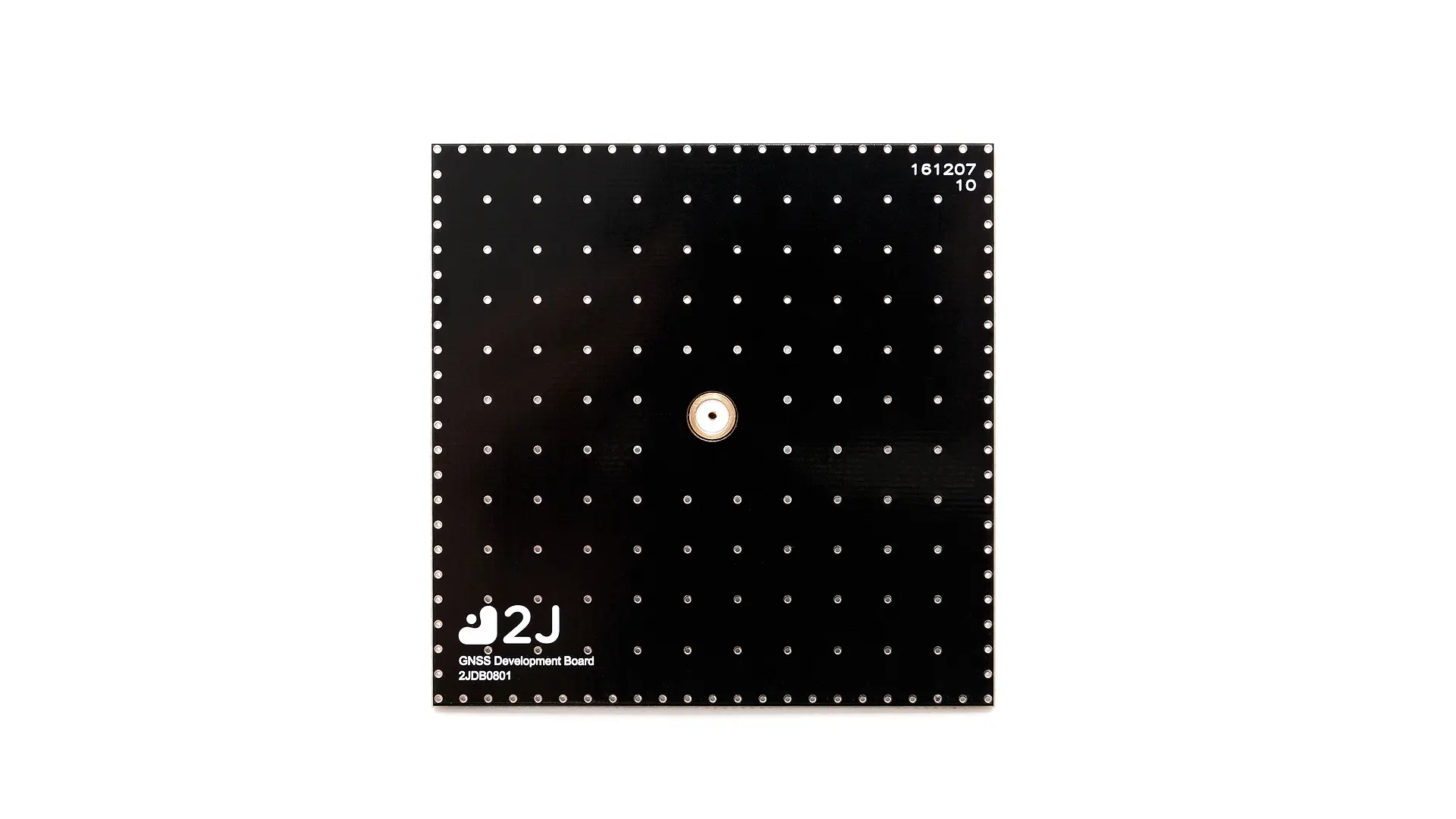

1× 2JDB0801-C104N Development Board 6× 2JCP1840101a Ceramic Antennas |
| Dimensions (mm) |
18 × 18 × 4 (Patches) 70.4 × 70.4 × 13.5 (Board) |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Dev Kit specifications
connection 1
GPS / QZSS / Galileo - L1
| Standards | GPS / QZSS / Galileo - L1 |
|---|---|
| Frequency (MHz) | 1575.42 - Ceramic patch 2JCP1840101a (2J 28) 1580.42 - Ceramic patch 2JCP1840102a (2J 29) 1585.42 - Ceramic patch 2JCP1840103a (2J 30) 1590.42 - Ceramic patch 2JCP1840104a (2J 31) 1595.42 - Ceramic patch 2JCP1840105a (2J 32) 1600.42 - Ceramic patch 2JCP1840106a (2J 33) |
| Passive Gain (dBi) | ~3.6 |
| Impedance (Ohm) | 50 |
| Radiation Pattern | Hemispherical |
| Axial Ratio (dB) | 3 max |
| Polarization | RHCP |
Development Kit Description
Key Features
Ground Plane Independent
High Gain
Development Kit for GNSS
Set of 6 patches to try on devices
Patches 18 x 18 x 4 mm
Applications
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Navigation & Positioning
Marine & Maritime
Embedded Antenna Solutions
