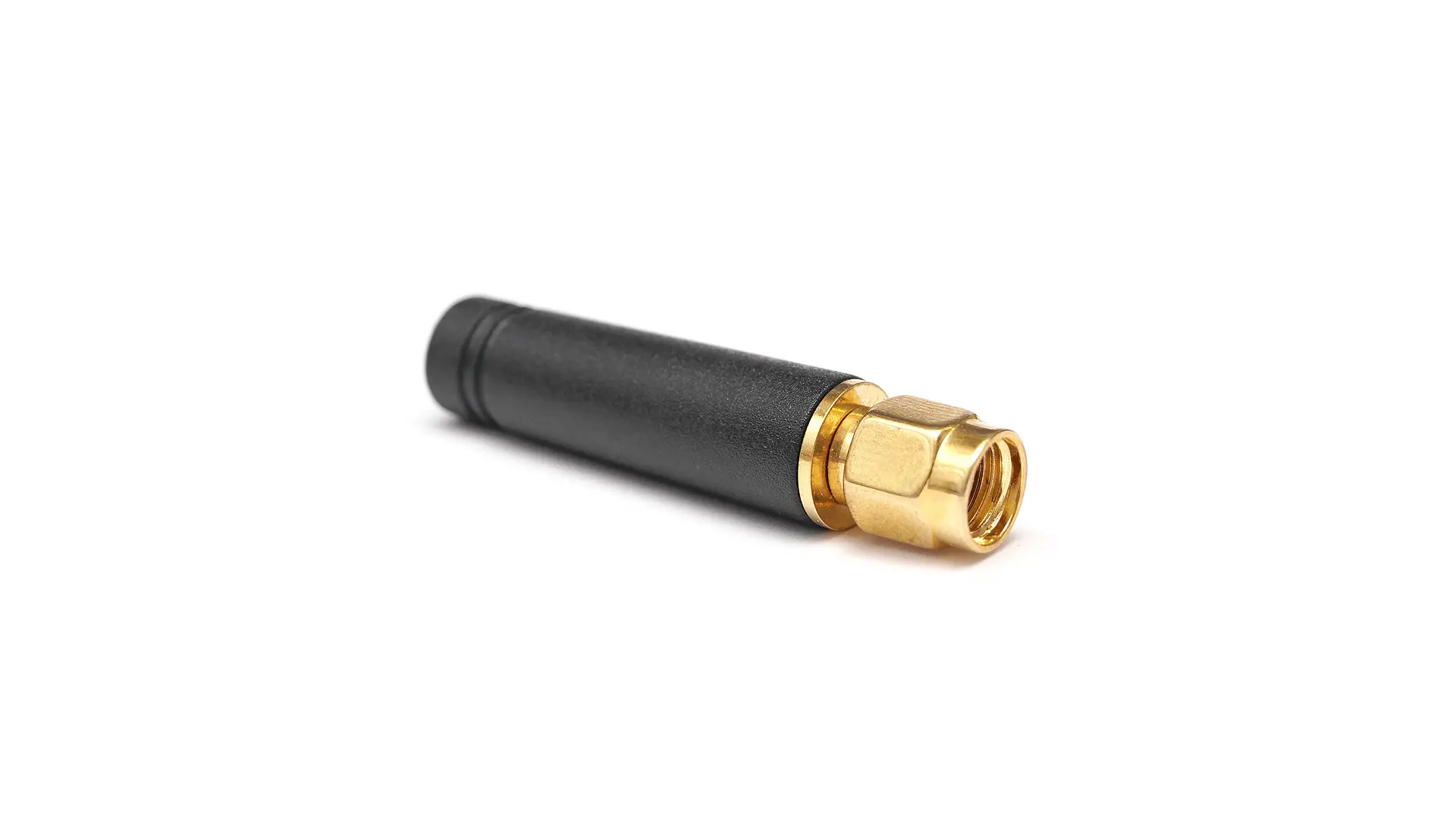

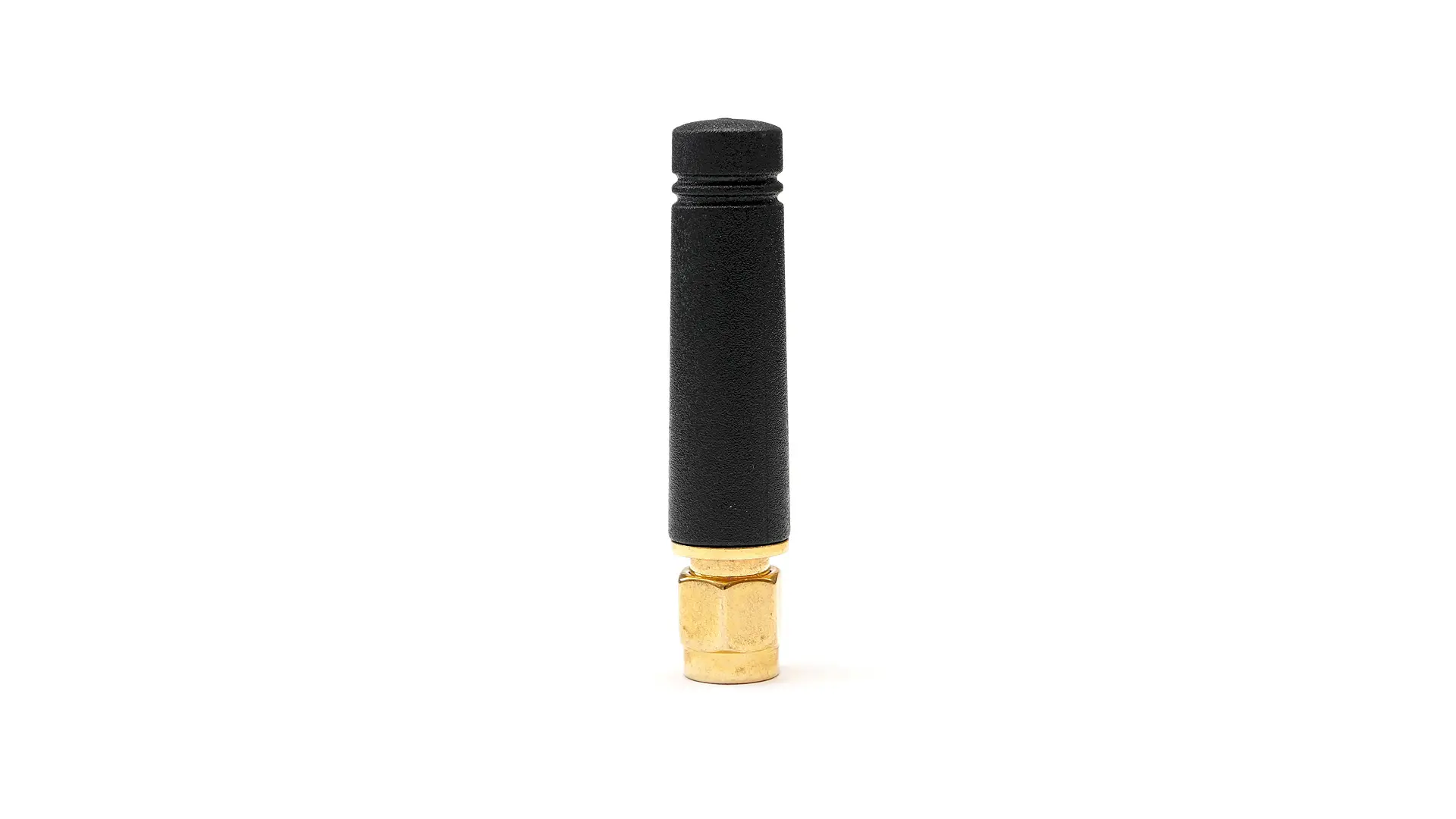

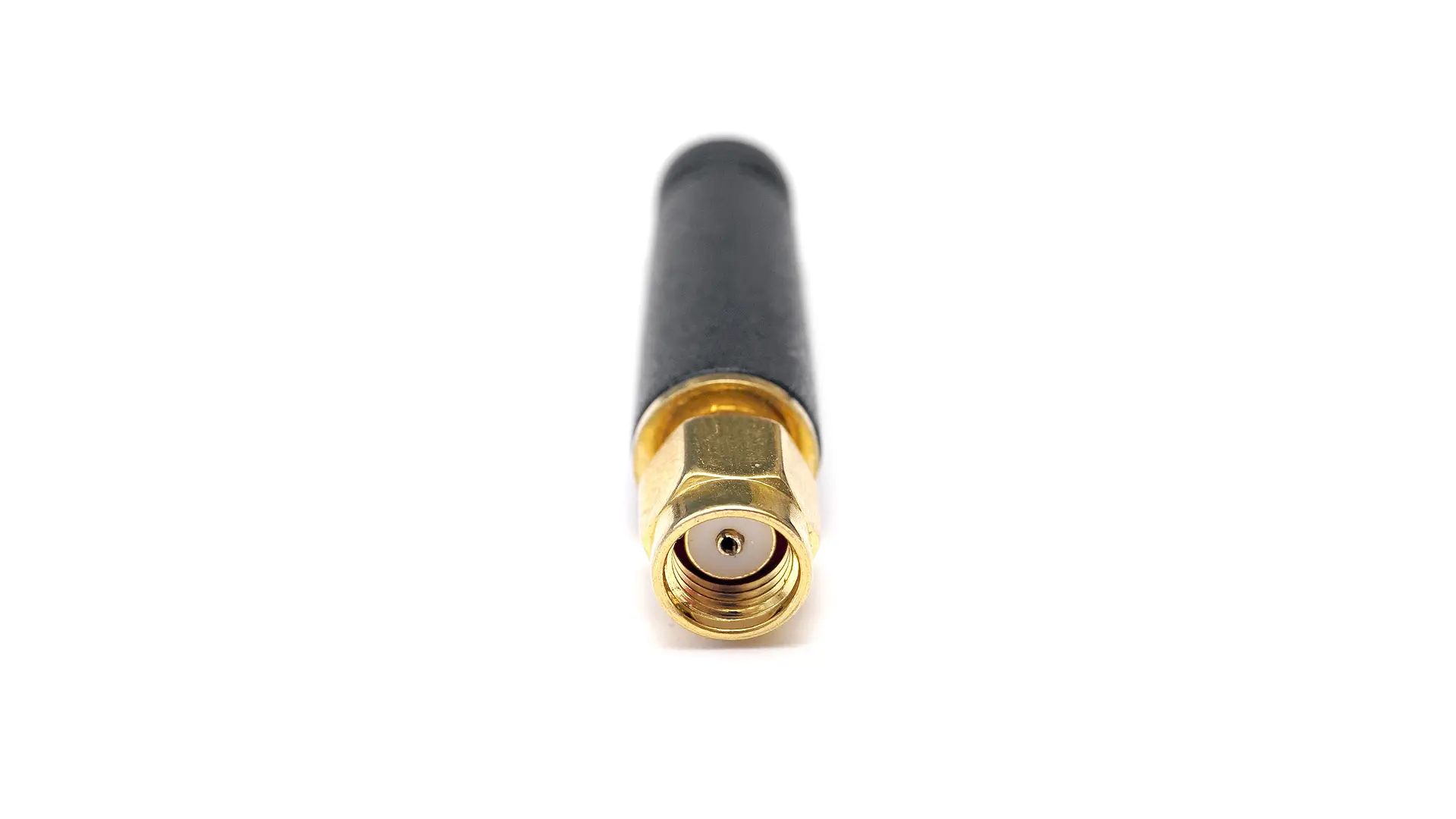

2J0A02-2.4-C166G
2.4 GHz ISM Wifi High Efficiency Antenna
Connections (1)
1×
2.4 GHz WIFI / Bluetooth® / ZigBee / ISM
| Mounting | Connector Mount |
|---|---|
| Dimensions (mm) | 44 × 9.6 |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 GHz WIFI / Bluetooth® / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490 |
| VSWR | ~4.1:1 |
| Efficiency (%) | ~61 |
| Peak Gain (dBi) | ~3.5 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Monopole Antenna
Small Form Factor
Ground Plane Dependent
High Efficiency
3.5 dBi WIFI Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
