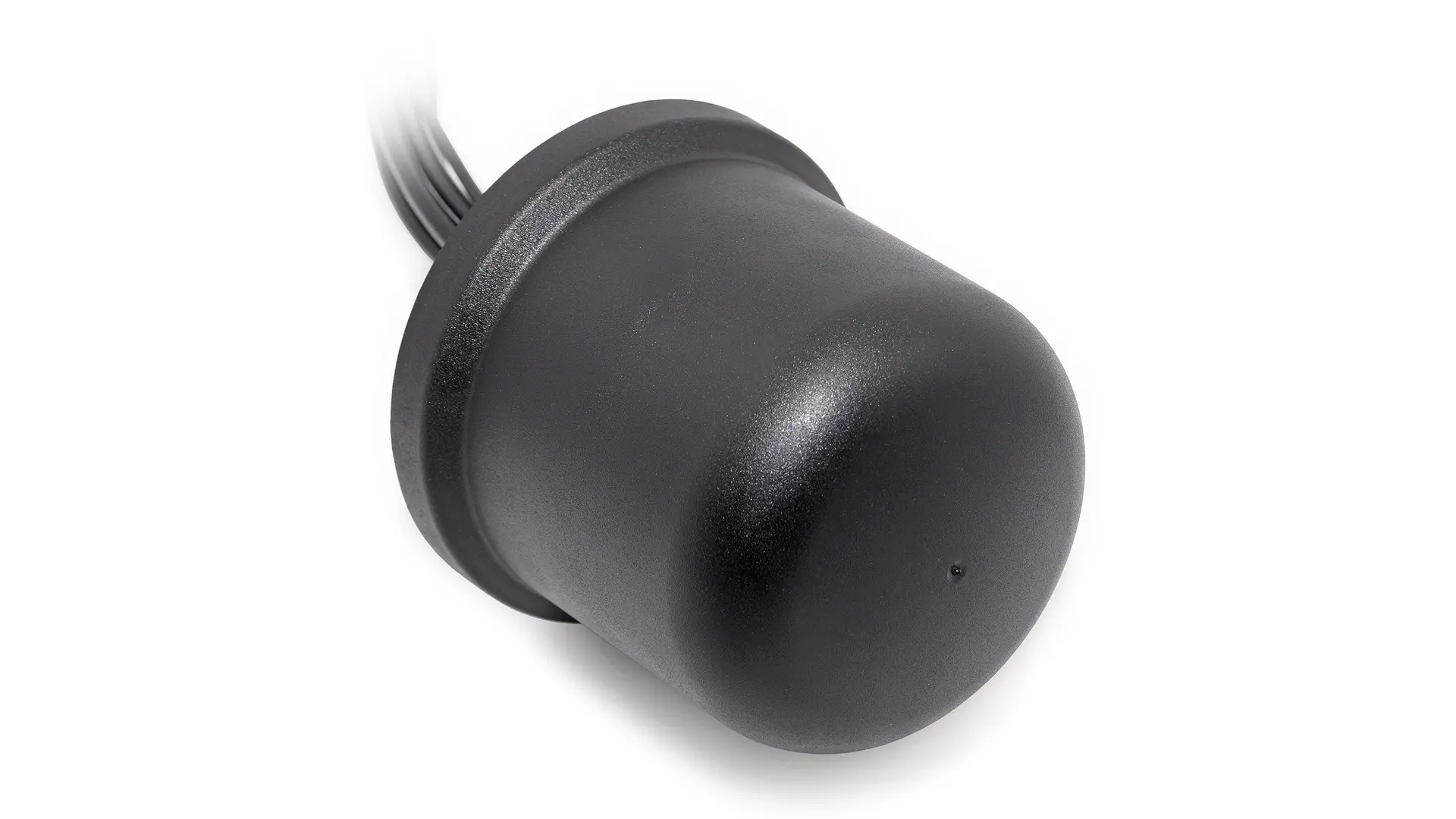

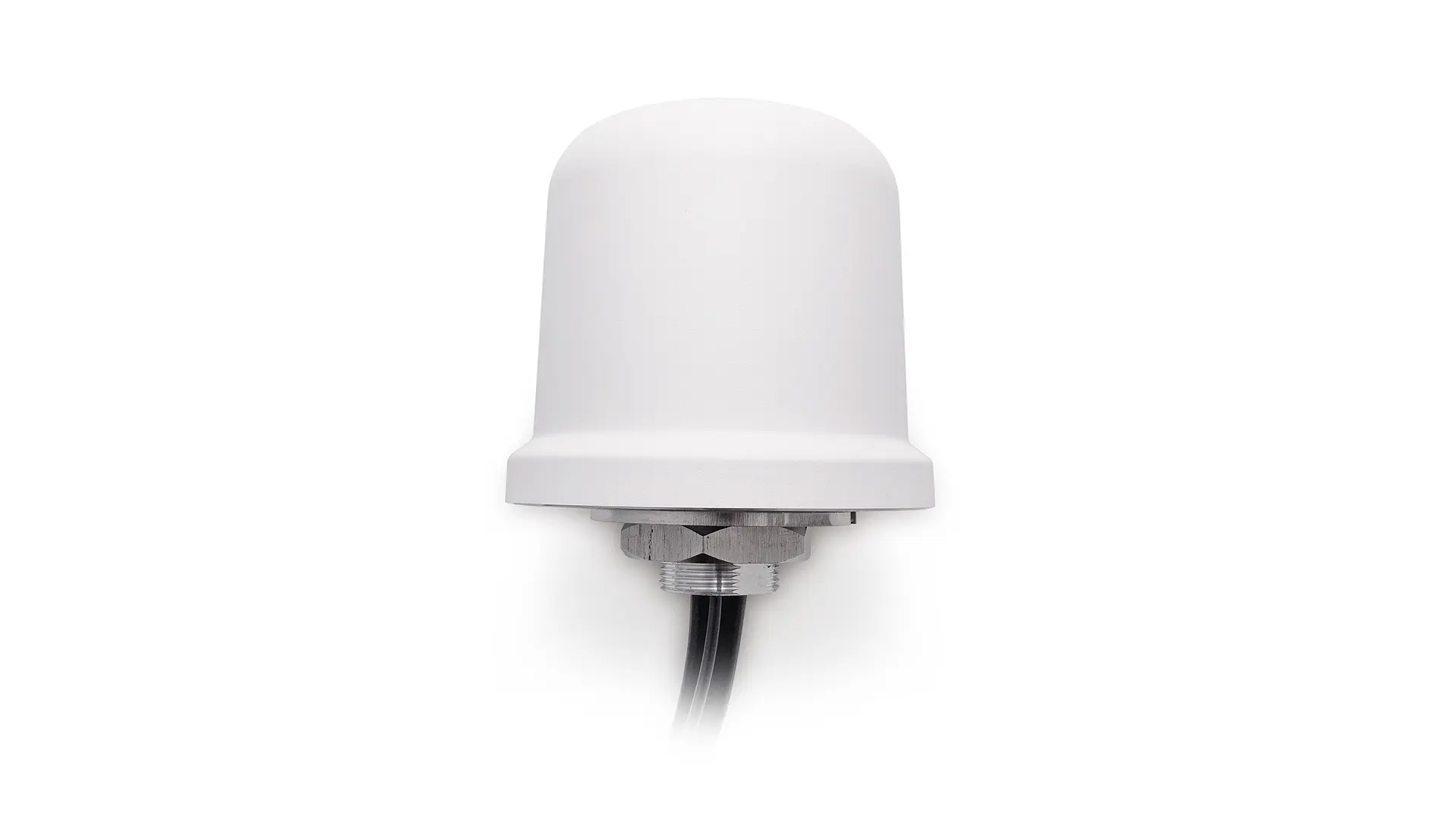

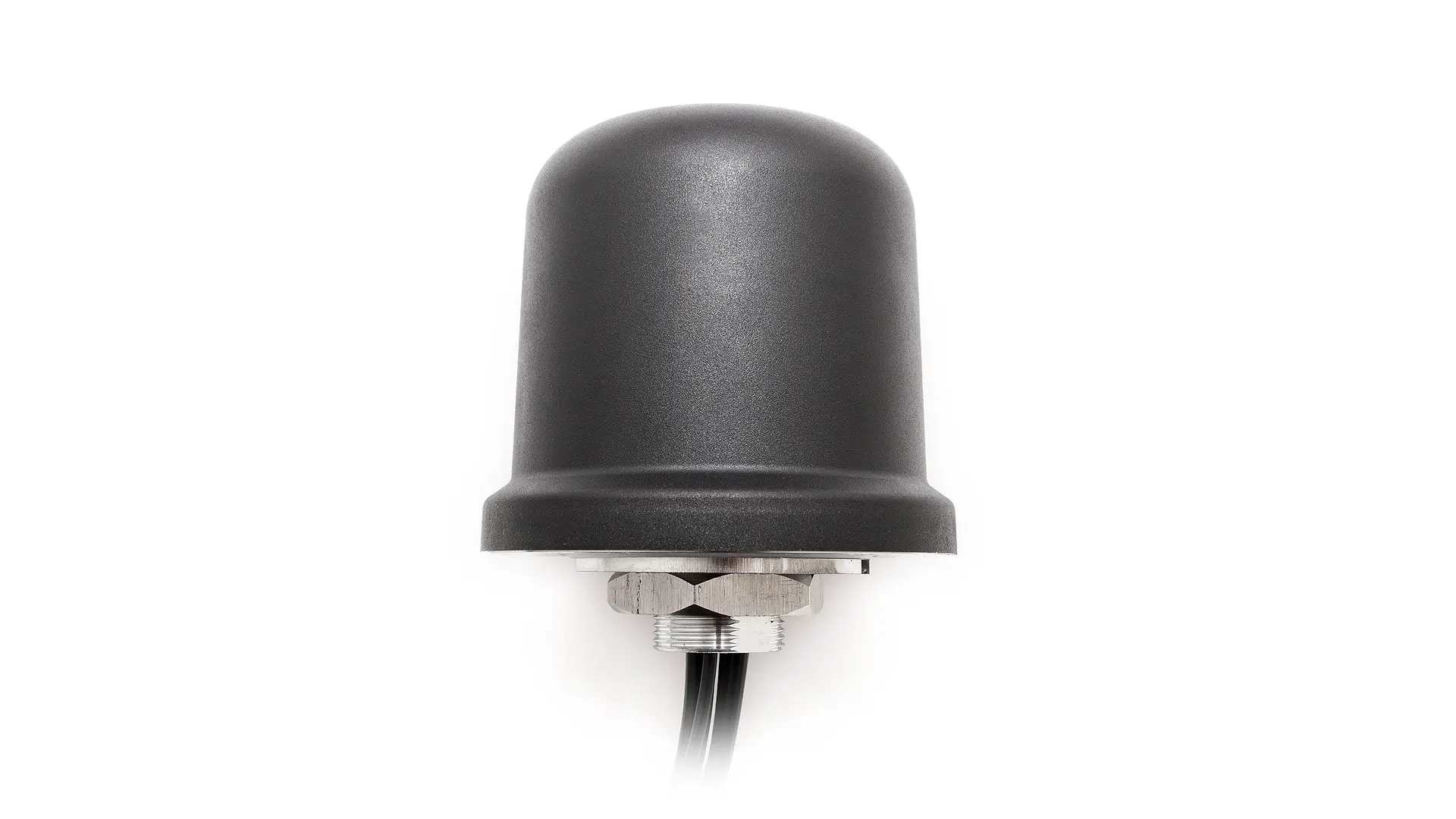

2J7002Bc
WiFi ISM MIMO High Gain Antenna
Connections (4)
4×
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Mounting | Screw Mount |
|---|---|
| Dimensions (mm) | Ø 96 × H 90 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 , IK09 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925 |
| VSWR | ~1.9:1, ~1.6:1 |
| Efficiency (%) | ~58, ~64 |
| Peak Gain (dBi) | ~5.6, ~5.5 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 2
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925 |
| VSWR | ~1.6:1, ~1.5:1 |
| Efficiency (%) | ~51, ~55 |
| Peak Gain (dBi) | ~3.9, ~4.1 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 3
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925 |
| VSWR | ~2.1:1, ~1.6:1 |
| Efficiency (%) | ~57, ~59 |
| Peak Gain (dBi) | ~5.5, ~4.4 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 4
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925 |
| VSWR | ~1.8:1, ~1.5:1 |
| Efficiency (%) | ~52, ~53 |
| Peak Gain (dBi) | ~3.4, ~3.1 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Independent
High Performance
Customizable Cable and Connector
Heavy Duty antenna
Anti-Rotation Mounting
4-in-1 Combination Antenna
5.6 dBi WIFI Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
