2J4A02Pb

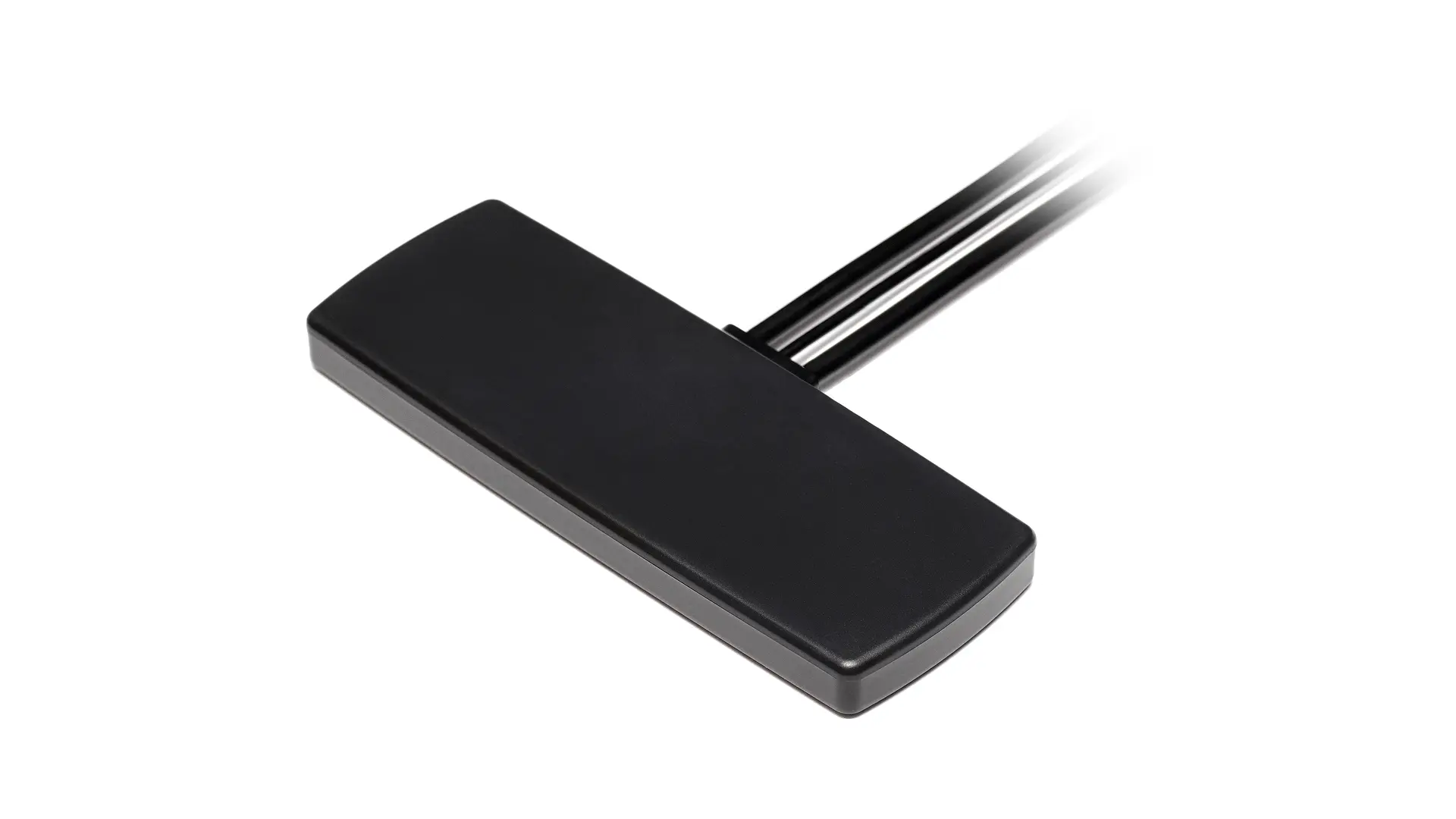

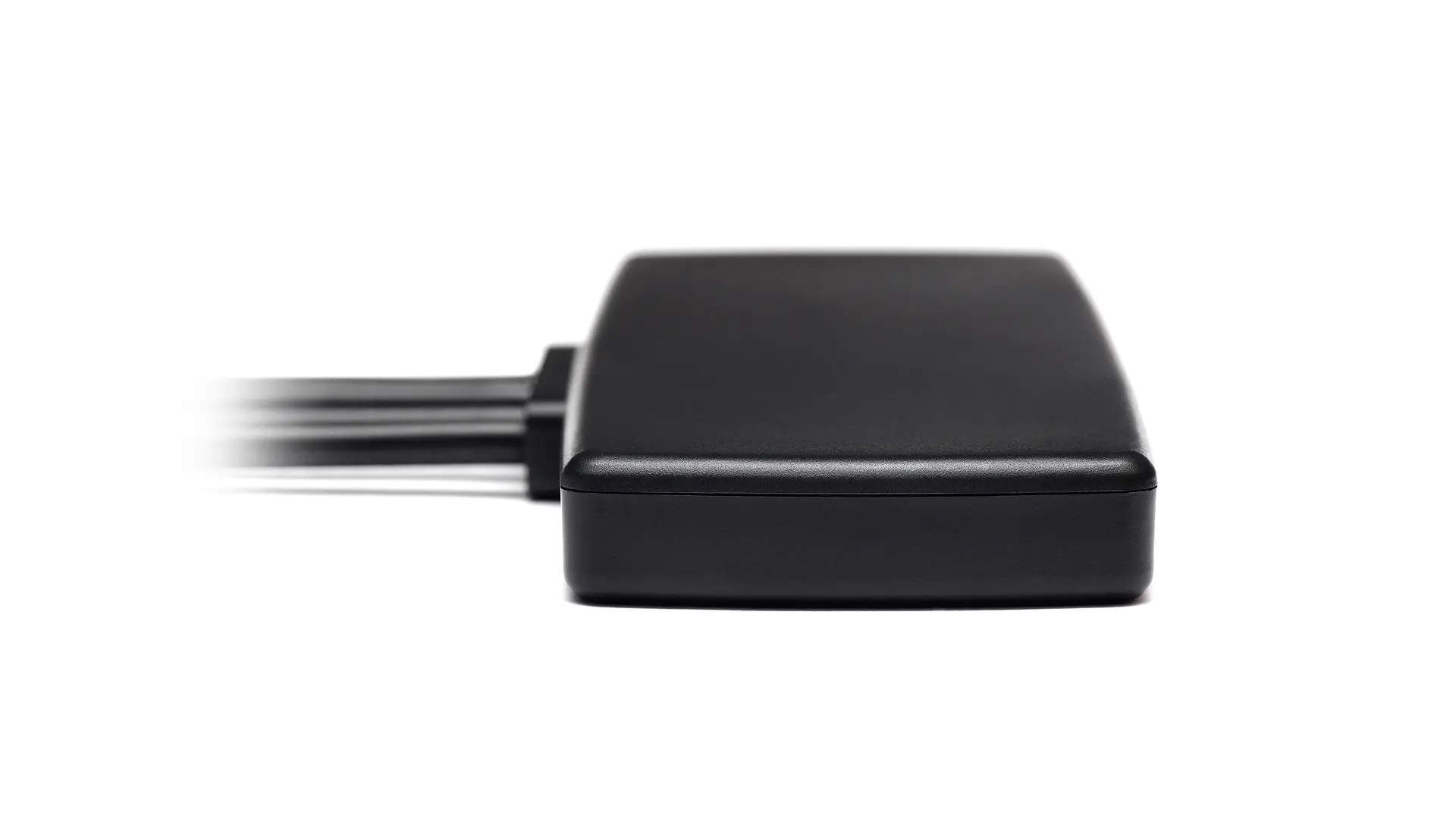

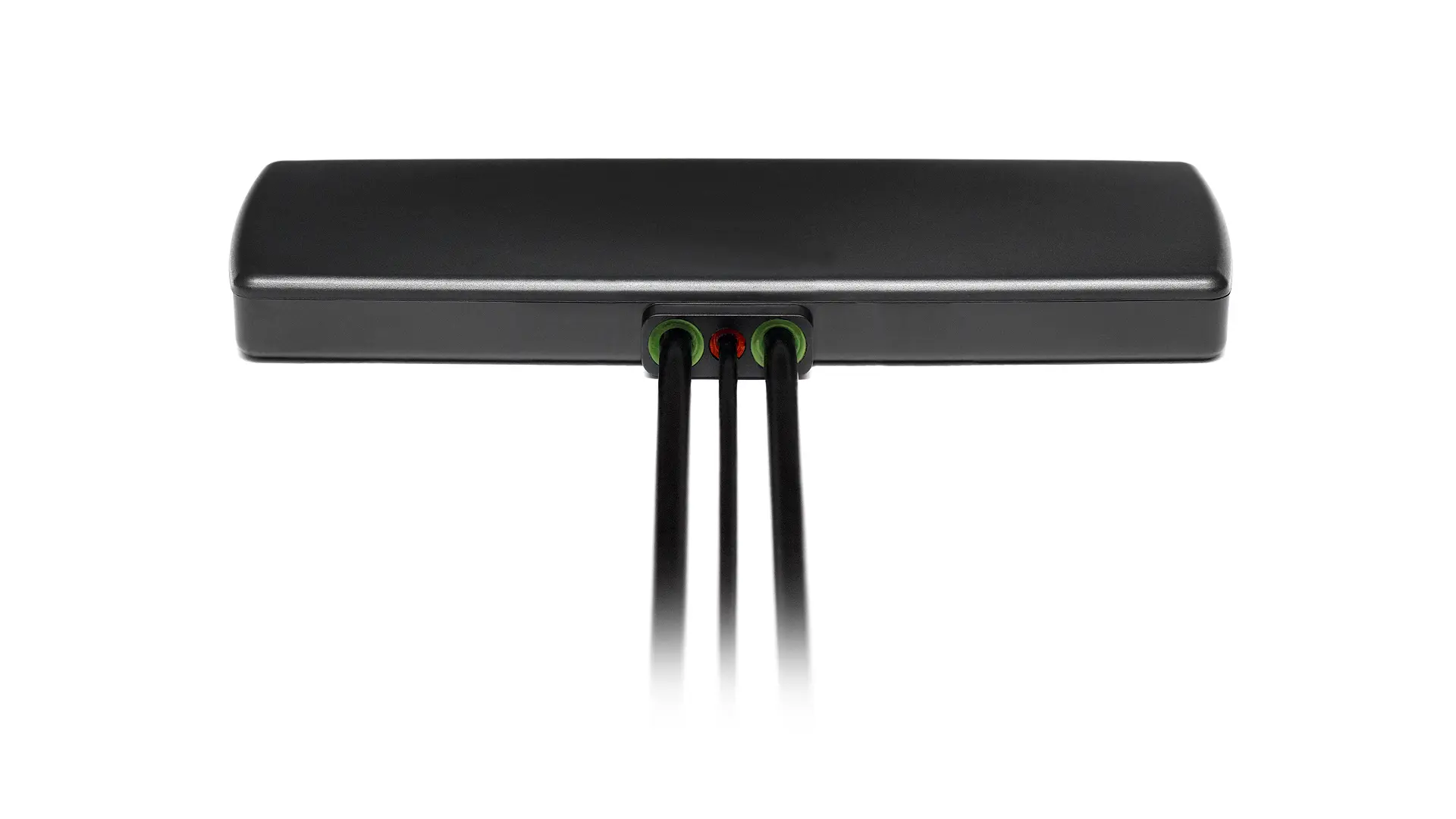

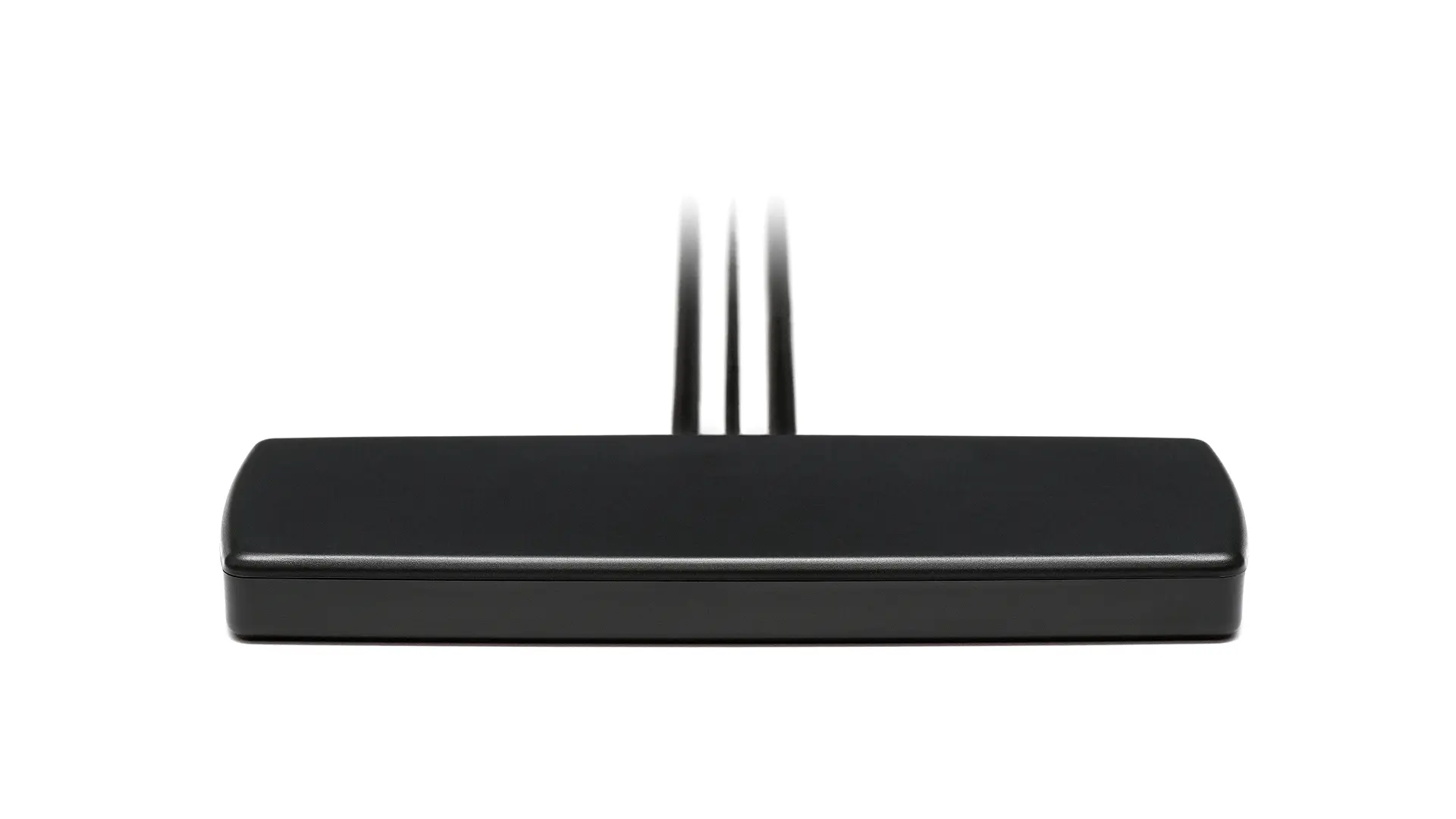

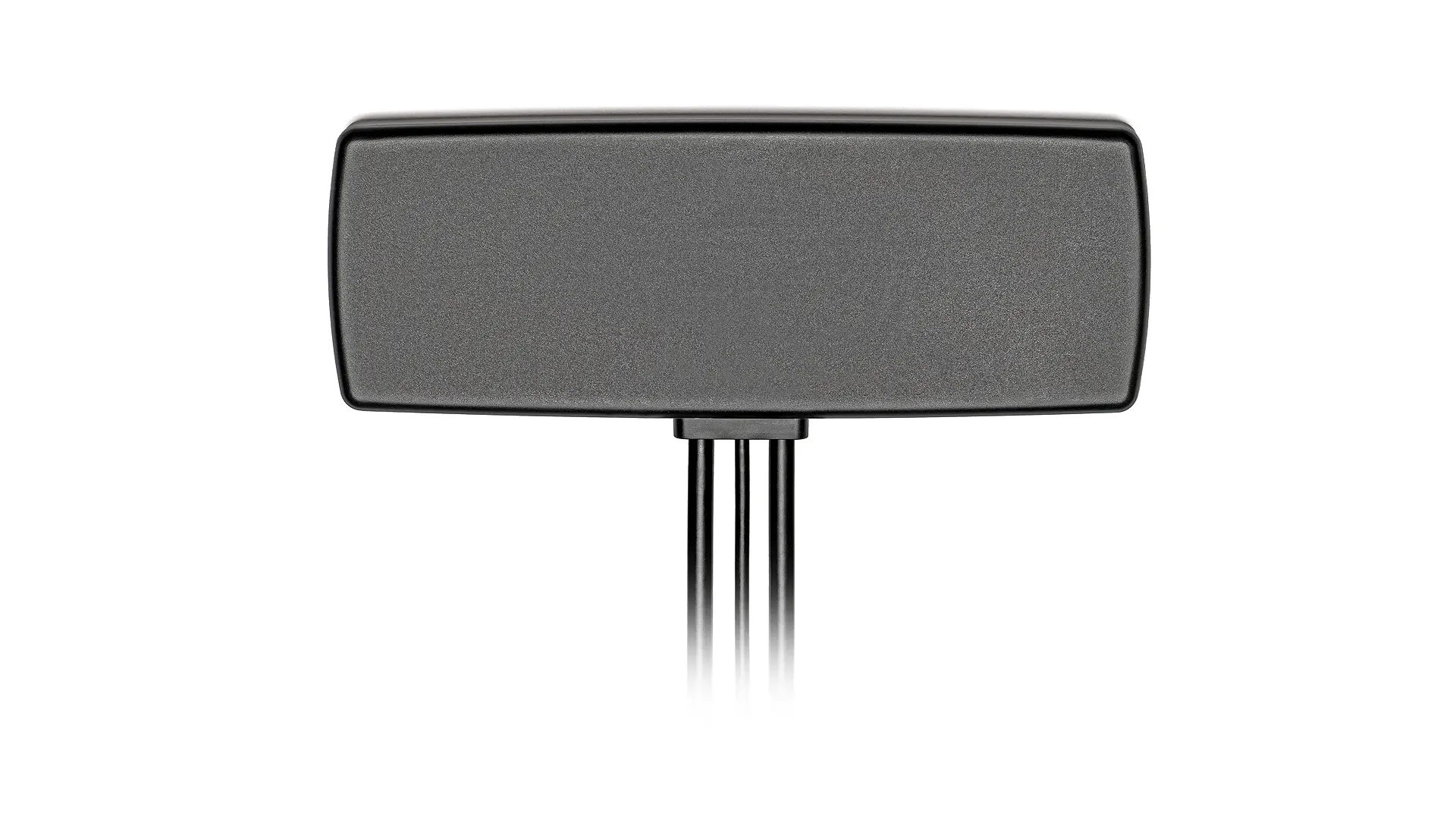

Condor 3-in-1 - 3x WIFI 6E / WIFI 7 MIMO Adhesive Antenna
Connections (3)
3×
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Mounting | Adhesive Mount |
|---|---|
| Dimensions (mm) | 61.8 × 155.6 × 17.0 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.8:1, ~1.5:1, ~2.0:1 |
| Efficiency (%) | ~52.1, ~54.4, ~50.0 |
| Peak Gain (dBi) | ~2.4, ~3.9, ~4.1 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 2
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.9:1, ~1.7:1, ~2.1:1 |
| Efficiency (%) | ~48.6, ~40.7, ~33.8 |
| Peak Gain (dBi) | ~1.7, ~3.5, ~5.1 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 3
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.8:1, ~1.5:1, ~2.6:1 |
| Efficiency (%) | ~65.8, ~60.6, ~41.3 |
| Peak Gain (dBi) | ~2.4, ~4.6, ~4.7 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Ground Plane Independent
High Performance
Customizable Cable and Connector
WIFI 6E / WIFI 7 Antenna
Low Profile
5.2 dBi WIFI Peak Gain
3-in-1 Combination Antenna
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
