2J6903BGFa

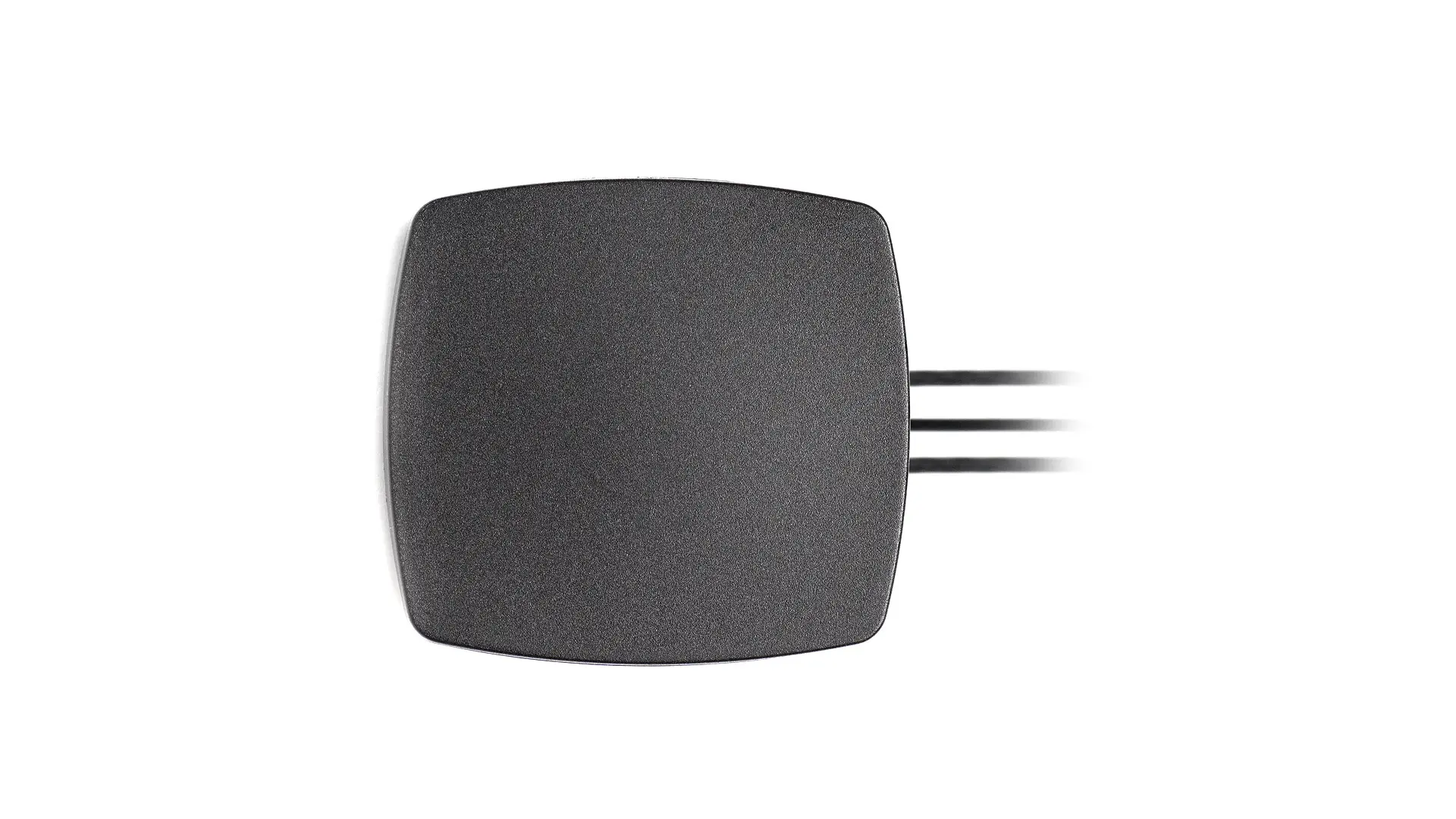

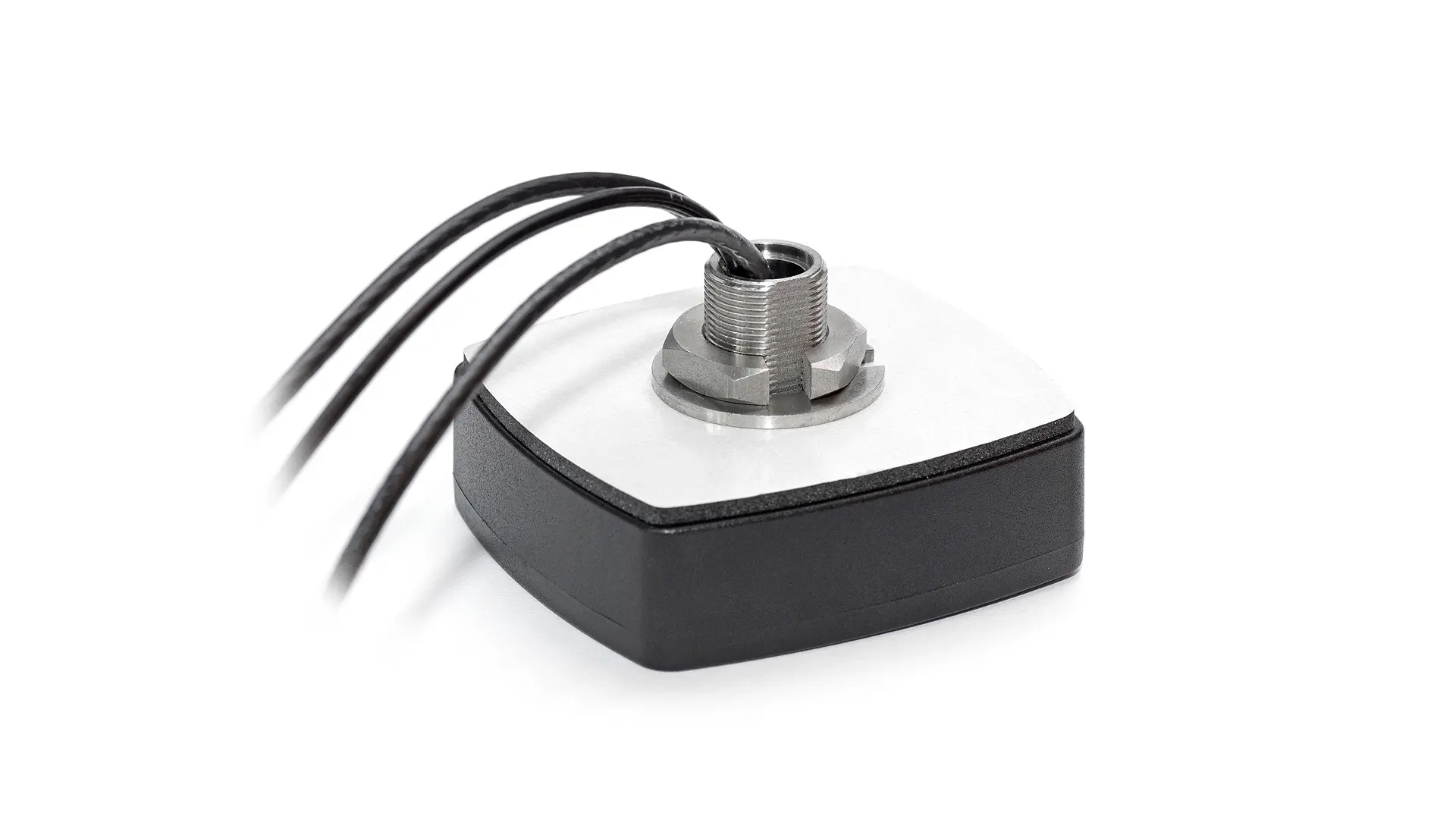

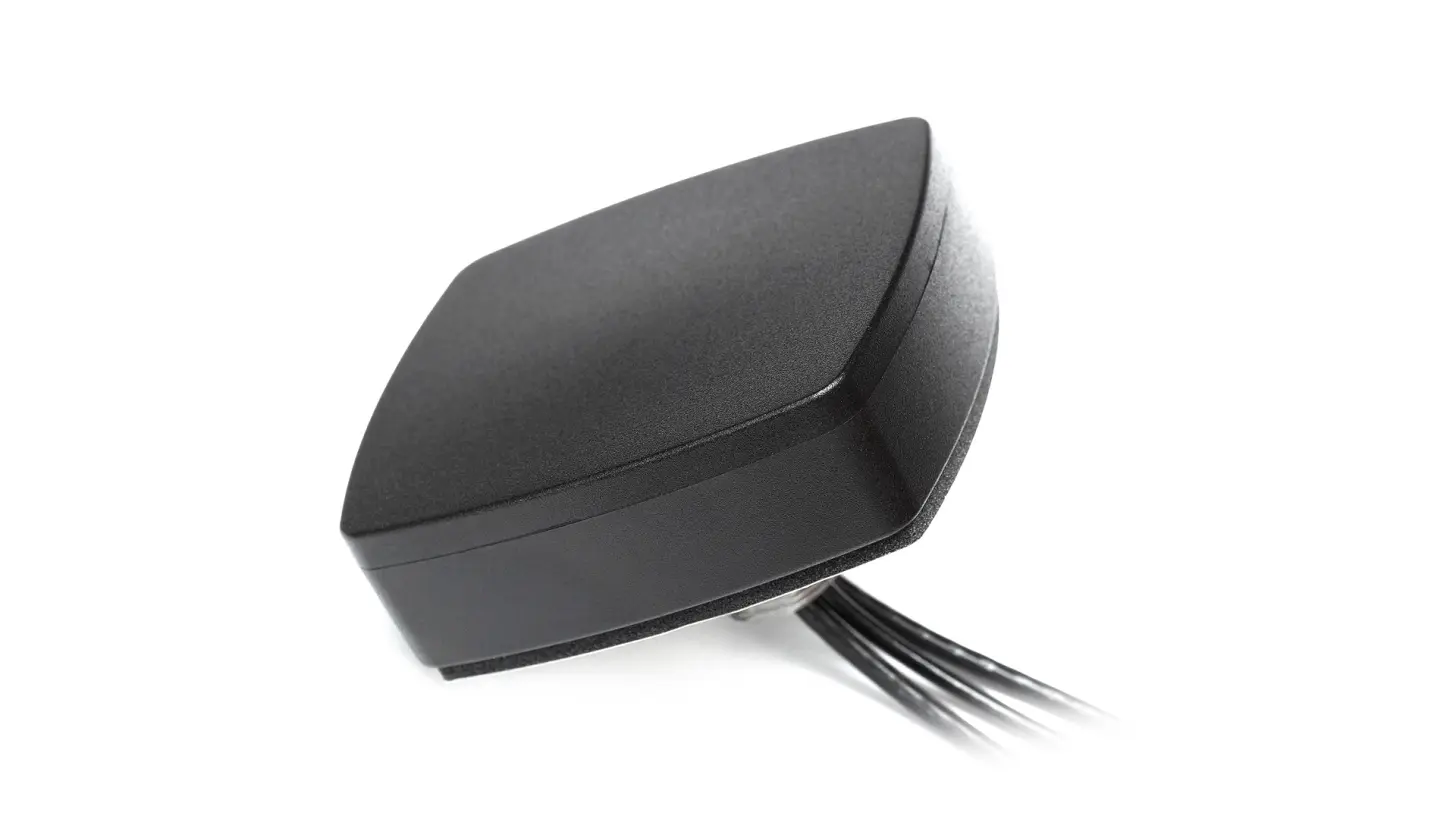

Phoenix 3-in-1 2x WIFI 6E / WIFI 7 MIMO and GNSS Screw Mount Antenna
Connections (3)
2×
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
1×
GPS / GLONASS / QZSS / Galileo - L1
| Mounting | Screw Mount |
|---|---|
| Dimensions (mm) | 80 × 74 × 25.6 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.4:1, ~1.4:1, ~1.4:1 |
| Efficiency (%) | ~40.6, ~45.0, ~41.3 |
| Peak Gain (dBi) | ~4.0, ~5.6, ~5.9 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 2
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.3:1, ~1.5:1, ~1.4:1 |
| Efficiency (%) | ~40.8, ~40.4, ~44.6 |
| Peak Gain (dBi) | ~4.1, ~5.1, ~6.3 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 3
GPS / GLONASS / QZSS / Galileo - L1
| Standards | GPS/GLONASS/QZSS/Galileo |
|---|---|
| Frequency | 1575.42, 1598-1606 |
| VSWR | <=1.4:1 |
| Impedance (Ohm) | 50 |
| Polarisation | RHCP |
| Active Gain (dB) | 28 @ 2.7 V |
| Saw Filter Type | Pre-Filter |
| Voltage Range (V) | 1.5 - 3.6 |
| Noise Figure (dB) | 1.5 Typ |
| Current Consumption (mA) | 9 Typ |
| Power Consumption (mW) | 24.3 Typ |
| ESD Protection (kV) | 2 |
Antenna Description
Key Features
Ground Plane Independent
High Performance
Customizable Cable and Connector
WIFI 6E / WIFI 7 Antenna
Anti-Rotation Mounting
Active GNSS Antenna
28 dB GNSS Active Gain
Pre-Filter GNSS
GNSS Voltage Range 1.5 - 3.6 V
3-in-1 Combination Antenna
6.3 dBi WIFI Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Healthcare & Medical
Navigation & Positioning
Marine & Maritime
Consumer & Entertainment
Short-Range Connectivity
Antenna band list
Compatible mounting brackets
2JB03Ha
Wall Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J6Axx, 2J6Cxx, 2J65xx, 2J66xx, 2J67xx, 2J69xx, 2J72xx, 2J74xx, 2J75xx, 2J77xx, 2J78xx, 2J83xx, 2J84xx, 2J86xx, 2J87xx antenna series
2JB03Ja
Pole Mount metal bracket for Screw Mount Antenna versions of 2J6Axx, 2J6Cxx, 2J65xx, 2J66xx, 2J67xx, 2J69xx, 2J72xx, 2J74xx, 2J75xx, 2J77xx, 2J78xx, 2J83xx, 2J84xx, 2J86xx, 2J87xx antenna series
