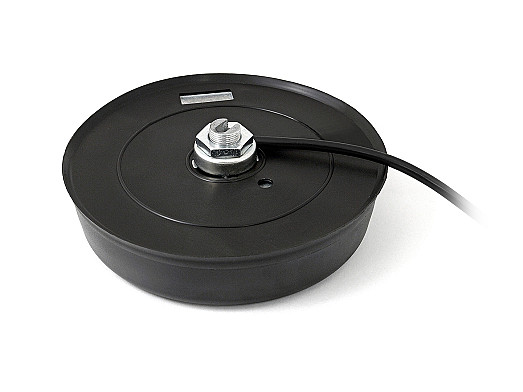

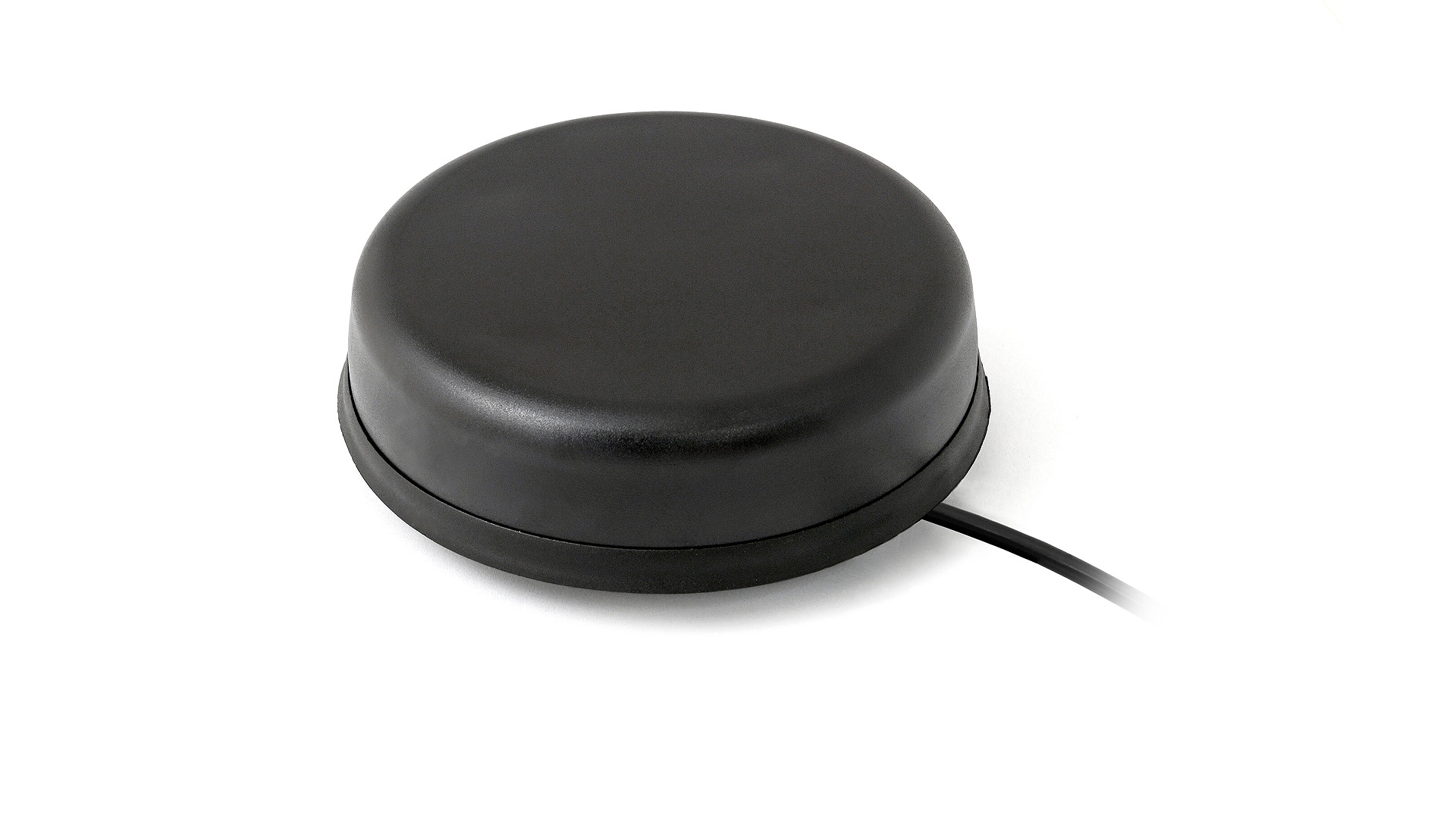

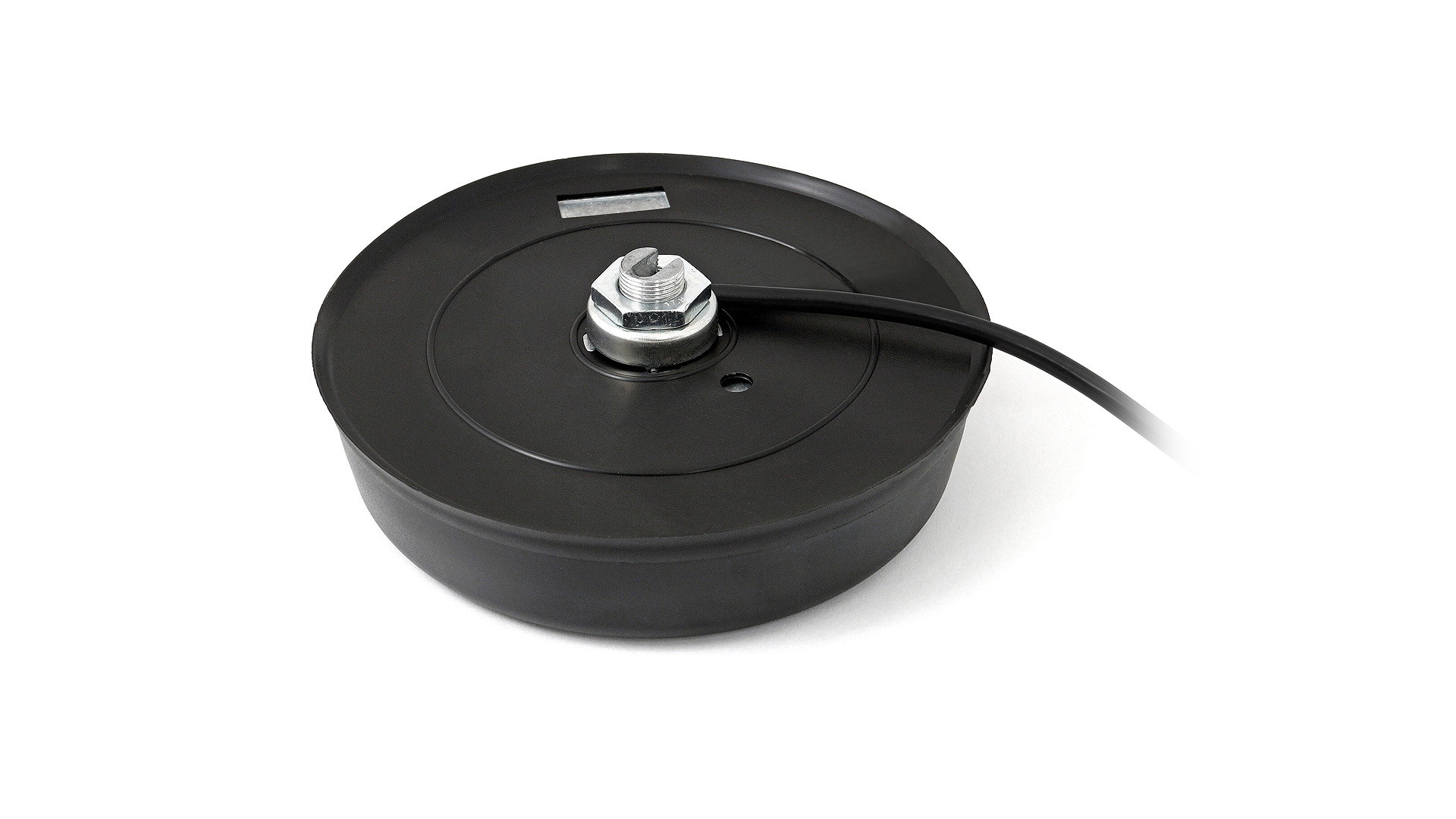

2J6510B Antenna

433 MHz ISM Anti-Rotation Mounting IP67 IP69K IK09 Antenna

General specification
Frequency 433 MHz ISM
Mounting Screw mount
Dimensions (mm) Ø 146 × 31.5
Operating temperature -40 °C to +85 °C
Certificates IP67, IP69K, IK09
Standard colors
Get Datasheet
Product added to cart

Key Features

  • Anti-Rotation Mounting
  • Customizable Cable and Connector
  • Ground Plane Dependent
  • Screw Mount
  • Certificates: IP67, IP69K, IK09
  • Antenna and electrical specifications

    connection 1

    433 MHz ISM

    Standards ISM, LoRa
    Frequency 433-435
    VSWR ~1.3:1
    Efficiency (%) ~58.3
    Peak Gain (dBi) ~2.9
    Impendance (Ohm) 50
    Polarisation Linear
    Max. Input Power (W) 50
