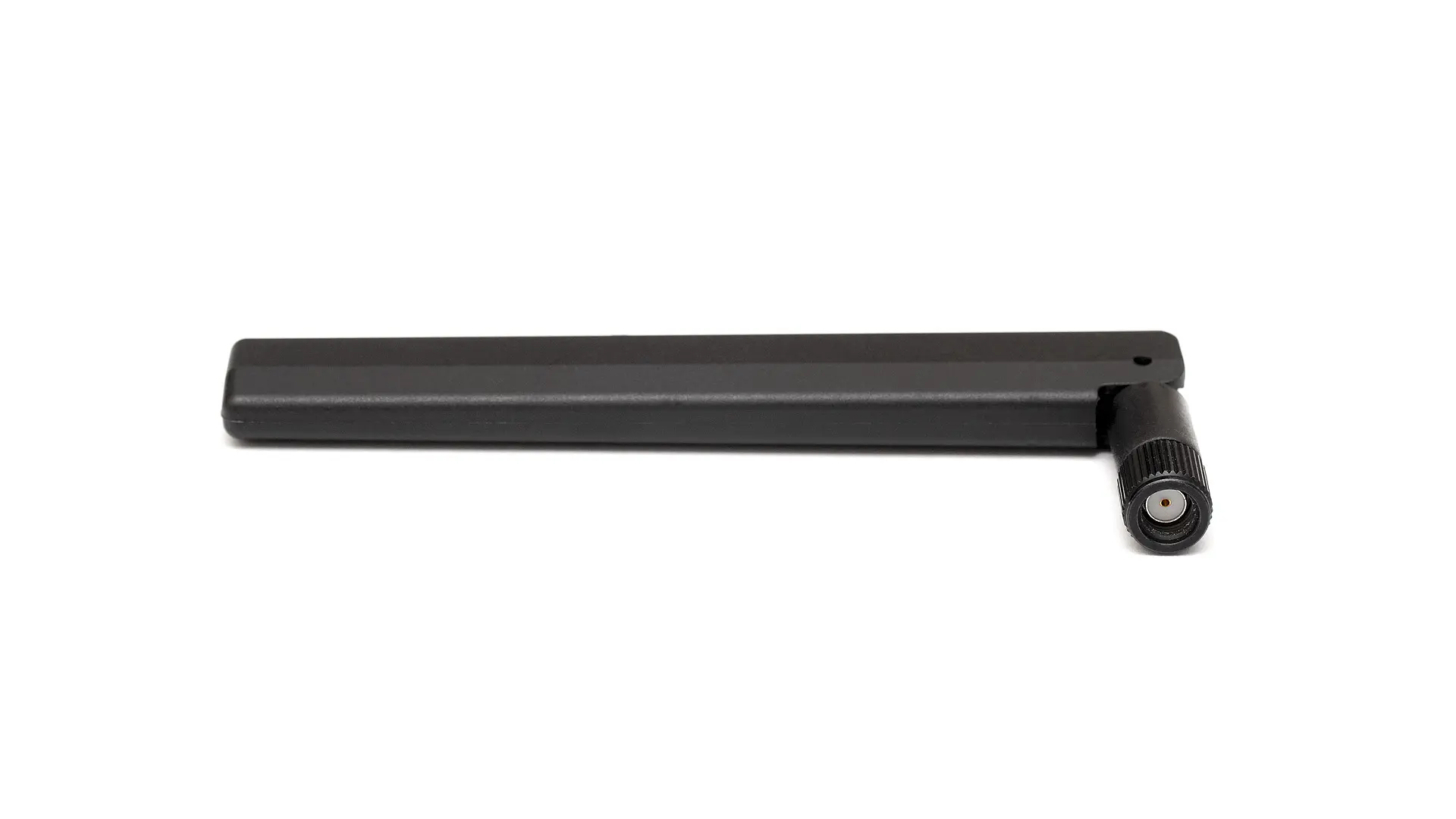

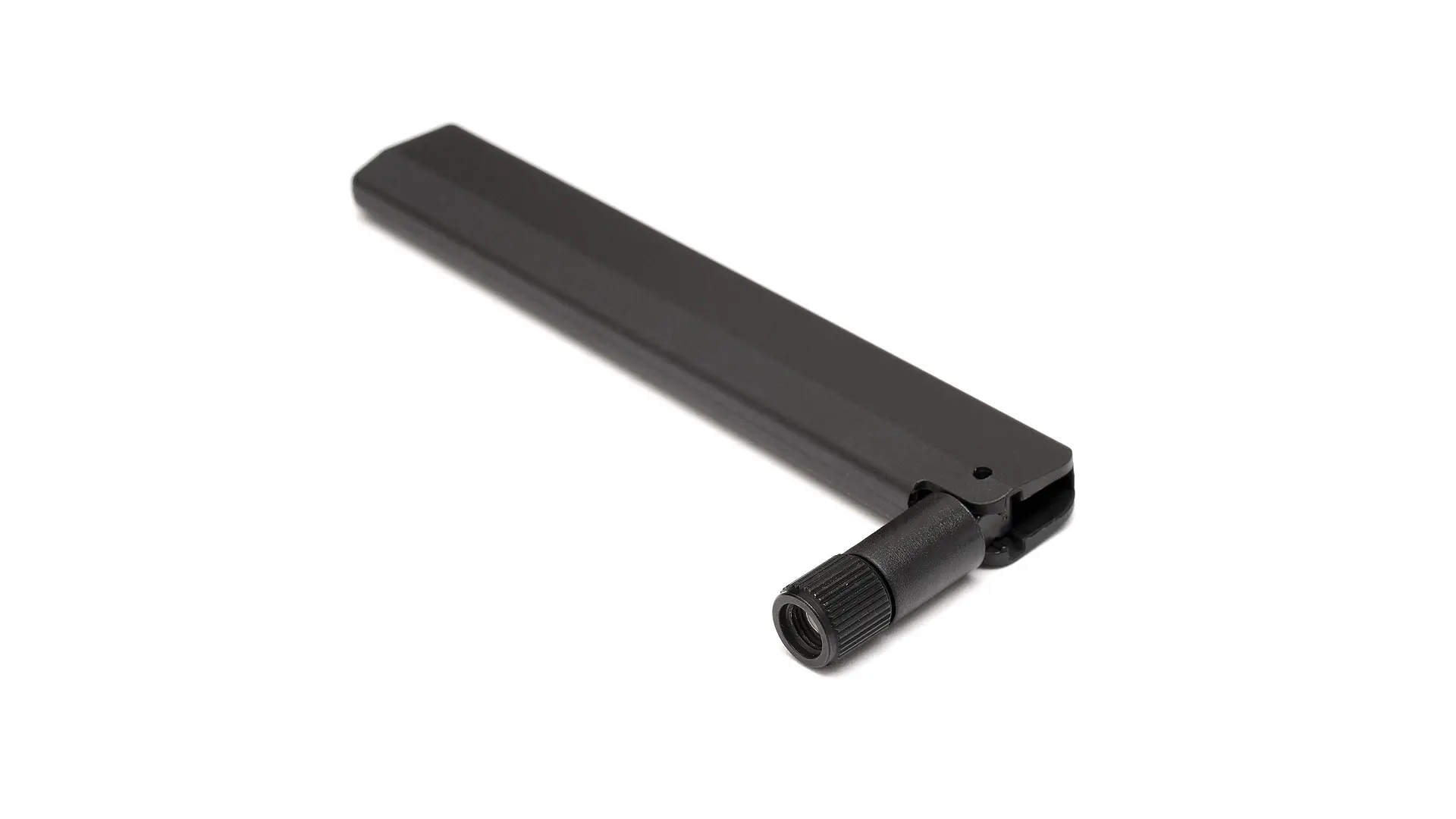

2JW1102-C943B
Blade 2.4/5.0/6.0 GHZ WIFI 6E / WIFI 7 ISM High Gain Hinged Connector Mount
Connections (1)
1×
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Mounting | Connector Mount |
|---|---|
| Dimensions (mm) | 135 × 19 × 10 |
| Operating temperature | -40 °C to +85 °C |
| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.4:1, ~1.7:1, ~2.0:1 |
| Efficiency (%) | ~75.8, ~84.5, ~73.0 |
| Peak Gain (dBi) | ~4.1, ~3.9, ~2.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
Antenna Description
Key Features
Dipole Antenna
Ground Plane Independent
High Efficiency
Hinged Connector
WIFI 6E / WIFI 7 Antenna
High Gain
4.1 dBi WIFI Peak Gain
High Throughputs
Low Latency
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
