Antenna and electrical specifications
connection 1
2.4 / 5.0 GHz WIFI / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM |
|---|---|
| Frequency | 2410-2490, 4920-5925 |
| VSWR | ~1.8:1, ~2.8:1 |
| Efficiency (%) | ~59.0, ~45.0 |
| Peak Gain (dBi) | ~3.0, ~1.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |

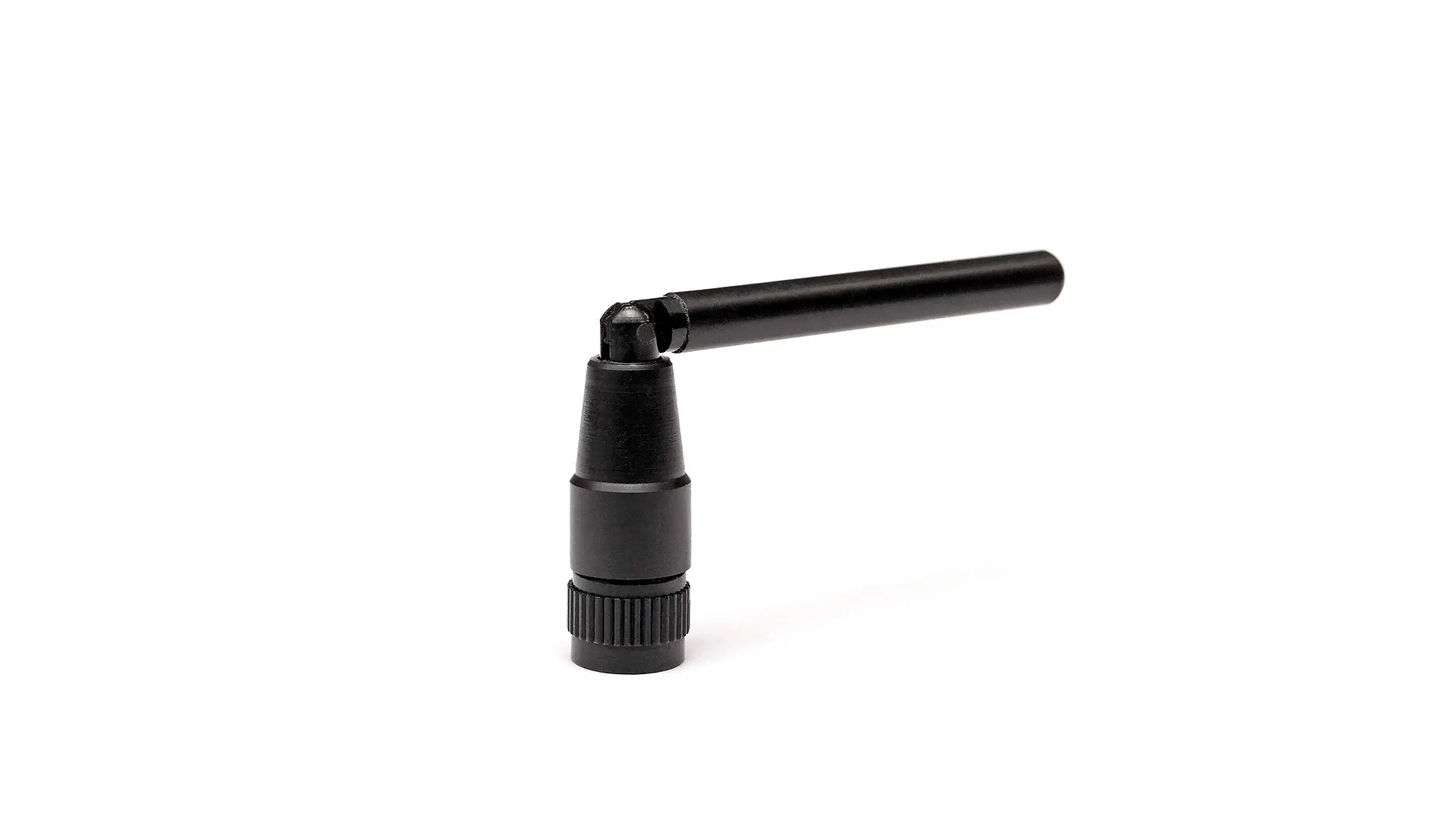

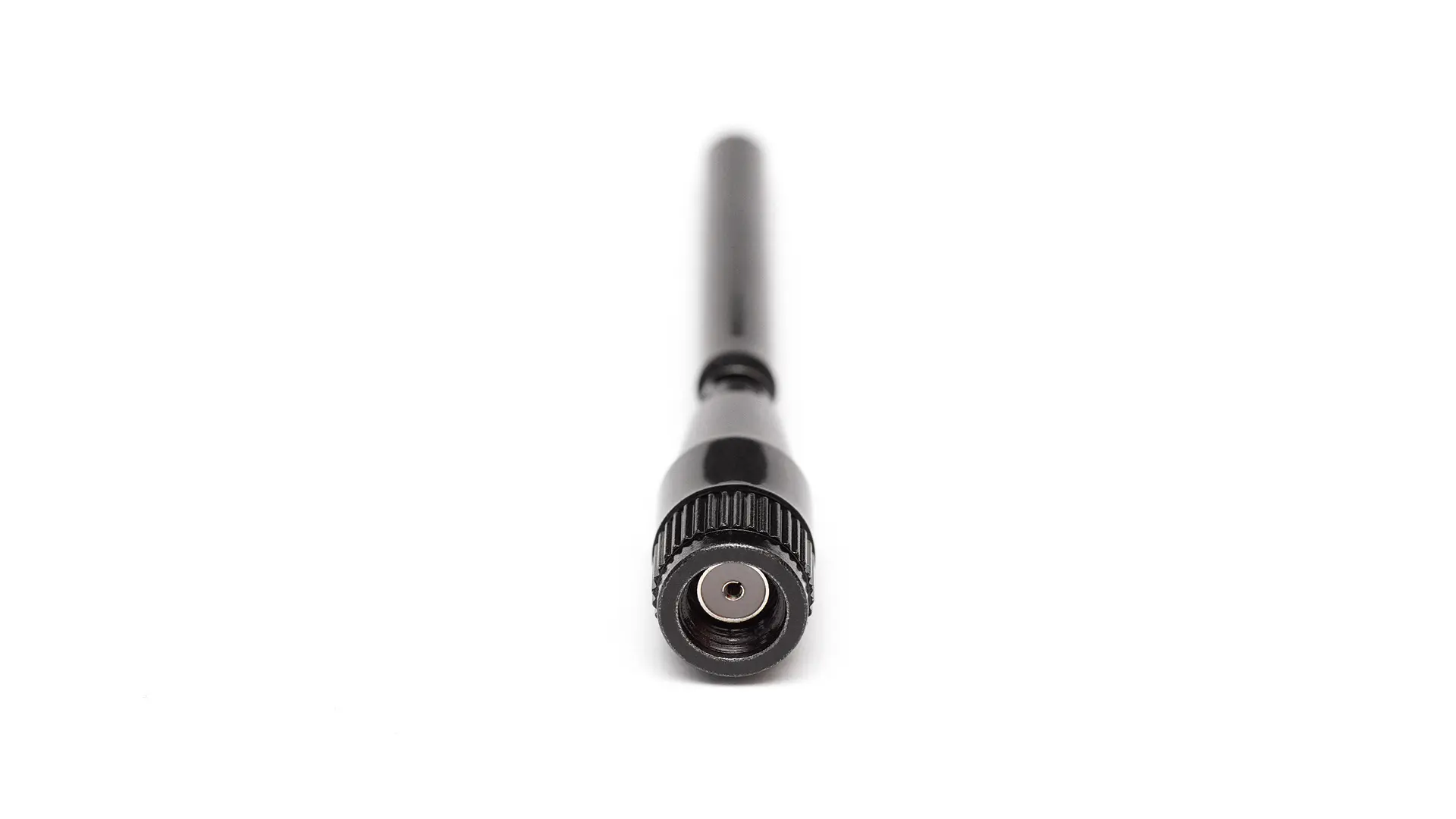

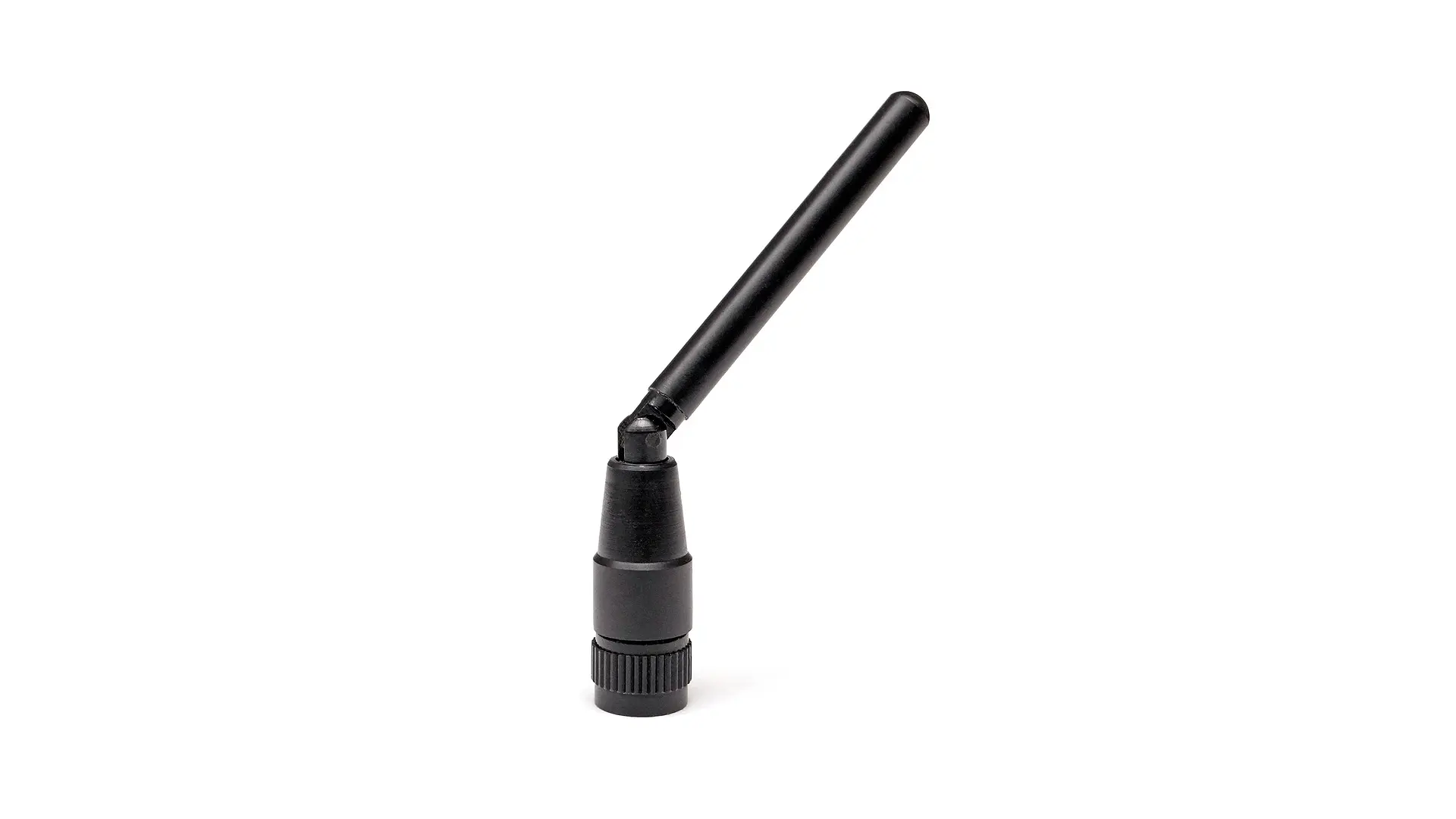

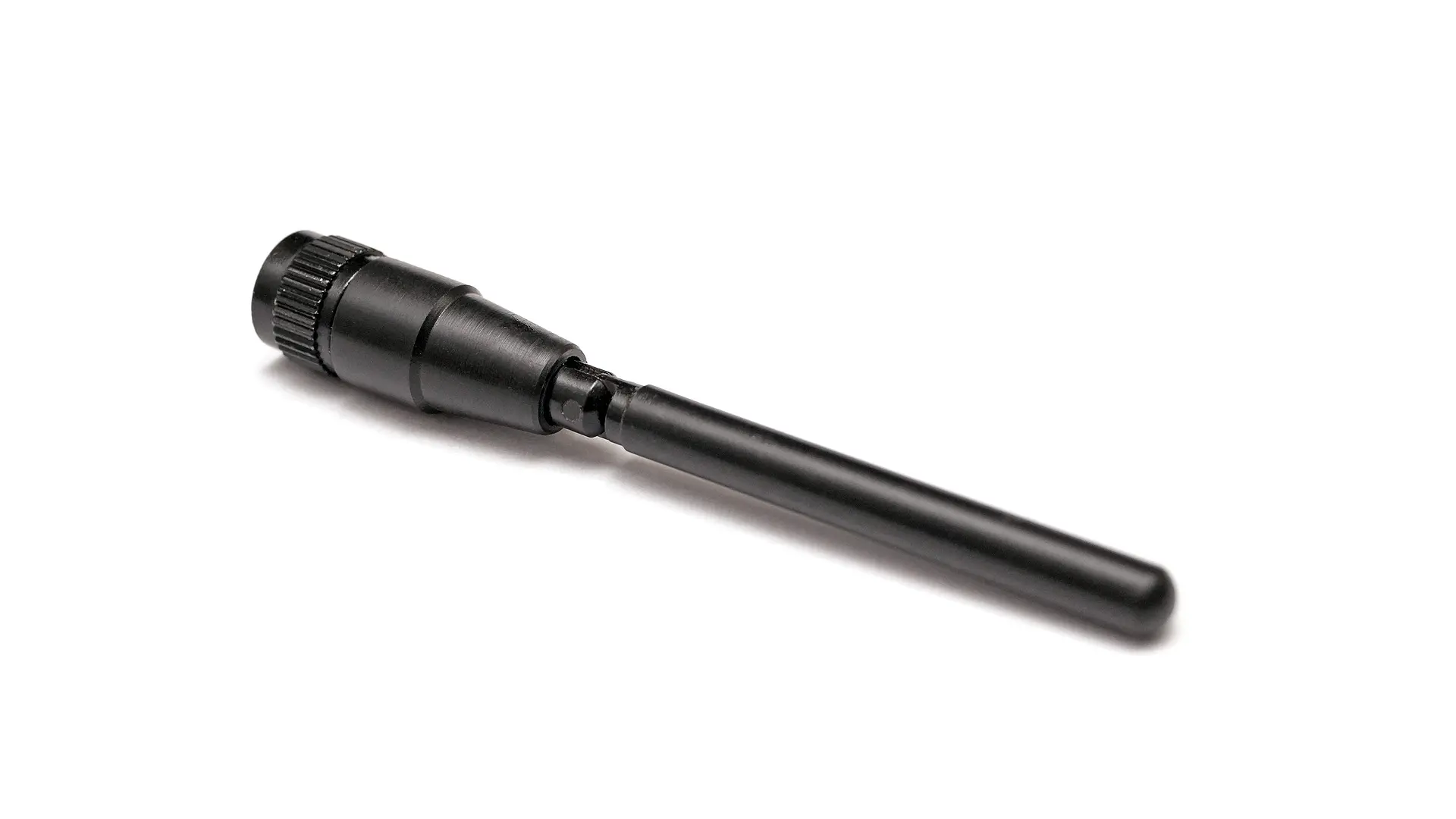

Antenna Description
Key Features
Monopole Antenna
Small Form Factor
Ground Plane Dependent
High Efficiency

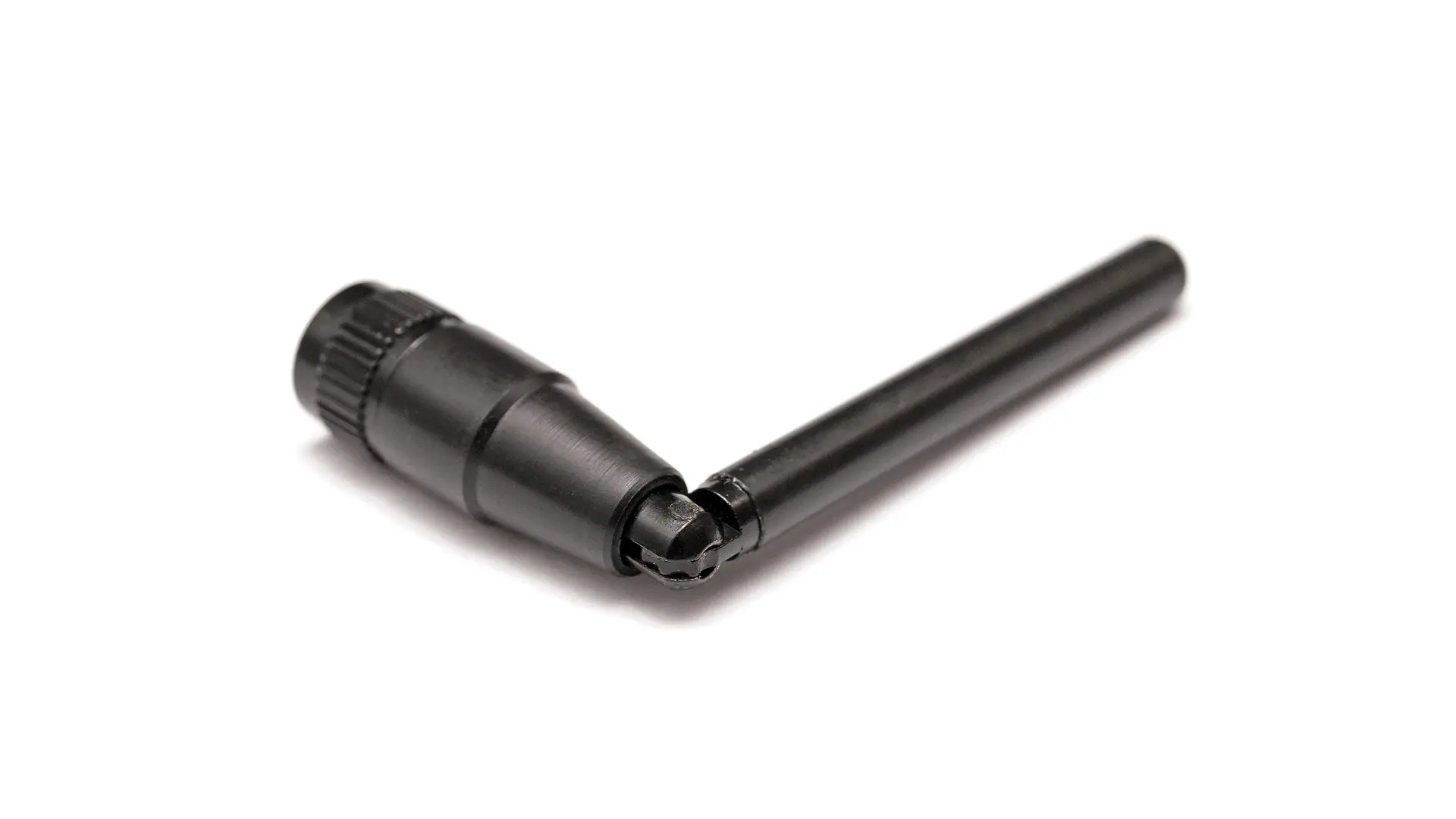

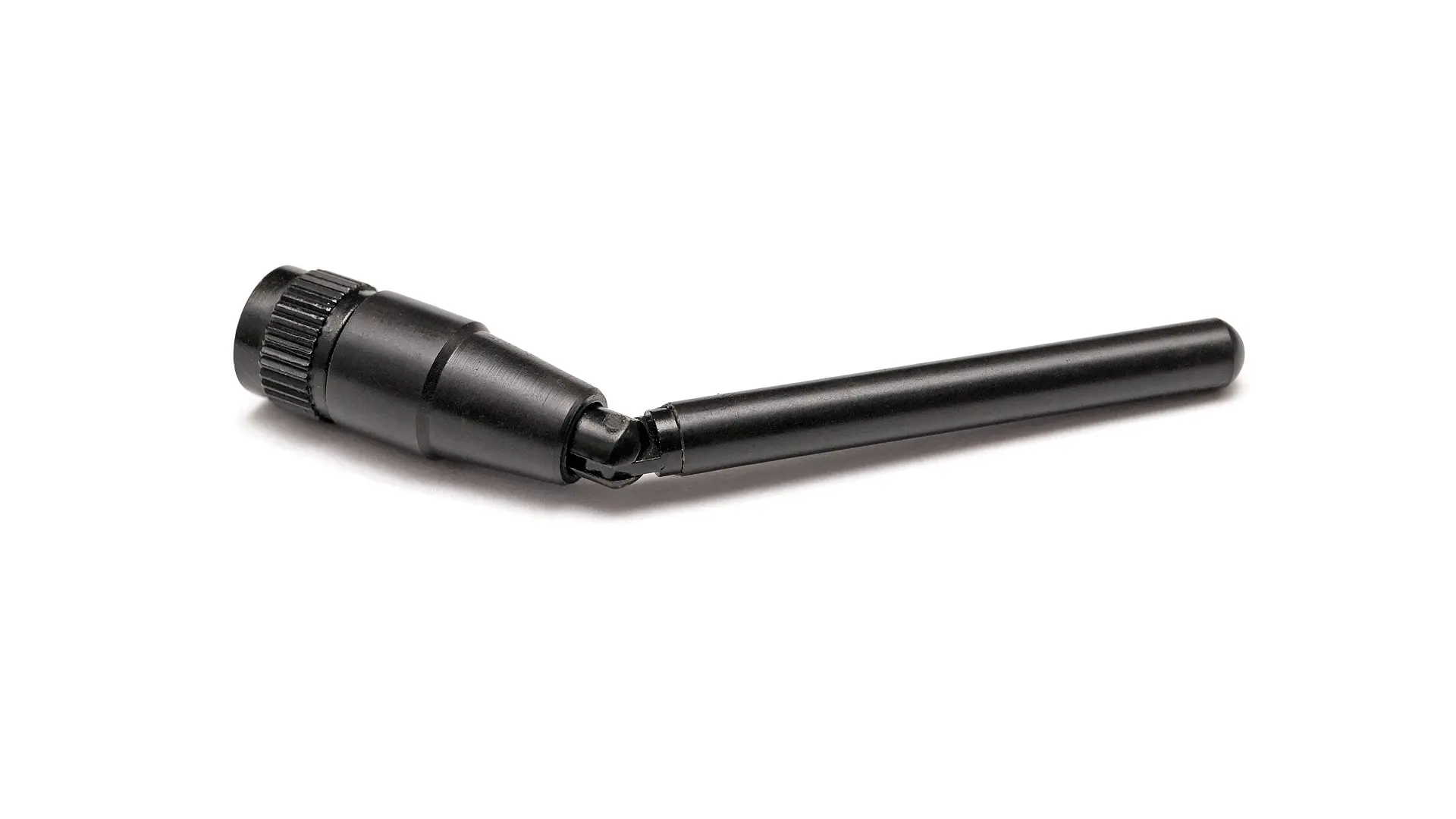

Hinged Connector
3.0 dBi WIFI Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
