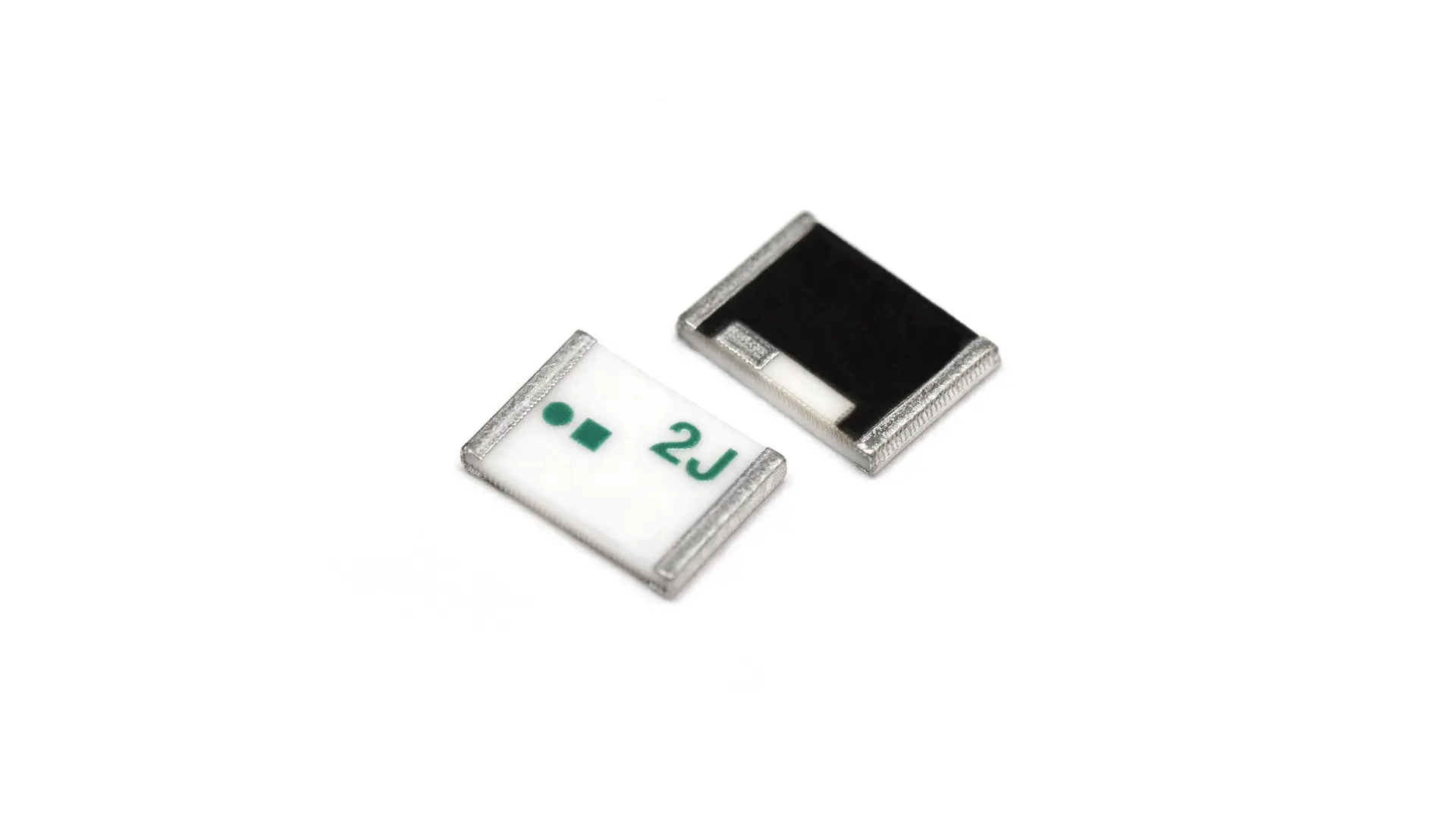

2JL51
5.0/6.0 GHz ISM Surface Mount Loop Antenna
Connections (1)
1×
5.0 GHz WIFI / ISM
| Mounting | Surface Mount Ceramic |
|---|---|
| Dimensions (mm) | 5.2 × 3.7 × 0.7 |
| Operating temperature | -40 °C to +85 °C |
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
5.0 GHz WIFI / ISM
| Standards | WiFi, ISM |
|---|---|
| Frequency | 4920-5925, 5925-7125 |
| VSWR | ~1.6:1, ~2.4:1 |
| Efficiency (%) | ~56.3, ~41.8 |
| Peak Gain (dBi) | ~1.7, ~1.0 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
Antenna Description
Key Features
Ground Plane Dependent
Compact Size
Easy to Integrate
Ceramic Material
SMT Loop Embedded Antenna
1.7 dBi WIFI Peak Gain
Applications
IoT & Smart Devices
Industrial & Automation
Healthcare & Medical
Consumer & Entertainment
Short-Range Connectivity
