2J7A50BGFa

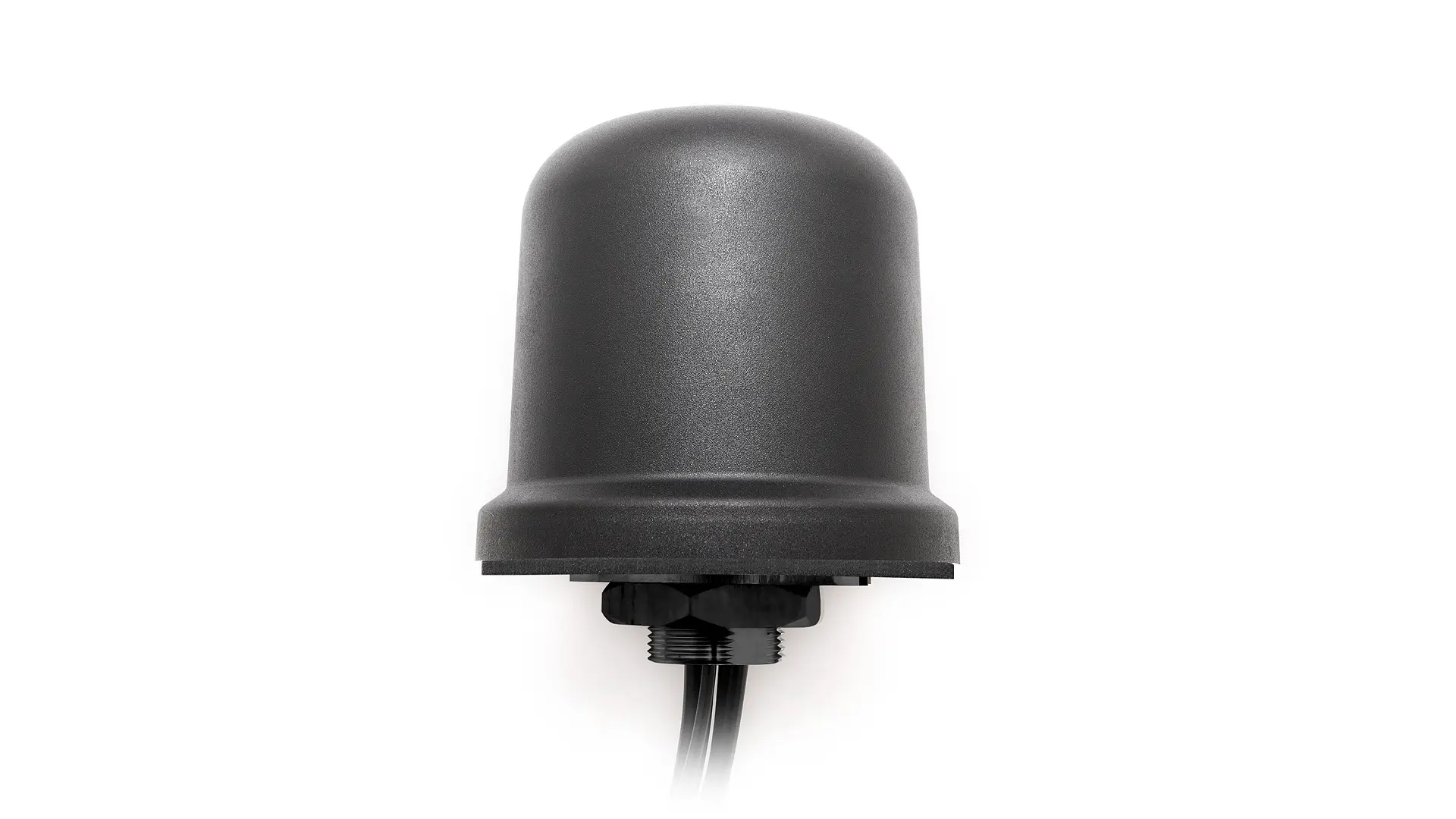

Medusa Lightweight 2x 4G LTE/3G/2G, 2x WIFI 6E / WIFI 7 MIMO, GNSS Screw Mount Antenna
Connections (5)
2×
4G LTE / Cellular / LPWA / NB-IoT
2×
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
1×
GPS / GLONASS / QZSS / Galileo - L1
| Mounting | Screw Mount |
|---|---|
| Dimensions (mm) | Ø 96 × H 90 |
| Operating temperature | -40 °C to +85 °C |
| Certificates | IP67 , IP69 , IK09 |

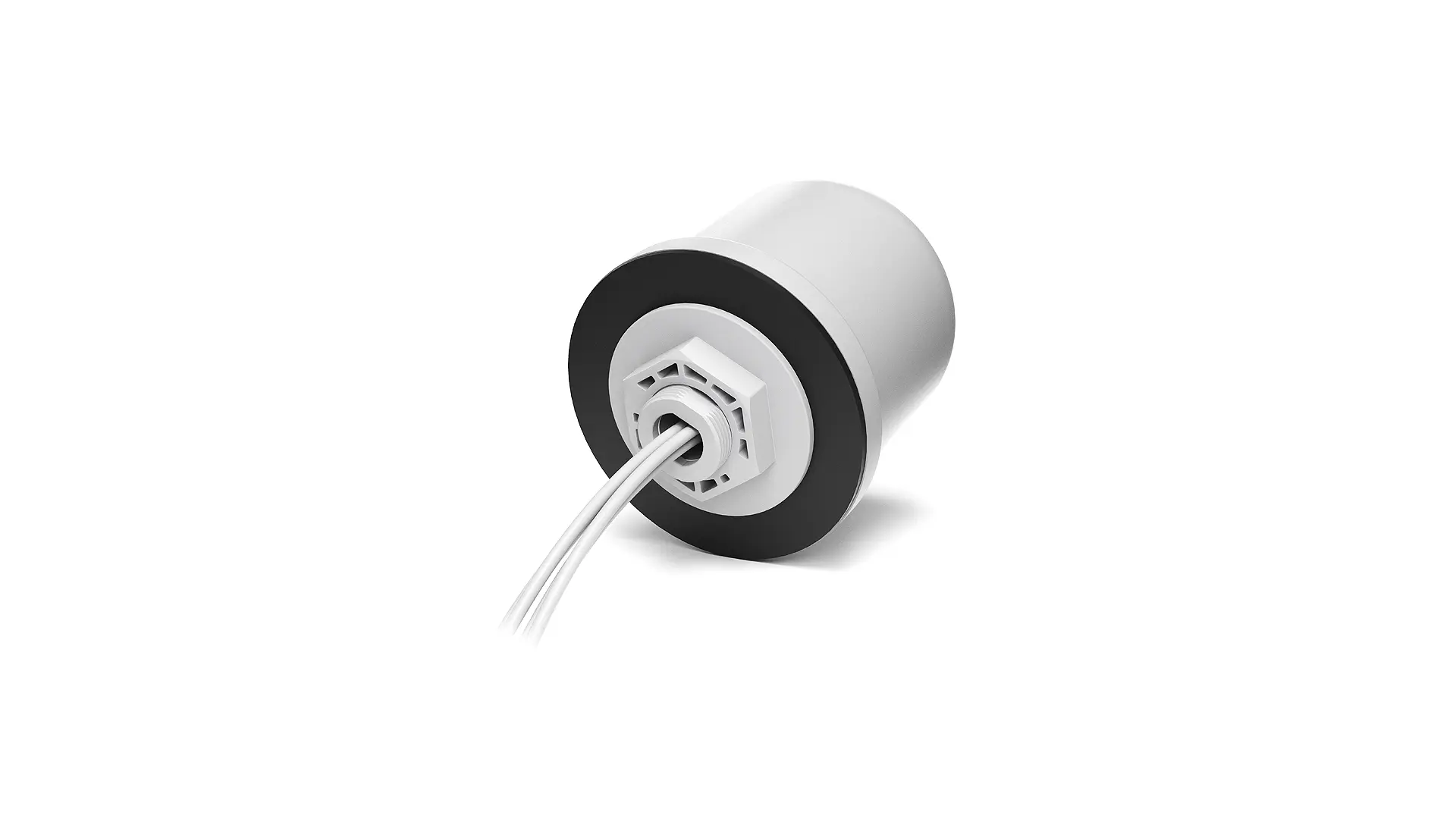

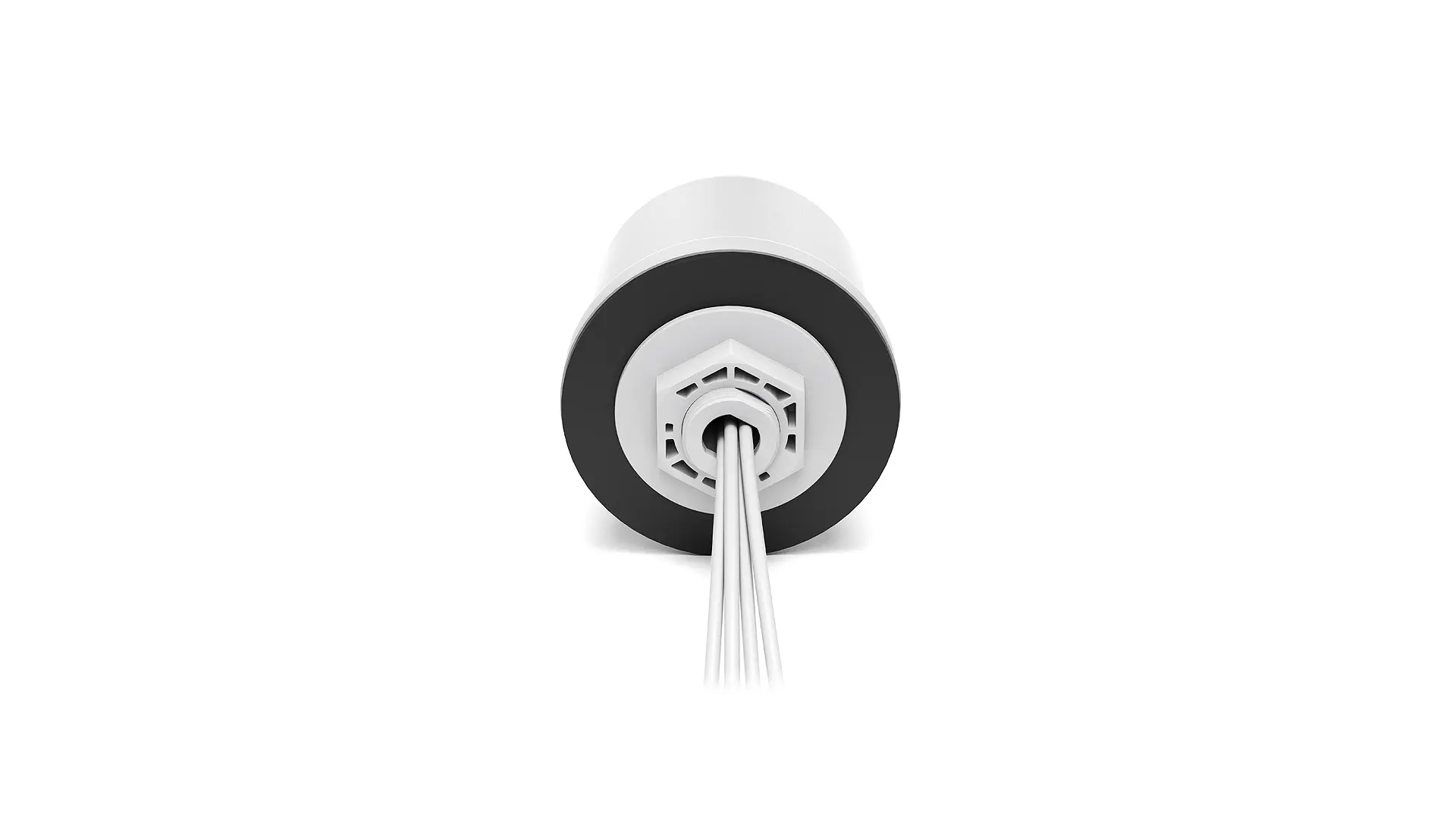

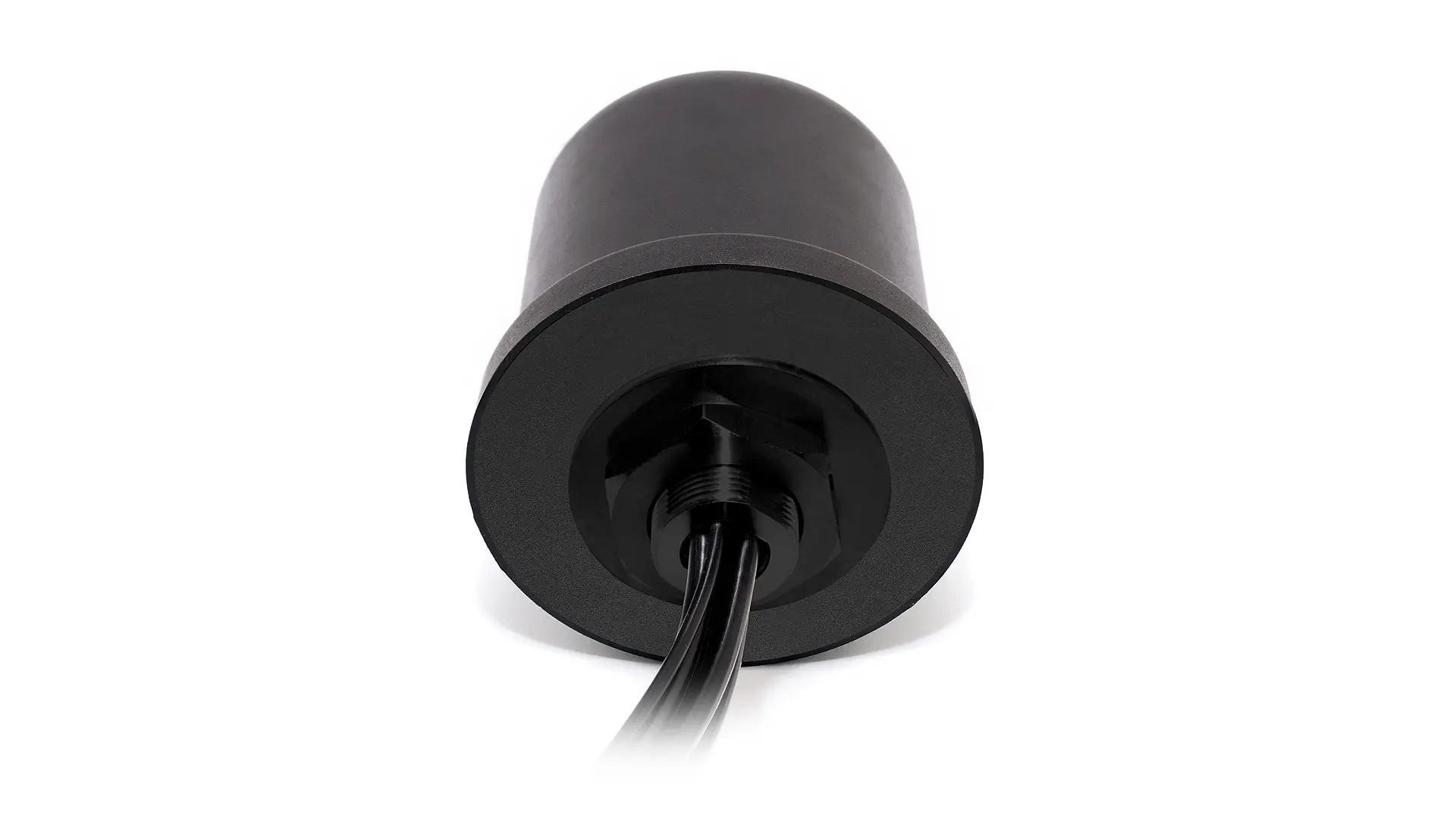

| Standard colors |
Black
White
|
Global Delivery
Ready to Ship
EU Quality
Loading...
Antenna and electrical specifications
connection 1
4G LTE / Cellular / LPWA / NB-IoT
| Standards | 2G,3G and 4G |
|---|---|
| Frequency | 698-960, 1710-2170, 2500-2700 |
| VSWR | ~2.0:1, ~1.4:1, ~1.5:1 |
| Efficiency (%) | ~45.1, ~47.1, ~46.8 |
| Peak Gain (dBi) | ~0.9, ~3.3, ~4.4 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 2
4G LTE / Cellular / LPWA / NB-IoT
| Standards | 2G,3G and 4G |
|---|---|
| Frequency | 698-960, 1710-2170, 2500-2700 |
| VSWR | ~1.9:1, ~1.4:1, ~1.5:1 |
| Efficiency (%) | ~45.1, ~46.6, ~48.2 |
| Peak Gain (dBi) | ~1.4, ~3.0, ~4.7 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 3
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.6:1, ~1.5:1, ~2.6:1 |
| Efficiency (%) | ~44.9, ~35.9, ~20.2 |
| Peak Gain (dBi) | ~4.8, ~3.0, ~1.8 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 4
2.4 / 5.0 / 6.0 GHz WIFI 6 / WIFI 7 / ZigBee / ISM
| Standards | WiFi, Bluetooth® ZigBee, ISM, SigFox, LoRa |
|---|---|
| Frequency | 2410-2490, 4920-5925, 5925-7125 |
| VSWR | ~1.7:1, ~1.6:1, ~2.6:1 |
| Efficiency (%) | ~41.7, ~35.7, ~22.3 |
| Peak Gain (dBi) | ~4.6, ~3.1, ~1.7 |
| Impedance (Ohm) | 50 |
| Polarisation | Linear |
| Max. Input Power (W) | 25 |
connection 5
GPS / GLONASS / QZSS / Galileo - L1
| Standards | GPS/QZSS/Galileo/GLONASS |
|---|---|
| Frequency | 1575.42, 1598-1610 |
| VSWR | <=1.5:1 |
| Impedance (Ohm) | 50 |
| Polarisation | RHCP |
| Active Gain (dB) | 23 @ 3 V, 24 @ 5 V |
| Saw Filter Type | Post-Filter |
| Voltage (V) | 2.7 - 5.5 |
| Noise Figure (dB) | 1.2 |
| Current Consumption (mA) | 15 - 25 |
| Power Consumption (mW) | 40.5 - 137.5 |
| Out of Band Rejection (dB) | 32 |
Antenna Description
Key Features
Ground Plane Independent
Wide band Antenna
698-2700 MHz 4GLTE Bands
High Performance
Customizable Cable and Connector
WIFI 6E / WIFI 7 Antenna
Heavy Duty antenna
Anti-Rotation Mounting
Active GNSS Antenna
GNSS Voltage Range 2.7 - 5.5 V
24 dB GNSS Active Gain
Post Filter GNSS
5-in-1 Combination Antenna
4.8 dBi WIFI Peak Gain
Lightweight Plastic Base
4.7 dBi 4G LTE Peak Gain
Applications
Cellular & Wireless
IoT & Smart Devices
Industrial & Automation
Smart Cities & Infrastructure
Transportation & Automotive
Logistics & Asset Tracking
Agriculture & Environmental
Energy & Utilities
Healthcare & Medical
Navigation & Positioning
Marine & Maritime
Broadcasting & Media
Consumer & Entertainment
Short-Range Connectivity
Antenna band list
| Parameters | 4G LTE Antenna | ||
| Frequency (MHz) | 698-960 | 1710-2170 | 2500-2700 |
| Band (MHz) | 700, 850, 900 | 1700, 1800, 1900, 2000, 2100 | 2500, 2600 |
| 4GLTE Bands | B5, B6, B8, B12, B13, B14, B17, B18, B19, B20, B26, B27, B28, B29, B44, B67, B68, B85 |
B1, B2, B3, B4, B9, B10, B25, B33, B34, B35, B36, B37, B39, B65, B66, B70 |
B7, B38, B41, B69 |
| 3GCELL Bands | B5, B6, B8, B12, B13, B14, B19, B20, B26 |
B1, B2, B3, B4, B9, B10, B25, B33, B34, B35, B36, B37, B39 |
B7, B38 |
| 2GCELL Bands | 710, 750, 810T, 850, 900P, 900E, 900R |
1800DCS, 1900PCS | |
| CDMACELL Bands | BC0, BC2, BC3, BC7, BC9, BC10, BC12, BC18, BC19 |
BC1, BC4, BC6, BC8, BC14, BC15 |
BC13, BC16 |
Compatible mounting brackets
2JB14H
Wall Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J70xx, 2J71xx, 2J7Axx, 2J7Bxx antenna series
2JB14J
Pole Mount Stainless Steel bracket for Screw Mount Antenna versions of 2J70xx, 2J71xx, 2J7Axx, 2J7Bxx antenna series
2JB16J
Pole Mount plastic bracket for 2J6Bxx, 2J7Axx and 2J7Bxx screw mount antenna series
2JB19J
Pole Mount plastic/aluminum alloy bracket for 2J6Bxx, 2J7Axx and 2J7Bxx screw mount antenna series
